GB/T 36102-2018: Tin-coated copper-clad steel wire for electronic products Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

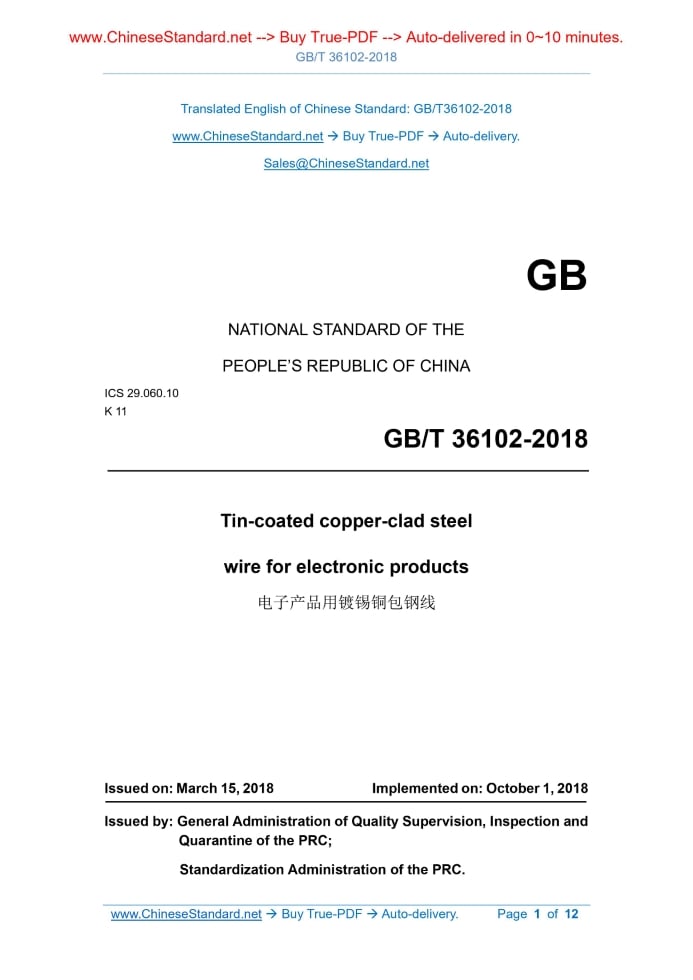

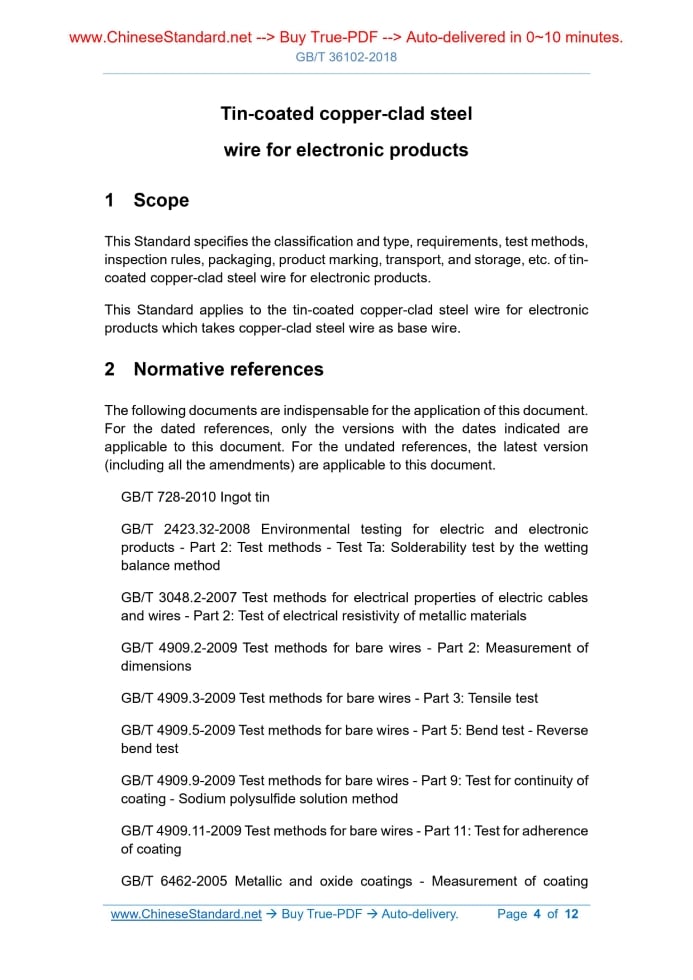

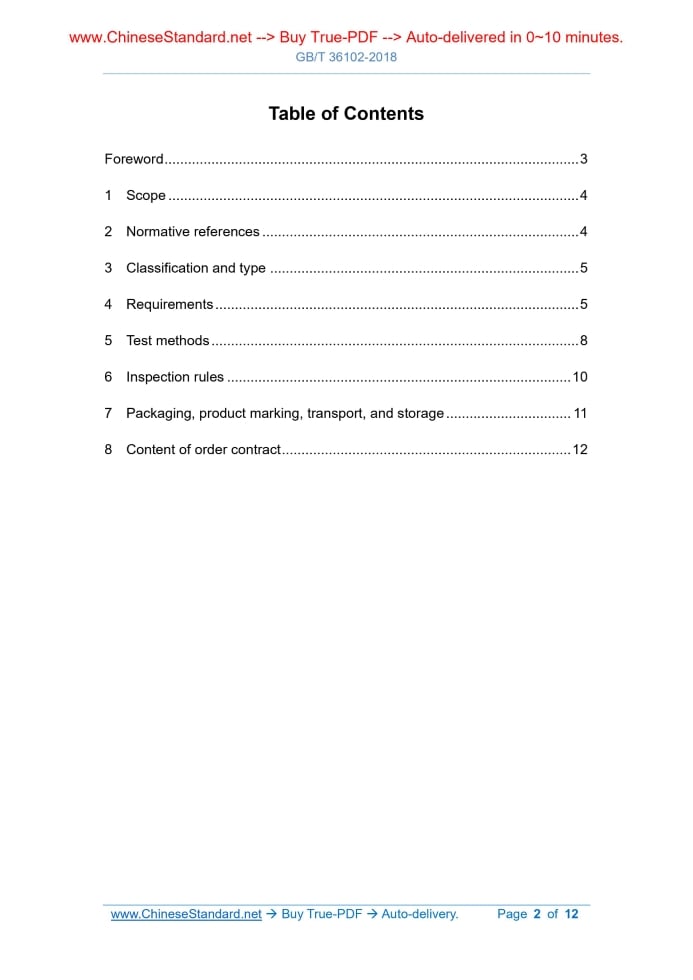

Similar standardsGB/T 36102-2018: Tin-coated copper-clad steel wire for electronic products---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT36102-2018GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 29.060.10 K 11 Tin-coated copper-clad steel wire for electronic products Issued on: MARCH 15, 2018 Implemented on: OCTOBER 1, 2018 Issued by. General Administration of Quality Supervision, Inspection and Quarantine of the PRC; Standardization Administration of the PRC. Table of ContentsForeword ... 3 1 Scope ... 4 2 Normative references ... 4 3 Classification and type ... 5 4 Requirements ... 5 5 Test methods ... 8 6 Inspection rules ... 10 7 Packaging, product marking, transport, and storage ... 11 8 Content of order contract ... 12 Tin-coated copper-clad steel wire for electronic products1 ScopeThis Standard specifies the classification and type, requirements, test methods, inspection rules, packaging, product marking, transport, and storage, etc. of tin- coated copper-clad steel wire for electronic products. This Standard applies to the tin-coated copper-clad steel wire for electronic products which takes copper-clad steel wire as base wire.2 Normative referencesThe following documents are indispensable for the application of this document. For the dated references, only the versions with the dates indicated are applicable to this document. For the undated references, the latest version (including all the amendments) are applicable to this document. GB/T 728-2010 Ingot tin GB/T 2423.32-2008 Environmental testing for electric and electronic products - Part 2. Test methods - Test Ta. Solderability test by the wetting balance method GB/T 3048.2-2007 Test methods for electrical properties of electric cables and wires - Part 2. Test of electrical resistivity of metallic materials GB/T 4909.2-2009 Test methods for bare wires - Part 2. Measurement of dimensions GB/T 4909.3-2009 Test methods for bare wires - Part 3. Tensile test GB/T 4909.5-2009 Test methods for bare wires - Part 5. Bend test - Reverse bend test GB/T 4909.9-2009 Test methods for bare wires - Part 9. Test for continuity of coating - Sodium polysulfide solution method GB/T 4909.11-2009 Test methods for bare wires - Part 11. Test for adherence of coating GB/T 6462-2005 Metallic and oxide coatings - Measurement of coating is less than the specified value and the breaking point appears within 25 mm from the chuck of tester or the gauge length of extensometer, the data is invalid; and the test shall be repeated. 5.5 Reverse bend The number of reverse bend of tin-coated copper-clad steel wire shall be tested in accordance with the provisions of GB/T 4909.5-2009. 5.6 Coating thickness The coating thickness of tin-coated copper-clad steel wire shall be measured in accordance with the provisions of GB/T 6462-2005. Other measuring methods agreed upon by both supply and demand sides can also be used. 5.7 Continuity of coating The continuity of coating of tin-coated copper-clad steel wire shall be tested in accordance with the provisions of Procedure a) in 5.5 of GB/T 4909.9-2009. The test piece shall be subjected to two immersion cycles. 5.8 Adherence of coating The adherence of coating of tin-coated copper-clad steel wire shall be tested in accordance with the provisions of GB/T 4909.11-2009. The test piece shall be wound on a test rod which does not exceed 4 times the nominal diameter of the wire. The test piece after being wound is subjected to one-cycle immersion test. 5.9 Solderability The normal solderability of tin-coated copper-clad steel wire shall be tested in accordance with the provisions of GB/T 2423.32-2008 and the following detailed rules. a) Test piece preparation. On each coil (shaft) of sample drawn in the specified number, CUT off 2 test pieces with a length of about 30 mm. The test piece shall not be touched by hand or contaminated, and before the test, shall not be cleaned. b) Test conditions. The solder is Sn96.5Ag3.0Cu0.5. The soldering flux is prepared with 25% of rosin and 75% of ethyl alcohol. The test temperature is (245±3)°C. c) Test parameters. The immersing depth is 3 mm. The immersing speed is 20 mm/s. The immersing duration is 5 s. d) Test result. On the automatically-recorded wetting curve, TAKE the than 3 coils (shafts). When the batch is large, it shall not be more than 10 coils (shafts). The test piece shall be cut off from each sample unit (coil or shaft). 6.4 Determination rules If all inspections are qualified, the inspection batch shall be qualified. When there is an unqualified item, it shall take double the number of samples for the second inspection of the unqualified item; if there is still nonconformity, the batch of products shall be judged as unqualified.7 Packaging, product marking, transport, and storage7.1 Packaging Tin-coated copper-clad steel wire shall be evenly and neatly wound around the wire coil (shaft). The wire end shall be firmly fixed. Proper distance shall be maintained between the outermost wire turn and the edge of side plate of wire coil. Each coil (shaft) of wire shall be wrapped with Kraft paper and then packaged in a plastic bag containing desiccant, and then loaded into a barrel (box) lined with moisture-proof paper. 7.2 Product marking Each coil (shaft) of tin-coated copper-clad steel wire products shall be accompanied by a label, which indicates. a) Name of manufacturing enterprise (with bar code attached); b) Type and specification; c) Gross weight and net weight (kg); d) Production date (year and month, or batch number); e) This Standard’s number. 7.3 Transport The product, during transport, shall be protected from wet oxidation and corrosion. 7.4 Storage The product shall be stored in a dry, ventilated, non-corrosive media and hazardous gas warehouse. The storage time shall not exceed half a year. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 36102-2018 be delivered?Answer: The full copy PDF of English version of GB/T 36102-2018 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 36102-2018_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 36102-2018_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 36102-2018 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 36102-2018?A step-by-step guide to download PDF of GB/T 36102-2018_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 36102-2018". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
