GB/T 35087-2018 PDF EnglishUS$130.00 · In stock · Download in 9 seconds
GB/T 35087-2018: Plain bearings -- Lubrication holes, grooves and pockets -- Dimensions, types, designation and their application to bearing bushes Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

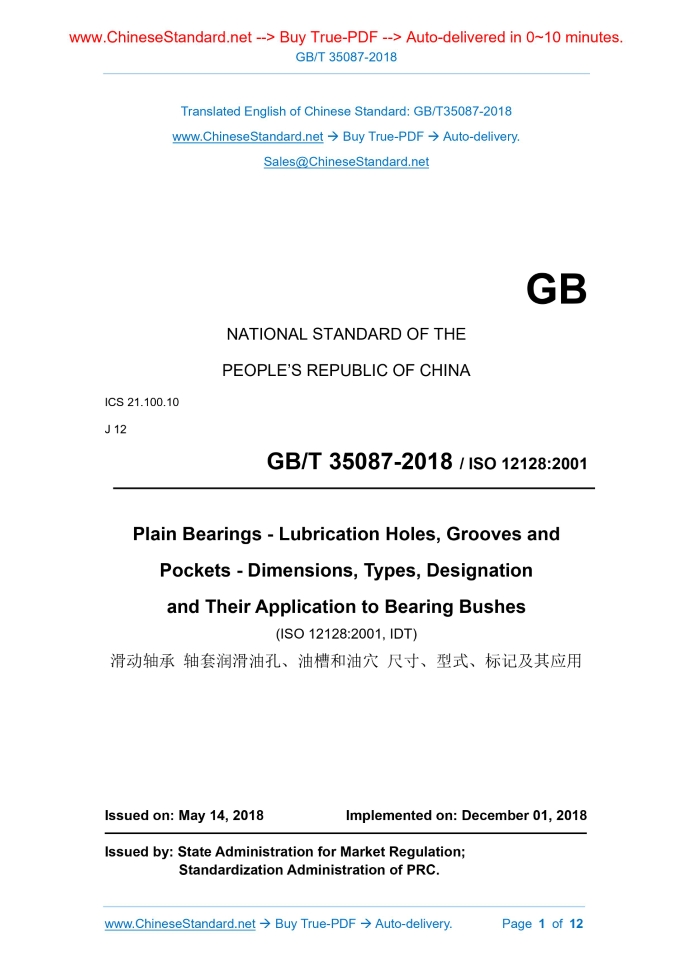

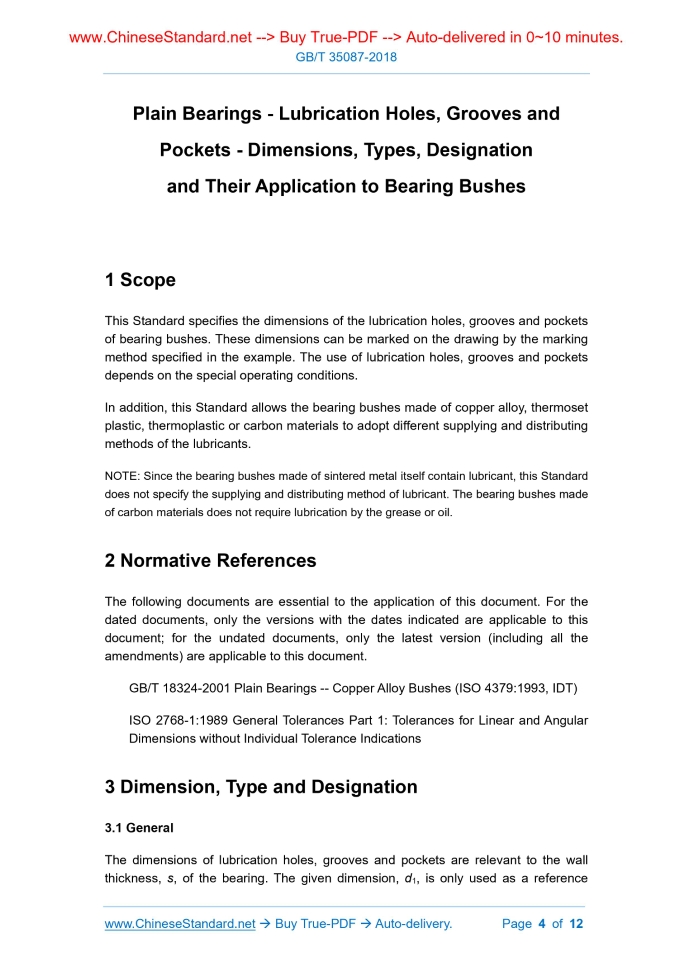

Similar standardsGB/T 35087-2018: Plain bearings -- Lubrication holes, grooves and pockets -- Dimensions, types, designation and their application to bearing bushes---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT35087-2018 Plain bearings--Lubrication holes, grooves and pockets--Dimensions, types, designation and their application to bearing bushes ICS 21.100.10 J12 National Standards of People's Republic of China Sliding bearing bushings for oil holes, oil grooves and oil pockets Size, pattern, marking and its application (ISO 12128.2001, IDT) Published on.2018-05-14 2018-12-01 implementation State market supervision and administration China National Standardization Administration issued ForewordThis standard was drafted in accordance with the rules given in GB/T 1.1-2009. This standard uses the translation method equivalent to ISO 12128.2001 "sliding bearing bushing oil hole, oil groove and oil hole size, type, standard Remember and its application. The documents of our country that have a consistent correspondence with the international documents referenced in this standard are as follows. ---GB/T 1804-2000 Tolerance of linear and angular dimensions for general tolerances without tolerances (eqvISO 2768-1.1989) This standard has made the following editorial changes. --- Added in the scope of Chapter 1 "Note. Since the bushing made of sintered metal itself contains lubricant, this standard does not specify its lubricant Supply and distribution methods. Bushings made of carbon do not require lubrication with lubricating oil or grease. ". This standard was proposed by the China Machinery Industry Federation. This standard is under the jurisdiction of the National Sliding Bearing Standardization Technical Committee (SAC/TC236). This standard is drafted by. China Machine Productivity Promotion Center. Participated in the drafting of this standard. Zhejiang Changsheng Sliding Bearing Co., Ltd., Zhejiang Shuangfei Oilless Bearing Co., Ltd., Zhejiang Zhongzhong Precision Components Co., Ltd., Jiashan Fengcheng Sanfu Bearing Co., Ltd., Linan Dongfang Sliding Bearing Co., Ltd. This standard is interpreted by the National Standardization Technical Committee for Plain Bearings. Sliding bearing bushings for oil holes, oil grooves and oil pockets Size, pattern, marking and its application1 ScopeThis standard specifies the size of the lubricating oil hole, oil groove and oil pocket of the bushing. These dimensions can be labeled with the marking method specified in the example On the drawing. The use of lubrication holes, oil grooves, and oil pockets depends on the specific operating conditions. In addition, this standard allows bushings made of copper alloys, thermosets, thermoplastics or carbon materials to be supplied with different lubricants and Allocation. Note. Since the bushing made of sintered metal itself contains lubricant, this standard does not specify the way the lubricant is supplied and distributed. Bushing made of carbon material is not required Lubricate the oil or grease.2 Normative referencesThe following documents are indispensable for the application of this document. For dated references, only dated versions apply to this article. Pieces. For undated references, the latest edition (including all amendments) applies to this document. GB/T 18324-2001 Plain bearing copper alloy bushings (ISO 4379.1993, IDT) ISO 2768-1.1989 General tolerances Part 1. Tolerances to linear and angular dimensions without tolerances (Generaltolerances- Part 1. Tolerancesforlinearandangulardimensionswithoutindividualtoleranceindications) 3 sizes, patterns and markings 3.1 Overview The size of the lubrication holes, oil grooves and oil pockets is related to the wall thickness s of the bearing. The given size d1 should only be used as a reference size. All dimensions are in mm. 3.2 Lubricating oil hole 3.2.1 Dimensions and types The size and type of the lubrication hole are shown in Figure 1 and Table 1. Lubricating oil holes provide lubrication with oil grooves and oil pockets. When the lubrication of a certain lubrication point can meet the requirements, the lubricating oil hole and oil can be omitted. Slot or oil pocket. Figure 1 Lubricating oil hole Table 1 Lubricating oil hole size D2 2.5 3 4 5 6 8 10 12 T1 1 1.5 2 2.5 3 4 5 6 D3 Type A 4.5 6 8 10 12 16 20 24 Type B 6 8.2 10.8 13.6 16.2 21.8 27.2 32.6 > - 2- 2.5 3 4 5 7.5 10 ≤ 2 2.5 3 4 5 7.5 10 - D1 nominal d1 ≤ 30 30 \u003cd1≤100 d1\u003e 100 3.2.2 Marking Example. Type A lubricant hole, oil hole diameter d2 = 3mm, marked as follows. Lubricating oil hole GB/T 35087-A3 3.3 Lubricating oil tank 3.3.1 Size and type The size and type of lubricating oil tank are shown in Figure 2, Figure 3 and Table 2 and Table 3. Lubricating oil tanks are mainly used for plain bearings. C, D, E type oil tanks are usually used together with H type (circumferential oil grooves), mainly for non-ferrous metals, In plain bearings made of steel, cast iron or plastic. F and G oil grooves are mainly used for sliding bearings made of carbon materials. Type J oil sump is a narrow mixing oil tank, usually used for grease lubrication. For easy processing and avoiding burrs, all sharp corners can be made small Chamfer or rounded corners. Note. For ease of manufacture, the dimensions of the remaining wall thickness of the bearing in the oil groove can be marked on the drawing as the control size. Figure 2 Lubricating oil tank Table 2 Lubricating oil tank size T2 e1 e2 r1 r2 y α s d1 Type type type type type C~JD, EJGHCDFJCJJJ > ≤ C~HJ 0.4 3 3 1.2 3 1.5 1.5 1 1 1.5 1 1.5 28° - 1 0.6 4 4 1.6 3 1.5 1.5 1 1.5 2 1.5 2.1 25° 1 1.5 0.8 5 5 1.8 3 1.5 2.5 1 1.5 3 1.5 2.2 25° 1.5 2 1 8 6 2 4 2 4 1.5 2 4.5 2 2.8 22° 2 2.5 D1≤ 1.2 10.5 6 2.5 5 2.5 6 2 2 6 2 2.6 22° 2.5 3 1.6 14 7 3.5 6 3 8 3 2.5 9 2.5 2.6 20° 3 4 2 19 8 4.5 8 4 12 4 2.5 12 2.5 2.8 20° 4 5 D1≤ 2.5 28 8 7.5 10 5 20 5 3 15 3 3 20° 5 7.5 3.2 38 - 11 12 7 28 7 - 21 - - - 7.5 10 4 49 - 14 15 9 35 9 - 27 - - - 10 - D1 > a Rounded. Figure 3 Lubrication tank with closed end Table 3 margin a size b Nominal 15≤b≤30 30 \u003cb≤60 60\u003cb≤100 b\u003e 100 a 3 4 6 10 3.3.2 Marking Example. D-type lubricating oil tank, oil tank depth t2 = 0.8mm, marked as follows. Lubricating oil tank GB/T 35087-D0.8 3.4 Lubricating oil 3.4.1 Size and type The size and type of the lubricating hole are shown in Figure 4 and Table 4. Lubricating oil pockets are often used when a large oil storage space is required. K-type oil pockets are mainly used for linear reciprocating sliding friction movement. Figure 4 lubricating oil hole Table 4 Lubrication hole size T2 d2 e1 e2 r2 1.6 6 8 1.8 6.5 2.5 8 15 2.8 14 4 10 24 4.5 20 6 12 35 6.3 30 3.4.2 Marking Example. K-type lubricating oil hole, oil hole depth t2 = 2.5mm, marked as follows. Lubricating oil hole GB/T 35087-K2.5 3.5 Design The tolerance for unfilled tolerances shall be in accordance with the “c” tolerance in ISO 2768-1. The maximum size of the chamfer at the corner should be 0.5mm or Rounded. Sharp corner transitions at the sliding surface should be avoided. In addition to plain bearings made of carbon material, the location of the oil holes, oil grooves and oil pockets should not be located in the bearing bearing area. Usually oil tanks and oil pockets It should not be opened in the axial direction. The shape of the oil sump or oil pocket should be determined by the manufacturer. Note. When lubricating oil grooves and oil pockets are processed on sliding bearings made of materials with high toughness and hardness, the bottom of the oil tank is allowed to appear without affecting the sliding bearing transport. Turn the ripples. Since the bushing made of sintered metal itself contains a lubricant, its lubricating oil holes, oil grooves and oil pockets are not specified. 4 Lubrication holes, oil grooves and oil pockets on the bushing (see Table 5) See 3.2 and 3.4 for the size and type of lubrication holes, oil grooves and oil pockets in accordance with this standard. Examples of markings for bushings without lubrication holes, oil grooves and oil pockets can be found in the relevant standards. The symbol x represents the distance from the lead-in end of the sleeve, except for x=b/2. The symbol h indicates the pitch of the oil groove, and the size is 0.1b to 1b. If there are two oil holes or oil pockets in the bushing, the position should be 180° apart, the three oil holes and the oil hole should be separated by 120°, and the four should be separated by 90°. Each bushing should only specify one form of oil hole, oil groove and oil pocket. The x and h values for each type are freely selectable. 5 Examples of markings for bushings with oil holes and/or oil grooves C-type bushings with dimensions of 20×24×20Y, the material is CuSn8P in accordance with GB/T 18324-2001, with this standard Two L-shaped oil holes (2L) corresponding to the quasi-medium A-type bushing, the distance between the center line of the oil hole and the lead-in end face is x=6mm. The marking examples are as follows. Bushing GB/T 18324-C20×24×20Y-A2L6-CuSn8P For the same bushing, add two D-type (2D) longitudinal oil grooves corresponding to the C-type bushings in this standard. The marking examples are as follows. Bushing GB/T 18324-C20×24×20Y-A2L62D-CuSn8P C-type bushings with dimensions of 20×24×20Y, the material is CuSn8P in accordance with GB/T 18324-2001, with this standard The three D-type (3D) longitudinal oil grooves corresponding to the quasi-medium C-type bushings also have one H-type (1H) corresponding to the E-type bushings in this standard. Circumferential oil groove, the distance between the center line of the circumferential oil groove and the introduction end face is x=6mm. The marking examples are as follows. Bushing GB/T 18324-C20×24×20Y-C3DE1H6-CuSn8P Table 5 bushing type Bushing type Lubricating oil hole and oil groove Type (see Chapter 3) Type and application Bushing material Lubricating oil hole Medium or off center Copper alloy Thermoset plastic Thermoplastic Longitudinal oil tank, at Both ends are closed Copper alloy Thermoset plastic Thermoplastic Circumferential oil tank Medium or off center Copper alloy Thermoset plastic Thermoplastic Carbon material Longitudinal oil tank To the sleeve introduction end The other side of the face Copper alloy Thermoset plastic Thermoplastic Table 5 (continued) Bushing type Lubricating oil hole and oil groove Type (see Chapter 3) Type and application Bushing material Longitudinal oil tank To the lead end Copper alloy Thermoset plastic Thermoplastic Longitudinal oil tank, two End face Copper alloy Carbon material Right-handed spiral oil tank Copper alloy Carbon material Left-handed spiral oil tank Copper alloy Carbon material Table 5 (continued) Bushing type Lubricating oil hole and oil groove Type (see Chapter 3) Type and application Bushing material Eight-shaped oil tank Copper alloy Thermoset plastic Thermoplastic Elliptical oil tank Copper alloy Thermoset plastic Thermoplastic OSI/ 8102- T/ ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 35087-2018 be delivered?Answer: The full copy PDF of English version of GB/T 35087-2018 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 35087-2018_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 35087-2018_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 35087-2018 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 35087-2018?A step-by-step guide to download PDF of GB/T 35087-2018_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 35087-2018". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
