GB/T 38191-2019: Plain Bearing - Nickel Alloy Self-lubricated Bearing Material Specifications Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

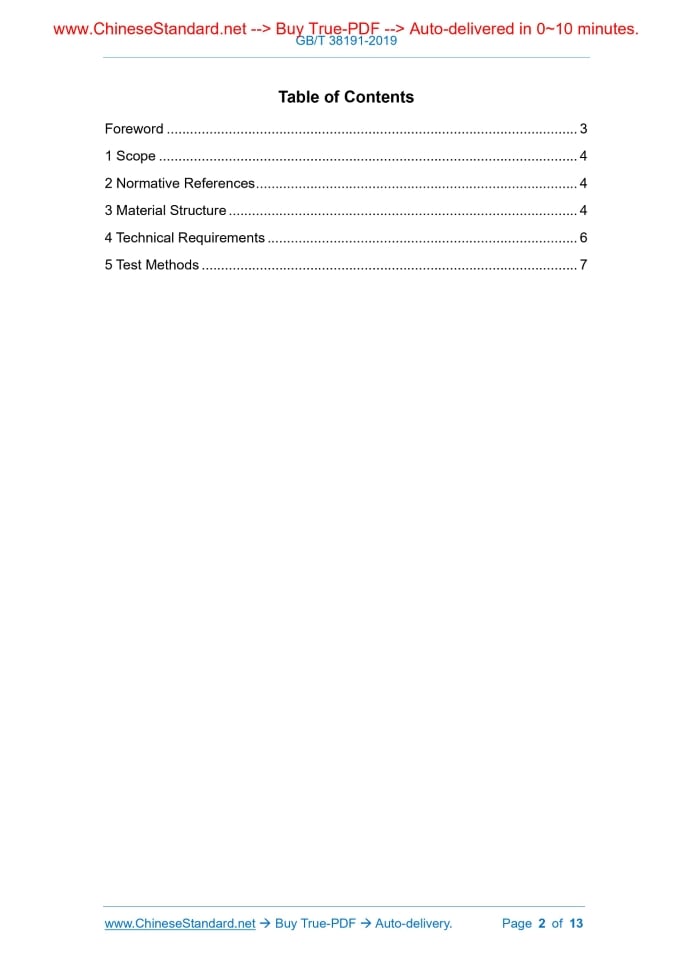

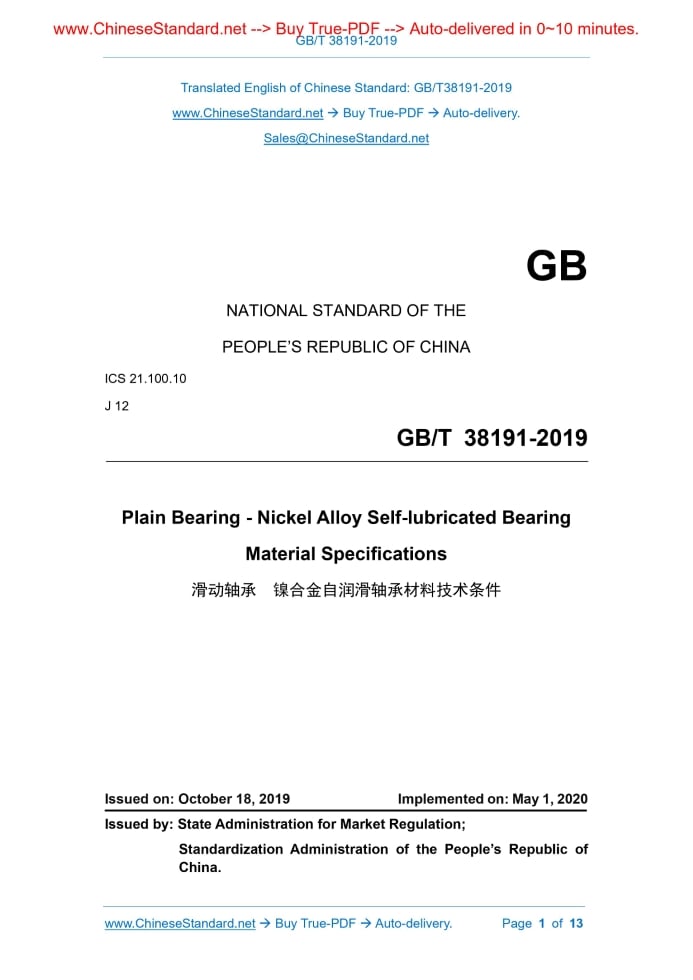

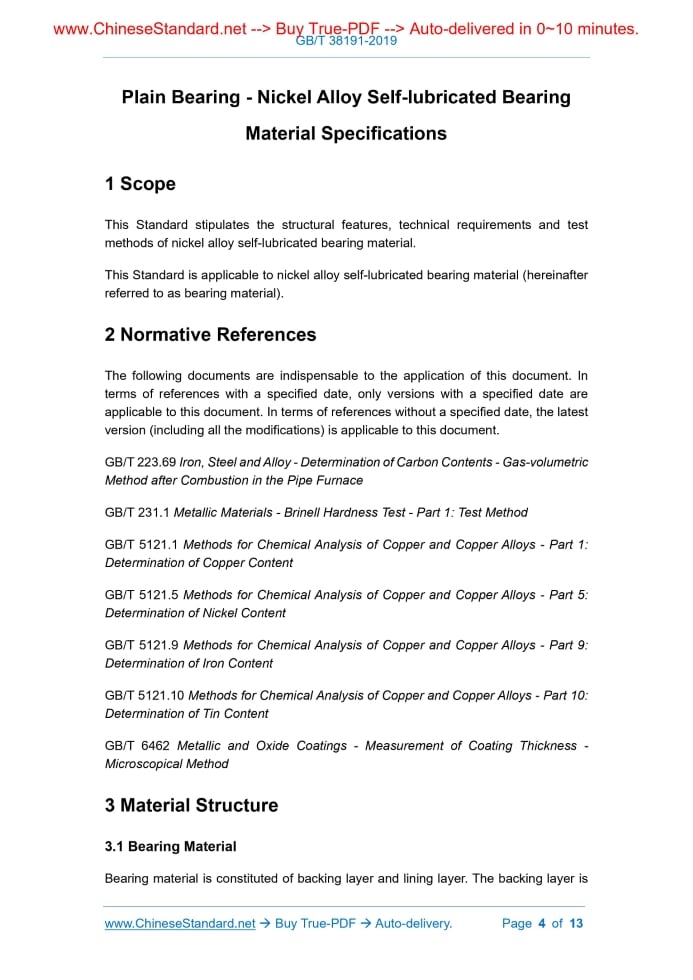

Similar standardsGB/T 38191-2019: Plain Bearing - Nickel Alloy Self-lubricated Bearing Material Specifications---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT38191-2019NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 21.100.10 J 12 Plain Bearing - Nickel Alloy Self-lubricated Bearing Material Specifications ISSUED ON: OCTOBER 18, 2019 IMPLEMENTED ON: MAY 1, 2020 Issued by: State Administration for Market Regulation; Standardization Administration of the People’s Republic of China. Table of ContentsForeword ... 3 1 Scope ... 4 2 Normative References ... 4 3 Material Structure ... 4 4 Technical Requirements ... 6 5 Test Methods ... 7 Plain Bearing - Nickel Alloy Self-lubricated Bearing Material Specifications1 ScopeThis Standard stipulates the structural features, technical requirements and test methods of nickel alloy self-lubricated bearing material. This Standard is applicable to nickel alloy self-lubricated bearing material (hereinafter referred to as bearing material).2 Normative ReferencesThe following documents are indispensable to the application of this document. In terms of references with a specified date, only versions with a specified date are applicable to this document. In terms of references without a specified date, the latest version (including all the modifications) is applicable to this document. GB/T 223.69 Iron, Steel and Alloy - Determination of Carbon Contents - Gas-volumetric Method after Combustion in the Pipe Furnace GB/T 231.1 Metallic Materials - Brinell Hardness Test - Part 1: Test Method GB/T 5121.1 Methods for Chemical Analysis of Copper and Copper Alloys - Part 1: Determination of Copper Content GB/T 5121.5 Methods for Chemical Analysis of Copper and Copper Alloys - Part 5: Determination of Nickel Content GB/T 5121.9 Methods for Chemical Analysis of Copper and Copper Alloys - Part 9: Determination of Iron Content GB/T 5121.10 Methods for Chemical Analysis of Copper and Copper Alloys - Part 10: Determination of Tin Content GB/T 6462 Metallic and Oxide Coatings - Measurement of Coating Thickness - Microscopical Method3 Material Structure3.1 Bearing Material Bearing material is constituted of backing layer and lining layer. The backing layer is 4.5 Bonding Strength The bonding strength between lining layer and backing layer is requested to be more than 50 N/mm2. 4.6 Appearance Quality Backing is the natural color of steel plate; lining layer is bright gray. It shall manifest bright color and luster under visual inspection; solid lubricants shall be evenly distributed. There shall be no scratches or drag marks that might affect the usage.5 Test Methods5.1 Test of Lining Layer Thickness Conduct the test in accordance with the stipulations in GB/T 6462. Under the circumstance that magnification is 70 times, measure the thinnest point in a field of view. 5.2 Chemical Composition Analysis Carbon content in backing shall be determined in accordance with the method stipulated in GB/T 223.69. The chemical composition of sintered metal alloy in the lining layer shall be determined in accordance with the methods stipulated in GB/T 5121.1, GB/T 5121.5, GB/T 5121.9 and GB/T 5121.10. 5.3 Hardness Test Test conditions are: HBW2.5/62.5; ambient temperature: 18 °C ~ 24 °C. Test method shall comply with the stipulations in GB/T 231.1. 5.4 Compression Deformation Test 5.4.1 Test equipment The test shall be conducted on compression testing machine or other pressure loading mechanisms. The working surface of the pressing plate shall be flat and polished; the hardness of the pressing plate shall be not lower than 55 HRC. 5.4.2 Sample preparation This test adopts rectangular samples, with the sample size of: 15 mm 10 mm 5 mm. The geometric accuracy requirement of the samples shall comply with the stipulations in Figure 2. 5.5.3 Requirements of grinding part The material of grinding part shall be 45 Steel; hardness: 43 HRC ~ 47 HRC; roughness: Ra0.8 μm. 5.5.4 Lubrication Before the test begins, thoroughly smear No.2 lithium base lubricating grease on the friction surface of the sample. During the test process, do not lubricate the sample. 5.5.5 Test method Adopt constant speed and load test; test time shall be: 34 h (reciprocate for around 65,000 times); ambient temperature: 18 °C ~ 24 °C; extreme temperature: 100 °C; load: 10 kN (5 N/mm2); average speed: 7 m/min; stroke: 110 mm ± 10 mm. When one of the following circumstances emerges, the test shall be terminated in advance, products shall be determined as disqualified: a) Temperature reaches the stipulated extreme value; b) Friction factor exceeds the limit value. Through computer, print the friction factor and temperature curve that varies with the time. 5.5.6 Friction and wear determination method Before the test begins, use wall thickness micrometer to measure the thickness of the sample in over 4 points; take the arithmetic mean value. After the test is terminated, wait till the sample cools down to room temperature, then, measure the wear part of the sample in over 4 points; take the arithmetic mean value. The thickness difference before and after the wear shall be the wear extent. 5.6 Shear Test of Bonding Strength between Lining and Backing Layer 5.6.1 Sample preparation Take bearing material, process it in accordance with Figure 5. During the processing, do not damage the backing layer. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 38191-2019 be delivered?Answer: The full copy PDF of English version of GB/T 38191-2019 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 38191-2019_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 38191-2019_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 38191-2019 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 38191-2019?A step-by-step guide to download PDF of GB/T 38191-2019_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 38191-2019". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
