GB/T 34549-2024: Sanitary ware - Smart toilet Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB/T 34549: Historical versions

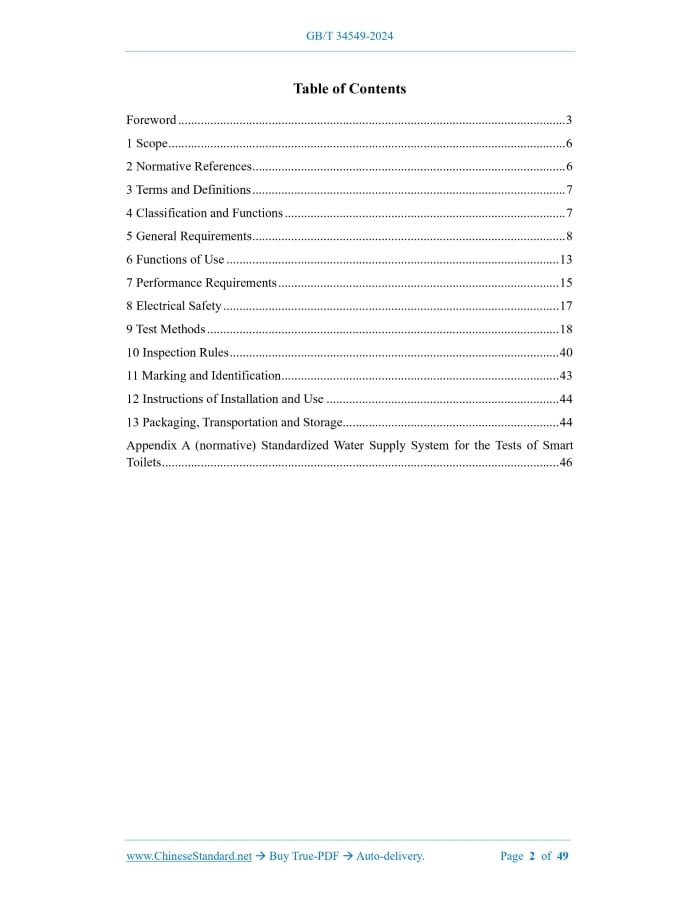

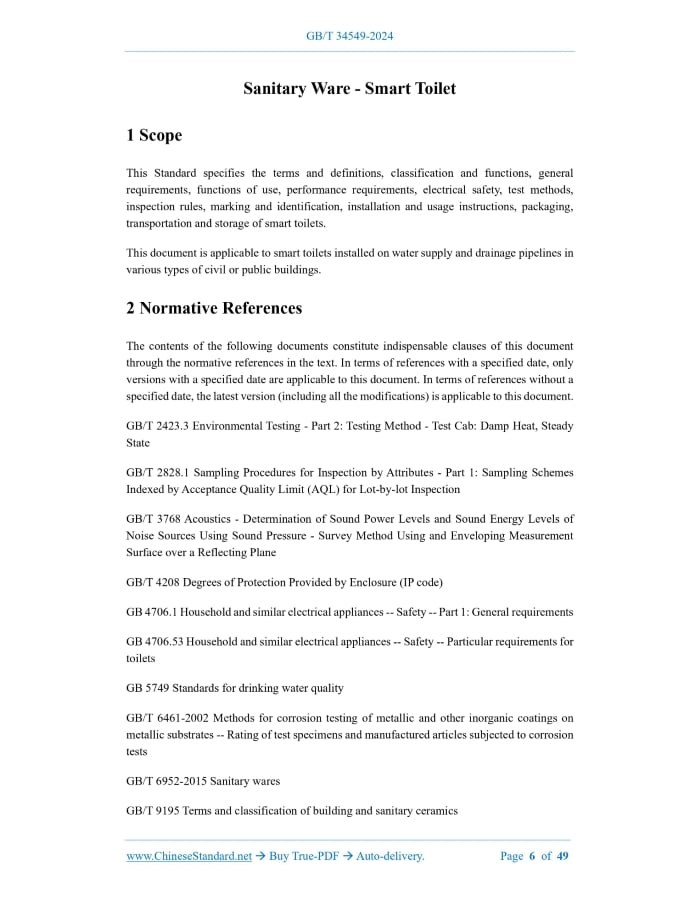

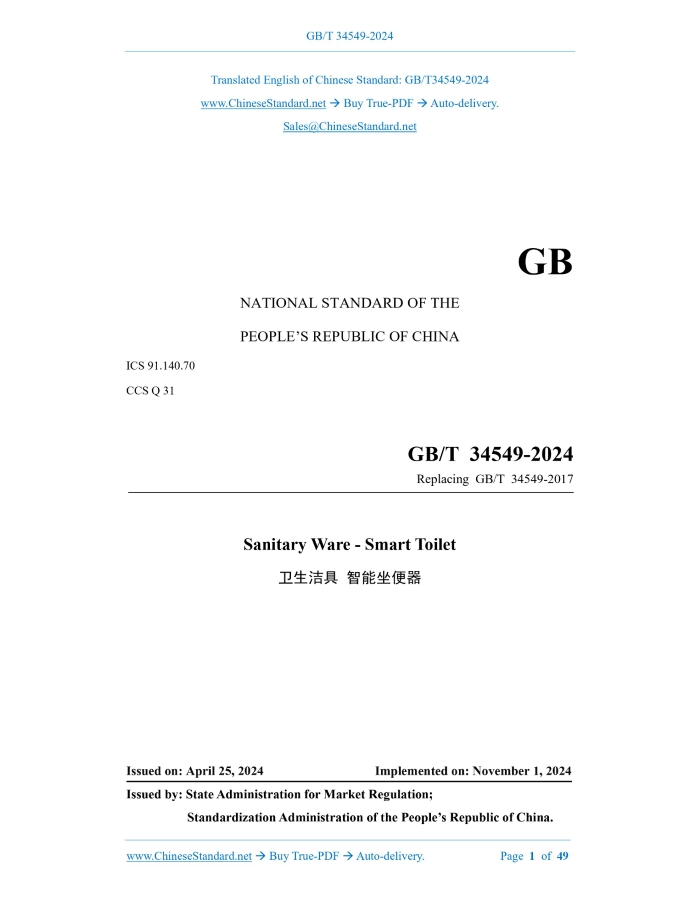

Similar standardsGB/T 34549-2024: Sanitary ware - Smart toilet---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT34549-2024GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 91.140.70 CCS Q 31 Replacing GB/T 34549-2017 Sanitary Ware - Smart Toilet Issued on. APRIL 25, 2024 Implemented on. NOVEMBER 1, 2024 Issued by. State Administration for Market Regulation; Standardization Administration of the People’s Republic of China. Table of ContentsForeword... 3 1 Scope... 6 2 Normative References... 6 3 Terms and Definitions... 7 4 Classification and Functions... 7 5 General Requirements... 8 6 Functions of Use... 13 7 Performance Requirements... 15 8 Electrical Safety... 17 9 Test Methods... 18 10 Inspection Rules... 40 11 Marking and Identification... 43 12 Instructions of Installation and Use... 44 13 Packaging, Transportation and Storage... 44 Appendix A (normative) Standardized Water Supply System for the Tests of Smart Toilets... 461 ScopeThis Standard specifies the terms and definitions, classification and functions, general requirements, functions of use, performance requirements, electrical safety, test methods, inspection rules, marking and identification, installation and usage instructions, packaging, transportation and storage of smart toilets. This document is applicable to smart toilets installed on water supply and drainage pipelines in various types of civil or public buildings.2 Normative ReferencesThe contents of the following documents constitute indispensable clauses of this document through the normative references in the text. In terms of references with a specified date, only versions with a specified date are applicable to this document. In terms of references without a specified date, the latest version (including all the modifications) is applicable to this document. GB/T 2423.3 Environmental Testing - Part 2.Testing Method - Test Cab. Damp Heat, Steady State GB/T 2828.1 Sampling Procedures for Inspection by Attributes - Part 1.Sampling Schemes Indexed by Acceptance Quality Limit (AQL) for Lot-by-lot Inspection GB/T 3768 Acoustics - Determination of Sound Power Levels and Sound Energy Levels of Noise Sources Using Sound Pressure - Survey Method Using and Enveloping Measurement Surface over a Reflecting Plane GB/T 4208 Degrees of Protection Provided by Enclosure (IP code) GB 4706.1 Household and similar electrical appliances -- Safety -- Part 1.General requirements GB 4706.53 Household and similar electrical appliances -- Safety -- Particular requirements for toilets GB 5749 Standards for drinking water quality GB/T 6461-2002 Methods for corrosion testing of metallic and other inorganic coatings on metallic substrates -- Rating of test specimens and manufactured articles subjected to corrosion tests3 Terms and DefinitionsThe terms and definitions defined in GB/T 9195 and GB/T 6952-2015, and the following are applicable to this document. 3.1 smart toilet A toilet that is controlled by an electromechanical system or program to complete one or more functions including warm water cleaning function (buttocks cleaning function and female washing function). 3.2 integral smart toilet A smart toilet with an intelligent electromechanical control system that cannot be used separately from the toilet. 3.3 split smart toilet A smart toilet with an intelligent electromechanical control system that can be independently separated from the toilet, and the smart toilet cover part can be used after being combined.4 Classification and Functions4.1 Classification 4.1.1 Classification by material In accordance with the base material, they can be divided into ceramic smart toilets and non- ceramic smart toilets. 4.1.2 Classification by heating mode In accordance with the heating mode, they can be divided into. 4.1.3 Classification by structure In accordance with the structure, they are divided into integral smart toilets and split smart toilets (smart toilet cover).5 General Requirements5.1 Appearance Quality 5.1.1 Toilet part 5.1.2 Toilet cover part The cover of the smart toilets shall comply with the following requirements. 5.2 Deformation The maximum allowable deformation of the toilets shall comply with the stipulations of Table 1. 5.3 Sizes 5.4 Thickness The thickness of the ceramic toilet body at any part shall not be less than 6 mm (excluding the additional supporting body to prevent firing deformation). 5.5 Size of Sewage Outlet of Smart Toilets 5.6 Water Seal 5.7 Minimum Diameter of Trap A solid ball with a diameter of 41 mm shall be able to pass the water channel of the trap of smart toilets. 5.8 Trap Ceramic smart toilet products without an integral trap shall be equipped with a trap with a water seal depth of not less than 50 mm. 5.9 Water Absorption Rate The water absorption rate of ceramic toilets is E 0.5%, and the water absorption rate of artificial stone toilets is E 0.5%. 5.10 Crack Resistance Ceramic toilets shall have no glaze cracks or base cracks after being subjected to the crack resistance test. 5.11 Load Resistance After being subjected to the load resistance test, there shall be no deformation or any visible structural damage. The loads endured by various types of products are as follows. 5.12 Test of Resistance to Household Chemicals After being subjected to the test of resistance to household chemicals, non-ceramic toilets shall have no obvious damage on the surface. 5.13 Combustion Resistance After being subjected to the combustion resistance test, the non-ceramic toilet part shall manifest no open flame or smoldering, and any form of damage shall not affect the use of the products. 5.14 Barcol Hardness The Barcol hardness of the acrylic toilet part shall not be less than 40, and the Barcol hardness of the artificial stone part shall not be less than 35. 5.15 Thermal Aging Resistance of Plastics After being subjected to the test of thermal aging resistance of plastics, the surface of the plastic part shall be free of fractures, cracks and obvious deformation, etc., and shall comply with the requirements of 7.1. 5.16 Whole-machine Waterproof Level The whole-machine waterproof level shall not be lower than IPX4. 5.17 Surface Corrosion Resistance Test After the products are installed, the appearance of the coated and plated parts of the visible surface shall not be lower than the requirements of appearance rating (RA) Level 9 in Table 1m of GB/T 6461-2002. 5.18 Smart Toilet Flushing Noise In accordance with the stipulations of 9.2.18, determine the flushing noise of smart toilets. When required, the manufacturer shall report the cumulative percentage sound level L10 and L50 of the flushing noise. 5.19 Supporting Requirements 5.19.1 The supporting external water pipes shall comply with the stipulations of GB/T 23448. 5.19.2 In addition to the swing test, the supporting seat and cover shall comply with the stipulations of JC/T 764-2008.6 Functions of Use6.1 Toilet Functions 6.1.1 Toilet water consumption The nominal water consumption of the toilets shall comply with the stipulations of Table 4.The actual water consumption shall not be greater than the nominal water consumption. The average half-flush water consumption of dual-flush smart toilets shall not be greater than 70% of the maximum limit of full-flush water consumption. 6.1.2 Flushing function The flushing function shall comply with the requirements of 6.2.2 in GB/T 6952-2015. 6.1.3 Connection airtightness After the toilets are assembled with the flushing device and water inlet pipe in accordance with the manufacturer's installation instructions, after being subjected to the connection airtightness test, the connecting pipeline shall manifest no leakage. 6.1.4 Dredge machine test When smart toilets without an integral water trap adopt an external water trap, before performing the functional test, carry out a dredge machine test. Except for water overflow from the drain outlet of the water trap, there shall be no leakage in other parts. 6.2 Cleaning Function 6.2.1 Nozzle extension and retraction time The nozzle extension time shall not be greater than 8 s, and the nozzle retraction time shall not be greater than 10 s. 6.2.4 Cleaning water flow The cleaning water flow shall not be less than 200 mL/min. 6.2.5 Cleaning water consumption For the water saving smart toilets, the cleaning water consumption shall not be greater than 500 mL. 6.2.6 Cleaning force The maximum force value for buttock cleaning shall be above 0.06 N. 6.2.7 Cleaning area The cleaning area shall be greater than 80 mm2. 6.3 Nozzle Self-cleaning Performance After being subjected to the nozzle self-cleaning performance test, the 1/4 ink line at the front of the nozzle shall be cleaned without any ink line residue. 6.4 Warm Air-Drying Performance7 Performance Requirements7.1 Water Pressure Resistance After being subjected to the water pressure resistance test, the cleaning function of the smart toilets shall be normal, and there shall be no leakage, deformation or other abnormal phenomena. 7.2 Water Impact Resistance After being subjected to the water impact resistance test, there shall be no water impact phenomenon that increases the pressure by more than 0.4 MPa. 7.3 Anti-siphon Function 7.4 Mechanical Strength 7.4.1 Seat strength After being subjected to the seat strength test, the seat shall not have fractures, cracks, damage, deformation, loss of function, performance degradation or wire damage. 7.4.2 Cover strength After being subjected to the cover strength test, the cover shall not have features, cracks, damage or deformation. 7.4.3 Installation strength After being subjected to the installation strength test, the installation condition of the smart toilet cover shall be normal, and there shall be no misalignment, widening of gaps, obvious looseness or falling-off. 7.4.4 Swing test After being subjected to the swing test, the smart toilets shall have no damage or cracks, and the hinge shall be normal. 7.4.5 Impact test After being subjected to the impact test, the smart toilets shall have no cracks, breakage, deformation or wire damage. 7.5 Whole-machine Service Life After 25,000 cycles of service life test, the various components of the smart toilets shall not manifest features, cracks, damage, breakage or functional abnormalities.8 Electrical Safety8.1 Electrical Safety Performance The electrical safety performance of the smart toilets shall comply with the requirements of GB 4706.1 and GB 4706.53. 8.2 Power Supply 8.2.1 When the smart toilets use AC power, the rated voltage is 220 V, and the rated frequency is 50 Hz (except when there are special requirements). The smart toilets may also use DC power at the same time. 8.2.3 For battery-powered smart toilets, the battery shall be placed in an independently sealed battery box. The battery shall be easy to replace. After the battery has been replaced for more than 3 times, the battery box shall not be damaged, and the screws shall not be overturned. After the moisture resistance performance test, the metal parts in the battery box shall not be rusted. 8.2.4 There shall be leakage protection function. When the whole machine is short-circuited to ground or the leakage to the human body is greater than 10 mA, the AC power supply plug shall be automatically disconnected. 8.3 Moisture Resistance After being subjected to the moisture resistance test, all functions of the smart toilets shall normally operate.9 Test Methods9.1 Test Conditions 9.1.1 General requirements When testing the functions of use and performance requirements, the products shall be installed in the status of use for testing in accordance with the requirements of the instructions. When testing the electrical performance, each component may be individually tested in accordance with the demands of the test. 9.2 General Requirements 9.2.1 Appearance quality The appearance quality test of the ceramic toilet part shall be carried out in accordance with the method specified in 8.1 of GB/T 6952-2015.The appearance quality test of the non-ceramic toilet part shall be carried out in accordance with the method specified in 6.1 of JC/T 2116- 2012.The test of the toilet cover part shall be carried out by visual inspection. 9.2.4 Thickness The thickness test of the ceramic toilet part shall be carried out in accordance with the method specified in 8.3 of GB/T 6952-2015. 9.2.5 Sewage outlet size of smart toilets In accordance with the method specified in 8.3 of GB/T 6952-2015, carry out the test. 9.2.6 Water seal In accordance with the method specified in 8.3 of GB/T 6952-2015, carry out the test. 9.2.7 Minimum diameter of Trap In accordance with the method specified in 8.3 of GB/T 6952-2015, carry out the test. 9.2.8 Trap In accordance with the method specified in 8.3 of GB/T 6952-2015, carry out the test. 9.2.10 Crack resistance The crack resistance test of the ceramic toilet part shall be carried out in accordance with the method specified in 8.5 of GB/T 6952-2015. 9.2.11 Load resistance The load resistance test of the ceramic toilet part shall be carried out in accordance with the method specified in 8.7 of GB/T 6952-2015.The load resistance test of the non-ceramic toilet part shall be carried out in accordance with the method specified in 6.7 of JC/T 2116-2012. 9.2.12 Test of resistance to household chemicals The test of resistance to household chemicals of the non-ceramic toilet part shall be carried out in accordance with the method specified in 6.9 of JC/T 2116-2012. 9.2.13 Combustion resistance The combustion resistance test of the non-ceramic toilet part shall be carried out in accordance with the method specified in 6.11 of JC/T 2116-2012. 9.2.14 Barcol hardness 9.2.18 Smart toilet flushing noise test 9.3 Test of Functions of Use 9.3.1 Toilet water consumption In accordance with the method specified in 8.8 of GB/T 6952-2015, carry out the test. 9.3.2 Flushing function test In accordance with the method specified in 8.8 of GB/T 6952-2015, carry out the test. 9.3.7 Water temperature stability test 9.3.8 Cleaning water flow Select the maximum flow level for buttocks cleaning and female washing, use a timer and water metering device to respectively measure the cleaning water flow of buttocks cleaning and female washing for 1 minute, excluding the water flow for the self-cleaning of the spray gun. For the buttocks cleaning and female washing, respectively measure for 3 times, and take the arithmetic mean of the 6 times. 9.3.10 Cleaning force Select the maximum cleaning mode for buttocks cleaning, set the temperature adjustment device to the highest setting, and 30 seconds after the water starts to flow out, use a single-point pressure test device with an accuracy of not lower than 0.01 N and a frequency of not lower than 100 Hz as shown in Figure 3, or a device that can achieve the same test effect, to measure the maximum cleaning force value within any 2 seconds. The pressure plate is circular, with an area sufficient to bear the impact of all cleaning water, and the direct shall be perpendicular to the direction of water impact. 9.3.12 Nozzle self-cleaning performance test The nozzle self-cleaning performance test is carried out in accordance with the following steps. 9.3.13 Warm air-drying performance 9.5 Electrical Safety 9.5.1 Electrical safety performance In accordance with the methods specified in GB 4706.1 and GB 4706.53, carry out the test. 9.5.2 Power supply test ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 34549-2024 be delivered?Answer: The full copy PDF of English version of GB/T 34549-2024 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 34549-2024_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 34549-2024_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 34549-2024 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB/T 34549-2024?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB/T 34549-2024 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB/T 34549-2024?A step-by-step guide to download PDF of GB/T 34549-2024_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 34549-2024". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
