GB/T 33147-2016 PDF EnglishUS$375.00 · In stock · Download in 9 seconds
GB/T 33147-2016: Liquefied dimethyl ether cylinders Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

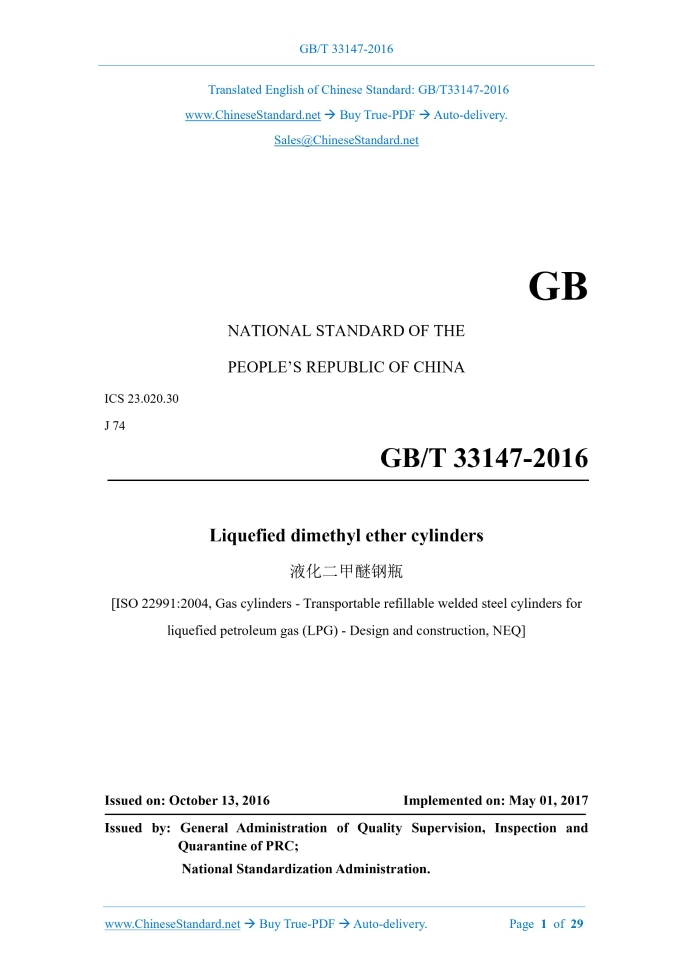

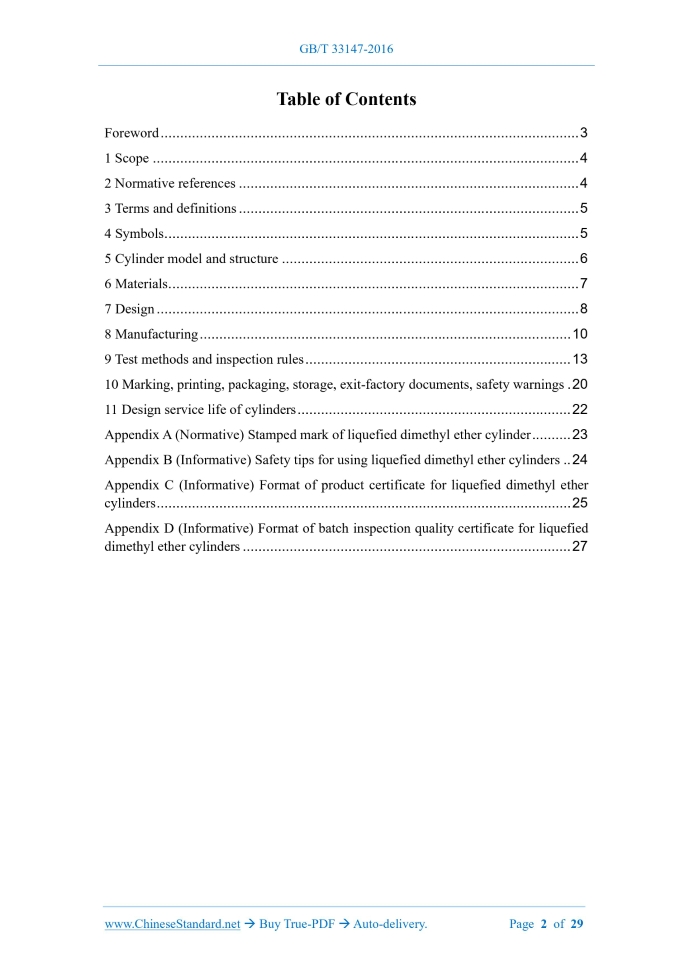

Similar standardsGB/T 33147-2016: Liquefied dimethyl ether cylinders---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT33147-2016GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 23.020.30 J 74 Liquefied dimethyl ether cylinders [ISO 22991.2004, Gas cylinders - Transportable refillable welded steel cylinders for liquefied petroleum gas (LPG) - Design and construction, NEQ] Issued on: OCTOBER 13, 2016 Implemented on: MAY 01, 2017 Issued by. General Administration of Quality Supervision, Inspection and Quarantine of PRC; National Standardization Administration. Table of ContentsForeword... 3 1 Scope... 4 2 Normative references... 4 3 Terms and definitions... 5 4 Symbols... 5 5 Cylinder model and structure... 6 6 Materials... 7 7 Design... 8 8 Manufacturing... 10 9 Test methods and inspection rules... 13 10 Marking, printing, packaging, storage, exit-factory documents, safety warnings. 20 11 Design service life of cylinders... 22 Appendix A (Normative) Stamped mark of liquefied dimethyl ether cylinder... 23 Appendix B (Informative) Safety tips for using liquefied dimethyl ether cylinders.. 24 Appendix C (Informative) Format of product certificate for liquefied dimethyl ether cylinders... 25 Appendix D (Informative) Format of batch inspection quality certificate for liquefied dimethyl ether cylinders... 27 Liquefied dimethyl ether cylinders1 ScopeThis standard specifies the structural type, materials, design, manufacturing, test methods, inspection rules, marking, packaging, storage and transportation, design service life of liquefied dimethyl ether cylinders. This standard applies to steel welded gas cylinders (hereinafter referred to as cylinders) that are used at normal ambient temperature (-40 °C ~ 60 °C), have a nominal working pressure of 1.6 MPa and a nominal volume of no more than 150 L, can be repeatedly filled with liquefied dimethyl ether (in accordance with GB 25035).2 Normative referencesThe following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) is applicable to this standard. GB/T 222 Permissible tolerances for chemical composition of steel products GB/T 228.1 Metallic materials - Tensile testing - Part 1.Method of test at room temperature GB/T 1804-2000 General tolerances - Tolerances for linear and angular dimensions without individual tolerance indications GB/T 2651 Tensile test method on welded joints GB/T 2653 Bend test methods on welded joints GB 6653 Steel plates and strips for welded gas cylinders GB 8335 Special threads for gas cylinders GB/T 9251 Methods for hydrostatic test of gas cylinders GB/T 12137 Methods for leakage test of gas cylinders GB/T 13005 Terminology of gas cylinders GB/T 15385 Method for hydraulic burst test of gas cylinder the production order, to perform 100% radiographic inspection on the girth welds. If unqualified, two more cylinders shall be sampled for inspection; if one cylinder is still unqualified, radiographic inspection shall be conducted on each cylinder. 9.1.4 For steel cylinders with longitudinal and girth welds, in addition to radiographic inspection of not less than 20% of the length of the longitudinal and girth welds of each cylinder, radiographic inspection shall also be conducted on the intersection of the longitudinal and girth welds. 9.1.5 The radiographic inspection technology shall not be lower than AB level; the radiographic inspection results shall be evaluated according to NB/T 47013.2; if the weld defect level is not lower than level III, it is considered to be qualified. 9.1.6 The quality of welds that have not been radiographically inspected shall also comply with the provisions of 9.1.5. 9.2 Inspection of each cylinder 9.2.1 General inspection 9.2.1.1 The appearance of the weld shall comply with the provisions of 8.4.3.2. 9.2.1.2 The surface of the cylinder shall be smooth and shall not have cracks, double skin, interlayers, pits with a depth exceeding 0.5 mm, damage and corrosion with a depth exceeding 0.3 mm. 9.2.1.3 The accessories of the cylinder shall comply with the requirements of 7.3. 9.2.1.4 The actual weight of the cylinder (including the cylinder valve) shall comply with the provisions of the product design drawings; the measured volume shall not be less than its nominal volume. 9.2.1.5 The inside of the cylinder shall be dry and clean. 9.2.2 Water pressure test 9.2.2.1 The water pressure test of the cylinder shall be carried out in accordance with the provisions of GB/T 9251.The water pressure test device shall be able to automatically record the cylinder number, time, test results in real time; each test cylinder shall correspond to a pressure gauge. 9.2.2.2 During the water pressure test, the pressure shall be slowly increased to 2.4 MPa and maintained for 1 min. Check that there is no leakage and macro deformation in the cylinder; the pressure gauge shall not have pressure drop. 9.2.2.3 The same cylinder shall not be subjected to continuous water pressure test. 9.2.3 Air tightness test ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 33147-2016 be delivered?Answer: The full copy PDF of English version of GB/T 33147-2016 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 33147-2016_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 33147-2016_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 33147-2016 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 33147-2016?A step-by-step guide to download PDF of GB/T 33147-2016_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 33147-2016". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
