GB/T 32861-2016 PDF EnglishUS$70.00 · In stock · Download in 9 seconds
GB/T 32861-2016: Road vehicles -- Location of electrical and pneumatic connections between towing vehicles and trailers Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

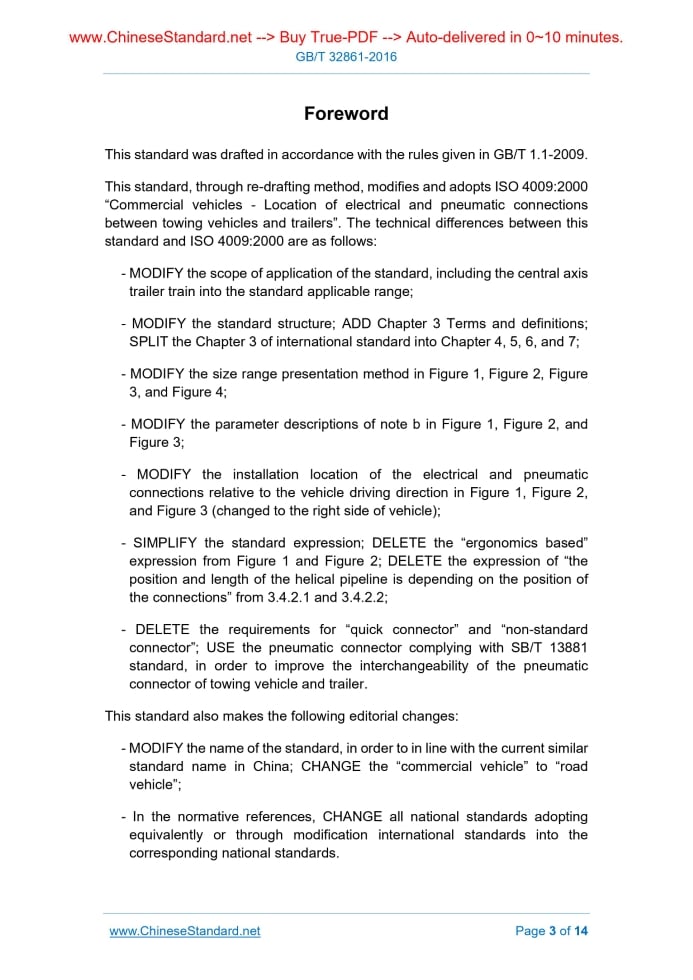

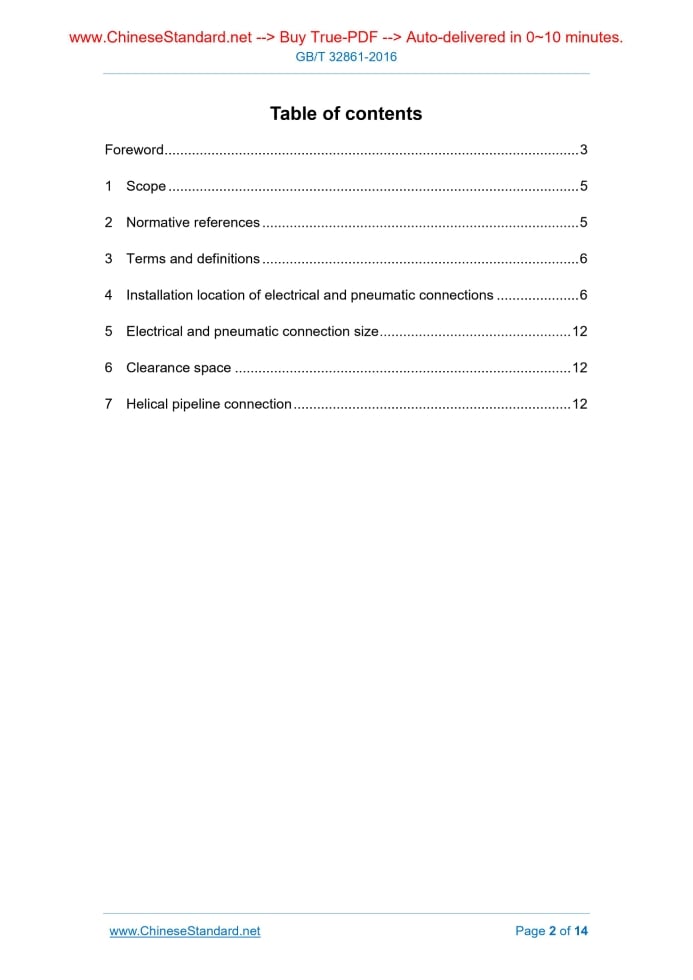

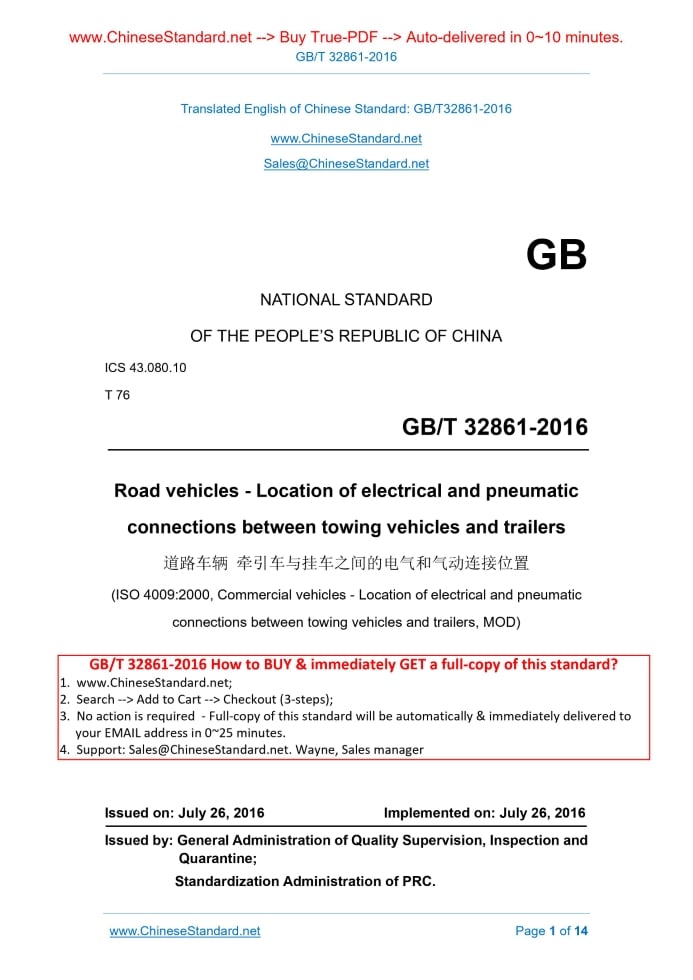

Similar standardsGB/T 32861-2016: Road vehicles -- Location of electrical and pneumatic connections between towing vehicles and trailers---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT32861-2016 GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 43.080.10 T 76 Road vehicles - Location of electrical and pneumatic connections between towing vehicles and trailers (ISO 4009.2000, Commercial vehicles - Location of electrical and pneumatic connections between towing vehicles and trailers, MOD) Issued on: JULY 26, 2016 Implemented on: JULY 26, 2016 Issued by. General Administration of Quality Supervision, Inspection and Quarantine; Standardization Administration of PRC. Table of ContentsForeword ... 3 1 Scope ... 5 2 Normative references ... 5 3 Terms and definitions ... 6 4 Installation location of electrical and pneumatic connections ... 6 5 Electrical and pneumatic connection size ... 12 6 Clearance space ... 12 7 Helical pipeline connection ... 12ForewordThis standard was drafted in accordance with the rules given in GB/T 1.1-2009. This standard, through re-drafting method, modifies and adopts ISO 4009.2000 “Commercial vehicles - Location of electrical and pneumatic connections between towing vehicles and trailers”. The technical differences between this standard and ISO 4009.2000 are as follows. - MODIFY the scope of application of the standard, including the central axis trailer train into the standard applicable range; - MODIFY the standard structure; ADD Chapter 3 Terms and definitions; SPLIT the Chapter 3 of international standard into Chapter 4, 5, 6, and 7; - MODIFY the size range presentation method in Figure 1, Figure 2, Figure 3, and Figure 4; - MODIFY the parameter descriptions of note b in Figure 1, Figure 2, and Figure 3; - MODIFY the installation location of the electrical and pneumatic connections relative to the vehicle driving direction in Figure 1, Figure 2, and Figure 3 (changed to the right side of vehicle); - SIMPLIFY the standard expression; DELETE the “ergonomics based” expression from Figure 1 and Figure 2; DELETE the expression of “the position and length of the helical pipeline is depending on the position of the connections” from 3.4.2.1 and 3.4.2.2; - DELETE the requirements for “quick connector” and “non-standard connector”; USE the pneumatic connector complying with SB/T 13881 standard, in order to improve the interchangeability of the pneumatic connector of towing vehicle and trailer. This standard also makes the following editorial changes. - MODIFY the name of the standard, in order to in line with the current similar standard name in China; CHANGE the “commercial vehicle” to “road vehicle”; - In the normative references, CHANGE all national standards adopting equivalently or through modification international standards into the corresponding national standards. Road vehicles - Location of electrical and pneumatic connections between towing vehicles and trailers1 ScopeThis standard specifies the installation position, size, clearance space, and the position of the helical pipeline connection, etc., for the electrical and pneumatic connections between the towing vehicle and trailer (abbreviated as electrical and pneumatic connection). This standard applies to the drawbar trailer, center-mounted axis trailers and articulated trains that are equipped with pneumatic brake systems, 24 V electrical equipment, AND rear positioned or front lower positioned drawbar coupling.2 Normative referencesThe following documents are essential to the application of this document. For the dated documents, only the versions with the dates indicated are applicable to this document; for the undated documents, only the latest version (including all the amendments) are applicable to this Standard. GB/T 5053.1 Road vehicles - Connectors for the electrical connection of towing and towed vehicles - 7-pole connector type 24 N (Normal) for vehicles with 24 V nominal supply voltage (GB/T 5053.1-2006, ISO 1185.2003, IDT) GB/T 13881 Breaking connections between motor vehicles and towed vehicles (GB/T 13881-1992, ISO 1728.1980, MOD) GB/T 20070 Road vehicles - Mechanical coupling between tractors and semi-trailers - Interchangeability (GB/T 20070-2006, ISO 1726.2000, MOD) GB/T 20716.1 Road vehicles - Connectors for the electrical connection of towing and towed vehicles - Part 1. Connectors for braking systems and running gears of vehicles with 24 V nominal supply (GB/T 20716.1-2006, ISO 7638-1.2003, IDT) GB/T 20717 Road vehicles - Connectors for the electrical connection of towing and towed vehicles - 15-pole connector for vehicles with 24 V nominal supply voltage (GB/T 20717-2006, ISO 12098.2004, IDT) GB/T 25088 Road vehicles - Connectors for the electrical connection of towing and towed vehicles - 7-pole connector type 24S (supplementary) for vehicles with 24 V nominal supply voltage (GB/T 25088-2010, ISO 3731.2003, MOD)3 Terms and definitionsThe following terms and definitions apply to this document. 3.1 Drawbar coupling It refers to the mechanical connection device installed on the rear part of the towing vehicle OR the front lower part of the rear suspension, which has the functions of guiding, fixation, and angular movement when the towing vehicle and the trailer are coupled.4 Installation location of electrical and pneumaticconnections The electrical and pneumatic connections for the drawbar coupling rear positioned towing vehicle shall be arranged in accordance with Figure 1 and Figure 2; the electrical and pneumatic connections for the drawbar coupling front below positioned towing vehicle shall be arranged in accordance with Figure 3; AND the electrical and pneumatic connections for the towing vehicle of articulated train shall be arranged in accordance with Figure 4. The electrical and pneumatic connections shall be located within the specified region as shown. b The distance from the center of the drawbar coupling to the rear end of the towing vehicle, which is divided into three ranges. 1300 mm ~ 1400 mm, 1500 mm ~ 1600 mm, 1800 mm ~ 1900 mm; c Installation surface; d Horizontal centerline of drawbar coupling; e Road plane; f The vertical centerline of drawbar coupling; g The height of drawbar coupling at full load, 355 mm ~ 405 mm; h Control pipelines (SEE GB/T 13881); i Power supply pipelines (SEE ISO/IEC 13818); j ABS socket (SEE ISO/IEC 15177-1); k 7-core standard type/15-core (SEE GB/T 5053.1, GB/T 20717); l 7-core auxiliary type; m Top of chassis structure. if it cannot reach to the minimum value 220 mm, the installation limit may be beyond of the chassis structure top. Figure 3 Installation location of electrical and pneumatic connections for the drawbar coupling front below positioned towing vehicle (C-type location area) i Control pipeline (SEE GB/T 13881); j Upper edge of chassis structure (longitudinal/towing vehicle); k The upper edge of the towing seat plane; l As for the semi-trailers without suitable front wall structure, for example, container transport semi-trailer and semi-trailer with front refrigerated structure, the installation position of electric and pneumatic connections can be less than 800 mm. However, for safety reasons, the installation position shall be as high as possible under the preconditions of not contact cargo. m The installation area on the towing vehicle can be rotated up to 90° from the horizontal. Figure 4 Installation location of electrical and pneumatic connections for the articulated train (D-type location area)5 Electrical and pneumatic connection sizeThe type and size of the electrical connection shall comply with the requirements of GB/T 5053.1, GB/T 25088, GB/T 20716.1 and GB/T 20717. The type and size of the pneumatic connection shall comply with the requirements of GB/T 13881.6 Clearance spaceThe size of the clearance around the electrical and pneumatic connections shall be such as to ensure safe operation and comply with the requirements of Figures 5 and 6.7 Helical pipeline connection7.1 Location The integral parts of the helical pipeline connection of the drawbar train (with the connector at the end of the pipeline) shall be installed on the trailer; AND the integral parts of the helical pipeline connection of the articulated train shall be installed on the towing vehicle. 7.2 Length 7.2.1 Drawbar coupling rear positioned towing vehicle ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 32861-2016 be delivered?Answer: The full copy PDF of English version of GB/T 32861-2016 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 32861-2016_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 32861-2016_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 32861-2016 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 32861-2016?A step-by-step guide to download PDF of GB/T 32861-2016_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 32861-2016". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
