GB/T 3098.10-1993 PDF EnglishUS$190.00 · In stock · Download in 9 seconds
GB/T 3098.10-1993: Mechanical properties of fasteners. Bolts, scrows, studs and nuts made of non-ferrous metals Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure

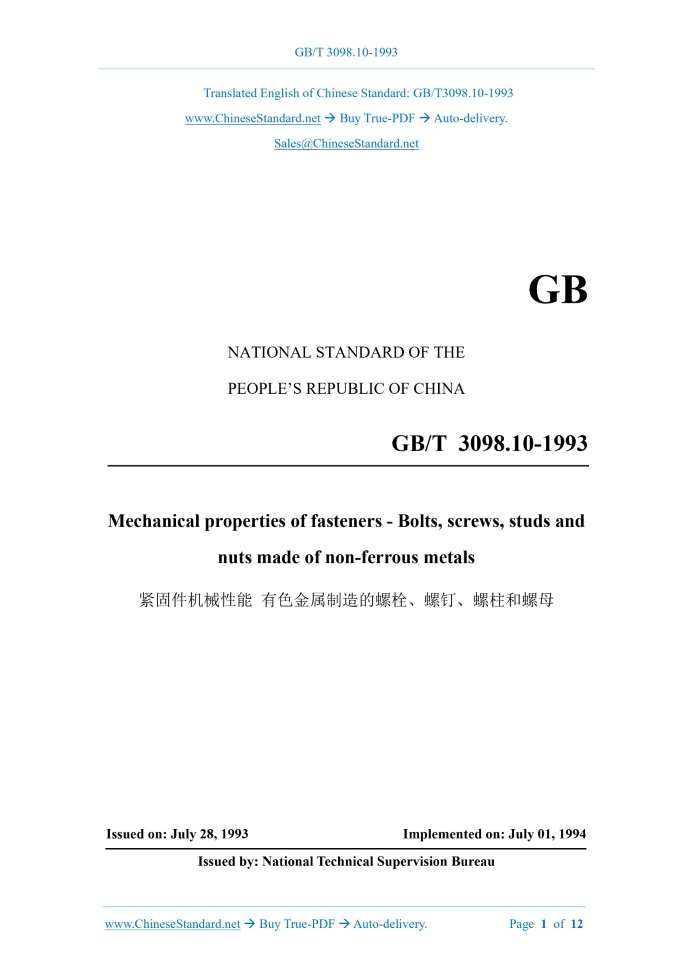

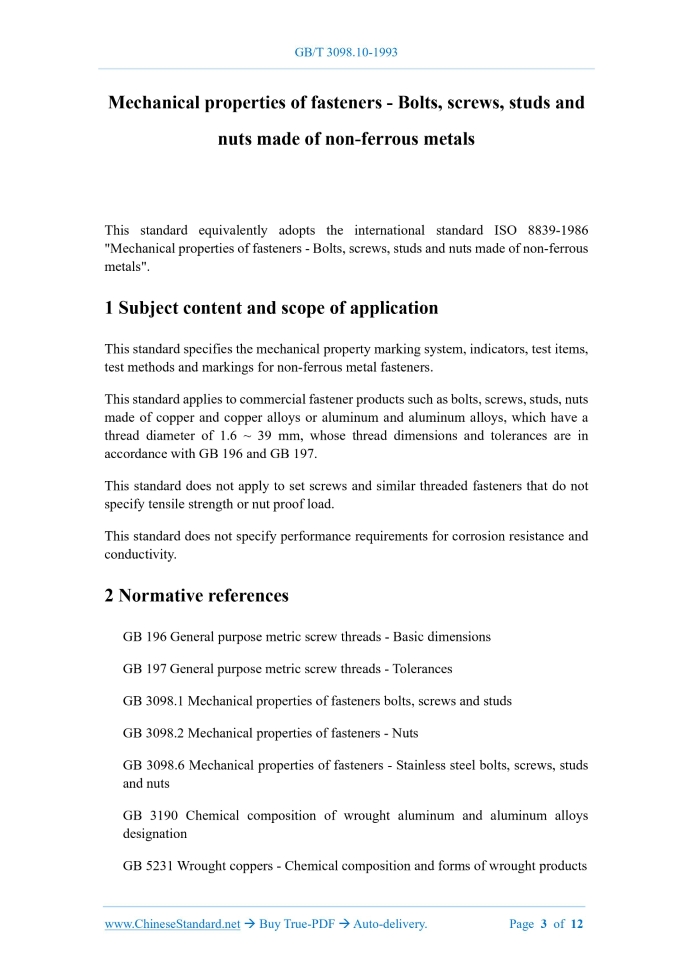

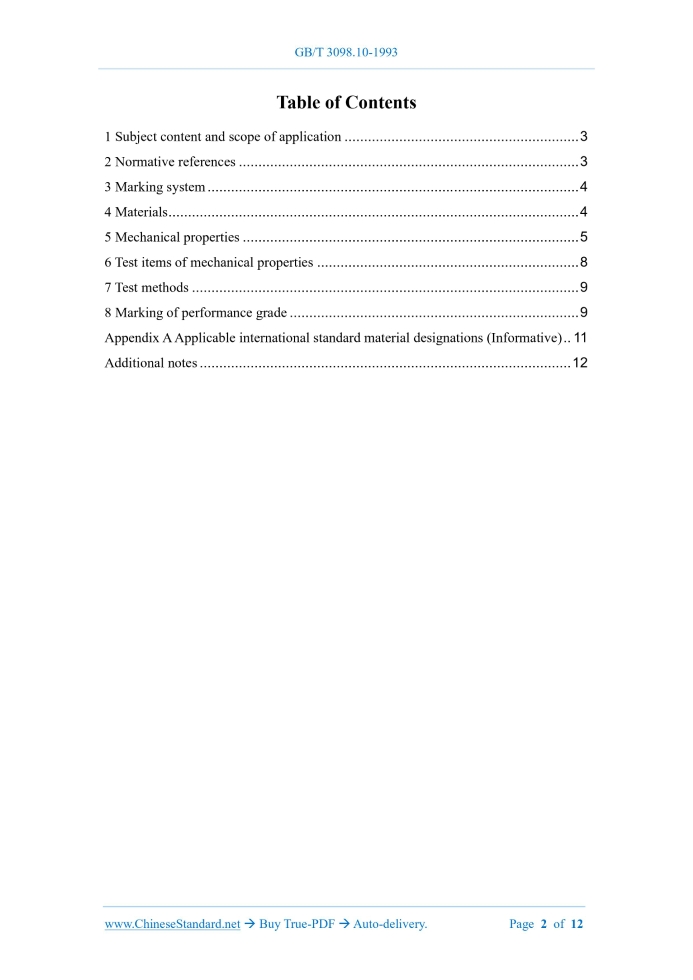

Similar standardsGB/T 3098.10-1993: Mechanical properties of fasteners. Bolts, scrows, studs and nuts made of non-ferrous metals---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT3098.10-1993 GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA Mechanical properties of fasteners - Bolts, screws, studs and nuts made of non-ferrous metals Issued on: JULY 28, 1993 Implemented on: JULY 01, 1994 Issued by. National Technical Supervision Bureau Table of Contents1 Subject content and scope of application... 3 2 Normative references... 3 3 Marking system... 4 4 Materials... 4 5 Mechanical properties... 5 6 Test items of mechanical properties... 8 7 Test methods... 9 8 Marking of performance grade... 9 Appendix A Applicable international standard material designations (Informative).. 11 Additional notes... 12 Mechanical properties of fasteners - Bolts, screws, studs and nuts made of non-ferrous metals This standard equivalently adopts the international standard ISO 8839-1986 "Mechanical properties of fasteners - Bolts, screws, studs and nuts made of non-ferrous metals".1 Subject content and scope of applicationThis standard specifies the mechanical property marking system, indicators, test items, test methods and markings for non-ferrous metal fasteners. This standard applies to commercial fastener products such as bolts, screws, studs, nuts made of copper and copper alloys or aluminum and aluminum alloys, which have a thread diameter of 1.6 ~ 39 mm, whose thread dimensions and tolerances are in accordance with GB 196 and GB 197. This standard does not apply to set screws and similar threaded fasteners that do not specify tensile strength or nut proof load. This standard does not specify performance requirements for corrosion resistance and conductivity.2 Normative referencesGB 196 General purpose metric screw threads - Basic dimensions GB 197 General purpose metric screw threads - Tolerances GB 3098.1 Mechanical properties of fasteners bolts, screws and studs GB 3098.2 Mechanical properties of fasteners - Nuts GB 3098.6 Mechanical properties of fasteners - Stainless steel bolts, screws, studs and nuts GB 3190 Chemical composition of wrought aluminum and aluminum alloys designation GB 5231 Wrought coppers - Chemical composition and forms of wrought products7 Test methods7.1 Tensile test Tensile test shall be carried out in accordance with the provisions of Articles 8.1 and 8.2 of GB 3098.1. 7.2 Torque test Torque test shall be carried out in accordance with the method specified in Article 7.2 of GB 3098.6. 7.3 Proof load test of nuts Proof load test of nuts shall be carried out in accordance with the relevant provisions of Chapter 8 of GB 3098.2.8 Marking of performance grade8.1 Marking code The marking code on the product shall be consistent with the marking code of performance grade in Chapter 3. 8.2 Marking requirements and methods 8.2.1 Bolts, studs, nuts with thread diameter ≥ 5 mm shall be marked. 8.2.2 Mark with convex or concave characters on the top surface of the bolt head; or with concave characters on the side of the head. 8.2.3 Mark with concave characters on the end surface of the stud. 8.2.4 Mark with concave characters on the support surface or side of the nut. 8.2.5 Marking of left-handed threads shall comply with the provisions of GB 3098.1 or Article 9.3 of GB 3098.2. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 3098.10-1993 be delivered?Answer: The full copy PDF of English version of GB/T 3098.10-1993 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 3098.10-1993_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 3098.10-1993_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 3098.10-1993 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 3098.10-1993?A step-by-step guide to download PDF of GB/T 3098.10-1993_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 3098.10-1993". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
