GB/T 29319-2024 PDF EnglishUS$260.00 · In stock · Download in 9 seconds
GB/T 29319-2024: Technical requirements for connecting photovoltaic power system to distribution network Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB/T 29319: Historical versions

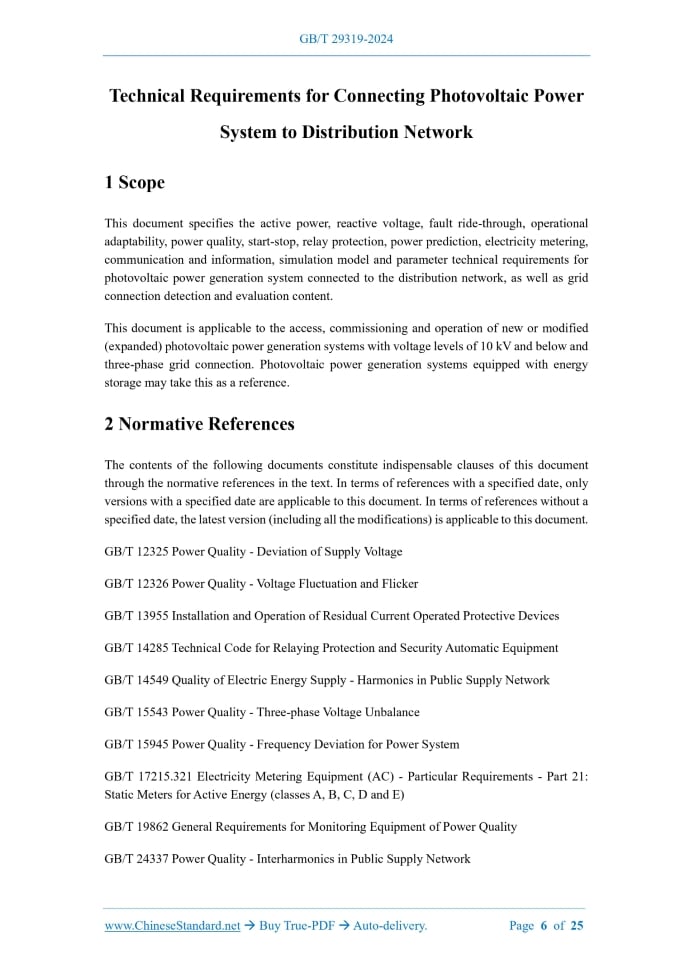

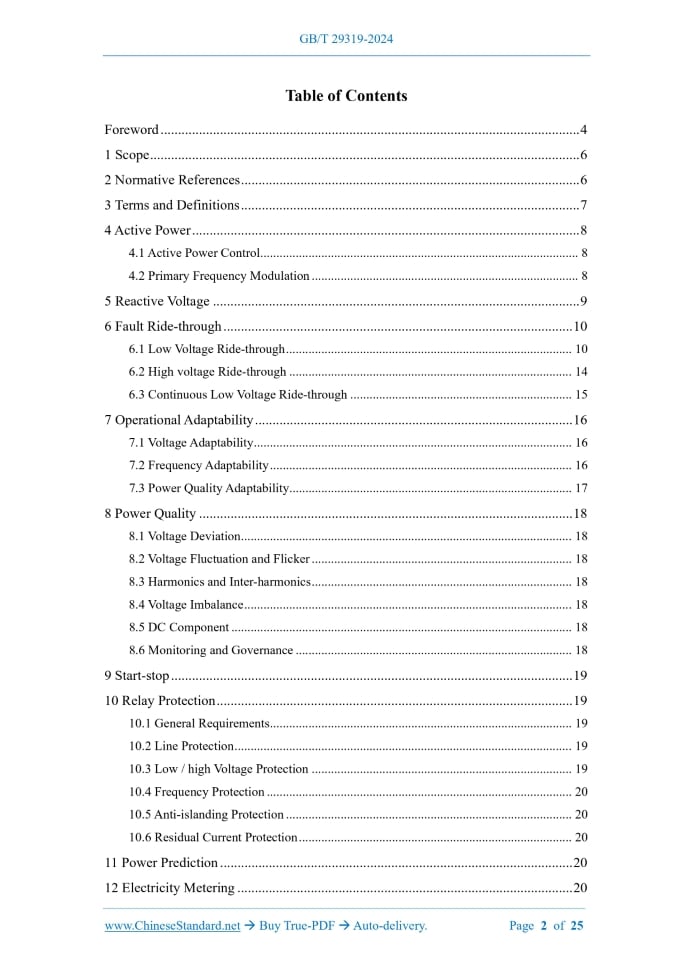

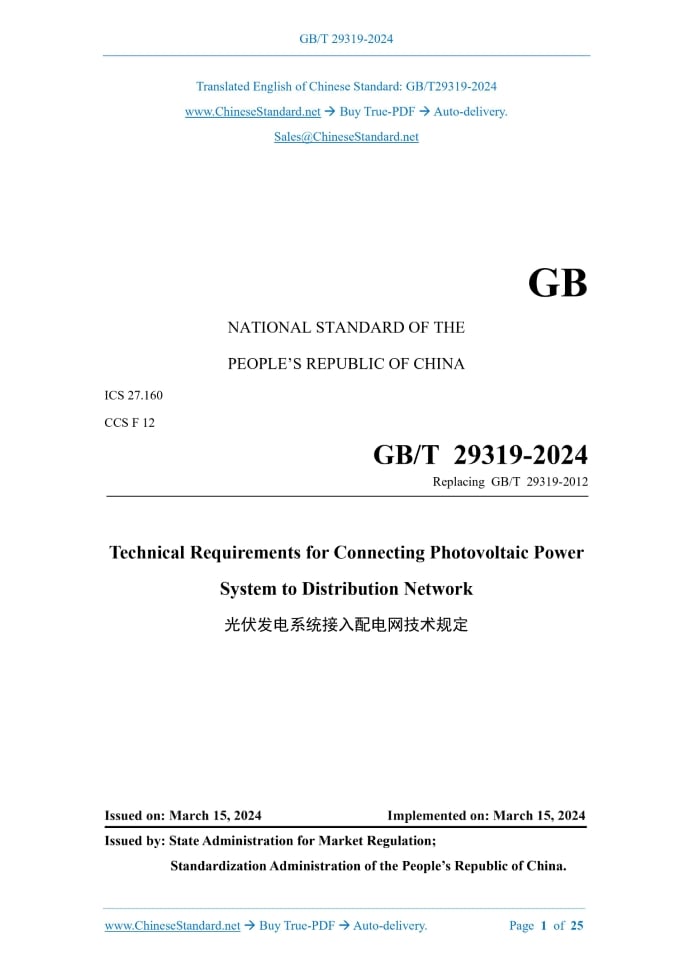

Similar standardsGB/T 29319-2024: Technical requirements for connecting photovoltaic power system to distribution network---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT29319-2024 GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 27.160 CCS F 12 Replacing GB/T 29319-2012 Technical Requirements for Connecting Photovoltaic Power System to Distribution Network Issued on: MARCH 15, 2024 Implemented on: MARCH 15, 2024 Issued by. State Administration for Market Regulation; Standardization Administration of the People’s Republic of China. Table of ContentsForeword... 4 1 Scope... 6 2 Normative References... 6 3 Terms and Definitions... 7 4 Active Power... 8 4.1 Active Power Control... 8 4.2 Primary Frequency Modulation... 8 5 Reactive Voltage... 9 6 Fault Ride-through... 10 6.1 Low Voltage Ride-through... 10 6.2 High voltage Ride-through... 14 6.3 Continuous Low Voltage Ride-through... 15 7 Operational Adaptability... 16 7.1 Voltage Adaptability... 16 7.2 Frequency Adaptability... 16 7.3 Power Quality Adaptability... 17 8 Power Quality... 18 8.1 Voltage Deviation... 18 8.2 Voltage Fluctuation and Flicker... 18 8.3 Harmonics and Inter-harmonics... 18 8.4 Voltage Imbalance... 18 8.5 DC Component... 18 8.6 Monitoring and Governance... 18 9 Start-stop... 19 10 Relay Protection... 19 10.1 General Requirements... 19 10.2 Line Protection... 19 10.3 Low / high Voltage Protection... 19 10.4 Frequency Protection... 20 10.5 Anti-islanding Protection... 20 10.6 Residual Current Protection... 20 11 Power Prediction... 20 12 Electricity Metering... 20 Technical Requirements for Connecting Photovoltaic Power System to Distribution Network1 ScopeThis document specifies the active power, reactive voltage, fault ride-through, operational adaptability, power quality, start-stop, relay protection, power prediction, electricity metering, communication and information, simulation model and parameter technical requirements for photovoltaic power generation system connected to the distribution network, as well as grid connection detection and evaluation content. This document is applicable to the access, commissioning and operation of new or modified (expanded) photovoltaic power generation systems with voltage levels of 10 kV and below and three-phase grid connection. Photovoltaic power generation systems equipped with energy storage may take this as a reference.2 Normative ReferencesThe contents of the following documents constitute indispensable clauses of this document through the normative references in the text. In terms of references with a specified date, only versions with a specified date are applicable to this document. In terms of references without a specified date, the latest version (including all the modifications) is applicable to this document. GB/T 12325 Power Quality - Deviation of Supply Voltage GB/T 12326 Power Quality - Voltage Fluctuation and Flicker GB/T 13955 Installation and Operation of Residual Current Operated Protective Devices GB/T 14285 Technical Code for Relaying Protection and Security Automatic Equipment GB/T 14549 Quality of Electric Energy Supply - Harmonics in Public Supply Network GB/T 15543 Power Quality - Three-phase Voltage Unbalance GB/T 15945 Power Quality - Frequency Deviation for Power System GB/T 17215.321 Electricity Metering Equipment (AC) - Particular Requirements - Part 21. Static Meters for Active Energy (classes A, B, C, D and E) GB/T 19862 General Requirements for Monitoring Equipment of Power Quality GB/T 24337 Power Quality - Interharmonics in Public Supply Network GB/T 32826 Guide for Modeling Photovoltaic Power System GB/T 32892 Model and Parameter Test Regulation for Photovoltaic Power System GB/T 33982 Technical Specification for Grid Connection Protection of Distributed Resources GB/T 40595 Guide for Technology and Test on Primary Frequency Control of Grid-connected Power Resources DL/T 448 Technical Administrative Code of Electric Energy Metering DL/T 614 Multifunction Electricity Metering Equipment (A.C.) DL/T 634.5101 Telecontrol Equipment and Systems - Part 5.Transmission Protocols - Section 101.Companion Standard for Basic Telecontrol Tasks DL/T 634.5104 Telecontrol Equipment and Systems - Part 5-104.Transmission Protocols - Network Access for IEC 60870-5-101 Using Standard Transport Profiles DL/T 645 Multi-function Watt-hour Meter Communication Protocol DL/T 698.45 Data Acquisition and Management System for Electrical Energy - Part 4-5. Communication Protocol - Object Oriented Data Exchange Protocol3 Terms and DefinitionsThe terms and definitions defined in GB/T 12325 and GB/T 40595 and the following are applicable to this document. 3.1 photovoltaic (PV) power generation system A power generation system that utilizes the photovoltaic effect of solar cells to convert solar radiation energy into electrical energy. 3.2 point of common coupling The point where the photovoltaic power generation system is connected to the public power grid. 3.3 point of connection For a photovoltaic power generation system with a booster station, it is the bus or node on the high-voltage side of the booster station; for a photovoltaic power generation system without a booster station, it is the output aggregation point of the photovoltaic power generation system. NOTE. see Appendix A for an illustration of the point of connection and point of common coupling. 3.4 response time During the control process, the time required from receiving a control command or detecting a change in the state quantity triggering the control operation, until the actual output change of the observed variable reaches 90% of the difference between the control target value and the initial value for the first time. [source. GB/T 40289-2021, 3.13]4 Active Power4.1 Active Power Control 4.1.1 The photovoltaic power generation system connected to the grid through the 10(6) kV voltage level shall be able to receive and automatically execute active power control command. The absolute value of the control error shall not exceed 1% of the rated active power, and the response time shall not exceed 5 s. 4.1.2 The photovoltaic power generation system connected to the grid through the 380 V voltage level shall be able to receive and automatically execute active power control command. 4.2 Primary Frequency Modulation 4.2.1 The photovoltaic power generation system connected to the grid through the 10(6) kV voltage level shall have the capability of primary frequency modulation. 4.2.2 When the frequency deviation of the power system exceeds the dead zone range of the primary frequency modulation, the active power change of the photovoltaic power generation system shall be calculated in accordance with Formula (1). Where, Pt---the variation of active power of the photovoltaic power generation system, expressed in (MW); kf---the active frequency modulation coefficient; ft---the power system frequency, expressed in (Hz); fN---the rated frequency of the power system, expressed in (Hz); PN---the rated active power of the photovoltaic power generation system, expressed in (MW). 4.2.3 The active frequency modulation coefficient and dead zone range of primary frequency modulation shall be determined by the power system dispatching institution in accordance with the frequency modulation characteristics of the connected power system. The value range of the active frequency modulation coefficient should be 10 ~ 50, and the dead zone range should be (0.02 Hz ~ 0.06 Hz). 4.2.4 When the power system frequency is greater than 50 Hz, the limit of active power reduction of the photovoltaic power generation system should be not less than 10% of the rated active power. 4.2.5 When the power system frequency is less than 50 Hz, the photovoltaic power generation system equipped with energy storage shall increase the active power, and the limit of the increase in active power should be not less than 6% of the rated active power. 4.2.6 The response lag time of the primary frequency modulation shall be not greater than 1 s, the response time shall be not greater than 5 s, the modulation time shall be not greater than 15 s, and the active power regulation deviation when the primary frequency modulation reaches stability shall not exceed 1% of the rated active power.5 Reactive Voltage5.1 The reactive output range of the photovoltaic inverter shall be dynamically adjustable within the rectangular frame shown in Figure 1. 5.2 The photovoltaic power generation system shall have multiple reactive power control modes, including reactive voltage control, constant power factor control and constant reactive power control, etc. 5.3 The photovoltaic power generation system shall have the capability of participating in voltage regulation of the point of connection, and it is advisable to participate in voltage regulation by adjusting its own reactive power and active power. 5.4 The power factor of the point of connection of the photovoltaic power generation system shall be continuously adjustable within the range of 0.95 (leading) ~ 0.95 (lagging).6 Fault Ride-through6.1 Low Voltage Ride-through 6.1.1 When a fault occurs in the power system and causes the voltage at the point of connection of the photovoltaic power generation system to drop, the photovoltaic power generation system shall have the low voltage ride-through capability specified in Figure 2.The specific requirements are as follows. a) When the voltage at the point of connection of the photovoltaic power generation system drops to 0, the photovoltaic power generation system shall be able to continuously operate for 150 ms without being disconnected from the grid; b) When the voltage at the point of connection of the photovoltaic power generation system drops to 20% of the nominal voltage, the photovoltaic power generation system shall be able to continuously operate for 625 ms without being disconnected from the grid; c) When the voltage at the point of connection of the photovoltaic power generation system drops to more than 20% to 85% of the nominal voltage, the photovoltaic power generation system shall be able to continuously operate without being disconnected from the grid in the shaded area shown in Figure 2.7 Operational Adaptability7.1 Voltage Adaptability 7.1.1 When the voltage at the point of connection is between 85% ~ 110% of the nominal voltage, the photovoltaic power generation system shall be able to normally and continuously operate. 7.1.2 When the voltage at the point of connection is lower than 85% of the nominal voltage or exceeds 110% of the nominal voltage, the photovoltaic power generation system shall meet the requirements of 6.1 and 6.2. 7.2 Frequency Adaptability 7.2.1 The frequency adaptability of the photovoltaic power generation system shall meet the requirements of Table 2.8 Power Quality8.1 Voltage Deviation After the photovoltaic power generation system is connected, the caused voltage deviation of the point of common coupling shall satisfy the requirements of GB/T 12325. 8.2 Voltage Fluctuation and Flicker After the photovoltaic power generation system is connected, the caused voltage fluctuation and flicker of the point of common coupling shall satisfy the requirements of GB/T 12326. 8.3 Harmonics and Inter-harmonics 8.3.1 The harmonic injection current of the photovoltaic power generation system to the point of common coupling, to which, it is connected, shall satisfy the requirements of GB/T 14549, among which, the allowable value of the harmonic current injected by the point of connection of the photovoltaic power generation system into the power system shall be allocated in accordance with the ratio of the installed capacity of the photovoltaic power generation system to the total capacity of the power generation / supply equipment with harmonic sources at the point of common coupling. 8.3.2 After the photovoltaic power generation system is connected, the caused inter-harmonics of the point of common coupling shall meet the requirements of GB/T 24337. 8.4 Voltage Imbalance After the photovoltaic power generation system is connected, the caused voltage imbalance of the point of common coupling shall meet the requirements of GB/T 15543. 8.5 DC Component The DC current component injected by the photovoltaic power generation system to the point of common coupling shall not exceed 0.5% of its AC rated power. 8.6 Monitoring and Governance 8.6.1 The point of common coupling of the photovoltaic power generation system connected to the grid through the 10(6) kV voltage level shall be equipped with a Class A online power quality monitoring device that meets the requirements of GB/T 19862, and the power quality monitoring data shall be kept for at least one year. 8.6.2 The point of common coupling of the photovoltaic power generation system connected to the grid through the 380 V voltage level should be equipped with an online power quality monitoring device that meets the requirements of GB/T 19862 or an equipment with online power quality monitoring function, and the power quality monitoring data shall be kept for at least one year. 8.6.3 When the power quality indicators of the photovoltaic power generation system do not satisfy the requirements, power quality governance equipment shall be installed.9 Start-stop9.1 The power quality changes caused by the start-stop of the photovoltaic power generation system shall satisfy the requirements of Chapter 8. 9.2 When the photovoltaic power generation system is started, the voltage and frequency of the point of connection shall meet the requirements of GB/T 12325 and GB/T 15945, otherwise it shall not be started. 9.3 Photovoltaic power generation systems connected to the grid through the 10(6) kV voltage level shall resume grid connection after receiving a grid connection command from the power grid dispatching institution.10 Relay Protection10.1 General Requirements 10.1.1 The protection configuration of the photovoltaic power generation system shall meet the requirements of reliability, selectivity, sensitivity and speed, and meet the relevant requirements of GB/T 14285 and GB/T 33982. 10.1.2 For photovoltaic power generation systems connected to the grid through the 10(6) kV voltage level, disconnecting equipment that is easy to operate, can be locked, has a clear disconnection point, has a grounding function, and can disconnect fault currents shall be installed at the point of connection. 10.1.3 For photovoltaic power generation systems connected to the grid through the 380 V voltage level, a switch that is easy to operate, has a clear disconnection indication, and has the ability to disconnect fault currents shall be installed at the point of connection. 10.2 Line Protection For photovoltaic power generation systems connected to the grid through the 10(6) kV voltage level, current protection can be adopted on both sides of the grid connection line, and when necessary, directional elements can be installed. When the action current setting value and time limit coordination cannot satisfy the requirements of reliability and selectivity, distance protection or longitudinal current differential protection should be adopted. 10.3 Low / high Voltage Protection The low / high voltage protection of the photovoltaic power generation system shall meet the requirements of 6.1 and 6.2. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 29319-2024 be delivered?Answer: The full copy PDF of English version of GB/T 29319-2024 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 29319-2024_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 29319-2024_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 29319-2024 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB/T 29319-2024?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB/T 29319-2024 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB/T 29319-2024?A step-by-step guide to download PDF of GB/T 29319-2024_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 29319-2024". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
