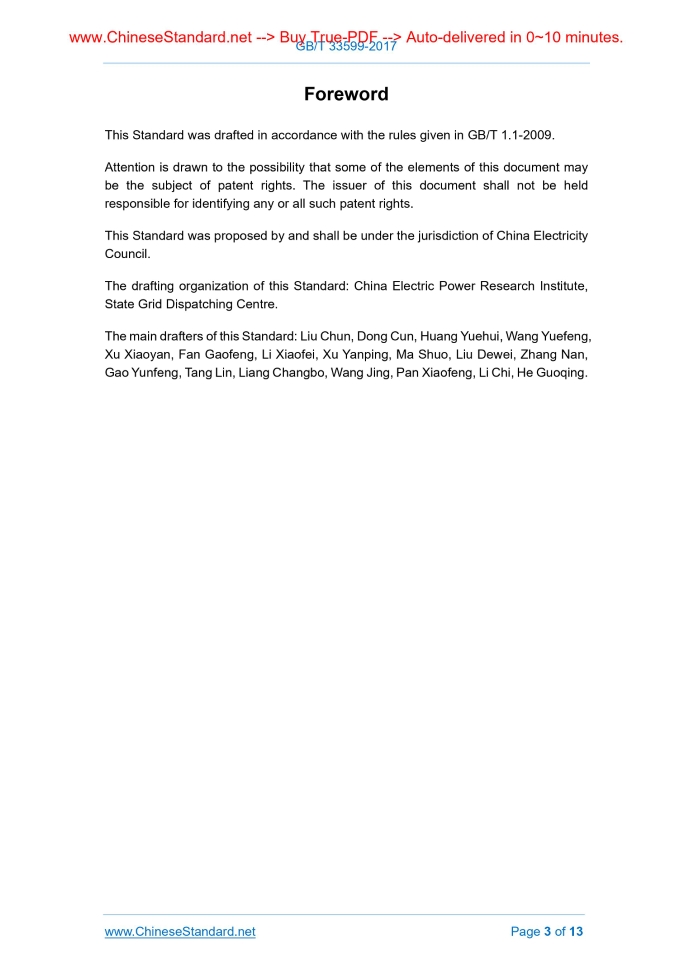

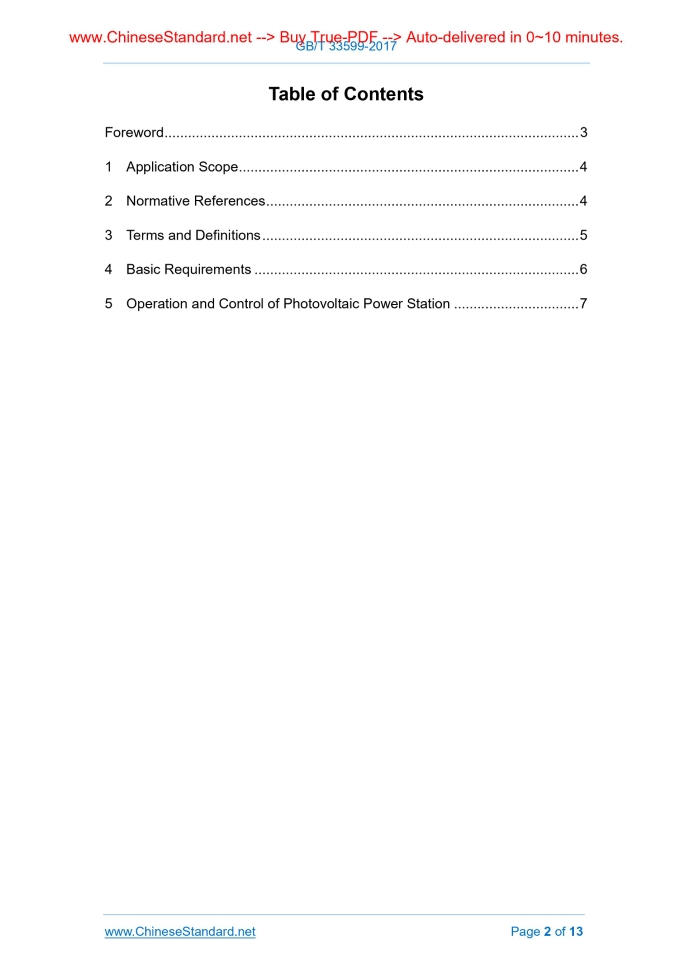

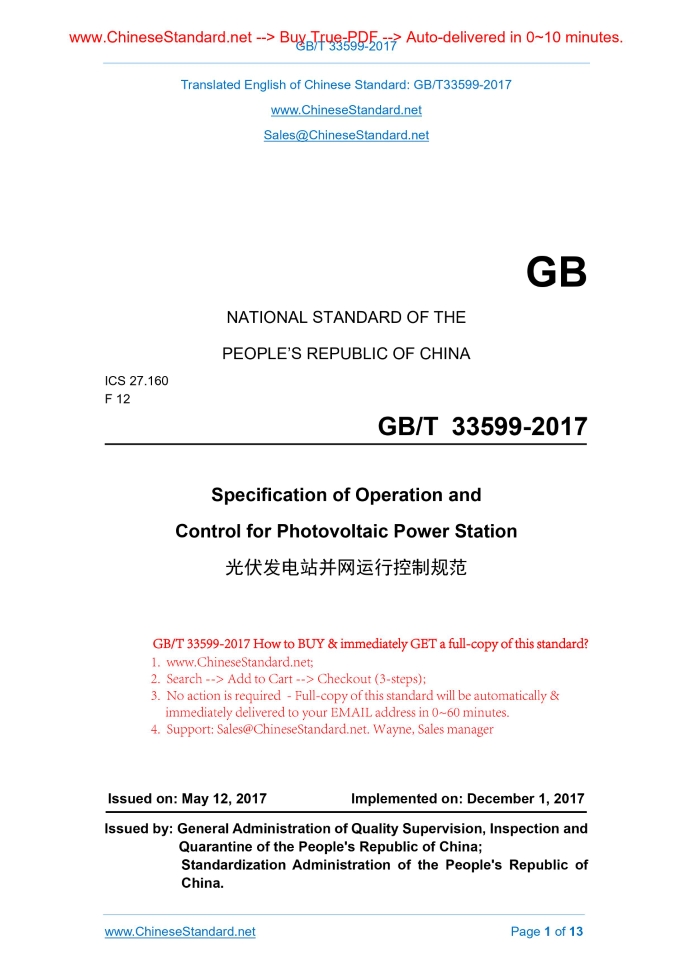

Similar standardsGB/T 33599-2017: Specification of Operation and Control for Photovoltaic Power Station---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT33599-2017GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 27.160 F 12 Specification of Operation and Control for Photovoltaic Power Station Issued on: MAY 12, 2017 Implemented on: DECEMBER 1, 2017 Issued by. General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China; Standardization Administration of the People's Republic of China. 3. No action is required - Full-copy of this standard will be automatically & immediately delivered to your EMAIL address in 0~60 minutes. Table of ContentsForeword ... 3 1 Application Scope ... 4 2 Normative References ... 4 3 Terms and Definitions ... 5 4 Basic Requirements ... 6 5 Operation and Control of Photovoltaic Power Station ... 7ForewordThis Standard was drafted in accordance with the rules given in GB/T 1.1-2009. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. The issuer of this document shall not be held responsible for identifying any or all such patent rights. This Standard was proposed by and shall be under the jurisdiction of China Electricity Council. The drafting organization of this Standard. China Electric Power Research Institute, State Grid Dispatching Centre. The main drafters of this Standard. Liu Chun, Dong Cun, Huang Yuehui, Wang Yuefeng, Xu Xiaoyan, Fan Gaofeng, Li Xiaofei, Xu Yanping, Ma Shuo, Liu Dewei, Zhang Nan, Gao Yunfeng, Tang Lin, Liang Changbo, Wang Jing, Pan Xiaofeng, Li Chi, He Guoqing. Specification of Operation and Control for Photovoltaic Power Station1 Application ScopeThis Standard specifies the basic specifications of operation and control for photovoltaic power stations, as well as the requirements for operation management, power forecasting, power generation plan, active power control, reactive power control, relaying protection and automatic safety device operation, electric power communication operation, dispatching automation, equipment overhaul and accident recording and reporting. This Standard applies to newly-built, rebuilt and extended photovoltaic power stations which are connected to the grid through the voltage class of 35 kV and above, and connected to the public grid through the voltage class of 10 kV.2 Normative ReferencesThe following referenced documents are indispensable for the application of this document. For dated references, only the edition dated applies to this document. For undated references, the latest edition of the referenced documents (including all amendments) applies to this Standard. GB/T 14285, Technical Code for Relaying Protection and Security Automatic Equipment GB/T 19964, Technical Requirements for Connecting Photovoltaic Power Station to Power System GB/T 29321, Technical Specification for Reactive Power Compensation of PV Power Station GB/T 31365, Testing Code for Photovoltaic Power Station Connected to Power Grid GB/T 31366, Technical Requirements for Monitoring and Control System of Photovoltaic Power Station GB/T 31464, The Grid Operation Code GB 50794, Code for Construction of PV Power Station GB/T 50796, Code for Acceptance of Photovoltaic Power Project GB 50797, Code for Design of Photovoltaic Power Station DL/T 516, Code for Operation and Administration of Power Dispatching Automation System DL/T 544, Operation Management Code for Power System Telecommunication DL/T 559, Code for Setting of 220 kV ~ 500 kV Relaying Protection Equipment DL/T 584, Code for Setting of 3 kV ~ 110 kV Relaying Protection Equipment DL/T 623, Evaluation Rules of Protection Equipment and Power System Stability Control Devices DL 755, Guide on Security and Stability for Power System NB/T 32011, Technical Requirement of Power Forecasting System for PV Power Station3 Terms and DefinitionsFor the purposes of this document, the following terms and definitions and those defined in GB/T 19964 and GB/T 31464 apply. 3.1 photovoltaic (PV) power station The electric power generation system and auxiliaries which directly transform solar radiant energy into electric power through the photovoltaic effects of the photovoltaic cells. 3.2 PV power forecasting The forecast which is made on the active power of the photovoltaic power station through the technology and means including meteorological conditions and statistical regularity. 3.3 grid integration test for PV power station The test to determine the grid integration performance in five aspects including the power quality, active power/reactive power control ability, low-voltage ride through ability, voltage/frequency adaptation ability and active power output characteristics of the photovoltaic power station. 3.4 dispatching automation system; it shall transmit to the grid dispatcher in time, accurately and reliably, the equipment operation information, meteorological information and power forecasting information of the primary systems and secondary systems of the photovoltaic power station. 5.1.7 The photovoltaic power station shall report to the grid dispatcher in time the alterations of the primary system equipment and secondary system equipment of the photovoltaic power station and their safety protection schemes. 5.1.8 When the photovoltaic power station quits operation in emergency or trouble, it shall report to the grid dispatcher immediately and start the grid-connected operation once again in accordance with the dispatching instructions only after obtaining the consent of the grid dispatcher. The photovoltaic power station shall keep records of accidents and report to the grid dispatcher in time. 5.2 PV power forecasting 5.2.1 The photovoltaic power station shall report the PV power forecasting curves for 0 h ~ 24 h of the next day at the times specified by the grid dispatcher every day, the time resolution of the forecasting values 15 min. 5.2.2 The photovoltaic power station shall report the PV power forecasting curves for 15 min ~ 4 h in the future to the grid dispatcher every 15 min, the time resolution of the forecasting values 15 min. 5.2.3 The monthly average absolute error of the short-term forecasting of the power generation time (not including the output control time) of the photovoltaic power station shall be less than 0.15 and the monthly acceptability shall be greater than 80%; the monthly absolute error of the super short-time forecasting for the fourth hour shall be less than 0.10 and the monthly acceptability shall be greater than 85%. 5.3 Power generation plan 5.3.1 The photovoltaic power station shall give suggestions of the yearly and monthly power generation plans in time in accordance with the meteorological data and power forecasting, and submit to the grid dispatcher at the times specified. 5.3.2 The photovoltaic power station shall declare power generation plans in accordance with the results of PV power forecasting, submit the power generation plan curves for the next day to the grid dispatcher at the declaration times specified every day, and submit the super short-time power generation plan curves every 15 min to the grid dispatcher. 5.3.3 The photovoltaic power station shall execute automatically the plan curves (including the plan curves modified from time to time) and dispatching instructions issued by the grid dispatcher. 5.3.4 The photovoltaic power station shall record and analyze the execution 5.8.3 The photovoltaic power station connected through the voltage class of 220 kV and above shall be provided with synchronized phasor measurement unit (PMU). 5.8.4 Without the consent of the grid dispatcher, work and operation shall not be carried out on the dispatching automation equipment and its secondary loop circuits of the photovoltaic power station. 5.8.5 When the alterations of the primary system equipment of the photovoltaic power station (such as increases and decreases of equipment, main wiring alterations and changes of transformation ratio of mutual inductor) result in the changes of the measuring parameters, order positions and signal contacts, the personnel for operating maintenance on site shall report the content of alterations to the grid dispatcher in time. 5.8.6 The overhaul plans of the automation systems and equipment of the photovoltaic power station shall be carried out in accordance with the work ticket management system. The planned overhauls of the dispatching automation equipment of the photovoltaic power station shall be carried out synchronously with the overhaul of primary equipment in principle. Without the consent of the grid dispatcher, it shall not allow the automation equipment to quit operation. 5.8.7 After any fault of the dispatching automation equipment of the photovoltaic power station occurs, it shall report the fault details and effects to the grid dispatcher and handle it as specified. 5.9 Equipment overhaul 5.9.1 The photovoltaic power station shall submit the equipment overhaul plans and overhaul applications to the grid dispatcher in accordance with relevant regulations of the grid equipment overhaul management. The applications, approvals, delay (reschedule) and imple... ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 33599-2017 be delivered?Answer: The full copy PDF of English version of GB/T 33599-2017 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 33599-2017_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 33599-2017_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 33599-2017 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 33599-2017?A step-by-step guide to download PDF of GB/T 33599-2017_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 33599-2017". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
