GB/T 26765-2023: Specifications for motor vehicle safety inspection business information system and networking Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB/T 26765: Historical versions

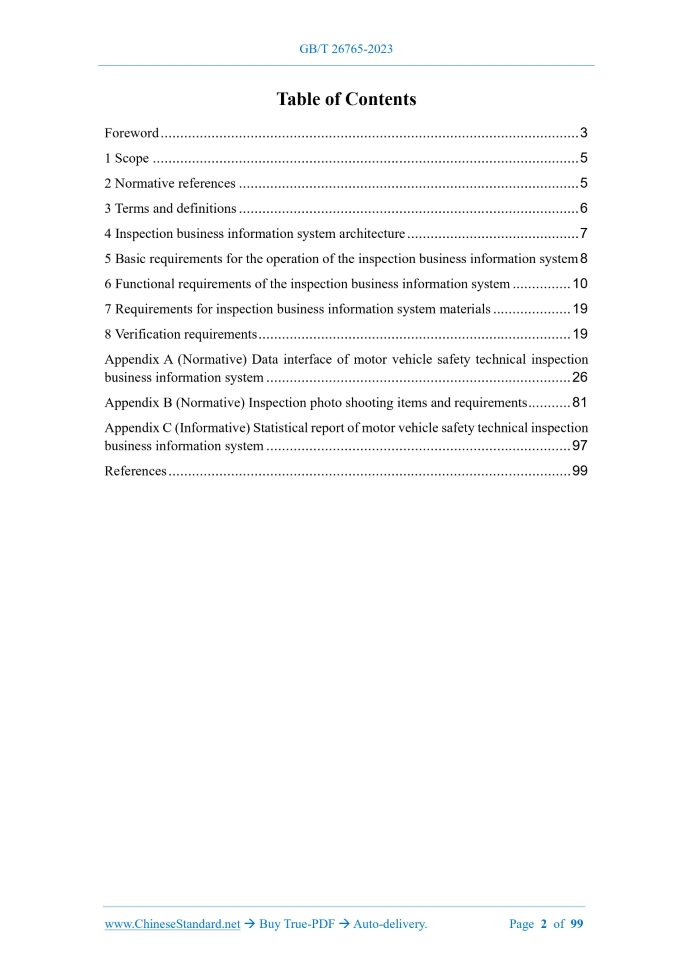

Similar standardsGB/T 26765-2023: Specifications for motor vehicle safety inspection business information system and networking---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT26765-2023 GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 43.020 CCS R 80 Replacing GB/T 26765-2011 Specifications for motor vehicle safety inspection business information system and networking Issued on: MARCH 17, 2023 Implemented on: OCTOBER 01, 2023 Issued by. Status Administration for Market Regulation; National Standardization Administration. Table of ContentsForeword... 3 1 Scope... 5 2 Normative references... 5 3 Terms and definitions... 6 4 Inspection business information system architecture... 7 5 Basic requirements for the operation of the inspection business information system 8 6 Functional requirements of the inspection business information system... 10 7 Requirements for inspection business information system materials... 19 8 Verification requirements... 19 Appendix A (Normative) Data interface of motor vehicle safety technical inspection business information system... 26 Appendix B (Normative) Inspection photo shooting items and requirements... 81 Appendix C (Informative) Statistical report of motor vehicle safety technical inspection business information system... 97 References... 99 Specifications for motor vehicle safety inspection business information system and networking1 ScopeThis document specifies the system architecture, basic operating requirements, functional requirements, data requirements, verification requirements of the motor vehicle safety technical inspection business information system. This document is applicable to the development, construction, application of the motor vehicle safety technical inspection business information system, as well as the networking construction between motor vehicle safety technical inspection agency and administrative departments.2 Normative referencesThe contents of the following documents constitute the essential terms of this document through normative references in the text. Among them, for dated references, only the version corresponding to that date applies to this document; for undated references, the latest version (including all amendments) applies to this document. GB 1589 Limits of dimensions, axle load and masses for motor vehicles, trailers and combination vehicles GB 7258 Technical specifications for safety of power-driven vehicles operating on roads GB 38900-2020 Items and methods for safety technology inspection of motor vehicles GA/T 543.1 The data elements for public security (1) GA/T 543.3 The data elements for public security (3) GA/T 543.5 The data elements for public security (5) GA/T 543.6 The data elements for public security (6) GA/T 543.10 The data elements for public security (10) IEEE 802.3 IEEE Standard for Ethernet IEEE 802.11 IEEE Standard for Information Technology - Telecommunications and Information Exchange Between Systems - Local and Metropolitan Area Networks - Specific Requirements - Part 11.Wireless LAN Medium Access Control (MAC) and Physical Layer (PHY) Specifications3 Terms and definitionsThe terms and definitions defined in GB 7258 and GB 38900-2020, as well as the following terms and definitions, apply to this document. 3.1 Station A section of the inspection channel that can accommodate an inspected motor vehicle for one or more inspection items. 3.2 Inspection business information system An information system that manages the entire process of motor vehicle safety technical inspection business, consisting of six modules. basic information registration, inspection business acceptance, inspection process control, inspection process monitoring, inspection business handling, system management. 3.2.1 Basic information registration module A module with the functions of inputting, reporting, downloading basic information of motor vehicle safety technical inspection agency. 3.2.2 Inspection business acceptance module A module with the functions of logging in inspection business information and online query. 3.2.3 Inspection process control module A module with the functions of controlling inspection equipment for instrument and equipment inspection, manual inspection, calibration of inspection equipment. 3.2.4 Inspection process monitoring module A module with the functions of video monitoring and image monitoring of motor vehicle safety technical inspection process. 3.2.5 Inspection business processing module A module with the functions of collecting images and videos of motor vehicle manual inspections, processing inspection results, handling abnormal situations. 3.2.6 System management module A module with the functions of user management, parameter management, log recording, internal query, statistical analysis of the inspection business information system. 3.3 General failure A failure that requires restarting the software/hardware of the inspection business information system and can resume normal operation within 30 minutes. 3.4 Major failure Any software/hardware failure that causes the motor vehicle safety technical inspection to stop for more than 30 minutes. 3.5 Intelligent recognition of inspection images Process, analyze, understand the images of motor vehicle safety technical inspection; apply deep learning and other algorithms to identify manual inspection items, inspection materials, photos, videos of the inspection process, etc.4 Inspection business information system architectureThe inspection business information system consists of basic information registration, inspection business acceptance, inspection process control, inspection business handling, inspection process monitoring, system management modules. The inspection business information system shall realize the exchange of information, such as motor vehicle registration, motor vehicle road traffic safety violations, road traffic accidents, motor vehicle recalls due to safety defects, motor vehicle violations, motor vehicle traffic accident liability compulsory insurance, motor vehicle inspection results, motor vehicle safety technical inspection images with the administrative department information system, in accordance with the prescribed interface. Among them, the inspection process monitoring module is used to transmit the motor vehicle safety technical inspection process monitoring information to the administrative department information system; the inspection process control module is used to control the inspection equipment to complete the item inspection, obtain and store the inspection result data. The overall architecture of the inspection business information system is shown in Figure 1.5 Basic requirements for the operation of the inspectionbusiness information system 5.1 Network Adopt fast Ethernet based on IEEE 802.3 or wireless communication network based on IEEE 802.11. 5.2 Operating system Adopt Windows, Unix, Linux, Android and other operating systems. 5.3 Database management system software The database management system software shall meet the following requirements. a) Support two industrial standards, SQL and ODBC; b) Have C2 level security. 5.4 Networking requirements The network between motor vehicle safety technical inspection agency and administrative departments shall meet the following requirements. a) Motor vehicle safety technical inspection agency shall connect to the network of the public security traffic management department through a dedicated line or VPN and other secure means; the inspection business information system shall access the information system of the public security traffic management department through an interface to carry out data exchange; b) The networks of multiple motor vehicle safety technical inspection agency shall not access each other; c) The network environment of the motor vehicle safety technical inspection agency and the public security traffic management department shall be physically isolated from the networks of other administrative departments; a secure exchange method shall be adopted when implementing data exchange; d) The network environment of the motor vehicle safety technical inspection agency and the public security traffic management department shall not be directly accessed from the network of other administrative departments. 5.5 Others The operation of the inspection business information system shall also meet the following requirements. a) All data, images, videos collected by the inspection business information system shall be stored locally in the motor vehicle safety technical inspection agency; the data retention period shall not be less than 6 years; the images and inspection process videos shall be kept for not less than 2 years; b) The number of general failures of the inspection business information system shall not exceed 12 per year; c) The number of major failures of the inspection business information system shall not exceed 4 per year.6 Functional requirements of the inspection businessinformation system 6.1 Basic information registration module 6.1.1 Function The basic information registration module shall include the following functions. a) Basic information entry; b) Basic information upload; c) Basic information download. 6.1.2 Basic information entry It shall have the function of adding and modifying information such as motor vehicle safety technical inspection agency, motor vehicle safety technical testing lines, motor vehicle safety technical inspection agency staff. The data structure of the input information shall comply with the provisions of Table A.1 ~ Table A.3 in Appendix A. 6.1.3 Basic information upload The information shall be uploaded to the administrative department through the interface that complies with A.1 ~ A.3. 6.1.4 Basic information download The information of the registered motor vehicle safety technical inspection agency, motor vehicle safety technical inspection line, motor vehicle safety technical inspection agency staff shall be downloaded from the administrative department, through the interface that complies with A.4 ~ A.6. 6.2 Inspection business acceptance module 6.2.1 Function The inspection business acceptance module shall include the following functions. a) Information login; b) Online query. 6.2.2 Information login The inspection business acceptance module shall have the following inspection business information login functions. a) For motor vehicles applying for registration and safety inspection, it shall have the function of entering information such as motor vehicle technical parameters; b) For in-use motor vehicles under inspection, it shall have the function of entering information such as motor vehicle license plate and inspection category, as well as the function of randomly assigning inspection personnel such as vehicle guides and external inspectors. The data structure of the entered information shall comply with the provisions of Table A.7; c) It shall support the Internet, telephone and other technical means to realize appointment inspection; d) It shall have the function of entering information on motor vehicle traffic accident liability compulsory insurance policies; the data structure of the entered information shall comply with the provisions of Table A.8. The inspection business acceptance module shall have the function of automatic login; it can identify motor vehicles by using technical means such as license plate recognition and motor vehicle electronic identification reading. 6.2.3 Online query The inspection business acceptance module shall have the following online query functions. a) Online query function of motor vehicle registration information. For in-use motor vehicles under inspection, the motor vehicle registration information can be obtained through the online query interface of the motor vehicle, which is submitted for inspection in accordance with the provisions of A.9. b) Online query function for motor vehicle announcement technical parameter information. For the inspected motor vehicle, the technical parameters and image information of the motor vehicle and chassis announcement can be obtained, through the motor vehicle announcement technical parameter text information in accordance with A.10 and the motor vehicle announcement technical parameter image information query interface in accordance with A.11. c) Online query function for motor vehicle road traffic violation information. For the inspected motor vehicle, the online query interface for the motor vehicle submitted for inspection in accordance with A.9 can be used to check whether the motor vehicle has any road traffic violations that have not been dealt with. d) Online query function for motor vehicle road traffic accident information. For the inspected motor vehicle, the online query interface for the motor vehicle submitted for inspection in accordance with A.9 can be used to check whether the motor vehicle has had a road traffic accident that caused casualties. For such traffic accidents, the damaged parts and damage conditions of the motor vehicle submitted for inspection can be obtained. e) Defective motor vehicle recall information query function. The online query interface for the motor vehicle submitted for inspection in accordance with A.9 can be used, to check whether the motor vehicle is a defective recalled motor vehicle; for a defective recalled motor vehicle, the defect recall reason can be obtained. f) Violation motor vehicle information query function. For the motor vehicles undergoing registration safety inspection, it is possible to check whether the motor vehicle is a violation motor vehicle, through the violation motor vehicle query interface that complies with A.12.For the violation motor vehicles, the violation situation can be obtained. 6.3 Inspection process control module 6.3.1 Function The inspection process control module shall include the following functions. a) Instrument and equipment inspection; b) Manual inspection; c) Inspection equipment calibration. 6.3.2 Instrument and equipment inspection The inspection process control module shall have the inspection function of the following instrument and equipment items. a) Inspection equipment control function. It can control the inspection equipment to enter the inspection working condition and guide the inspection personnel to complete the inspection work of the relevant inspection items through the indicator. The test principle, resolution, effective digits of the measurement data and the inspection result data of the inspection equipment shall not be changed during the control process. The inspection items and inspection methods shall comply with the requirements of GB 38900-2020. b) Automatic collection function of inspection result data. It can collect the whole process data of the measurement object, but does not provide the function of manual input or modification of the inspection results. For analog output inspection equipment, it can automatically remove the error caused by zero drift to the inspection result. When collecting the data information of the braking force inspection process, the time interval of the collection points of the roller reaction brake test bench shall not exceed 10 ms; the time interval of the collection points of the flat brake test bench shall not exceed 5 ms; the synchronization error of the left and right wheel braking force collection points shall not exceed 0.5 ms; the data structure of the braking force inspection process data information storage shall comply with the provisions of Table A.30. c) Automatic conversion function of inspection result data. It can convert the collected inspection results into inspection result data that meets the requirements of GB 38900-2020. 6.3.3 Manual inspection The inspection process control module shall have the following inspection functions for manual inspection items. a) Inspection result entry function. It can input the inspection results of manual inspection items such as vehicle uniqueness inspection, vehicle characteristic parameter inspection, vehicle appearance inspection, safety device inspection, chassis dynamic inspection, vehicle chassis component inspection. b) Inspection image acquisition function. It can receive images of manual inspection items collected by motor vehicle inspection handheld terminals and other equipment. The received image type shall comply with the requirements of B.1.1 in Appendix B. The images shall be encoded in JPEG and stored in JFIF or JPEG file format with a compression factor lower than 70.The image storage data structure shall comply with the provisions of Table A.20. c) Inspection image upload function. It can upload images of manual inspection items through the motor vehicle inspection item photo and inspection data photo information upload interface that complies with A.11. 6.3.4 Inspection equipment calibration The inspection process control module shall have the function of calibrating the inspection equipment. When calibrating the analog output test equipment, the zero point output, AD value and calibration value of each analog input channel of the test equipment shall be displayed; when calibrating the digital output test equipment, the test result data value of the test equipment shall be displayed. 6.4 Test process monitoring module 6.4.1 Function The test process monitoring module shall include the following functional modules. a) Data monitoring; b) Video monitoring; c) Image monitoring. 6.4.2 Data monitoring The test process monitoring module shall have the following data monitoring functions. a) Real-time upload function of test item result judgment information. It can upload the test result judgment information of each test item of the motor vehicle in real time, through the detailed test result information of the manual test items of the motor vehicle specified in A.19, the detailed test result information of the instrument and equipment test items specified in A.20, the road test result information specified in A.21. b) Real-time upload function of braking force test process data information. It can upload the braking force test process data information in real time, through the detailed test result upload interface of the instrument and equipment test items specified in A.20. 6.4.3 Video monitoring The inspection process monitoring module shall have the following video monitoring functions. a) Real-time video acquisition function of the inspection process. The video monitoring equipment can be used to collect the video information of the inspection process of the motor vehicle under inspection at each station in real time; the video clarity can meet the requirements of manual identification of the inspection process at each station. b) Real-time video acquisition function of manual inspection. The video monitoring equipment can be used to collect the video information of the inspector's manual inspection process in real time; the video clarity shall meet the requirements of manual identification of the manual inspection process and the inspection part shooting process. c) Real-time video acquisition function of the authorized signatory's signature ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 26765-2023 be delivered?Answer: The full copy PDF of English version of GB/T 26765-2023 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 26765-2023_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 26765-2023_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 26765-2023 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB/T 26765-2023?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB/T 26765-2023 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB/T 26765-2023?A step-by-step guide to download PDF of GB/T 26765-2023_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 26765-2023". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
