GB/T 25123.3-2011 PDF EnglishUS$205.00 · In stock · Download in 9 seconds
GB/T 25123.3-2011: Electric traction -- Rotating electrical machines for rail and road vehicles -- Part 3: Determination of the total losses of convertor-fed alternating current motors by summation of the component losses Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

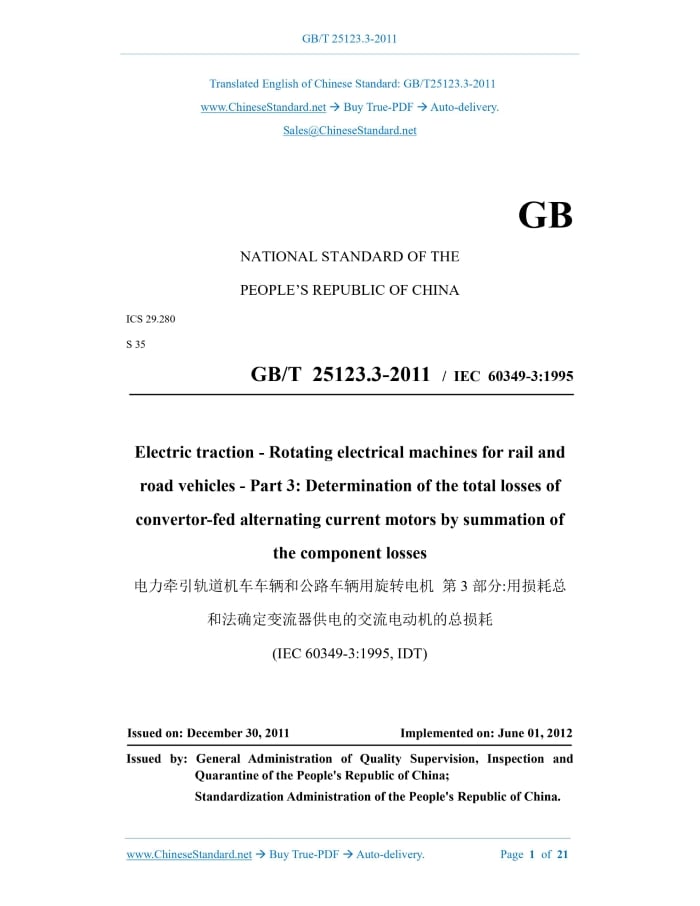

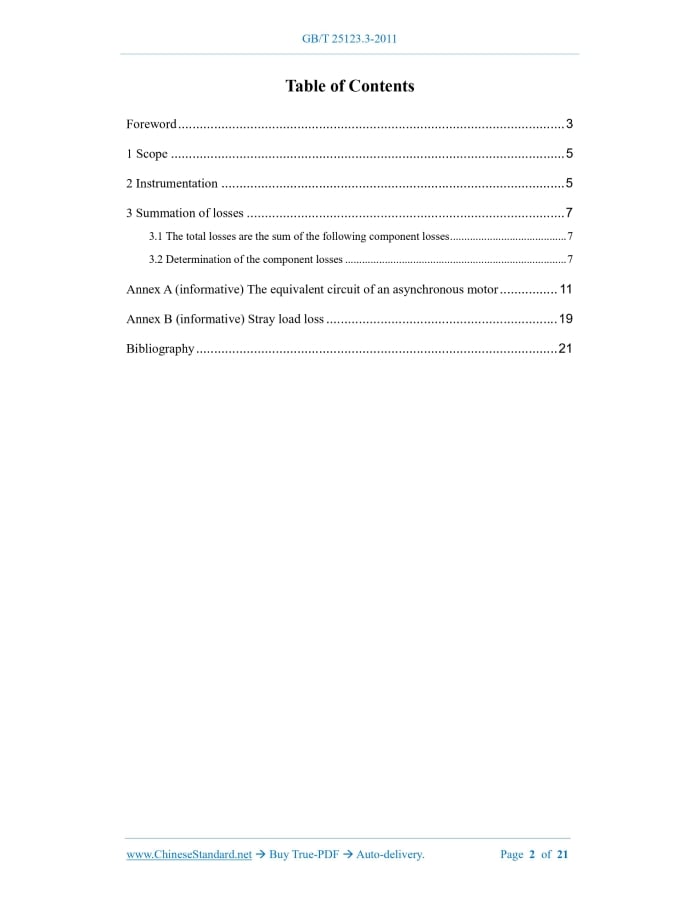

Similar standardsGB/T 25123.3-2011: Electric traction -- Rotating electrical machines for rail and road vehicles -- Part 3: Determination of the total losses of convertor-fed alternating current motors by summation of the component losses---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT25123.3-2011 GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 29.280 S 35 GB/T 25123.3-2011 / IEC 60349-3:1995 Electric traction - Rotating electrical machines for rail and road vehicles - Part 3: Determination of the total losses of convertor-fed alternating current motors by summation of the component losses (IEC 60349-3:1995, IDT) ISSUED ON: DECEMBER 30, 2011 IMPLEMENTED ON: JUNE 01, 2012 Issued by: General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China; Standardization Administration of the People's Republic of China. Table of ContentsForeword ... 3 1 Scope ... 5 2 Instrumentation ... 5 3 Summation of losses ... 7 3.1 The total losses are the sum of the following component losses ... 7 3.2 Determination of the component losses ... 7 Annex A (informative) The equivalent circuit of an asynchronous motor ... 11 Annex B (informative) Stray load loss ... 19 Bibliography ... 21ForewordGB/T 25123 "Electric traction - Rotating electrical machines for rail and road vehicles" consists of the following parts: - Part 1: Machines others than electronic convertor-fed alternating current motors; - Part 2: Electronic convertor-fed alternating current motors; - Part 3: Determination of the total losses of convertor-fed alternating current motors by summation of the component losses. This Part is Part 3 of GB/T 25123. This Part was drafted in accordance with the rules given in GB/T 1.1-2009. This Part uses redrafting method to modify and adopt IEC 60349-3:1995 "Electric traction - Rotating electrical machines for rail and road vehicles - Part 3: Determination of the total losses of convertor-fed alternating current motors by summation of the component losses". This Part made the following editorial changes: - According to the requirements of GB/T 1.1-2009, the formula numbers (1)~(8) of IEC 60349-3:1995 are numbered as (A.1)~(A.9) in this Part. Add numbers to the formulas in 3.2.1.2 and Annex B; - Correct the following errors in Table A.2 of the original text: a) In the formula of item 15, "(1)/(7)" in the original text is changed to "1/(7)"; b) In the formula of item 19, "(17)-(18)" in the original text is changed to "(17)+(18)"; c) In the formula of item 24, "(23)/(2)" in the original text is changed to "(23)+(2)"; d) In the formula of item 27, "(22)2" in the original text is changed to "(22)". This Part was proposed by Ministry of Railways of the People's Republic of China. This Part shall be under the jurisdiction of National Technical Committee on Traction Electrical Equipment and Systems of Standardization Administration of China (SAC/TC 278). Main drafting organizations of this Part: Zhuzhou CSR Times Electric Co., Ltd. The drafting organizations of this Part: CSR Zhuzhou Electric Co., Ltd. and Yongji Xinshisu Electric Co., Ltd. Electric traction - Rotating electrical machines for rail and road vehicles - Part 3: Determination of the total losses of convertor-fed alternating current motors by summation of the component losses1 ScopeThis Part of GB/T 25123 applies to machines that comply with GB/T 25123.2. The total losses of a convertor-fed motor may be determined by summation of the component losses derived from no-load and load tests. The total input power is the sum of the power at the fundamental frequency and at all other frequencies. In all practical cases the latter input includes the losses resulting from the voltage and current harmonics in the convertor supply by using suitable instrumentation it can be derived from measurement of the total and fundamental frequency power inputs when the machine is on load. The losses supplied at the fundamental frequency cannot be measured directly and so are derived from measurement of the fundamental frequency load current and the fundamental frequency no-load power input.2 InstrumentationThe extra loss due to operation on a convertor supply is obtained from the difference of the total and fundamental frequency power input on load. The power inputs shall be measured simultaneously on each phase by a digital sampling instrument. Measurement on all three phases is preferred but the two wattmeter method is permissible as an alternative. The total power is obtained from the product of voltage and current over a period of time and the fundamental power from a Fourier transform using the same sampling. It is necessary to consider the accuracy of the whole instrument chain considering both amplification and phase shift errors over the desired frequency range. As the power factor of the harmonics is generally very low (less than 0.l for voltage imposed asynchronous systems) particular attention is drawn to the need for minimum phase angle errors. fully established by experience. Additional information may be obtained by carrying out a low power test described in Annex B. 3.2.1.3 Losses supplied at other than the fundamental frequency The losses arising from the supply harmonics are the difference between the total and fundamental frequency power inputs to the motor when on load with the stator windings at approximately the temperature of reference. NOTE: If the convertor is a voltage source type and its modulation pattern is independent of load, the difference may be measured on no-load. 3.2.2 Synchronous motors 3.2.2.1 No-load losses supplied at the fundamental frequency The motor shall be driven on open circuit by a calibrated machine at the speed for which the losses are being determined and shall be excited by an independent source to generate the voltage shown on the specified characteristic at the same speed. The losses are equal to the mechanical power input to the motor shaft. 3.2.2.2 Load dependent losses supplied at the fundamental frequency The fundamental frequency I2R losses in the stator shall be calculated from the fundamental frequency current in each winding at the point for which the losses are being determined and from the measured resistance of the winding corrected to the temperature of reference. Unless otherwise specified, the additional load losses shall be determined by driving the machine with the stator windings short-circuited at the speed of the point on the specified characteristic for which the losses are being determined. The excitation shall be adjusted to give the fundamental frequency stator winding currents for the same point. The losses shall be taken as the power supplied to the machine shaft less the sum of the total stator I2R losses and the power supplied when the machine is driven unexcited at the same speed. 3.2.2.3 Losses supplied at other than the fundamental frequency The losses arising from the supply harmonics are the difference between the total and fundamental frequency power inputs to the motor when on load with the windings at approximately the temperature of reference. 3.2.2.4 Loss in the excitation circuit The loss in the excitation circuit shall be the product of the current in the winding and the total excitation voltage at the point for which the losses are being determined. The voltage shall be the value required to supply the excitation current with the winding at the temperature of reference. Account shall be taken of any ripple in the excitation ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 25123.3-2011 be delivered?Answer: The full copy PDF of English version of GB/T 25123.3-2011 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 25123.3-2011_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 25123.3-2011_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 25123.3-2011 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 25123.3-2011?A step-by-step guide to download PDF of GB/T 25123.3-2011_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 25123.3-2011". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
