GB/T 24721.5-2023: Glass fiber reinforced plastic product for highway - Part 5: Sign base panel Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB/T 24721.5: Historical versions

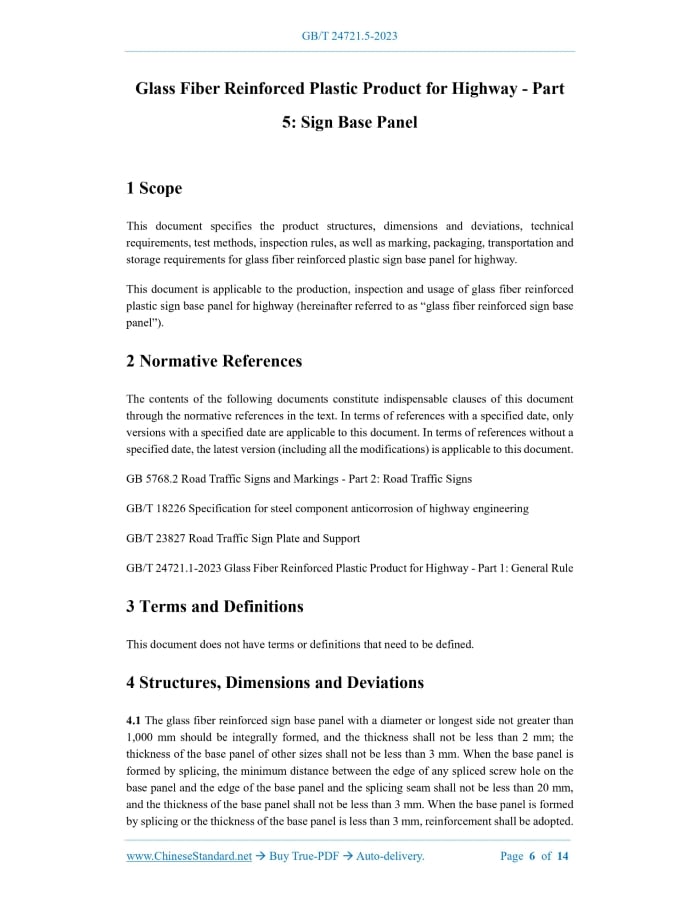

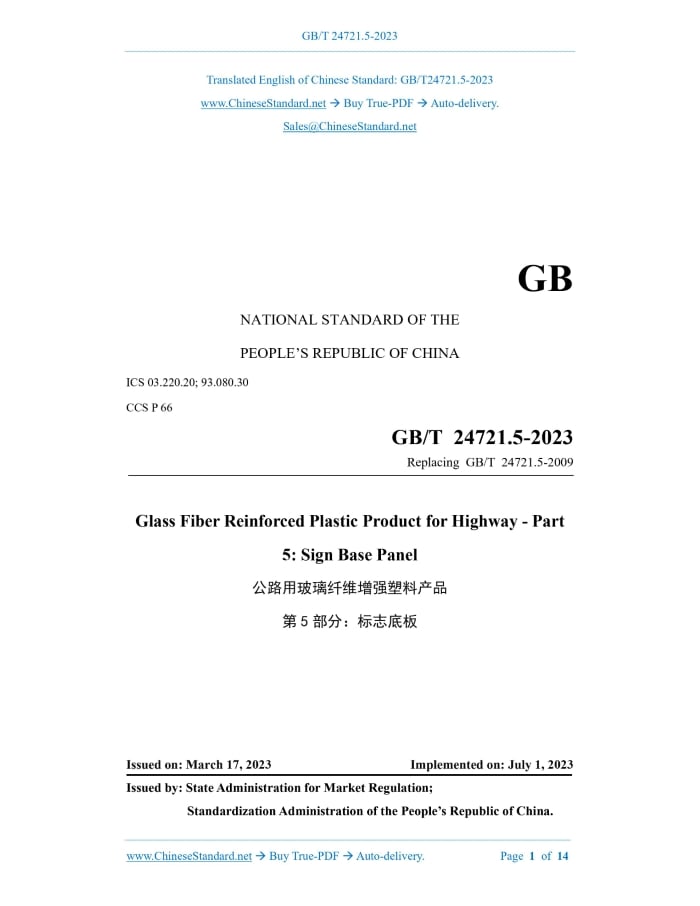

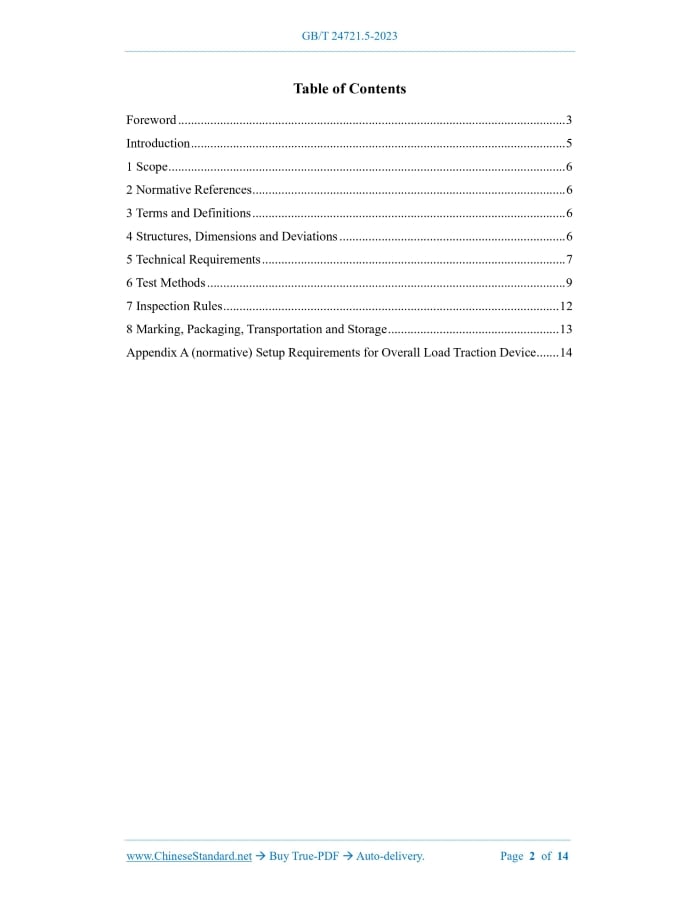

Similar standardsGB/T 24721.5-2023: Glass fiber reinforced plastic product for highway - Part 5: Sign base panel---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT24721.5-2023GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 03.220.20; 93.080.30 CCS P 66 Replacing GB/T 24721.5-2009 Glass Fiber Reinforced Plastic Product for Highway - Part 5: Sign Base Panel ISSUED ON: MARCH 17, 2023 IMPLEMENTED ON: JULY 1, 2023 Issued by: State Administration for Market Regulation; Standardization Administration of the People’s Republic of China. Table of ContentsForeword ... 3 Introduction ... 5 1 Scope ... 6 2 Normative References ... 6 3 Terms and Definitions ... 6 4 Structures, Dimensions and Deviations ... 6 5 Technical Requirements ... 7 6 Test Methods ... 9 7 Inspection Rules ... 12 8 Marking, Packaging, Transportation and Storage ... 13 Appendix A (normative) Setup Requirements for Overall Load Traction Device ... 14 Glass Fiber Reinforced Plastic Product for Highway - Part 5: Sign Base Panel1 ScopeThis document specifies the product structures, dimensions and deviations, technical requirements, test methods, inspection rules, as well as marking, packaging, transportation and storage requirements for glass fiber reinforced plastic sign base panel for highway. This document is applicable to the production, inspection and usage of glass fiber reinforced plastic sign base panel for highway (hereinafter referred to as “glass fiber reinforced sign base panel”).2 Normative ReferencesThe contents of the following documents constitute indispensable clauses of this document through the normative references in the text. In terms of references with a specified date, only versions with a specified date are applicable to this document. In terms of references without a specified date, the latest version (including all the modifications) is applicable to this document. GB 5768.2 Road Traffic Signs and Markings - Part 2: Road Traffic Signs GB/T 18226 Specification for steel component anticorrosion of highway engineering GB/T 23827 Road Traffic Sign Plate and Support GB/T 24721.1-2023 Glass Fiber Reinforced Plastic Product for Highway - Part 1: General Rule3 Terms and DefinitionsThis document does not have terms or definitions that need to be defined.4 Structures, Dimensions and Deviations4.1 The glass fiber reinforced sign base panel with a diameter or longest side not greater than 1,000 mm should be integrally formed, and the thickness shall not be less than 2 mm; the thickness of the base panel of other sizes shall not be less than 3 mm. When the base panel is formed by splicing, the minimum distance between the edge of any spliced screw hole on the base panel and the edge of the base panel and the splicing seam shall not be less than 20 mm, and the thickness of the base panel shall not be less than 3 mm. When the base panel is formed by splicing or the thickness of the base panel is less than 3 mm, reinforcement shall be adopted. In accordance with the stipulations of 6.2 in GB/T 24721.1-2023, conduct the test. 6.3 Test Instruments and Equipment In accordance with the stipulations of 6.3 in GB/T 24721.1-2023, conduct the test. 6.4 Specimen 6.4.1 General requirements In accordance with the stipulations of 6.4 in GB/T 24721.1-2023, conduct the test. 6.4.2 Special stipulations 6.4.2.1 The impact resistance and overall load test is tested with formed sign base panel. 6.4.2.2 For the tensile strength and flexural strength tests, the same number of specimens shall be respectively taken from the sign base panel in the vertical and horizontal directions; the minimum number of specimens in each group for the test of each property is 5 PCS, and the number of specimens for the flexural strength test in type inspection shall not be less than 6 groups of 30 PCS in both vertical and horizontal directions. 6.5 Structural and Dimensional Deviations In accordance with the stipulations of GB/T 23827, conduct the test. 6.6 Appearance Quality Freely place the sign base panel on the test platform with its face up, use a 1 m ruler to measure the maximum gap between any point on the panel surface and the ruler to obtain the unevenness of the panel surface. The rest of the test methods shall comply with the stipulations of 6.5 in GB/T 24721.1-2023. 6.7 General Physical and Mechanical Properties 6.7.1 Tensile strength In accordance with the stipulations of 6.6.1 in GB/T 24721.1-2023, conduct the test. 6.7.2 Compressive strength In accordance with the stipulations of 6.6.2 in GB/T 24721.1-2023, conduct the test. 6.7.3 Flexural strength In accordance with the stipulations of 6.6.3 in GB/T 24721.1-2023, conduct the test. 6.7.4 Impact strength In accordance with the stipulations of 6.6.4 in GB/T 24721.1-2023, conduct the test. 6.7.5 Density In accordance with the stipulations of 6.6.5 in GB/T 24721.1-2023, conduct the test. 6.7.6 Barcol hardness In accordance with the stipulations of 6.6.6 in GB/T 24721.1-2023, conduct the test. 6.7.7 Load deformation temperature In accordance with the stipulations of 6.6.7 in GB/T 24721.1-2023, conduct the test. 6.8 Flame-retardant Properties In accordance with the stipulations of 6.7 in GB/T 24721.1-2023, conduct the test. 6.9 Smoke Density In accordance with the stipulations of 6.8 in GB/T 24721.1-2023, conduct the test. 6.10 Impact resistance Place the specimen under the standard environmental conditions and adjust for 24 h before testing. The specimen shall be placed flat on the hard ground or on the test bench. Use a 1 kg 50 g steel ball to freely drop from a height of 1 m from the panel surface to impact the specimen. Ensure that the steel ball contacts the specimen only once during the impact process. The impact point shall be selected from the center point of the specimen and 5 points evenly distributed up, down, left and right. The distance between the impact point and the edge is not less than 80 mm. 6.11 Water Resistance In accordance with the stipulations of 6.10 in GB/T 24721.1-2023, conduct the test. 6.12 Acid Resistance In accordance with the stipulations of 6.11.2 in GB/T 24721.1-2023, conduct the test. 6.13 Environmental Adaptability 6.13.1 Damp heat resistance In accordance with the stipulations of 6.12.1 in GB/T 24721.1-2023, conduct the test. 6.13.2 Resistance to low-temperature impact In accordance with the stipulations of 6.12.2 in GB/T 24721.1-2023, conduct the test. 6.13.3 Resistance to low-temperature drop In accordance with the stipulations of 6.12.3 in GB/T 24721.1-2023, conduct the test. 6.13.4 Resistance to artificial accelerated aging (xenon arc light source) In accordance with the stipulations of 6.12.4.1 in GB/T 24721.1-2023, conduct the test. 6.13.5 Resistance to artificial accelerated aging (fluorescent ultraviolet light source) In accordance with the stipulations of 6.12.4.2 in GB/T 24721.1-2023, conduct the test. 6.13.6 Resistance to natural exposure In accordance with the stipulations of 6.12.4.3 in GB/T 24721.1-2023, conduct the test. 6.14 Overall Load 6.14.1 Place the glass fiber reinforced sign base panel on two 400 mm 50 mm horizontal support surfaces covered with rubber sheets (with a Shore A hardness of 65 ~ 70 and a thickness of 8 mm ~ 10 mm), and ensure that the outer edge of the base panel and the outer edge of the support surface are in the same vertical plane, and the base panel is arranged as symmetrically as possible between the support surfaces and has the largest span. 6.14.2 Assemble all the connecting bolts on the base panel on the connecting piece in accordance with the product assembly instructions. Take the midpoint of the connecting piece as the mechanical traction point; use a rigid connection medium to firmly connect the traction system of the mechanical testing machine through fixed pulleys; ensure that the lower edges of two fixed pulleys are on the same straight line; perform vertical traction to the base panel. The test traction device shall comply with the stipulations of Appendix A. When the connection medium is completely loosened, at a speed of 100 mm/min, pull it, until the panel surface is broken or when the maximum load has been reached, then, stop the test. The sum of the maximum tensile load and the mass of the connecting piece, and the mass of the vertical part of the connecting medium is the overall load. 6.15 Corrosion Resistance of Steel Components In accordance with the stipulations of GB/T 18226, conduct the test. 6.16 Retention Rate of Material Properties In accordance with the stipulations of 6.13 in GB/T 24721.1-2023, conduct the test. 6.17 Test Results In accordance with the stipulations of 6.14 in GB/T 24721.1-2023, conduct the test.7 Inspection RulesThe inspection rules shall comply with the stipulations of Chapter 7 in GB/T 24721.1-2023. The type inspection and exit-factory inspection items of glass fiber reinforced sign base panel ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 24721.5-2023 be delivered?Answer: The full copy PDF of English version of GB/T 24721.5-2023 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 24721.5-2023_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 24721.5-2023_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 24721.5-2023 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB/T 24721.5-2023?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB/T 24721.5-2023 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB/T 24721.5-2023?A step-by-step guide to download PDF of GB/T 24721.5-2023_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 24721.5-2023". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
