GB/T 24721.3-2023: Glass fiber reinforced plastic product for highway - Part 3: Duct Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB/T 24721.3: Historical versions

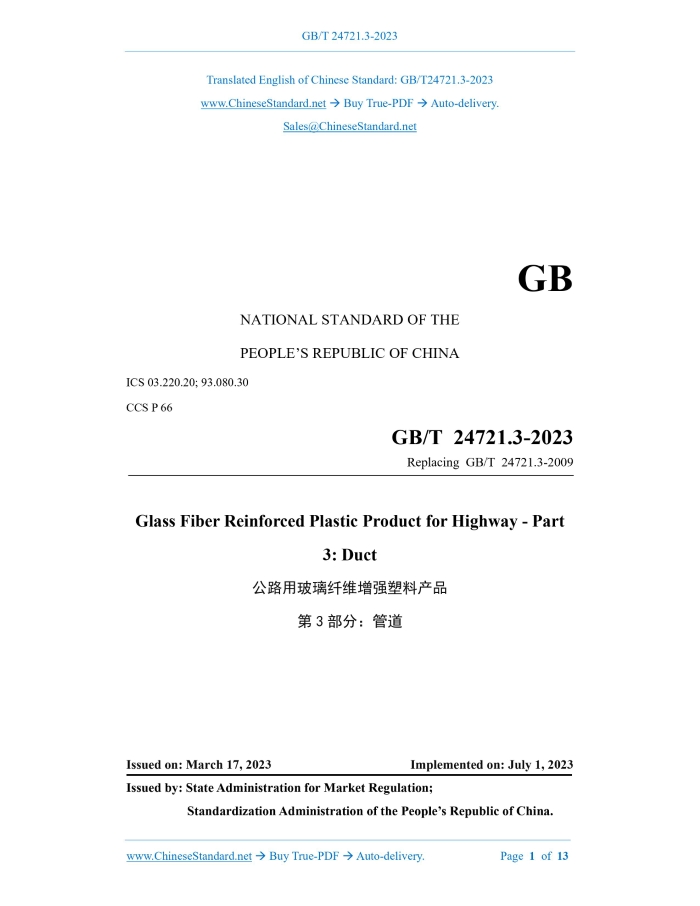

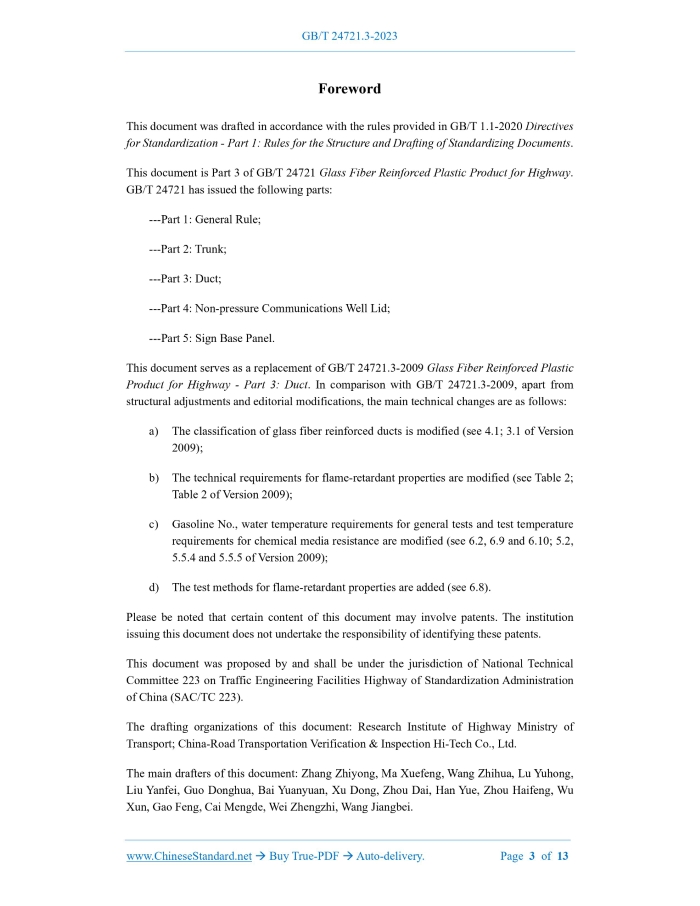

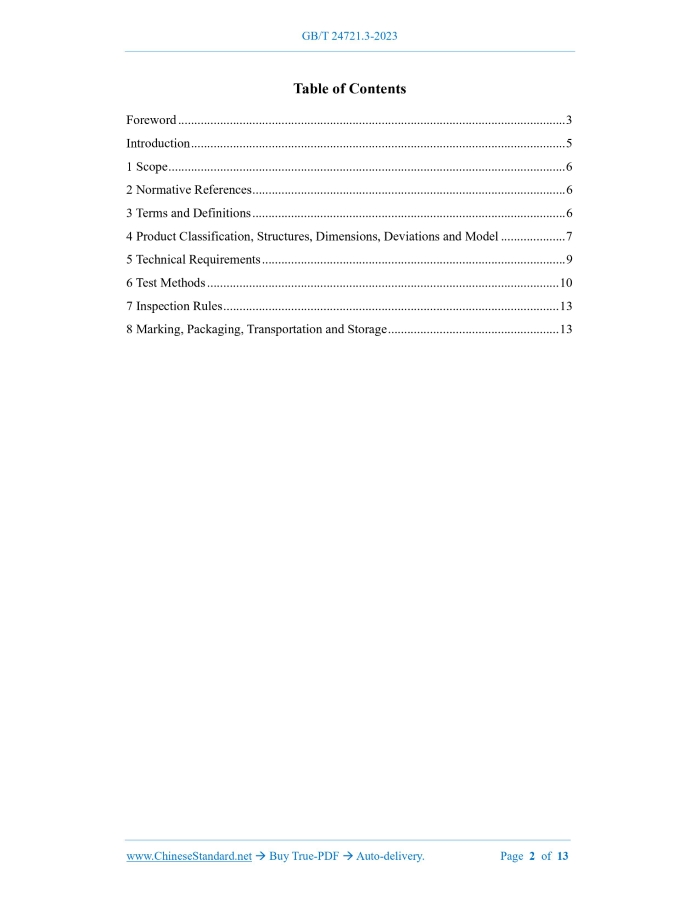

Similar standardsGB/T 24721.3-2023: Glass fiber reinforced plastic product for highway - Part 3: Duct---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT24721.3-2023GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 03.220.20; 93.080.30 CCS P 66 Replacing GB/T 24721.3-2009 Glass Fiber Reinforced Plastic Product for Highway - Part 3: Duct ISSUED ON: MARCH 17, 2023 IMPLEMENTED ON: JULY 1, 2023 Issued by: State Administration for Market Regulation; Standardization Administration of the People’s Republic of China. Table of ContentsForeword ... 3 Introduction ... 5 1 Scope ... 6 2 Normative References ... 6 3 Terms and Definitions ... 6 4 Product Classification, Structures, Dimensions, Deviations and Model ... 7 5 Technical Requirements ... 9 6 Test Methods ... 10 7 Inspection Rules ... 13 8 Marking, Packaging, Transportation and Storage ... 13ForewordThis document was drafted in accordance with the rules provided in GB/T 1.1-2020 Directives for Standardization - Part 1: Rules for the Structure and Drafting of Standardizing Documents. This document is Part 3 of GB/T 24721 Glass Fiber Reinforced Plastic Product for Highway. GB/T 24721 has issued the following parts: ---Part 1: General Rule; ---Part 2: Trunk; ---Part 3: Duct; ---Part 4: Non-pressure Communications Well Lid; ---Part 5: Sign Base Panel. This document serves as a replacement of GB/T 24721.3-2009 Glass Fiber Reinforced Plastic Product for Highway - Part 3: Duct. In comparison with GB/T 24721.3-2009, apart from structural adjustments and editorial modifications, the main technical changes are as follows: a) The classification of glass fiber reinforced ducts is modified (see 4.1; 3.1 of Version 2009); b) The technical requirements for flame-retardant properties are modified (see Table 2; Table 2 of Version 2009); c) Gasoline No., water temperature requirements for general tests and test temperature requirements for chemical media resistance are modified (see 6.2, 6.9 and 6.10; 5.2, 5.5.4 and 5.5.5 of Version 2009); d) The test methods for flame-retardant properties are added (see 6.8). Please be noted that certain content of this document may involve patents. The institution issuing this document does not undertake the responsibility of identifying these patents. This document was proposed by and shall be under the jurisdiction of National Technical Committee 223 on Traffic Engineering Facilities Highway of Standardization Administration of China (SAC/TC 223). The drafting organizations of this document: Research Institute of Highway Ministry of Transport; China-Road Transportation Verification & Inspection Hi-Tech Co., Ltd. The main drafters of this document: Zhang Zhiyong, Ma Xuefeng, Wang Zhihua, Lu Yuhong, Liu Yanfei, Guo Donghua, Bai Yuanyuan, Xu Dong, Zhou Dai, Han Yue, Zhou Haifeng, Wu Xun, Gao Feng, Cai Mengde, Wei Zhengzhi, Wang Jiangbei. Glass Fiber Reinforced Plastic Product for Highway - Part 3: Duct1 ScopeThis document specifies the product classification, structures, dimensions and deviations, model, technical requirements, test methods, inspection rules, as well as marking, packaging, transportation and storage requirements for glass fiber reinforced plastic duct for highway. This document is applicable to the production, inspection and usage of glass fiber reinforced plastic duct for highway (hereinafter referred to as “glass fiber reinforced duct”).2 Normative ReferencesThe contents of the following documents constitute indispensable clauses of this document through the normative references in the text. In terms of references with a specified date, only versions with a specified date are applicable to this document. In terms of references without a specified date, the latest version (including all the modifications) is applicable to this document. GB/T 1458 Method for Mechanical Properties of Ring of Filament - Winding Reinforced Plastics GB/T 5352 Fiber-reinforced Thermosetting Plastic Composites Pipe - Determination for External Loading Properties by Parallel-plate Loading GB/T 14152 Thermoplastics Pipes - Determination of Resistance to External Blows - Round- the-clock Method GB/T 24721.1-2023 Glass Fiber Reinforced Plastic Product for Highway - Part 1: General Rule GB/T 24721.2-2023 Glass Fiber Reinforced Plastic Product for Highway - Part 2: Trunk QB/T 2803 Determination of Deflection for Rigid Plastic Pipes3 Terms and DefinitionsThis document does not have terms or definitions that need to be defined. measurement result. 6.5.2 Wall thickness Use a micrometer with a division value not greater than 0.01 mm to respectively measure-take three measurement values at the socket end and the insertion end; take the arithmetic mean as the measurement result. 6.5.3 Inner diameter of socket end Use a caliper with a division value not greater than 0.02 mm to measure-take three values at an interval of 120 on the section of the duct socket end; take the arithmetic mean as the measurement result. 6.5.4 Length Use a steel tape with a division value of 1 mm to respectively measure-take three values along the axial direction of the duct; take the arithmetic mean as the measurement result. 6.5.5 Deflection In accordance with the stipulations of QB/T 2803, conduct the test. 6.6 Appearance Quality In accordance with the stipulations of 6.5 in GB/T 24721.1-2023, conduct the test. 6.7 General Physical and Mechanical Properties 6.7.1 Tensile strength 6.7.1.1 Rolled and pultruded glass fiber reinforced ducts shall be tested in accordance with the stipulations of 6.6.1 in GB/T 24721.1-2023. 6.7.1.2 Winded glass fiber reinforced ducts shall be tested in accordance with the stipulations of GB/T 1458. 6.7.2 Flexural strength 6.7.2.1 Rolled glass fiber reinforced ducts shall be tested in accordance with the stipulations of 6.6.3 in GB/T 24721.1-2023. 6.7.2.2 Winded glass fiber reinforced ducts shall be tested in accordance with the stipulations of GB/T 5352; the circumferential flexural strength shall be calculated in accordance with Formula (1): Where, D---the circumferential flexural strength, expressed in (MPa); P---the maximum compressive load, expressed in (N); D0---the outer diameter of the duct, expressed in (mm); L---the length of the specimen, expressed in (mm); D---the inner diameter of the duct, expressed in (mm). 6.7.3 Density In accordance with the stipulations of 6.6.5 in GB/T 24721.1-2023, conduct the test. 6.7.4 Barcol hardness In accordance with the stipulations of 6.6.6 in GB/T 24721.1-2023, conduct the test. 6.7.5 Load deformation temperature In accordance with the stipulations of 6.6.7 in GB/T 24721.1-2023, conduct the test. 6.7.6 Static friction coefficient of inner wall of duct In accordance with the stipulations of Appendix B in GB/T 24721.2-2023, conduct the test. The length of the duct specimen is not less than 500 mm. 6.7.7 Duct rigidity In accordance with the stipulations of GB/T 5352, conduct the test. The specimen length is 300 mm. When the radial change rate of the duct is 10% of the inner diameter, determine the duct rigidity. 6.7.8 Resistance to drop hammer impact In accordance with the stipulations of GB/T 14152, conduct the test. The specimen length is 200 mm, and the test temperature is (20 2) C. Select Type D90 hammer, the hammer weight is 6.3 kg 32 g, and the drop height is 1 m 10 mm. For each specimen, impact once. 6.8 Flame-retardant Properties In accordance with the stipulations of 6.7 in GB/T 24721.1-2023, conduct the test. 6.9 Water Resistance In accordance with the stipulations of 6.10 in GB/T 24721.1-2023, conduct the test. 6.10 Resistance to Chemical Media ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 24721.3-2023 be delivered?Answer: The full copy PDF of English version of GB/T 24721.3-2023 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 24721.3-2023_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 24721.3-2023_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 24721.3-2023 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB/T 24721.3-2023?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB/T 24721.3-2023 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB/T 24721.3-2023?A step-by-step guide to download PDF of GB/T 24721.3-2023_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 24721.3-2023". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
