GB/T 21833.1-2020: Seamless austenitic-ferritic (duplex) stainless steel tubes and pipes - Part 1: Tubes for heat exchanger Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB/T 21833.1: Historical versions

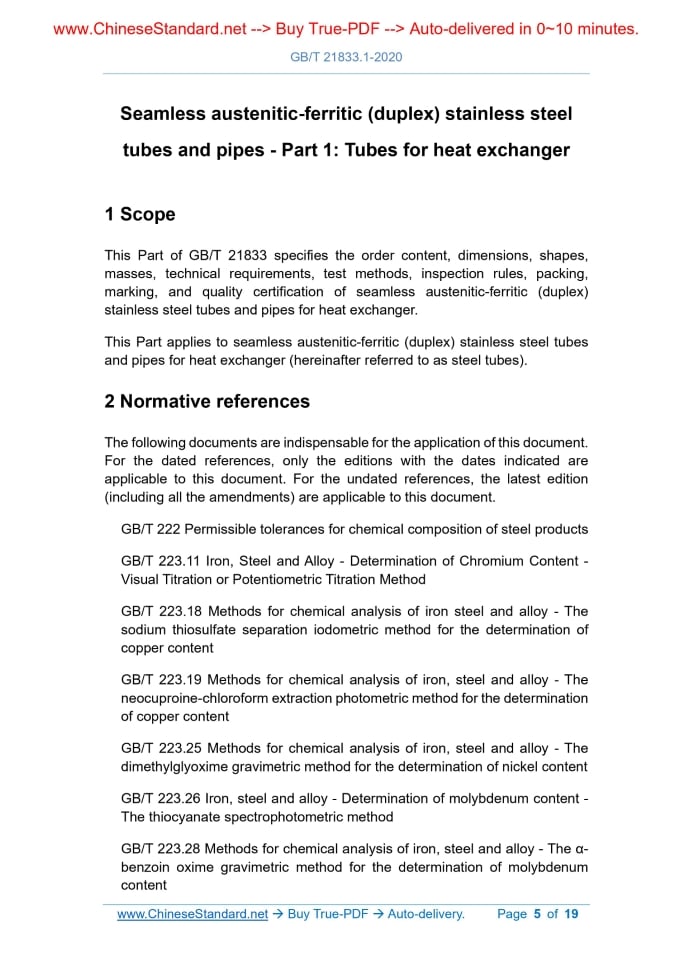

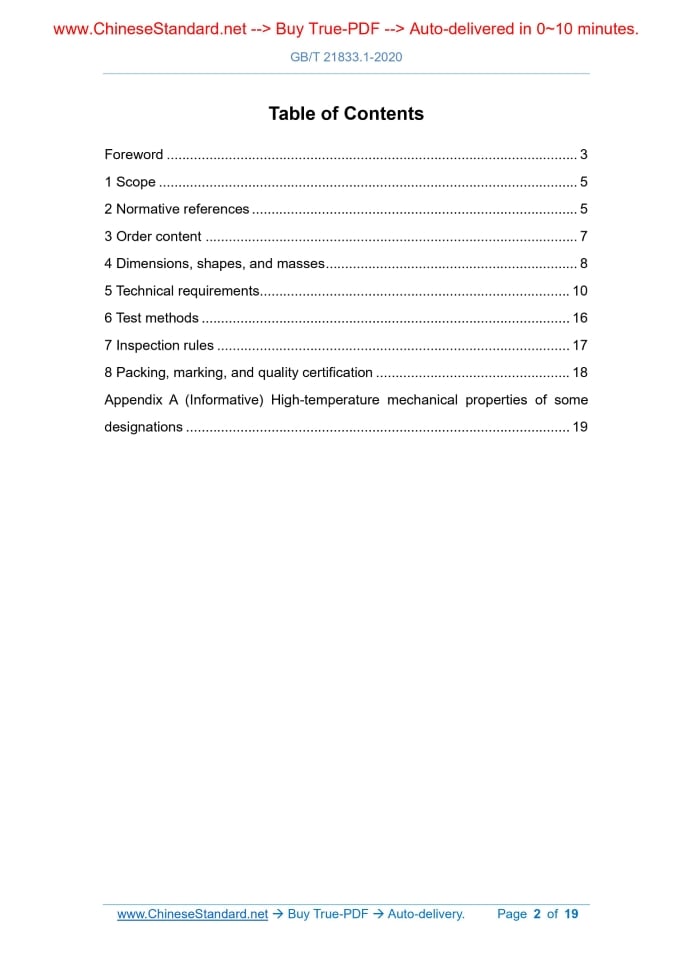

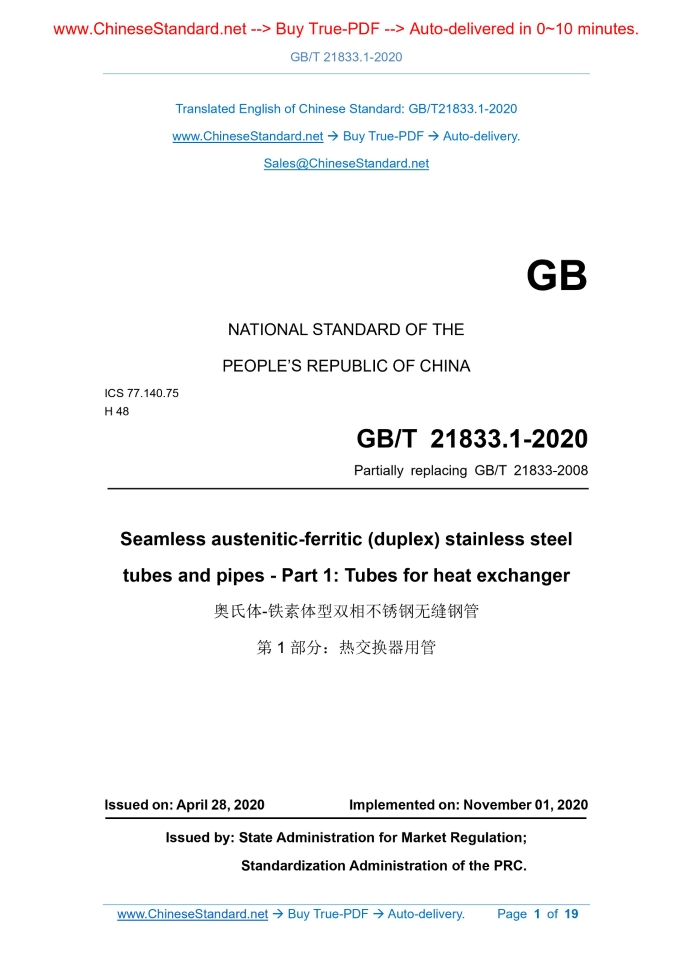

Similar standardsGB/T 21833.1-2020: Seamless austenitic-ferritic (duplex) stainless steel tubes and pipes - Part 1: Tubes for heat exchanger---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT21833.1-2020 NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 77.140.75 H 48 Partially replacing GB/T 21833-2008 Seamless austenitic-ferritic (duplex) stainless steel tubes and pipes - Part 1.Tubes for heat exchanger Issued on. APRIL 28, 2020 Implemented on. NOVEMBER 01, 2020 Issued by. State Administration for Market Regulation; Standardization Administration of the PRC. Table of ContentsForeword... 3 1 Scope... 5 2 Normative references... 5 3 Order content... 7 4 Dimensions, shapes, and masses... 8 5 Technical requirements... 10 6 Test methods... 16 7 Inspection rules... 17 8 Packing, marking, and quality certification... 18 Appendix A (Informative) High-temperature mechanical properties of some designations... 19ForewordGB/T 21833 "Seamless austenitic-ferritic (duplex) stainless steel tubes and pipes" is intended to be divided into three parts. - Part 1.Tubes for heat exchanger; - Part 2.Pipes for fluid service; - Part 3.Pipes for oil and gas service. This Part is Part 1 of GB/T 21833. This Part is drafted in accordance with the rules given in GB/T 1.1-2009. This Part partially replaces GB/T 21833-2008 "Austenitic-Ferritic (duplex) grade stainless steel seamless tubes and pipes". Compared with GB/T 21833-2008, the main technical changes of this Part are as follows. - Modify normative references (see Clause 2; Clause 2 of the 2008 edition); - Add dimension delivery method (see 4.1.1); - Modify the tolerances of the outer diameter and wall thickness of the steel tube (see 4.1.3; 4.1.2 of the 2008 edition); - Modify the tolerance of the fixed length (see 4.2.2; 4.2.2 of the 2008 edition); - Modify the bending requirements (see 4.3; 4.3 of the 2008 edition); - Modify the chemical composition requirements; delete the designations 06Cr26Ni4Mo2 and 12Cr21Ni5Ti (see 5.1.1; 5.1.1 of the 2008 edition); - Modify the smelting method of steel (see 5.2.1; 5.2.1 of the 2008 edition); - Delete the hot-rolling (hot-extrusion) steel tube manufacturing method and corresponding clauses (see 5.2.2 of the 2008 edition); - Modify the delivery state (see 5.3.1; 5.3.1 of the 2008 edition); - Delete Brinell hardness requirements and add Vickers hardness requirements (see 5.4.2; 5.4.2 of the 2008 edition); - ADD intergranular corrosion requirements, pitting corrosion requirements, and ultrasonic testing requirements (see 5.9, 5.10, 5.11); - Delete the impact test, color coding, and control of the upper limit of the tensile strength of steel tubes in special requirements (see 5.10 of the 2008 edition); - Modify the lot grouping rules (see 7.2; 7.2 of the 2008 edition); - Delete the comparison of domestic and foreign designations (see Appendix B of the 2008 edition). This Part was proposed by China Iron and Steel Association. This Part shall be under the jurisdiction of National Technical Committee 183 on Steel of Standardization Administration of China (SAC/TC 183). Drafting organizations of this Part. Baosteel Special Metals Co., Ltd., Zhejiang Jiuli Hi-Tech Metals Co., Ltd., Jiangsu Yinhuan Precision Steel Tube Co., Ltd., Jiangsu Wujin Stainless Steel Pipe Group Co., Ltd., Shanxi Taigang Stainless Steel Pipe Co., Ltd., Zhejiang Zhongda Special Steel Co., Ltd., Wuxi Tengyue Special Steel Pipe Co., Ltd., Shangshang Desheng Group Co., Ltd., Yongxing Special Stainless Steel Co., Ltd., Zhejiang Yongshang Special Material Co., Ltd., Zhejiang Tsingshan Steel Pipe Co., Ltd., China Metallurgical Information and Standardization Institute. Main drafters of this Part. Shen Yi, Zhao Junliang, Wang Baoshun, Gao Pei, Xu Qi, Wang Bowen, Chen Xiaofu, Wang Zhibiao, Ji Xuewen, Wu Minghua, Fang Dewei, Chen Tao, Dong Li, Zhu Changchun, Wang Man, Li Qi. The previous editions of the standard replaced by this Part were released as follows. - GB/T 21833-2008. Seamless austenitic-ferritic (duplex) stainless steel tubes and pipes - Part 1.Tubes for heat exchanger1 ScopeThis Part of GB/T 21833 specifies the order content, dimensions, shapes, masses, technical requirements, test methods, inspection rules, packing, marking, and quality certification of seamless austenitic-ferritic (duplex) stainless steel tubes and pipes for heat exchanger. This Part applies to seamless austenitic-ferritic (duplex) stainless steel tubes and pipes for heat exchanger (hereinafter referred to as steel tubes).2 Normative referencesThe following documents are indispensable for the application of this document. For the dated references, only the editions with the dates indicated are applicable to this document. For the undated references, the latest edition (including all the amendments) are applicable to this document. GB/T 222 Permissible tolerances for chemical composition of steel products GB/T 223.11 Iron, Steel and Alloy - Determination of Chromium Content - Visual Titration or Potentiometric Titration Method GB/T 223.18 Methods for chemical analysis of iron steel and alloy - The sodium thiosulfate separation iodometric method for the determination of copper content GB/T 223.19 Methods for chemical analysis of iron, steel and alloy - The neocuproine-chloroform extraction photometric method for the determination of copper content GB/T 223.25 Methods for chemical analysis of iron, steel and alloy - The dimethylglyoxime gravimetric method for the determination of nickel content GB/T 223.26 Iron, steel and alloy - Determination of molybdenum content - The thiocyanate spectrophotometric method GB/T 223.28 Methods for chemical analysis of iron, steel and alloy - The α- benzoin oxime gravimetric method for the determination of molybdenum content GB/T 223.36 Methods for chemical analysis of iron, steel and alloy - The neutral titration method for the determination of nitrogen content after distillation separation3 Order contentThe contract or order for ordering in accordance with this Part shall include the following.4 Dimensions, shapes, and masses4.1 Outer diameter and wall thickness 4.1.1 Steel tubes are delivered according to nominal outer diameter (D) and nominal wall thickness (S). 4.1.2 The nominal outer diameter and wall thickness of the steel tubes shall comply with the provisions of GB/T 17395. 4.2 Length 4.2.1 Normal length The normal length of the steel tubes is 3000 mm~12000 mm. According to the requirements of the purchaser, through negotiation between the supplier and the purchaser, and indicated in the contract, steel tubes of other lengths can be supplied. 4.3 Bending The bending of each meter of the steel tube shall not be greater than 1.5 mm/m. The bending of the total length shall not be greater than 0.1% of the length of the steel tube. 4.4 Out-of-roundness and uneven wall thickness The out-of-roundness and uneven wall thickness of the steel tubes shall not exceed 80% of the tolerances of the outer diameter and wall thickness, respectively. 4.5 End shape The end faces of both ends of the steel tube shall be perpendicular to the axis of the steel tube. It shall remove the cut burrs. 4.6 Masses Steel tubes are delivered according to actual mass; can also be delivered according to theoretical mass.5 Technical requirements5.1 Designation and chemical composition of steel 5.1.1 The designation and chemical composition (melting analysis) of steel shall meet the requirements of Table 2. 5.2 Manufacturing method 5.2.1 Smelting method of steel Steel shall be smelted by electric arc furnace plus external refining or converter plus external refining or electroslag remelting process. Through negotiation between the supplier and the purchaser, and indicated in the contract, other smelting methods can also be used. 5.3 Delivery state 5.3.1 Steel tubes shall be delivered after heat treatment and pickling. Steel tubes, which have been heat-treated in a protective atmosphere or ground (polished) as a whole, can be delivered without pickling. 5.4 Mechanical properties 5.4.1 The longitudinal mechanical properties of steel tubes delivered in heat- treated state shall comply with the requirements of Table 3. 5.5 Hydrostatic pressure 5.5.1 Steel tubes shall be subjected to hydrostatic pressure test one by one. The test pressure is calculated according to formula (2). The maximum test No. 5.6 Flattening According to the requirements of the purchaser, through negotiation between the supplier and the purchaser, and indicated in the contract, the steel tube can be subjected to flattening test. After flattening, the spacing H between two parallel pressing plates is calculated according to formula (3). After the sample is flattened, there shall be no cracks or gaps. 5.7 Drift-expending The steel tube shall be tested for drift-expending. The center taper of the drift- expending test is 60°. The minimum drift-expending rate of the outer diameter of the sample after drift-expending is 10%. After drift-expending, there shall be no cracks or gaps on the sample. 5.11 Ultrasonic testing The steel tubes shall be tested ultrasonically one by one. The artificial defects of the comparative sample tube for ultrasonic testing shall comply with the provisions of GB/T 5777-2019.The acceptance level is U2.5. 5.13 Special requirements When the purchaser has the following special requirements, the supplier and the purchaser shall negotiate and indicate in the contract.6 Test methods6.1 Sampling for chemical composition analysis of steel tubes shall be carried out according to the rules of GB/T 20066.The chemical composition analysis is usually carried out according to GB/T 11170, GB/T 20123, GB/T 20124, or other general methods. 6.2 The dimensions and shapes of the steel tubes shall be measured one by one using a measuring tool, which meets the accuracy requirements.7 Inspection rules7.1 Inspection and acceptance The inspection and acceptance of steel tubes shall be carried out by the supplier. 7.2 Lot grouping rules The sampling quantities and sampling methods for inspection items of steel tubes shall comply with the provisions of Table 5. 7.4 Reinspection and determination rules The reinspection and determination rules of steel tubes shall comply with the provisions of GB/T 2102.8 Packing, marking, and quality certificationThe packing, marking, and quality certification of steel tubes shall comply with the provisions of GB/T 2102.Appendix A(Informative) High-temperature mechanical properties of some designations Table A.1 lists the high-temperature specified plastic elongation strength in the solution state of steel tubes of some designations. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 21833.1-2020 be delivered?Answer: The full copy PDF of English version of GB/T 21833.1-2020 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 21833.1-2020_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 21833.1-2020_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 21833.1-2020 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB/T 21833.1-2020?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB/T 21833.1-2020 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB/T 21833.1-2020?A step-by-step guide to download PDF of GB/T 21833.1-2020_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 21833.1-2020". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
