GB/T 21832.1-2018: Welded austenitic-ferritic (duplex) stainless steel tubes and pipes - Part 1: Tubes for heat exchanger Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB/T 21832.1: Historical versions

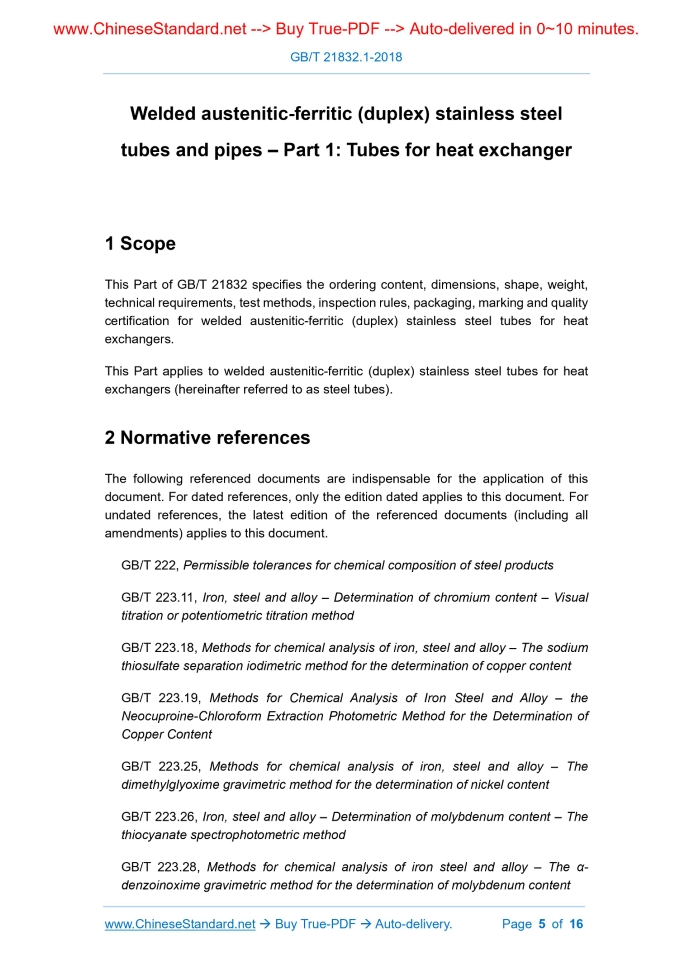

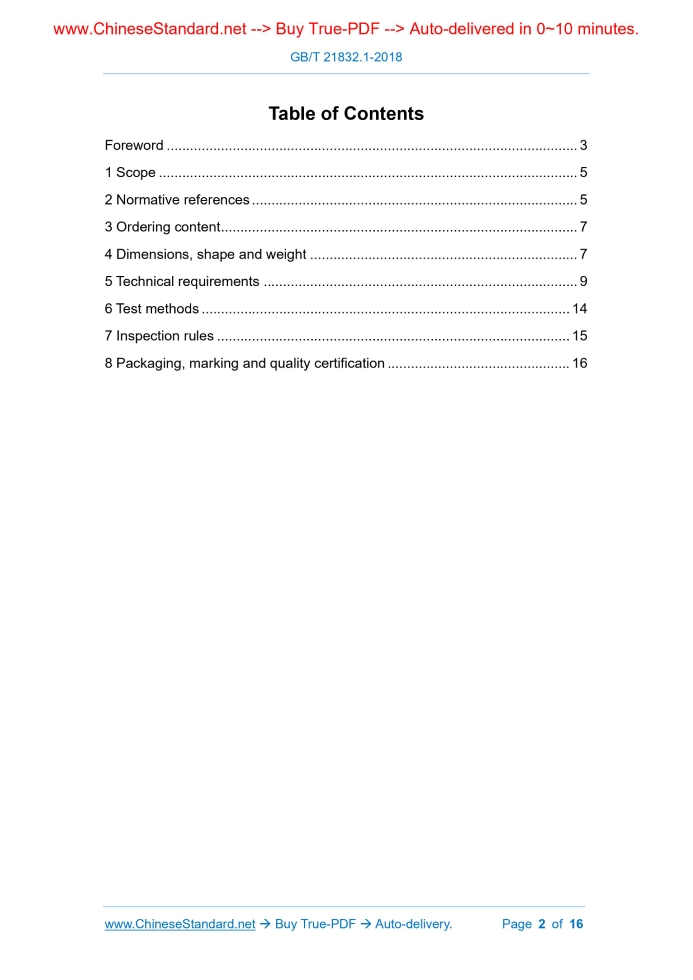

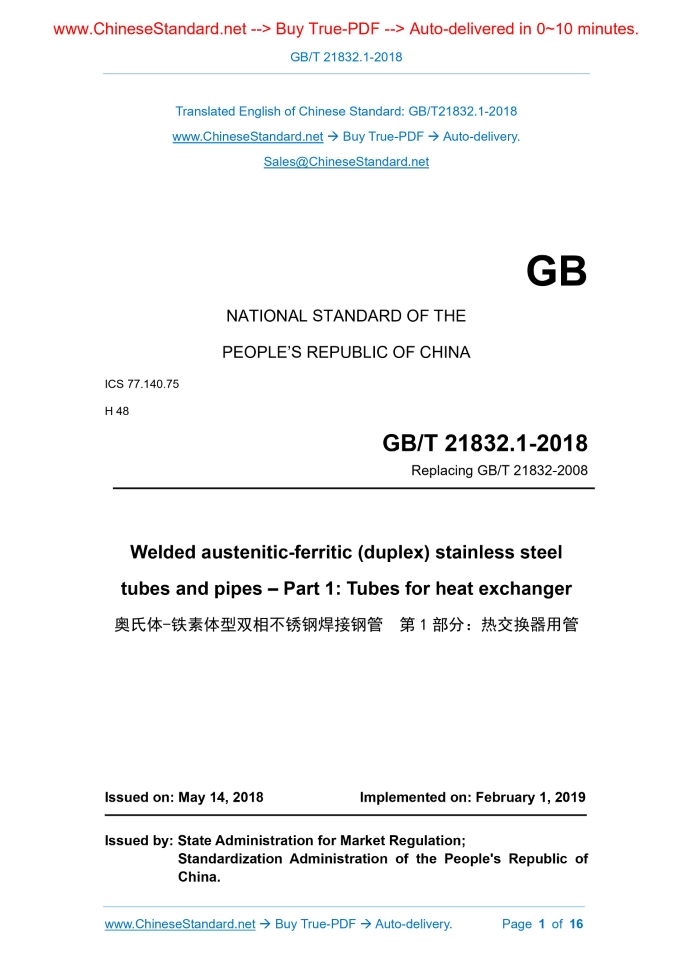

Similar standardsGB/T 21832.1-2018: Welded austenitic-ferritic (duplex) stainless steel tubes and pipes - Part 1: Tubes for heat exchanger---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT21832.1-2018 GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 77.140.75 H 48 Replacing GB/T 21832-2008 Welded austenitic-ferritic (duplex) stainless steel tubes and pipes – Part 1. Tubes for heat exchanger Issued on: MAY 14, 2018 Implemented on: FEBRUARY 1, 2019 Issued by. State Administration for Market Regulation; Standardization Administration of the People's Republic of China. Table of ContentsForeword ... 3 1 Scope ... 5 2 Normative references ... 5 3 Ordering content ... 7 4 Dimensions, shape and weight ... 7 5 Technical requirements ... 9 6 Test methods ... 14 7 Inspection rules ... 15 8 Packaging, marking and quality certification ... 16 Welded austenitic-ferritic (duplex) stainless steel tubes and pipes – Part 1. Tubes for heat exchanger1 ScopeThis Part of GB/T 21832 specifies the ordering content, dimensions, shape, weight, technical requirements, test methods, inspection rules, packaging, marking and quality certification for welded austenitic-ferritic (duplex) stainless steel tubes for heat exchangers. This Part applies to welded austenitic-ferritic (duplex) stainless steel tubes for heat exchangers (hereinafter referred to as steel tubes).2 Normative referencesThe following referenced documents are indispensable for the application of this document. For dated references, only the edition dated applies to this document. For undated references, the latest edition of the referenced documents (including all amendments) applies to this document. GB/T 222, Permissible tolerances for chemical composition of steel products GB/T 223.11, Iron, steel and alloy – Determination of chromium content – Visual titration or potentiometric titration method GB/T 223.18, Methods for chemical analysis of iron, steel and alloy – The sodium thiosulfate separation iodimetric method for the determination of copper content GB/T 223.19, Methods for Chemical Analysis of Iron Steel and Alloy – the Neocuproine-Chloroform Extraction Photometric Method for the Determination of Copper Content GB/T 223.25, Methods for chemical analysis of iron, steel and alloy – The dimethylglyoxime gravimetric method for the determination of nickel content GB/T 223.26, Iron, steel and alloy – Determination of molybdenum content – The thiocyanate spectrophotometric method GB/T 223.28, Methods for chemical analysis of iron steel and alloy – The α- denzoinoxime gravimetric method for the determination of molybdenum content GB/T 11170, Stainless steel – Determination of multi-element contents – Spark discharge atomic emission spectrometric method (Routine method) GB/T 13305, Micrographic method for determining area content of the α-phases in stainless steels GB/T 20066, Steel and iron-sampling and preparation of samples for the determination of chemical composition GB/T 20123, Steel and iron – Determination of total carbon and sulfur content Infrared absorption method after combustion in an induction furnace (routine method) GB/T 20124, Steel and iron – Determination of nitrogen content – Thermal conductimetric method after fusion in a current of inert gas GB/T 21835, Dimensions and masses per unit length of welded steel pipes3 Ordering contentContracts or orders for purchase of steel tubes based on this Part shall include the following content. a) a reference to this Part; b) product name; c) steel designation; d) dimensions (outer diameter × wall thickness, in mm); e) quantity ordered; f) special requirements.4 Dimensions, shape and weight4.1 Outer diameter and wall thickness 4.1.1 The outer diameter D of steel tubes shall not be greater than 203 mm; the wall thickness S shall not be greater than 8.0 mm; and their dimensions shall be as specified in GB/T 21835. Steel tubes of other outer diameters and wall thicknesses can be supplied in accordance with the requirements of the purchaser, which shall be as agreed on by the supplier and the purchaser. D – the outer diameter, in mm. 5.6.2 Underwater air-tightness 5.6.2.1 For steel tubes of outer diameter not greater than 50.8 mm, carry out underwater air-tightness test in place of hydrostatic test one by one. Test pressure for underwater air-tightness test shall not be less than 1.0 MPa; and test medium is compressed air. Under the test pressure, steel tubes shall be fully immersed in water; the standup pressure time shall not be less than 10 s; and steel tubes shall be free from leakage. 5.6.2.2 Other test pressures can be used for air-tightness test in accordance with the requirements of the purchaser, which shall be as agreed on by the supplier and the purchaser and stated in contracts. 5.6.3 Eddy current testing The supplier can use eddy current testing to replace hydrostatic test. The artificial defects of contrast sample tubes for eddy current testing shall comply with the specifications for acceptance level E4H of GB/T 7735-2016. 5.7 Metallographic structure 5.7.1 The metallographic structure of steel tubes shall be austenitic-ferritic; the austenitic content of the base metal zones shall be 40% ~ 60%; and the austenitic content of the weld zones (the heat affected zones) shall be 35% ~ 65%. 5.7.2 Austenitic contents of other ranges can be specified, which shall be as agreed on by the supplier and the purchaser and stated in contracts. 5.8 Surface quality 5.8.1 The inner-outer surfaces of steel tubes shall be smooth, without cracks, folds, undercuts, lack of penetration or weld sags. These defects shall be removed completely; the removing depth shall not exceed the lower deviation of nominal wall thickness; the actual wall thickness at the removing spots shall not be less than the minimum value allowed by wall thickness. 5.8.2 The surfaces of steel tubes allow the existence of local scratches, indentations and pits, but their depth shall not exceed 50% of the lower deviation of wall thickness. Those exceeding can be polished, however, the actual wall thickness at the polishing spots shall not be less than the minimum value allowed by wall thickness. Other local defects are allowed, which will not affect the minimum value allowed by wall thickness. 5.8.3 Reinforcements of inner-out welds shall comply with the following specifications. a) not greater than 0.1 mm for steel tubes of S ≤ 1.0 mm; steel tubes of each batch 6 Back bend of welded joints One sample separately taken from two steel tubes of each batch See 5.5.3 GB/T 2653; see 5.5.3 7 Hydrostatic pressure One by one - GB/T 241 8 Underwater air-tightness One by one - See 5.6.2 9 Eddy current One by one - GB/T 7735-2016 10 Metallographic structure One sample separately taken from two steel tubes of each batch GB/T 13305 GB/T 13305 11 Corrosion As agreed on As agreed on As agreed on Detrimental intermetallic phase As agreed on As agreed on As agreed on7 Inspection rules7.1 Inspection and acceptance The inspection and acceptance of steel tubes shall be carried out by the quality and technology supervision department of the supplier. 7.2 Group-batch rules Except that chemical composition can be inspected and accepted by furnace, the other test items of steel tubes shall be inspected and accepted by batch. Each batch consist of steel tubes of the same designation, heat number, specification, welding process and heat treatment system (heat). The quantity of each batch of steel tubes shall not exceed those specified as follows. a) 400 steel tubes for D ≤ 40 mm; b) 200 steel tubes for 40 mm < D ≤ 40 mm; c) 100 steel tubes for D > 140 mm. 7.3 Sampling quantity The sampling quantity for all tests of each batch of steel tubes shall be as specified in Table 4. 7.4 Re-inspection and criteria ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 21832.1-2018 be delivered?Answer: The full copy PDF of English version of GB/T 21832.1-2018 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 21832.1-2018_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 21832.1-2018_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 21832.1-2018 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB/T 21832.1-2018?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB/T 21832.1-2018 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB/T 21832.1-2018?A step-by-step guide to download PDF of GB/T 21832.1-2018_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 21832.1-2018". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
