GB/T 1345-2005 PDF EnglishUS$70.00 · In stock · Download in 9 seconds
GB/T 1345-2005: The test sieving method for fineness of cement Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB/T 1345: Historical versions

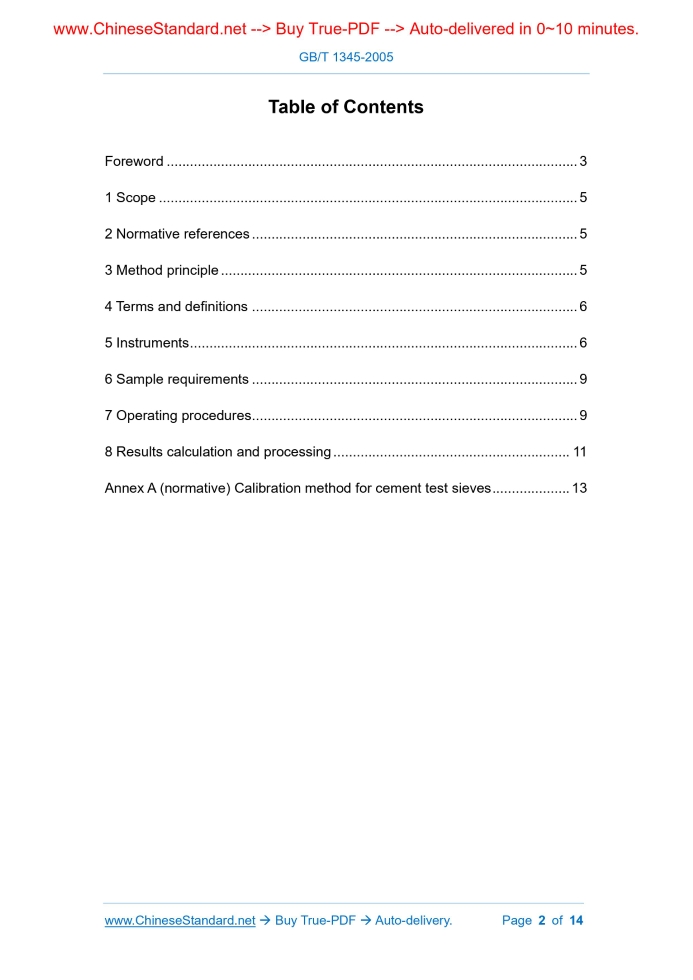

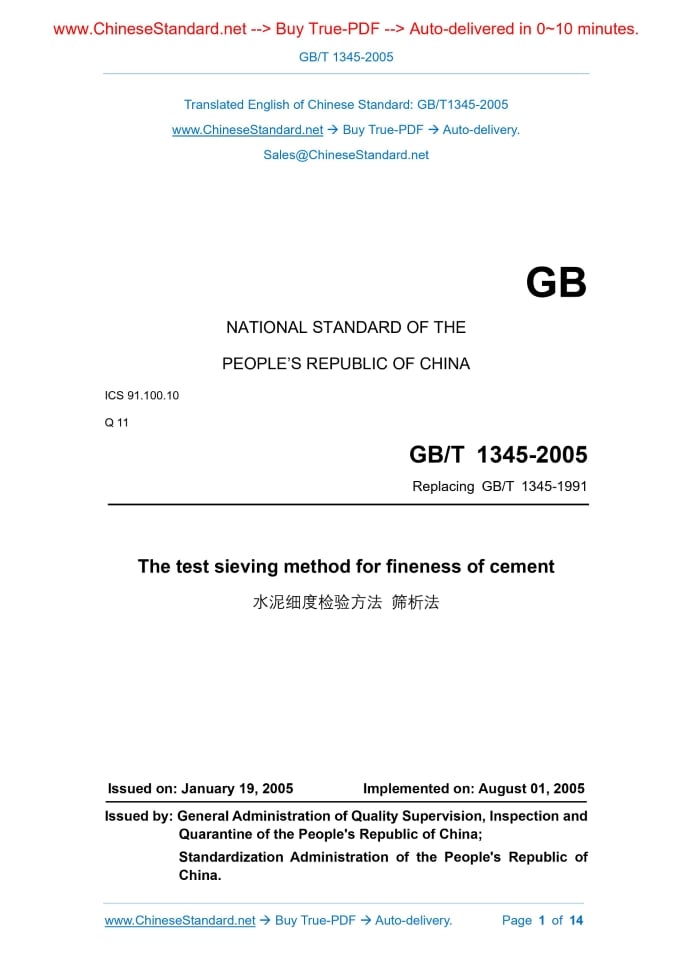

GB/T 1345-2005: The test sieving method for fineness of cement---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT1345-2005NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 91.100.10 Q 11 Replacing GB/T 1345-1991 The test sieving method for fineness of cement Issued on. JANUARY 19, 2005 Implemented on. AUGUST 01, 2005 Issued by. General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China; Standardization Administration of the People's Republic of China. Table of ContentsForeword... 3 1 Scope... 5 2 Normative references... 5 3 Method principle... 5 4 Terms and definitions... 6 5 Instruments... 6 6 Sample requirements... 9 7 Operating procedures... 9 8 Results calculation and processing... 11 Annex A (normative) Calibration method for cement test sieves... 13ForewordThis Standard refers to ASTM C786-96 “Standard Test Method for Fineness of Hydraulic Cement and Raw Materials by the 300 μm (No. 50), 150 μm (No. 100), and 75 μm (No. 200) Sieves by Wet Methods”, ISO/DIS/10749 “Methods of testing cement - Determination of fineness” and BS EN196-6.2000 “Methods of testing cement - Part 6.Determination of fineness”. This Standard replaces GB/T 1345-1991 “Test method for fineness of cement - The 80 μm sieve” from the date of its implementation. Compared with GB/T 1345-1991, the changes are as follows. - The standard name is changed to “The test sieving method for fineness of cement” (the standard name of 1991 edition; Clause 4 of this edition); - ADD square-aperture sieves with an aperture size of 45 μm (see Clause 1 of this edition); - ADD the terms and definitions (see Clause 4 of this edition); - ADD the provisions for sample requirements (see Clause 6 of this edition); - ADD the requirement that “in the qualification test, the average value of the parallel results of two samples is used as the sieving result of the sample instead of the determined value of one sample” (see subclause 8.3 of this edition); - ADD the provisions for cleaning and calibration of test sieves (see Clause 7.5 and Annex A of this edition). Annex A of this Standard is a normative annex. This Standard was proposed by China Building Materials Academy. This Standard shall be under the jurisdiction of National Technical Committee on Cement of Standardization Administration of China. Drafting organization of this Standard. China Building Materials Academy. Participating drafting organizations of this Standard. Zhejiang Shaoxing Taoyan Xinxing Instrument Factory, Shaanxi Xi'an Cable & Copper Mesh Factory. Main drafters of this Standard. Chen Ping, Zhang Datong, Yan Bilan, Xi Jinsong, Tao Baorong, Zhang Xiqiang. The previous released versions replaced by this Standard are as follows. - GB 1345-1962, GB 1345-1977, GB/T 1345-1991. The test sieving method for fineness of cement1 ScopeThis Standard specifies the sieving method for fineness of cement by 45 μm square-aperture standard sieves and 80 μm square-aperture standard sieves. This Standard applies to Portland cement, ordinary Portland cement, slag Portland cement, pozzolanic Portland cement, fly ash Portland cement, composite Portland cement, and other types of cement and powdery materials designated to use this Standard.2 Normative referencesThe following documents contain the provisions which, through reference in this Standard, become the provisions of this Standard. For dated references, their subsequent amendments (excluding corrigendum) or revisions do not apply to this Standard. However, the parties who enter into agreement based on this Standard are encouraged to investigate whether the latest versions of these documents are applicable. For undated reference documents, the latest versions apply to this Standard. GB/T 5329 Test sieves and test sieving - Vocabulary GB/T 6003.1 Test sieves of metal wire cloth3 Method principleThis Standard uses 45 µm square-aperture sieves and 80 µm square-aperture sieves to perform the sieving test on cement samples. The mass percentage of the sieve residue on the sieve is used to represent the fineness of the cement sample.4 Terms and definitionsThis Standard uses GB/T 5329 and the following terms and definitions. 4.1 vacuum sieving Using a vacuum sieving analyzer to sieve the cement in the test sieve within a specified sieving time by the constant air flow generated by the negative pressure source.5 Instruments5.1 Test sieve 5.2 Vacuum sieving analyzer 5.2.1 A vacuum sieving analyzer consists of a sieve base, a vacuum sieve, a negative pressure source and a dust collector, where the sieve base consists of an air jet nozzle with a rotation speed of 30 r/min ± 2 r/min, a negative pressure meter, a control board, a micro motor and a shell, see Figure 3. 5.2.2 The adjustable range of the negative pressure of sieving analyzers is 4000 Pa ~ 6000 Pa. 5.2.3 The distance between the upper opening plane of the air jet nozzle and the sieving medium is 2 mm ~ 8 mm. 5.2.4 The dimensions of the upper opening of the air jet nozzle is shown in Figure 4. 5.2.5 Negative pressure source and dust collector, consisting of an industrial vacuum cleaner with a power of ≥ 600 W and a small cyclone dust collector or other equipment with equivalent functions.6 Sample requirementsCement samples shall be representative. The sample processing method is in accordance with Clause 3.5 of GB 12573-1990.7 Operating procedures7.1 Test preparation The test sieve used before the test shall be kept clean, and the vacuum sieve and manual sieve shall be kept dry. During the test, it weighs 25 g of sample for 80 µm sieve tests and weighs 10 g of sample for 45 µm sieve tests. 7.2 Vacuum sieving 7.2.1 Before the sieving test, PLACE the vacuum sieve on the sieve base, COVER the sieve cover, CONNECT to the power supply, CHECK the control system, and ADJUST the negative pressure to the range of 4000 Pa to 6000 Pa. 7.3 Wet sieving 7.3.1 Before the sieving test, CHECK that there is no mud or sand in the water, ADJUST the water pressure and position of the wet sieve holder so that it can operate normally, and CONTROL the distance between the bottom surface of the nozzle and the sieving medium to 35 mm ~ 75 mm. 7.4 Manual sieving 7.4.1 WEIGH the cement sample to the nearest 0.01 g and POUR it into a manual sieve. 7.4.2 USE one hand to hold the sieve and shake back and forth, and gently tap with the other hand. The reciprocating shaking and tapping process shall be kept close to horizontal. 7.5 For other powdery materials or sieving tests using square-aperture sieves other than 45 µm to 80 µm, the relevant parameters such as the size of the sieve, the sample amount and the sieving time shall be specified. 7.6 Cleaning of test sieve The test sieve must always be kept clean. The sieve aperture shall be clear. It shall be cleaned after being used for 10 times.8 Results calculation and processing8.1 Calculation The percentage sieve residue of the cement sample is calculated as follows. 8.2 Correction of sieve residue results The sieving medium of the test sieve will wear during the test, so the sieving result shall be corrected. The correction method is to multiply the result of 8.1 by the effective correction factor obtained after the test sieve is calibrated according to Annex A, which is the final result.Annex A(normative) Calibration method for cement test sieves A.1 Scope The method specified in this annex is applicable to the calibration of cement test sieves. A.2 Principle The ratio of the determined value of the standard sample on the test sieve to the standard value of the standard sample is used to reflect the accuracy of the aperture of the test sieve. A.3 Test conditions A.3.1 Standard sample of cement fineness A standard sample that meets the requirements of GSB 14-1511, or of the same grade. In case of dispute, the GSB 14-1511 standard sample shall prevail. A.3.2 Instruments and equipment Corresponding equipment that meets the requirements of Clause 5 of this Standard. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 1345-2005 be delivered?Answer: The full copy PDF of English version of GB/T 1345-2005 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 1345-2005_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 1345-2005_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 1345-2005 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB/T 1345-2005?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB/T 1345-2005 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB/T 1345-2005?A step-by-step guide to download PDF of GB/T 1345-2005_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 1345-2005". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
