GB 4674-2009: Safety code for grinding machines Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB 4674: Historical versions

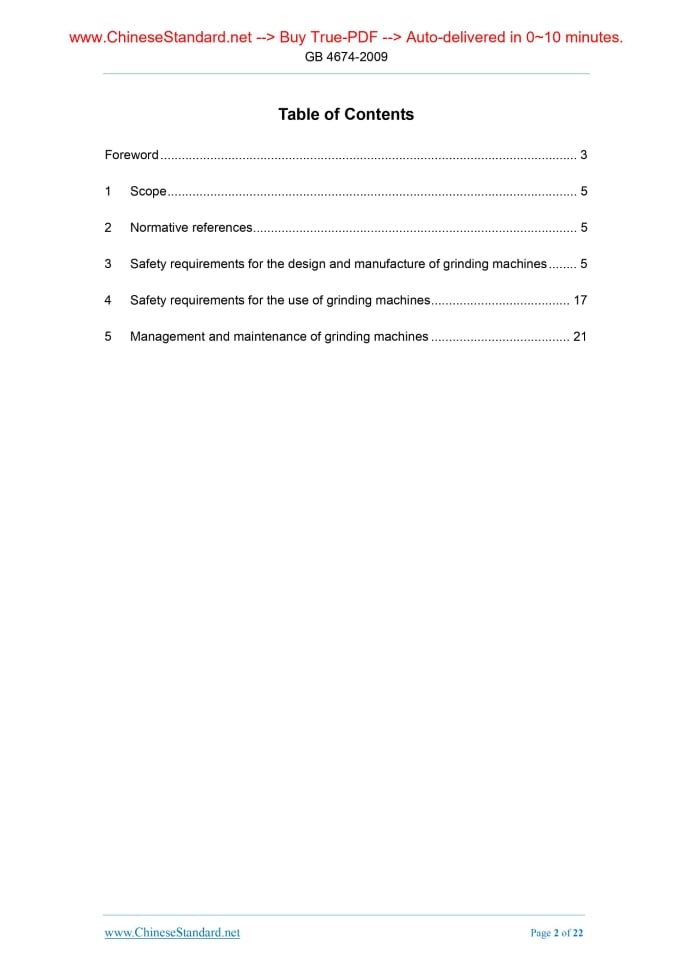

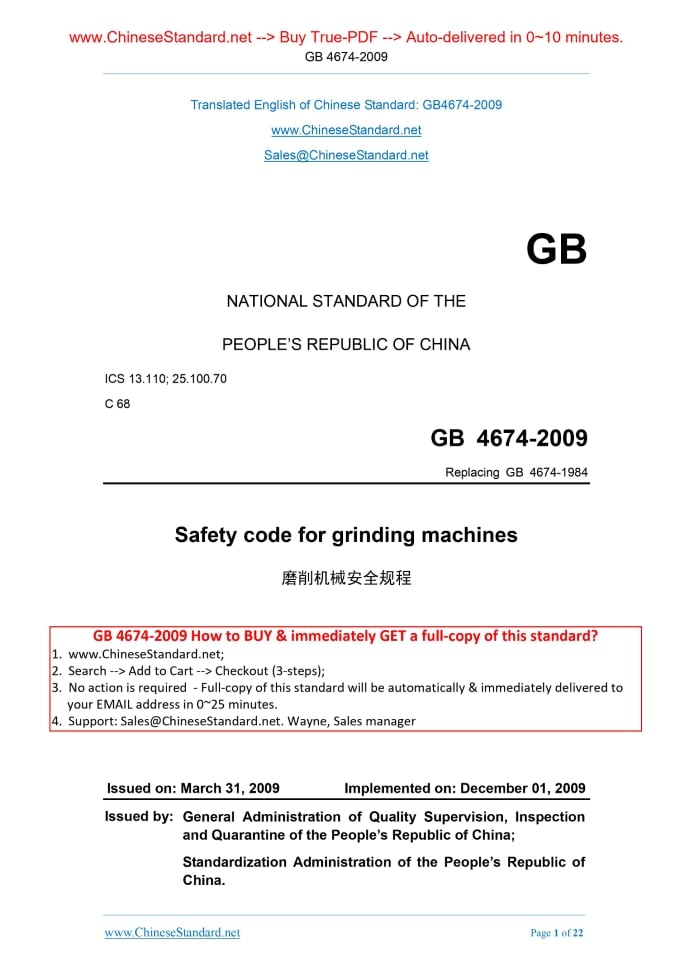

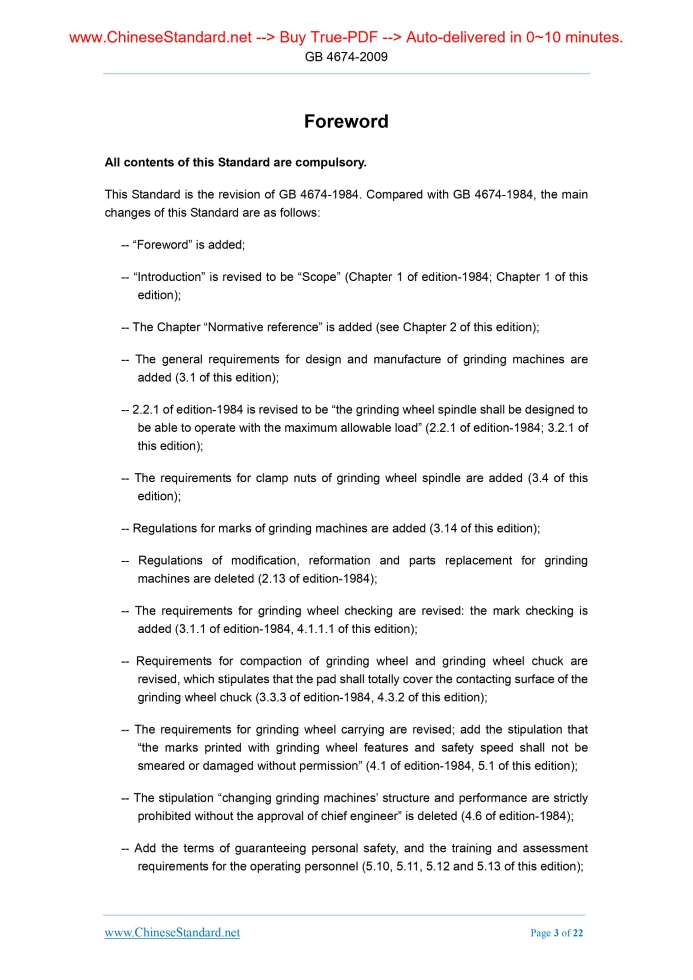

GB 4674-2009: Safety code for grinding machines---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GB4674-2009GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 13.110; 25.100.70 C 68 Replacing GB 4674-1984 Safety code for grinding machines Issued on: MARCH 31, 2009 Implemented on: DECEMBER 01, 2009 Issued by. General Administration of Quality Supervision, Inspection and Quarantine of the People’s Republic of China; Standardization Administration of the People’s Republic of China. Table of ContentsForeword... 3 1 Scope... 5 2 Normative references... 5 3 Safety requirements for the design and manufacture of grinding machines... 5 4 Safety requirements for the use of grinding machines... 17 5 Management and maintenance of grinding machines... 21ForewordAll contents of this Standard are compulsory. This Standard is the revision of GB 4674-1984.Compared with GB 4674-1984, the main changes of this Standard are as follows. -- “Foreword” is added; -- “Introduction” is revised to be “Scope” (Chapter 1 of edition-1984; Chapter 1 of this edition); -- The Chapter “Normative reference” is added (see Chapter 2 of this edition); -- The general requirements for design and manufacture of grinding machines are added (3.1 of this edition); -- 2.2.1 of edition-1984 is revised to be “the grinding wheel spindle shall be designed to be able to operate with the maximum allowable load” (2.2.1 of edition-1984; 3.2.1 of this edition); -- The requirements for clamp nuts of grinding wheel spindle are added (3.4 of this edition); -- Regulations for marks of grinding machines are added (3.14 of this edition); -- Regulations of modification, reformation and parts replacement for grinding machines are deleted (2.13 of edition-1984); -- The requirements for grinding wheel checking are revised. the mark checking is added (3.1.1 of edition-1984, 4.1.1.1 of this edition); -- Requirements for compaction of grinding wheel and grinding wheel chuck are revised, which stipulates that the pad shall totally cover the contacting surface of the grinding wheel chuck (3.3.3 of edition-1984, 4.3.2 of this edition); -- The requirements for grinding wheel carrying are revised; add the stipulation that “the marks printed with grinding wheel features and safety speed shall not be smeared or damaged without permission” (4.1 of edition-1984, 5.1 of this edition); -- The stipulation “changing grinding machines’ structure and performance are strictly prohibited without the approval of chief engineer” is deleted (4.6 of edition-1984); -- Add the terms of guaranteeing personal safety, and the training and assessment requirements for the operating personnel (5.10, 5.11, 5.12 and 5.13 of this edition); -- Appropriate revisions are made in text editing. This Standard was proposed by State Administration of State Work Safety Supervision Authority. This Standard shall be under the jurisdiction of National Technical Committee of Work Safety standardization. Drafting organization of this Standard. Tangshan Institute of China Coal Research Institute, Kailuan (Group) Co., Ltd., and CNR Tangshan Railway Vehicles Equipment Co., Ltd. Main drafters of this Standard. Zhang Wenjun, Wang Zhongchang, Zhang Ruixi, He Xiaoqun, Wei Guanghou, Chen ying, and Mou JianHua. Previous version replaced by this Standard is as follows. — GB 4674-1984. Safety Code for Grinding Machines1 ScopeThis Standard stipulates the safety technical requirements in design and manufacture, use, management and maintenance of grinding machines. This Standard applies to the grinding machines that use grinding wheel or grinding segment to conduce manual, mechanical or automatic process. This Standard does not apply to grinding processing machines that use grinding head with a handle, coated abrasive tools, oilstone and grinding paste.2 Normative referencesThe articles contained in the following documents have become part of this Standard when they are quoted herein. For the dated documents so quoted, all the modifications (excluding corrections) or revisions made thereafter shall not be applicable to this Standard. For the undated documents so quoted, the latest editions shall be applicable to this Standard. GB/T 6171 Hexagon nuts, style 1, with fine pitch thread (eqv ISO 8673.1999) GB 12348 Emission standard for industrial enterprises noise at boundary GB/T 16769 Metal-cutting machine tools - Measurement method of sound pressure level (neq ISO/DIS 230-5-2.1996) JB/T 9878 Measurement of dust concentration of metal-cutting machine tool3 Safety requirements for the design andmanufacture of grinding machines 3.1 General requirements 3.1.1 The design shall, as possible, eliminate or reduce all potential dangerous factors. 3.1.2 Necessary safety devices shall be adopted, in case of dangers that cannot be avoided or fully restrained through design. Table 1 The matching of grinding wheel hole diameter and the grinding wheel spindle or grinding wheel chuck (mm) Grinding wheel hole diameter Diameter of grinding wheel spindle or grinding wheel chuck Grinding methods H11 f7 Mirror-surface grinding, thread grinding, and high-speed grinding with running speed >45 m/s H12 e8 Fine grinding H13 e8 Corse grinding 3.3 Grinding wheel chuck 3.3.1 The diameter of grinding wheel chuck shall not be less than 1/3 of that of the grinding wheel. The diameter of the grinding wheel chuck for cutting-off wheel shall not be less than 1/4 of that of the grinding wheel. 3.3.2 For any form of grinding wheel chuck, the diameter of its left-right sides shall equal the radial width of the compaction surface. 3.3.3 The grinding wheel chuck shall be able to reliably transmit the driving force to the grinding wheel. 3.3.4 The grinding wheel chuck shall have enough stiffness to ensure that the compaction surface is flat and evenly contacted after being compacted. 3.3.5 There shall be enough space at the non-contacting parts between the grinding wheel chuck and the two sides of the grinding wheel; and the minimum size of the space shall be 1.5mm. 3.3.6 Each surface of the grinding wheel chuck shall be smooth and without sharp edges, and have good dynamic balance performance. 3.3.7 Grinding wheel chuck can be divided into. a) Groove-type (Figure 2a). It is used to install grinding wheel that has a small hole diameter and is directly mounted on the grinding wheel spindle. b) Sleeve-type (Figure 2b). It is used to install grinding wheel with a large hole diameter. c) Liner-type (Figure 2c). It is used to install grinding wheel with a large hole diameter and with thickness more than 32cm. d) Cone-type (Figure 2d). It is used to install double bevel frame grinding wheel. verification. Shield of grinding wheel with operating speed less than or equal to 40 m/s can also select other materials, but their strength shall not be less than the value specified in this Standard. 3.5.11 The upper end of the shield opening shall be equipped with an adjustable guard plate to adjust the clearance between the guard plate and peripheral surface according to the abrasion of the grinding wheel. The guard plate shall be fixed on the grinding wheel shield; the binding strength shall not be lower than that of the components of the grinding wheel shield; the guard plate width shall be larger than that of the outer circle part of the grinding wheel shield. When the shield’s opening angle above the level of the grinding wheel spindle center line is less than 30°, the guard plate does not have to be installed. 3.5.12 The clearance between the grinding wheel’s peripheral surface and the adjustable guard plate edge shall be less than 6 mm. During the installation of the grinding wheel with the maximum design thickness, the clearance between the outer side surface of the grinding wheel chuck and the opening edge of the grinding wheel shield shall be less than 15 mm. The clearance between the inner wall of the annular-band-type grinding wheel shield and the peripheral surface of the grinding wheel shall not be more than 15 mm. Grinding machines with the grinding wheel rotation center line in the same direction of the operator’s facing direction can be exempted from 6-mm clearance regulation. When the shield’s opening angle above the level of the grinding wheel spindle center line is less than 30°, the 6-mm clearance does not have to be guaranteed. 3.6 The rotation direction shall be marked on the spindle of the grinding machine, and the mark shall be visible and can remain visible for long-time. 3.7 Handheld grinding machine shall not have work-piece bracket; its position shall be able to be adjusted according to the abrasion of the grinding wheel; the table height of the work-piece bracket shall be at the same level of the grinding wheel spindle center line; and there shall be enough area to guarantee the stability of the work-piece to the grinded. The work-piece bracket’s edge near the grinding wheel shall have no sinking, unfilled corner or other flaws. 3.8 Guard plates shall be set at the two ends of or around the surface grinder workbench to prevent grinded work-piece flying out. 3.9 Grinding machines with electric, pneumatic or hydraulic clamping work-piece shall be equipped with interlocking devices, which means that the grinding shall stops as soon as the clamping force disappears. 3.10 All rotating members on the grinding machines, such as gri... ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB 4674-2009 be delivered?Answer: The full copy PDF of English version of GB 4674-2009 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB 4674-2009_English with my colleagues?Answer: Yes. The purchased PDF of GB 4674-2009_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB 4674-2009 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB 4674-2009?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB 4674-2009 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB 4674-2009?A step-by-step guide to download PDF of GB 4674-2009_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB 4674-2009". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
