GB 34655-2017 PDF EnglishUS$150.00 · In stock · Download in 9 seconds
GB 34655-2017: Specifications for extinguishing equipment arrangement in bus Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

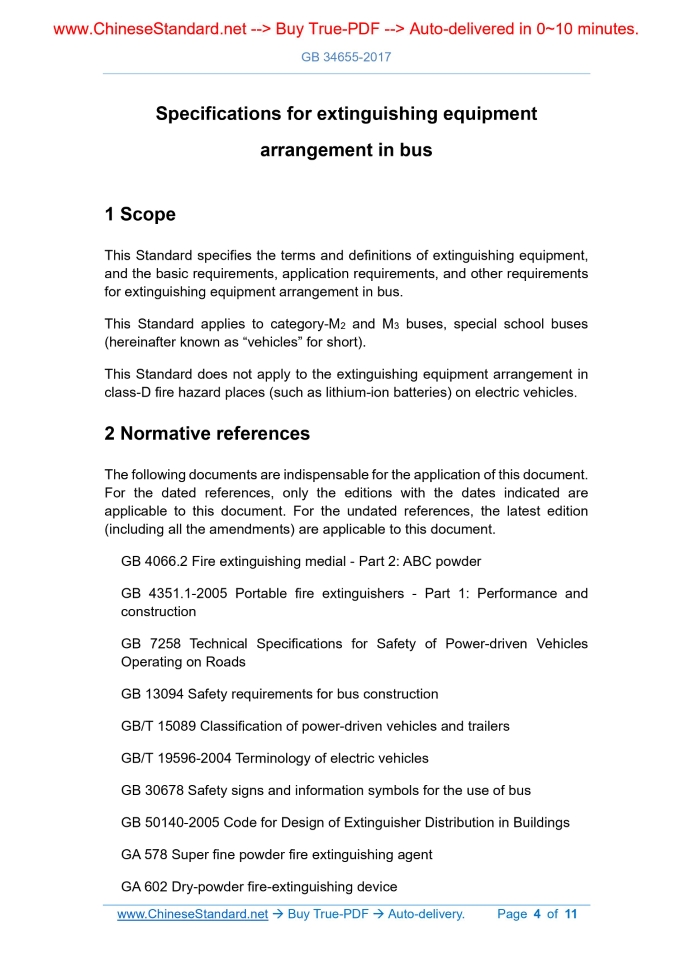

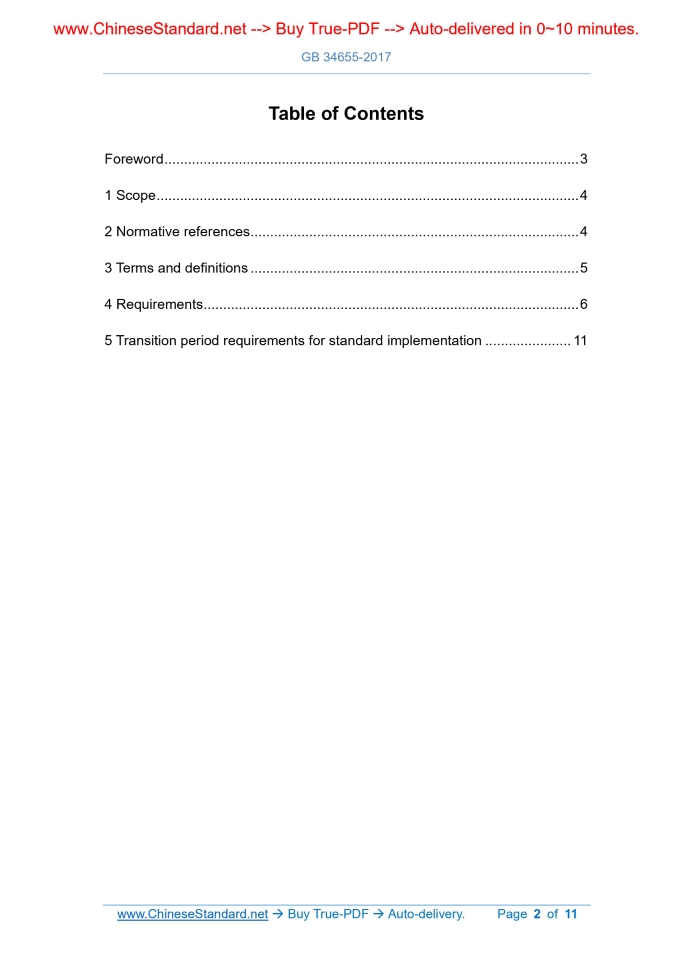

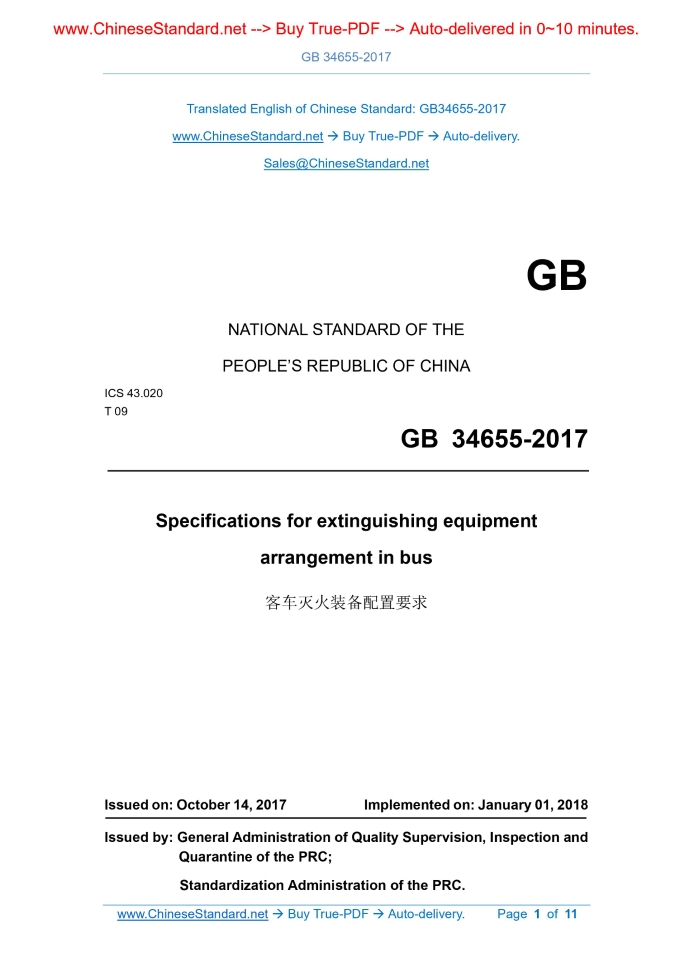

Similar standardsGB 34655-2017: Specifications for extinguishing equipment arrangement in bus---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GB34655-2017GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 43.020 T 09 Specifications for extinguishing equipment arrangement in bus Issued on: OCTOBER 14, 2017 Implemented on: JANUARY 01, 2018 Issued by. General Administration of Quality Supervision, Inspection and Quarantine of the PRC; Standardization Administration of the PRC. Table of ContentsForeword ... 3 1 Scope ... 4 2 Normative references ... 4 3 Terms and definitions ... 5 4 Requirements ... 6 5 Transition period requirements for standard implementation ... 11 Specifications for extinguishing equipment arrangement in bus1 ScopeThis Standard specifies the terms and definitions of extinguishing equipment, and the basic requirements, application requirements, and other requirements for extinguishing equipment arrangement in bus. This Standard applies to category-M2 and M3 buses, special school buses (hereinafter known as “vehicles” for short). This Standard does not apply to the extinguishing equipment arrangement in class-D fire hazard places (such as lithium-ion batteries) on electric vehicles.2 Normative referencesThe following documents are indispensable for the application of this document. For the dated references, only the editions with the dates indicated are applicable to this document. For the undated references, the latest edition (including all the amendments) are applicable to this document. GB 4066.2 Fire extinguishing medial - Part 2. ABC powder GB 4351.1-2005 Portable fire extinguishers - Part 1. Performance and construction GB 7258 Technical Specifications for Safety of Power-driven Vehicles Operating on Roads GB 13094 Safety requirements for bus construction GB/T 15089 Classification of power-driven vehicles and trailers GB/T 19596-2004 Terminology of electric vehicles GB 30678 Safety signs and information symbols for the use of bus GB 50140-2005 Code for Design of Extinguisher Distribution in Buildings GA 578 Super fine powder fire extinguishing agent GA 602 Dry-powder fire-extinguishing device 3.9 Fire rating Indicate the efficiency of an extinguisher to extinguish different types of fires. It consists of a number indicating the extinguishing efficiency and a letter indicating the fire type. [GB 50140-2005, Definition 2.1.4] 3.10 Total flooding extinguishing A means of extinguishing in which a certain concentration of fire extinguishing agent is sprayed into a protected area and uniformly fills the entire protected area within a specified period of time. 3.11 Local application extinguishing A means of extinguishing in which the fire extinguishing agent is sprayed directly to the protected object for a certain period of time. 3.12 Passenger and crew compartment The area used by the occupants, that is, the general term for the drive zone and the passenger zone. 3.13 High voltage equipment compartment The space on electric vehicles for the electronic control unit. 3.14 Battery compartment An independent space on the vehicle for a battery which provides energy for the non-powered system.4 Requirements4.1 Basic requirements 4.1.1 The extinguishing equipment arranged on vehicles shall be a vehicle-type product which meets the requirements of the national fire product market access system. 4.1.2 The extinguishing equipment arranged on vehicles shall be capable of fighting class-A, B, C, and E fires. 4.1.3 The fire extinguishing agent for extinguishing equipment arranged on vehicles shall not corrode parts on the vehicle. 4.2.2 Installation and identification 4.2.2.1 The height of the top of the extinguisher in passenger and crew compartment from the floor below it shall not exceed 1.5 m. The extinguisher and its bracket shall not protrude into the passage, passenger door approach, and emergency door approach; and shall not affect the passage of emergency window. 4.2.2.2 The extinguisher shall be installed stably. During the vehicle operating, there shall be no dumping or falling. 4.2.2.3 The extinguisher shall be convenient to access; and shall be taken and used without the aid of any tools. 4.2.2.4 The location of extinguisher shall be clearly visible. The visibility shall not be affected by changes in the position of moving parts. Otherwise, the corresponding sign shall be provided near the extinguisher. The sign shall comply with the provisions of GB 30678 and shall be easy to see; and shall not be obscured by moving parts. 4.3 Application requirements of super fine powder fire extinguishing device 4.3.1 Type and function 4.3.1.1 General requirements 4.3.1.1.1 The super fine powder fire extinguishing device (hereinafter known as “fire extinguishing device” for short) arranged on vehicles shall be a special fire extinguishing device for the engine compartment in accordance with GA 602. The super fine powder fire extinguishing agent filled in the extinguishing device shall be ABC super fine powder fire extinguishing agent in accordance with GA 578. The start-up mode of the fire extinguishing device shall be automatic start- up and manual start-up (hereinafter known as “automatic-manual integration” for short). 4.3.1.1.2 When the whole vehicle is energized, and the fire extinguishing device is automatically started, it shall be able to, through the acoustic signal, alarm the driver. d “Near the rear” means that it is located at the last 40% portion along the length direction of passenger and crew compartment. e “Near the front” means that it is located at the first 30% portion along the length direction of passenger and crew compartment. 4.3.1.1.3 The fire extinguishing device, when started under any conditions, shall not pose a potential safety hazard to personnel. 4.3.1.1.4 The wire harness of the fire extinguishing device shall comply with the provisions of GB 7258. 4.3.1.2 Additional requirements for automatic-manual integration fire extinguishing device 4.3.1.2.1 The manual start-up function and the automatic start-up function shall be independent of each other. The order of implementation of the two functions shall be unlimited. 4.3.1.2.2 The manual start-up system shall have a closed loop. When the whole vehicle is powered on, and when the manual start-up function is in an abnormal state, a continuous acoustic or visual alarm signal shall be sent to the driver. 4.3.1.2.3 When the engine is in operation or stopped, the fire extinguishing device shall be able to realize manual start-up. 4.3.1.2.4 When the engine is in operation or stopped, the fire extinguishing device shall be able to realize automatic start-up. 4.3.1.2.5 When the whole vehicle and battery are powered off, the fire extinguishing device shall be be able to realize automatic start-up function. 4.3.2 Location of the fire extinguishing device arrangement and applied extinguishing mode and extinguishing agent amount 4.3.2.1 The vehicle shall be equipped with fire extinguishing device in the engine compartment. If the battery compartment, fuel (or gas) heater compartment, and eddy current retarder installation locations are not equipped with a temperature alarm system, fire extinguishing devices shall be provided. Note. If the battery is located in the engine compartment, it is considered a component of engine compartment. If the battery is not located in the compartment, it is considered that there is no battery compartment. 4.3.2.2 The extinguishing mode applied to each protected area (or protected object) on the vehicle shall comply with the requirements of Table 2. The amount of fire extinguishing agent shall be jointly determined through negotiation between the manufacturer of the fire extinguishing device and the manufacturer of the whole bus according to the installation location and other factors; and shall comply with the requirements of Table 2. ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB 34655-2017 be delivered?Answer: The full copy PDF of English version of GB 34655-2017 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB 34655-2017_English with my colleagues?Answer: Yes. The purchased PDF of GB 34655-2017_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB 34655-2017 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB 34655-2017?A step-by-step guide to download PDF of GB 34655-2017_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB 34655-2017". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
