GB 24545-2019 PDF EnglishUS$135.00 · In stock · Download in 9 seconds
GB 24545-2019: Requirements and Test Methods of Speed Limitation System for Motor Vehicles Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB 24545: Historical versions

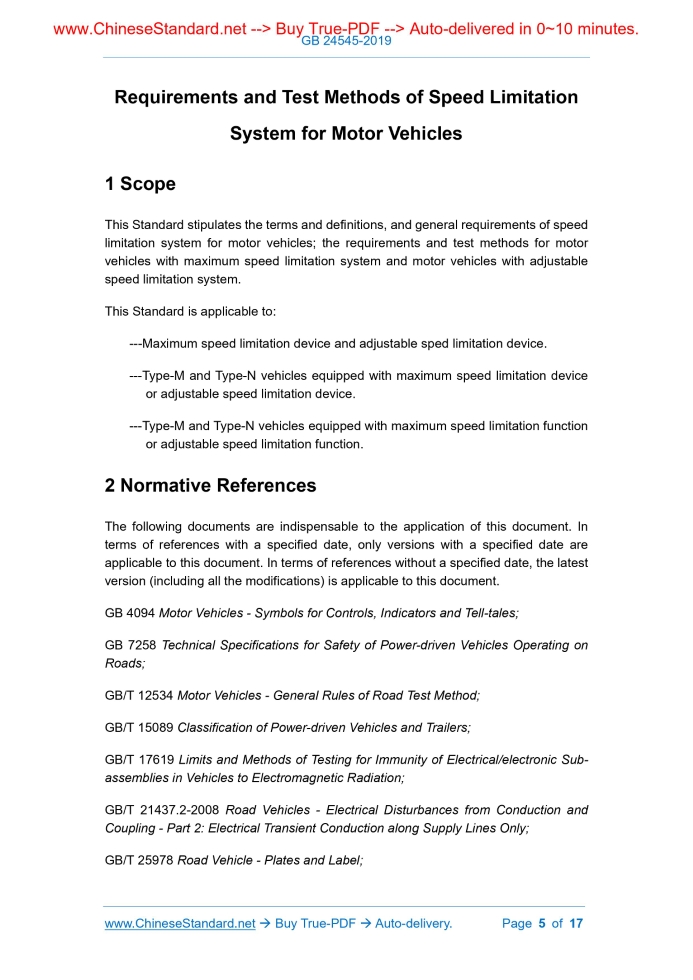

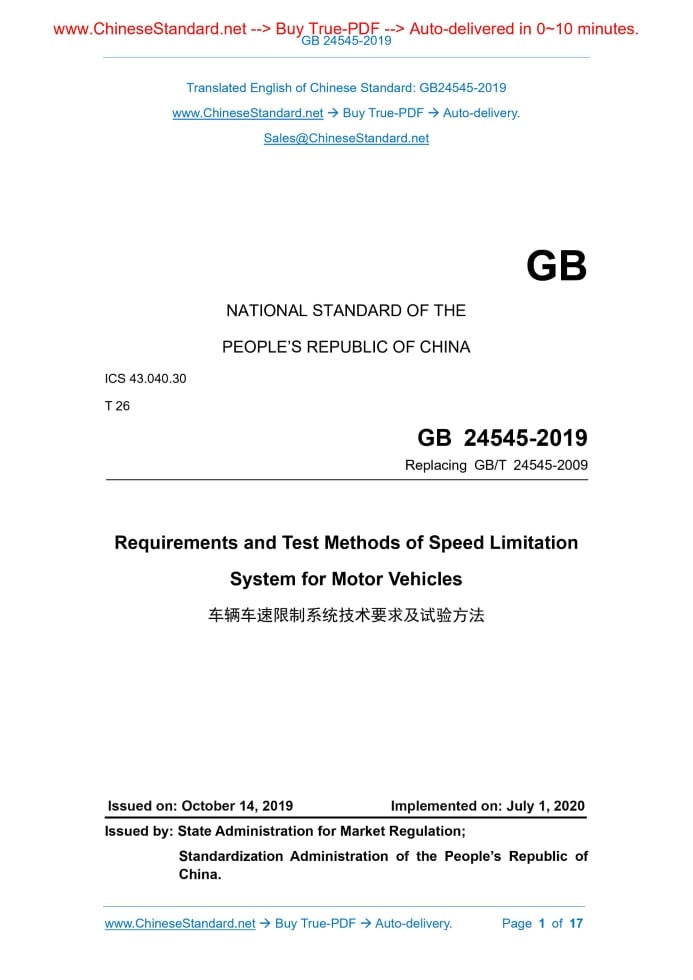

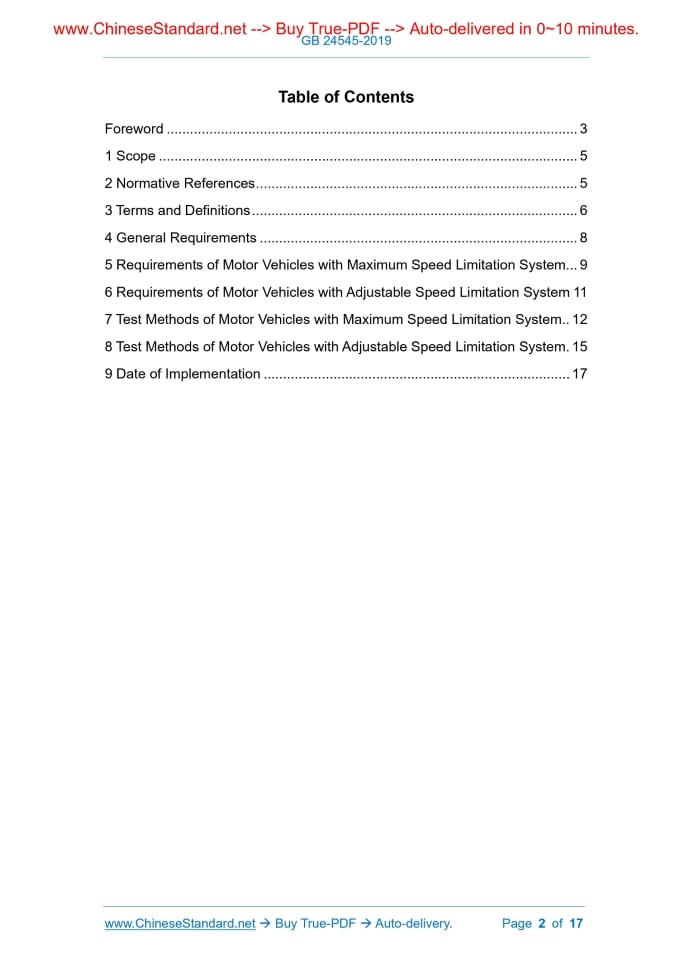

Similar standardsGB 24545-2019: Requirements and Test Methods of Speed Limitation System for Motor Vehicles---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GB24545-2019NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 43.040.30 T 26 Replacing GB/T 24545-2009 Requirements and Test Methods of Speed Limitation System for Motor Vehicles Issued on. OCTOBER 14, 2019 Implemented on. JULY 1, 2020 Issued by. State Administration for Market Regulation; Standardization Administration of the People’s Republic of China. Table of ContentsForeword... 3 1 Scope... 5 2 Normative References... 5 3 Terms and Definitions... 6 4 General Requirements... 8 5 Requirements of Motor Vehicles with Maximum Speed Limitation System... 9 6 Requirements of Motor Vehicles with Adjustable Speed Limitation System 11 7 Test Methods of Motor Vehicles with Maximum Speed Limitation System.. 12 8 Test Methods of Motor Vehicles with Adjustable Speed Limitation System. 15 9 Date of Implementation... 17ForewordAll the technical content in this Standard is mandatory. This Standard was drafted in accordance with the rules in GB/T 1.1-2009. This Standard serves as a replacement of GB/T 24545-2009 Requirement of Speed Limitation System for Motor Vehicles. In comparison with GB/T 24545-2009, the main changes are as follows. ---The nature of this Standard is modified from recommended into mandatory; ---The title of this Standard is modified into Requirements and Test Methods of Speed Limitation System for Motor Vehicles; ---Scope is modified (see Chapter 1); ---Normative references are modified (see Chapter 2); ---Terms and definitions are modified (see Chapter 3); ---General requirements are modified (see Chapter 4); ---The requirements of motor vehicles with the maximum speed limitation system are modified (see Chapter 5); ---The requirements of motor vehicles with adjustable speed limitation system are modified (see Chapter 6); ---Appendix A is modified into Chapter 7 “Test Methods of Motor Vehicles with Maximum Speed Limitation System”; partial content is modified (see Chapter 7); ---Appendix B is modified into Chapter 8 “Test Methods of Motor Vehicles with Adjustable Speed Limitation System”; partial content is modified (see Chapter 8). The technical content of this Standard takes UN Regulation No.89 Uniform Provisions Concerning the Approval of Vehicles with Regard to Limitation of Their Maximum Speed as a reference. This Standard was proposed by and shall be under the jurisdiction of the Ministry of Industry and Information Technology of People’s Republic of China. The drafting organizations of this Standard. China Automotive Technology and Research Center Co., Ltd.; China National Heavy Duty Truck Group Co., Ltd.; SGMW Co., Ltd.; Zhengzhou Yutong Group Co., Ltd.; Technical Center of China FAW Group; Liuzhou Wuling Automobile Industry Co., Ltd.; Anhui Jianghuai Automobile Group Corp., Ltd. (JAC); Shaanxi Automobile Group Co., Ltd.; Nanjing IVECO Automobile Co., Ltd.; DAIMLER Greater China Ltd. (DGRC). The main drafters of this Standard. Wang Xueping, Gao Fating, Li Gaojian, Lu Changjun, Su Yuping, Mo Guoqing, Huanghai, Li Minghua, Yang Zhigang, Gao Liming, Sun Zhipeng, Zhai Xiaoyan, Wangtao, Huangxin, Wei Yongbiao, Li Yugang, Wangpeng, Dang Ruining, Li Yusheng, Wangrui, Liu Liya, Zheng Wenjie. The issuing of the previous versions of the standard replaced by this Standard is as follows. ---GB/T 24545-2009. Requirements and Test Methods of Speed Limitation System for Motor Vehicles1 ScopeThis Standard stipulates the terms and definitions, and general requirements of speed limitation system for motor vehicles; the requirements and test methods for motor vehicles with maximum speed limitation system and motor vehicles with adjustable speed limitation system. This Standard is applicable to. ---Maximum speed limitation device and adjustable sped limitation device. ---Type-M and Type-N vehicles equipped with maximum speed limitation device or adjustable speed limitation device. ---Type-M and Type-N vehicles equipped with maximum speed limitation function or adjustable speed limitation function.2 Normative ReferencesThe following documents are indispensable to the application of this document. In terms of references with a specified date, only versions with a specified date are applicable to this document. In terms of references without a specified date, the latest version (including all the modifications) is applicable to this document. GB 4094 Motor Vehicles - Symbols for Controls, Indicators and Tell-tales; GB 7258 Technical Specifications for Safety of Power-driven Vehicles Operating on Roads; GB/T 12534 Motor Vehicles - General Rules of Road Test Method; GB/T 15089 Classification of Power-driven Vehicles and Trailers; GB/T 17619 Limits and Methods of Testing for Immunity of Electrical/electronic Sub- assemblies in Vehicles to Electromagnetic Radiation; GB/T 21437.2-2008 Road Vehicles - Electrical Disturbances from Conduction and Coupling - Part 2.Electrical Transient Conduction along Supply Lines Only; GB/T 25978 Road Vehicle - Plates and Label;3 Terms and DefinitionsWhat is defined in GB 7258 and GB/T 15089, and the following terms and definitions are applicable to this document. 3.1 Speed Limitation System Speed limitation system refers to a system which implements speed limitation through the control of vehicle power plant’s power supply, vehicle or engine (or electric motor) management. Speed limitation system includes maximum speed limitation system and adjustable speed limitation system. 3.2 Maximum Speed Limitation System Maximum speed limitation system refers to a system which guarantees that the speed of a motor vehicle does not exceed the set speed through maximum speed limitation device or maximum speed limitation function. 3.4 Maximum Speed Limitation Device Maximum speed limitation device refers to a device which is installed to limit the speed of a motor vehicle under the set speed through the control of vehicle power plant’s power supply, or engine (or electric motor) management. 3.5 Maximum Speed Limitation Function Maximum speed limitation function refers to a function which limits the speed of a motor vehicle under the set speed through the control of vehicle power plant’s power supply, vehicle or engine (or electric motor) management. This function may be implemented by a motor vehicle’s original device. 3.6 Adjustable Speed Limitation Device Adjustable speed limitation device refers to a device which is installed to limit the speed of a motor vehicle under the adjustable limit speed through the control of vehicle power plant’s power supply, or engine (or electric motor) management.4 General Requirements4.1 Speed Limitation System When a motor vehicle is in normal operation, the indispensable components of the speed limitation system shall be normally functioning. Speed limitation system shall satisfy the requirements of this Standard. 4.2 Requirements of Maximum Speed Limitation Device and Adjustable Speed Limitation Device 4.2.1 Environmental loads Environmental loads shall satisfy the requirements of environmental loads in GB/T 28046.1. 4.2.7 Electromagnetic radiation Electromagnetic radiation shall properly function in normal electromagnetic environment of motor vehicle; satisfy the stipulations in GB/T 17619. 4.3 Safety and Durability 4.3.1 Safety When speed limitation system fails, it shall not affect the driver’s control of the engine through acceleration pedal. 4.3.2 Durability 4.3.2.1 Place maximum speed limitation device on a bench; simulate its motion on a motor vehicle. Then, conduct the durability test. The control system shall be provided by the manufacturer, so that the speed limitation device can be retained to receive the durability test in accordance with the durability test loop shown in Figure 1. Time needed to complete the operation. ; 4.4 Speed Limiting Value 4.4.1 The set speed of highway passenger vehicle, sightseeing bus, motor caravan and other passenger vehicles whose length is more than 9 m shall not exceed 100 km/h.5 Requirements of Motor Vehicles with MaximumSpeed Limitation System 5.1 After a motor vehicle exits factory, it shall be guaranteed that the set value of the 5.2 The maximum speed limitation system shall prevent from unauthorized and arbitrary adjustment, or, break off the power supply to unauthorized and arbitrary adjustment. 5.3 It is not allowed to implement the maximum speed limitation function through service braking. When the maximum speed limitation system has already limited power supply to the power plant to the minimum, if the speed still exceeds the set speed, the driver may adopt other deceleration measures. 5.8 When a motor vehicle’s speed exceeds the set speed, alerting signals shall be sent to the driver in the form of visual signal and auditory signal. Auditory signal shall be distinct and easily identifiable to the driver. Visual signal device shall satisfy the following requirements.6 Requirements of Motor Vehicles with AdjustableSpeed Limitation System 6.1 Vadj Display It shall be guaranteed that under the normal conditions, Vadj value is always visible from the driver’s position. Due to safety reasons or the driver’s demands, Vadj display is allowed to be temporarily interrupted. 6.5 Vadj Setting 6.5.1 Between 30 km/h and the set speed, Vadj shall be able to be set up through the Or step length of not more than 10 km/h. 6.6 Initiate or Cancel Adjustable Speed Limitation Function 6.6.1 Adjustable speed limitation function shall be able to be initiated or cancelled under the conditions stipulated by the manufacturer. 6.6.2 When engine is shut down, the adjustable speed limitation function shall be automatically cancelled.7 Test Methods of Motor Vehicles with Maximum Speed Limitation System7.1 Circumstances Where Test is Unnecessary Motor vehicles whose maximum running speed is lower than the set speed Vset can be excused from the tests below. 7.2 Optional Road Test or Dynamometer Test It is allowed to choose road test or dynamometer test. When the result of dynamometer test is objectionable, road test shall be conducted; the result of road test shall be subject to. 7.3 Road Test 7.3.1 Preparation of motor vehicles 7.3.2 Road 7.3.2.1 Road shall be suitable for vehicles to maintain at a stable speed. The surface of road shall be flat. Road gradient shall be not more than 2%; road gradient variation shall be not more than 1%. 7.3.3 Ambient weather conditions The average wind velocity measured from a position that is at least 1 m above the ground shall be not more than 3 m/s; the gust velocity shall be not more than 10 m/s. 7.3.4 Remaining test conditions The remaining test conditions and test preparation shall satisfy the requirements in GB/T 12534. 7.3.5 Acceleration test 7.3.5.2.1 Vstab shall be not more than a larger value between (1 + 5%) Vset and (Vset + 5 km/h). 7.3.5.2.2 After a motor vehicle’s speed reaches a stable speed for the first time. 7.3.7 Stable speed test 7.3.7.1 Stable speed test process Conduct full throttle acceleration to a stable speed; maintain at the stable speed for at least 400 m. 7.3.7.2 Requirements of stable speed test 7.3.7.2.1 Vstab shall not exceed a larger value between (1 + 5%) Vset or (Vset + 5 km/h). 7.3.7.2.2 The difference of stable speeds measured each time shall not excel 3 km/h. 7.4.1 Features of dynamometer test The equivalent inertia of a motor vehicle’s mass shall be simulated through chassis dynamometer. The accuracy shall be ± 10%; the deviation of speed test shall be not more than ± 1%; the time interval of sampling shall be less than 0.1 s. 7.4.2 Acceleration test 7.4.3 Stable speed test 7.4.3.1 Place test vehicle on a chassis dynamometer. The power absorbed by the chassis dynamometer shall gradually decrease from Pmax to 0.2 Pmax. Within this power variation range, record the transient speed value. The test shall be conducted for 5 times in total.8 Test Methods of Motor Vehicles with Adjustable Speed Limitation System8.1 Test Conditions Test conditions shall comply with the requirements in 7.3.1 ~ 7.3.4. 8.2 Alert Test when Speed Exceeds Vadj 8.2.1 When speed is (Vadj 10 km/h), press the acceleration pedal to the floor, so that the speed exceeds Vadj. 8.3 Adjustable Speed Limitation Test 8.3.1 Adjustable speed limitation test gears In accordance with each Vadj that needs to be tested, select gears whose maximum speeds can reach Vadj as the test gears. 8.3.4 Requirements of adjustable speed limitation test 8.3.4.1 Vstab that vehicle speed reaches shall not exceed (Vadj + 3 km/h). 8.3.4.2 After the speed reaches a stable speed for the first time. 8.4 Selection of Test Speeds 40 km/h, 80 km/h and 80% maximum speed (when this value is more than 120 km/h, count it as 120 km/h) shall be selected to conduct the tests described in 8.2 and 8.3.9 Date of Implementation9.1 Except from the speed limitation signal sign stipulated in 5.8, this Standard shall be implemented on vehicle models with newly applied type approval since the date of implementation. 9.2 In terms of the speed limitation signal sign stipulated in 5.8, this Standard shall be implemented on vehicle models with newly applied type approval since the 13th month after the date of implementation; ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB 24545-2019 be delivered?Answer: The full copy PDF of English version of GB 24545-2019 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB 24545-2019_English with my colleagues?Answer: Yes. The purchased PDF of GB 24545-2019_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB 24545-2019 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB 24545-2019?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB 24545-2019 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB 24545-2019?A step-by-step guide to download PDF of GB 24545-2019_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB 24545-2019". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
