EJ/T 306-1994: 1000-liter UF6 containers

---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/EJT306-1994

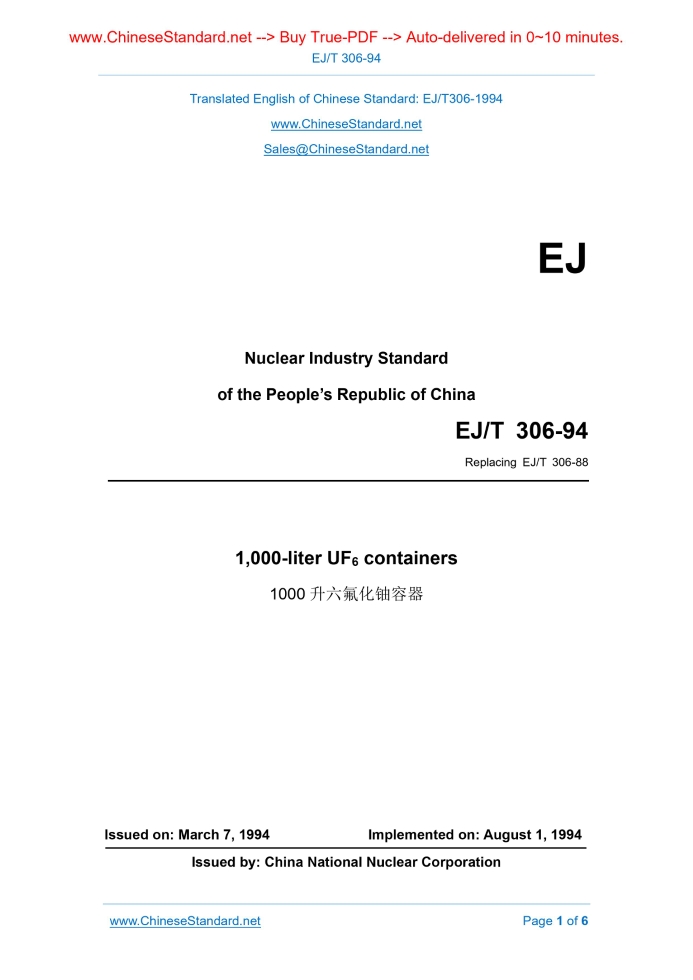

EJ Nuclear Industry Standard of the People’s Republic of China Replacing EJ/T 306-88 1,000-liter UF6 containers Issued on: MARCH 7, 1994 Implemented on: AUGUST 1, 1994 Issued by. China National Nuclear Corporation

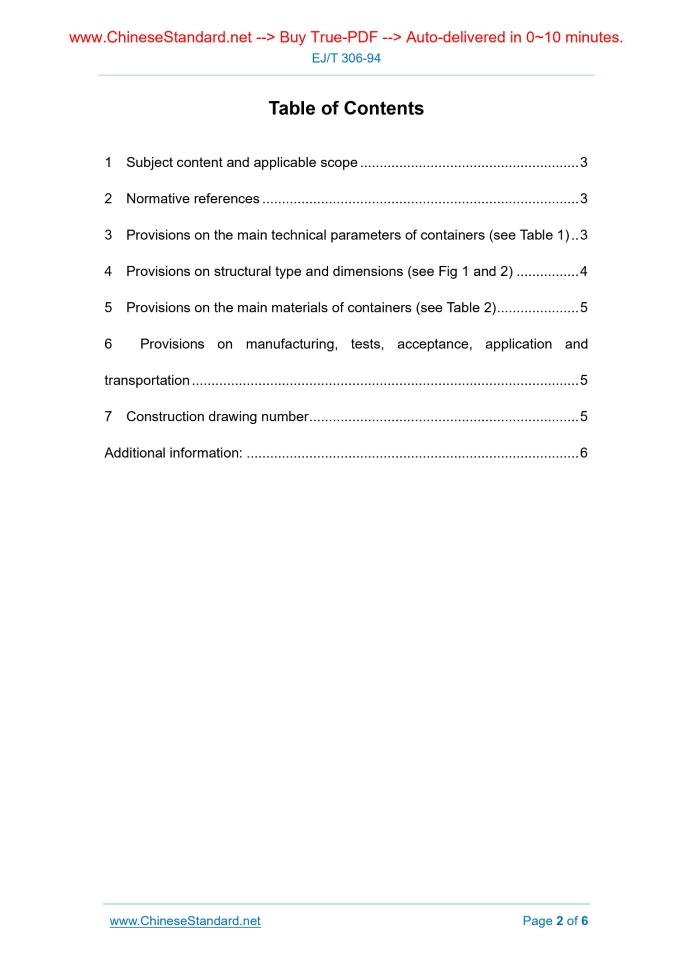

Table of Contents

1 Subject content and applicable scope... 3 2 Normative references... 3 3 Provisions on the main technical parameters of containers (see Table 1).. 3 4 Provisions on structural type and dimensions (see Fig 1 and 2)... 4 5 Provisions on the main materials of containers (see Table 2)... 5 6 Provisions on manufacturing, tests, acceptance, application and transportation... 5 7 Construction drawing number... 5 Additional information... 6 1,000-liter UF6 containers

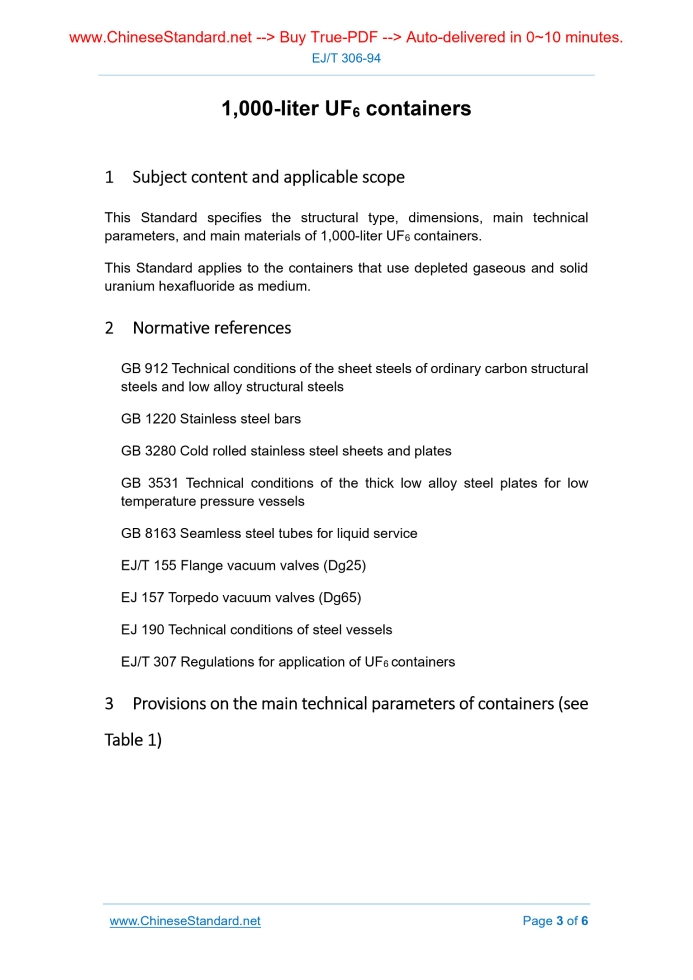

1 Subject content and applicable scope

This Standard specifies the structural type, dimensions, main technical parameters, and main materials of 1,000-liter UF6 containers. This Standard applies to the containers that use depleted gaseous and solid uranium hexafluoride as medium.

2 Normative references

GB 912 Technical conditions of the sheet steels of ordinary carbon structural steels and low alloy structural steels GB 1220 Stainless steel bars GB 3280 Cold rolled stainless steel sheets and plates GB 3531 Technical conditions of the thick low alloy steel plates for low temperature pressure vessels GB 8163 Seamless steel tubes for liquid service EJ/T 155 Flange vacuum valves (Dg25) EJ 157 Torpedo vacuum valves (Dg65) EJ 190 Technical conditions of steel vessels EJ/T 307 Regulations for application of UF6 containers 3 Provisions on the main technical parameters of containers (see Table 1) Table 1 Main Technical Parameters Volume (L) Design Pressure Working Pressure Design Temperature Working Temperature Structural Type Valve Weight Internal Pressure External Pressure Vacuum Pa (Absolute Pressure) Maximum Pressure MPa (Gage Pressure) Lowest (°C) Highest (°C) Lowest (°C) Highest (°C) Division Plate Valve Inlet D N 65 EJ/T 157 Outlet D N 25 EJ/T 155 kg MPa (Gage Pressure) Type I Type II Type I Type II Type III Type I Type II 1,000 0.5 0.3 0.1 13 0.1 -40 120 -40 120 Horizontal Vertical None Internal Pressure MPa (Gage Pressure) 0.1 0.4

4 Provisions on structural type and dimensions (see Fig 1 and 2)

Figure 1 Type I Thermowell Inlet Outlet K-directional View Figure 2 Type II

5 Provisions on the main materials of containers (see Table 2)

Table 2 Main Materials of Containers Container Name Material Designation Material Standard No. Cylinder Sealing-head 16MnDR GB 3531 Division Plate 16Mn GB 912 Tube 16Mn GB 8163 Liner 5265 –

6 Provisions on manufacturing, tests, acceptance, application

and transportation The manufacturing, tests and acceptance shall be conducted according to the provisions of EJ 190.The application shall be conducted according to the provisions of EJ/T 307.The transportation shall be conducted according to the provisions of GB 11806.

7 Construction drawing number

1,000-liter Type I (or Type II) UF6 containers EJ/T 306-I (or EJ/T 306-II) Inlet Outlet K-directional View Additional information. This Standard was proposed by the Bureau of Nuclear Fuel of China National Nuclear Corporation. Responsible drafting organization of this Standard. 7th Research and Design Institute of China National Nuclear Corporation. Main drafters of this Standard. Wu Zhaopei and Wang Litong. This Standard was first released in June 1988. This Standard was first revised in September 1992. ......
Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al.
