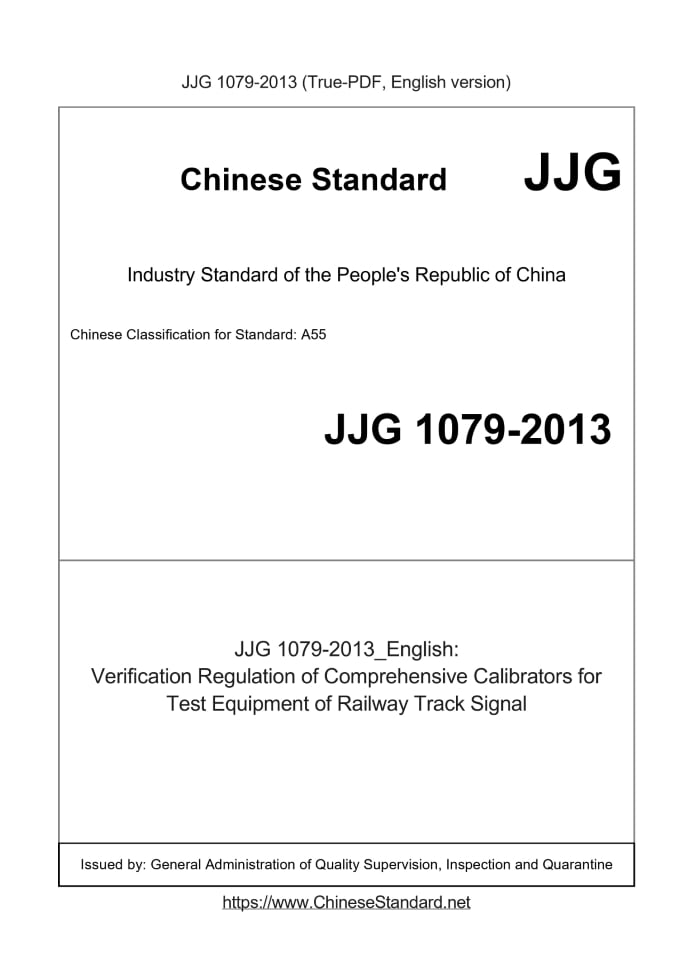

JJG 1079-2013 English PDFStandard Briefing:Stadard ID: JJG 1079-2013Stadard Title: Verification Regulation of Comprehensive Calibrators for Test Equipment of Railway Track Signal Price (USD): 559 Lead day (Deliver True-PDF English version): 5 days Status: Valid
Basic Data:
Contents, Scope, and Excerpt:JJG 1079-2013 Verification Regulation of Comprehensive Calibrators for Test Equipment of Railway Track Signal State verification procedures People's Republic of China Railroad tracks Integrated signal test equipment calibration device Issued on. 2013-01-06 2013-04-06 implementation The State Administration of Quality Supervision, Inspection and Quarantine released Railroad tracks signal test equipment Comprehensive calibration device verification procedures nal Focal point. the National Railway special equipment metering metering technology committee dedicated railway Electricity credits Technical Committee Main drafting unit. Xi'an Railway Bureau of quality and technical supervision Measurement of the Chengdu Railway Bureau Participated in the drafting. Covey Xi'an Railway Intelligent Technology Co., Ltd. The procedure of measuring instruments commissioned by the national railway railway electric metering technology committee credits TECHNOLOGY The Committee is responsible for interpreting surgery The main drafters of this procedure. V Bin (Xi'an Railway Bureau of quality and technical supervision) Sun Qing (measured by the Chengdu Railway Bureau) Zhao Chao (Xi'an Railway Bureau of quality and technical supervision) Xingguo Fu (Xi'an Railway Bureau of quality and technical supervision) Drafters participate. Zhaokui Long (Covey Xi'an Railway Intelligent Technology Co., Ltd.) Thunder Bay (measured by the Chengdu Railway Bureau) table of Contents Introduction (Ⅱ) 1 Scope (1) 2 Overview (1) 3 metering performance requirements (1) 3.1 single-frequency output (1) 3.2 frequency shift output (1) 3.3 25Hz, 50Hz Phase Detecting Track signal output (2) 3.4 ac count track signal output (2) 3.5 compensation capacitor (2) Impedance 3.6 (2) 4 General Requirements (2) 5 control of measuring instruments (2) 5.1 verification Conditions (2) 5.2 Verification Project (3) 5.3 Verification Methods (3) 5.4 Verification Results Processing (8) 5.5 test cycle (8) Appendix A railway track signal integrated test equipment calibration device calibration record format (9) APPENDIX B calibration certificate and test results in the notice page format (18) introduction JJF1002 "national verification procedures write rules", JJF1001 "common measurement terms and definitions" JJF1059 "Evaluation and Expression of Uncertainty in Measurement" together constitute the support of the protocol development of the basic series specification. The regulations are based on the actual use of the technical requirements. This procedure was first formulated. Comprehensive calibration device verification procedures railroad track signal test equipmentScopeThe order applies to the first railway track signal integrated test equipment calibration device (hereinafter referred to as integrated calibration device) Second test, verification and subsequent use of checks. 2 Overview Comprehensive calibration device is mainly used in railway track signal line test equipment test and calibration. Its main functions are. Single-frequency output signal frequency, voltage and current; frequency shift signal (including the center frequency of 550Hz, 650Hz, 750Hz, 850Hz frequency shift of the signal, ZPW-2000, UM71, WG-21A, etc.) frequency, voltage, Stream; 25Hz, 50Hz voltage phase sensitive track signal phase; voltage ac counting track signals, time intervals, etc. Standard signal, standard compensation capacitor and impedance. 3 metering performance requirements 3.1 single-frequency output 3.1.1 Frequency Output ranges from 5Hz ~ 3kHz, the maximum permissible error shall not exceed ± 0.03Hz. 3.1.2 Voltage (5 ~ 25) Hz frequency band output range (0.1 ~ 10) V, 25Hz ~ 3kHz band output range (0.1 ~ 400) V, the maximum permissible error shall not exceed ± 0.5%. 3.1.3 Current 5Hz ~ 3kHz band output range (50 ~ 500) mA, the maximum permissible error shall not exceed ± 0.5%, By induction coil output current range of 50mA ~ 20A. 3.2 Frequency Shift Output 3.2.1 frequency shift (center frequency of 550Hz, 650Hz, 750Hz, 850Hz frequency shift signal) 3.2.1.1 upper and lower frequencies. output range (460 ~ 940) Hz, the maximum permissible error shall not exceed ± 0.03Hz. 3.2.1.2 The low frequency range. low frequency modulation frequency output range (6 ~ 30) Hz, shall not exceed the maximum permissible error ± 0.003Hz. 3.2.1.3 Voltage. shift in frequencies, the output range (0.1 ~ 400) V, shall not exceed the maximum permissible error ± 0.5%. 3.2.1.4 Current. shift frequencies, the output range (50 ~ 500) mA, shall not exceed the maximum permissible error ± 0.5%, by the induction coil output current range of 50mA ~ 20A. 3.2.2 ZPW-2000, UM71, WG-21A 3.2.2.1 upper and lower frequencies. output range (1.6 ~ 2.7) kHz, shall not exceed the maximum permissible error ± 0.03Hz. ...... |
