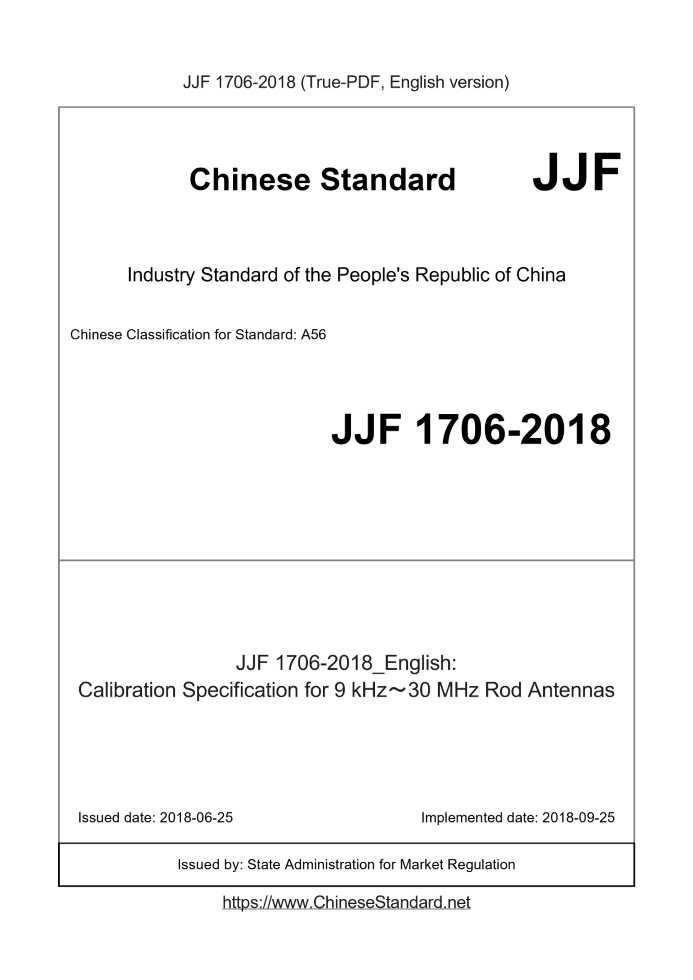

JJF 1706-2018: Calibration Specification for 9 kHz～30 MHz Rod Antennas
Status: Valid

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
JJF 1706-2018	349	Add to Cart	3 days	Calibration Specification for 9 kHz～30 MHz Rod Antennas	Valid

Similar standards

JJF 1234 JJF 1396 JJG 376 JJF 1705 JJF 1710 JJF 1703

Basic data

Standard ID: JJF 1706-2018 (JJF1706-2018)
Description (Translated English): Calibration Specification for 9 kHz��30 MHz Rod Antennas
Sector / Industry: Metrology & Measurement Industry Standard
Classification of Chinese Standard: A56
Word Count Estimation: 15,181
Date of Issue: 2018-06-25
Date of Implementation: 2018-09-25
Regulation (derived from): State Administration of Markets, Announcement No. 13 of 2018
Issuing agency(ies): State Administration for Market Regulation

JJF 1706-2018: Calibration Specification for 9 kHz～30 MHz Rod Antennas

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Calibration Specification for 9 kHz to 30 MHz Rod Antennas National Metrology Technical Specification of the People's Republic 9kHz~30MHz whip antenna calibration specification Published on.2018-06-25 2018-09-25 implementation State Administration of Markets issued 9kHz~30MHz whip antenna Calibration specification RodAntennas Focal Point. National Radio Measurement Technology Committee Drafted by. China Institute of Metrology Guangxi Zhuang Autonomous Region Institute of Metrology This Code entrusts the National Radio Measurement Technical Committee to explain The main drafters of this specification. Wang Weilong (China Institute of Metrology) Kuang Min (Guangxi Zhuang Autonomous Region Institute of Metrology) Li Jinyuan (China Institute of Metrology) Participate in the drafters. Li Wei (China Institute of Metrology)

Introduction (II) 1 Scope (1) 2 References (1) 3 terms (1) 3.1 Antenna (1) 3.2 whip antenna (1) 3.3 Antenna effective height (1) 3.4 Antenna coefficient (1) 3.5 equivalent capacitance replacement method (2) 4 Overview (2) 5 Measurement characteristics (2) 6 Calibration conditions (2) 6.1 Environmental conditions (2) 6.2 Main instruments and accessories for calibration (2) 7 Calibration items and calibration methods (3) 7.1 Calibration Project (3) 7.2 Calibration method (3) 8 calibration result expression (4) 9 re-study interval (4) Appendix A Calibration Record Contents (5) Appendix B Calibration Certificate Page Format (6) Appendix C Antenna Coefficient Calibration Uncertainty Evaluation Example (7)

Introduction

This specification is based on JJF 1071-2010 "Rules for the preparation of national metrological calibration specifications", JJF 1059.1-2012 The requirements in the Measurement and Expression of Uncertainty are written. This specification refers to the following documents. CISPR16-1-6.2014. "Radio disturbance and immunity measuring instruments and measuring methods - Part 1-6. Radiation Harassment and Immunity Measurement Instruments - Electromagnetic Compatibility - Antenna Calibration (SPECIFICATIONFORRADIODIS- TURBANCEANDIMMUNITYMEASURINGAPPARATUSANDMETHODS-Part 1-6. Radiodisturbanceandimmunity measuringapparatus-EMC-antennacalibra- Tion); ANSI C63.5.2006. Electromagnetic Compatibility - Radiated Emission (EMI) Measurement Control for Electromagnetic Disturbance - (9 kHzto40GHz) Band Antenna Calibration [AmericanNationalStandardforElectromagnetic Compatibility-RadiatedEmissionMeasurementsinElectromagneticInterference(EMI) Control-CalibrationofAntennas(9kHzto40GHz)]; SAEARP958-2003. "Standard Calibration Method for Electromagnetic Disturbance Measurement Antenna" (ElectromagneticInterfer- The relevant terms in enceMeasurementAntennas; StandardCalibrationMethod) are written. This specification is the first release. 9kHz~30MHz whip antenna calibration specification

1 Scope

This specification applies to the working frequency range of 9 kHz to 30 MHz, in accordance with CISPR16-1-6.2014, ANSI Whip antenna for electromagnetic compatibility testing required by C63.5-2006 and SAEARP958-2003 standards. Not in conformity The whip antenna required by the standard can be implemented with reference to this calibration specification.

2 reference files

This specification refers to the following documents. CISPR16-1-6.2014. Radio disturbance and immunity measuring instruments and measuring methods - Part 1-6. Radiation Harassment and Immunity Measurement Instruments - Electromagnetic Compatibility - Antenna Calibration (SPECIFICATIONFORRADIO DIS- TURBANCEANDIMMUNITYMEASURINGAPPARATUSANDMETHODS-Part 1-6. Radiodisturbance and immunitymeasuringapparatus-EMC-antennacalibration) ANSI C63.5-2006. Electromagnetic Compatibility - Radiation Emission (EMI) Measurement Control for Electromagnetic Disturbance - (9kHz To40GHz) band antenna calibration [AmericanNationalStandardforElectromagneticCompati- bility-RadiatedEmissionMeasurementsinElectromagneticInterference(EMI)Con- trol-CalibrationofAntennas(9kHzto40GHz)] SAEARP958-2003. Electromagnetic disturbance measurement antenna standard calibration method (Electromagnetic Interference MeasurementAntennas; StandardCalibrationMethod) For dated references, only dated versions apply to this specification; undated quotations The latest version (including all modifications) applies to this specification.

3 terms

The following terms and definitions apply to this specification. 3.1 Antenna antenna Converting the high-frequency current energy sent by the feeder into electromagnetic wave energy and radiating it in a certain direction, or vice versa The device that converts the electromagnetic wave energy radiated from space into a high-frequency current energy into the feeder is a guided wave and a free space wave. A device that converts to each other. 3.2 whip antenna rodantenna Divided into active and passive, generally a certain length (usually about 1m) antenna mast, reflector and The antenna base is configured, and the antenna base includes an impedance conversion and signal processing unit. Usually work in the EMC field At 9 kHz to 30 MHz, it is sometimes called a rod antenna or a rod antenna. 3.3 Antenna effective height antennaeffectiveheight The effective height of the antenna indicates the ability of the antenna to transmit or receive electromagnetic energy. Effective height (he) is a mouth The path-related parameter is defined as the ratio of the induced voltage of the antenna to the incident electric field. 3.4 Antenna coefficient antennafactor The ratio of the measured field strength to the voltage generated by the field at the antenna port. ......
