JJF 1568-2016 English PDFUS$369.00 · In stock

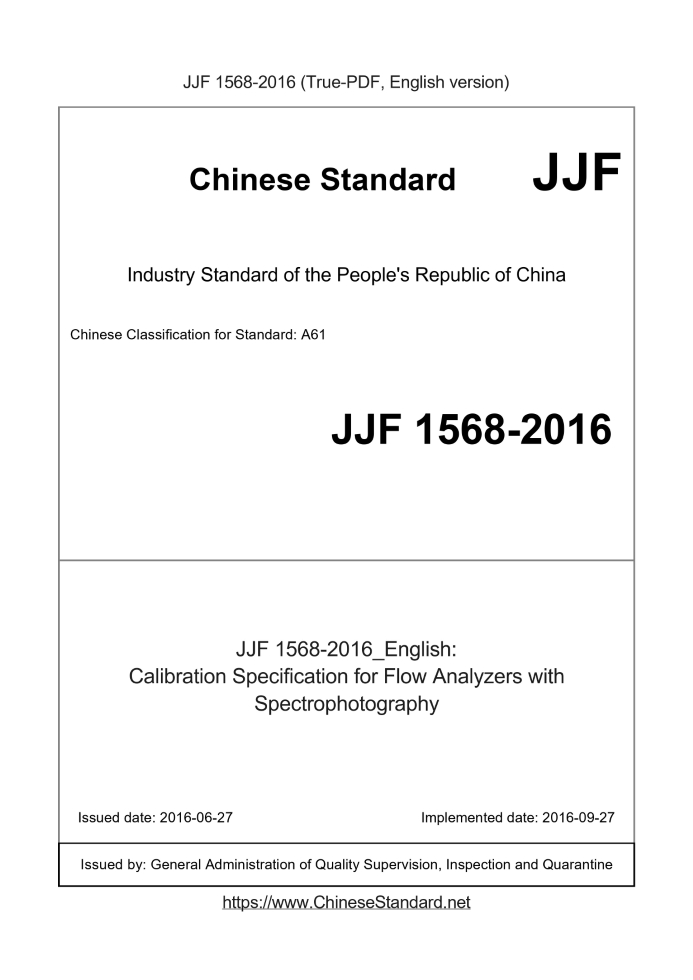

Delivery: <= 3 days. True-PDF full-copy in English will be manually translated and delivered via email. JJF 1568-2016: Calibration Specification for Flow Analyzers with Spectrophotography Status: Valid
Basic dataStandard ID: JJF 1568-2016 (JJF1568-2016)Description (Translated English): Calibration Specification for Flow Analyzers with Spectrophotography Sector / Industry: Metrology & Measurement Industry Standard Classification of Chinese Standard: A61 Classification of International Standard: 17.220 Word Count Estimation: 16,132 Date of Issue: 2016-06-27 Date of Implementation: 2016-09-27 Regulation (derived from): Notice of the General Administration of Quality Supervision, Inspection and Quarantine of the People Republic of China 2016 No.16 Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine Summary: This specification is applicable to the calibration of flow analyzers for the determination of cyanide, waterborne volatile phenol, hexavalent chromium, sulfide, total phosphorus, total nitrogen, ammonia nitrogen, anionic surfactants and other components in the water quality using the colorimetric principle The JJF 1568-2016: Calibration Specification for Flow Analyzers with Spectrophotography---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.National Metrology Technical Specifications of the People's Republic of China Specification for Calibration of Spectrophotometric Flow Analyzers 1 Scope This specification is applicable to the use of the principle of colorimetry to detect cyanide, volatile phenol in water, hexavalent chromium, sulfide, Calibration of flow analyzers for measuring the content of total phosphorus, total nitrogen, ammonia nitrogen, anionic surfactants and other components. 2 Overview The flow analyzer is based on the color reaction between the substance to be measured and the reaction reagent in a flowing state, and the degree of color development is related to the degree of color development to be detected. It is related to the concentration of the substance to be measured, and follows the Lambert-Beer law, so as to realize the quantitative analysis of the substance to be measured. The flow analyzer is mainly composed of an autosampler, a peristaltic pump, a reaction module, a colorimeter, and a data acquisition and processing system. It is widely used in water quality testing. Flow analyzers can be divided into continuous flow analyzers and flow analyzers according to whether the chemical reactions in the flow state reach equilibrium. There are two types of automatic injection analyzers, and their workflows are shown in Figure 1 and Figure 2, respectively. 3 Metrological characteristicsThe metrological characteristics are shown in Table 1.4 Calibration conditions4.1 Laboratory conditions 4.1.1 No obvious mechanical vibration, no electromagnetic interference, no direct sunlight. 4.1.2 The power supply voltage is (220±22) V, the frequency is (50±0.5) Hz, and the instrument is well grounded. 4.1.3 Indoor temperature (10~30) ℃, relative humidity not more than 85%. 4.2 Calibration equipment and reference materials 4.2.1 UV-Vis spectrophotometer The wavelength range is not less than (360~1100)nm, and the technical index is not lower than the requirements of Class II. 4.2.2 Reference material Cyanide, volatile phenol in water, hexavalent chromium, sulfide, total phosphorus, total nitrogen, ammonia nitrogen, anionic surfactant, etc. National certified solution reference material, its relative uncertainty is not more than 2%, k=2. 4.2.3 Volumetric flask with single marked line and pipette with single marked line. Grade A.5 Calibration items and calibration methods5.1 Wavelength indication error Take out the matching filter of the flow analyzer colorimeter, put it into the UV-visible spectrophotometer filter after cleaning. On the light frame, align the center of the filter with the center of the test hole, set the beam bandwidth to 2nm, and select the appropriate Scanning speed for full-wavelength scanning, draw the transmission characteristic curve of the filter, calculate its central wavelength, and repeat the measurement 3 times, take the average value of the central wavelength as the measured value of the filter wavelength, and calculate the indicated value of the filter wavelength according to formula (1) 5.2 Measuring linearity According to the calibration requirements, select the corresponding standard substance in 4.2.2, and dilute it to the initial concentration as shown in Table 1 for the corresponding measurement. 3 times the detection limit of the quantitative components, the range is about two orders of magnitude, a series of standard solutions with 5 concentrations evenly distributed. Will The parameters of the instrument were adjusted to the best working condition, and the blank solution and the series of standard solutions were measured repeatedly three times. After taking the arithmetic mean of the measured values, obtain the correlation coefficient r of the calibration curve according to the linear regression method. 5.3 Detection limit Select the initial concentration standard solution in 5.2 as the measurement point, repeat the measurement 10 times, and record the measured value of the instrument. value, according to formula (2) and formula (3) to calculate the detection limit DL of the instrument. 5.4 Measuring Repeatability In the normal working state of the instrument, select the middle concentration of the series of standard solutions in 5.2 as the measurement point, and repeat the measurement. Measure 7 times, record the measured value of the instrument, and calculate the relative standard deviation according to formula (4).6 Calibration result expressionCalibration results should be reflected on the calibration certificate or calibration report. Calibration certificates should include at least the following information. a) Title. "Calibration Certificate" or "Calibration Report"; b) laboratory name and address; c) the place where the calibration is performed (if not performed in a laboratory); d) The unique identification (such as number) of the certificate or report, the identification of each page and the total number of pages; e) The name and address of the sending unit; f) The description and clear identification of the school object; g) the date on which the calibration was performed, and if relevant to the validity and application of the calibration results, the date of receipt of the object to be calibrated; h) identification of the technical specification on which the calibration is based, including name and code; i) Description of the traceability and validity of the measurement standards used for calibration; j) description of the calibration environment; k) Explanation of calibration results and measurement uncertainty; l) a description of the deviation from the calibration specification; m) the signature, title or equivalent identification of the issuer of the calibration certificate or calibration report; n) A statement that the calibration results are only valid for the subject being calibrated; o) Statements of calibration certificates or calibration reports shall not be reproduced in part without the written approval of the laboratory.7 Recalibration intervalIt is recommended that the time interval between re-schooling should generally not exceed 1 year. Since the length of the recalibration interval is determined by various factors such as the use of the instrument, the user, and the quality of the instrument itself, etc. Therefore, the sending unit can also independently decide the time interval for re-calibration according to the actual usage. ......Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of JJF 1568-2016_English be delivered?Answer: Upon your order, we will start to translate JJF 1568-2016_English as soon as possible, and keep you informed of the progress. The lead time is typically 1 ~ 3 working days. The lengthier the document the longer the lead time.Question 2: Can I share the purchased PDF of JJF 1568-2016_English with my colleagues?Answer: Yes. The purchased PDF of JJF 1568-2016_English will be deemed to be sold to your employer/organization who actually pays for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. If you need your currency to be printed on the invoice, please write an email to Sales@ChineseStandard.net. In 2 working-hours, we will create a special link for you to pay in any currencies. Otherwise, follow the normal steps: Add to Cart -- Checkout -- Select your currency to pay. |
