JJF 1485-2014 English PDFUS$349.00 · In stock
Delivery: <= 3 days. True-PDF full-copy in English will be manually translated and delivered via email. JJF 1485-2014: Calibration Specification for Roundness Flick Calibration Standard Status: Valid

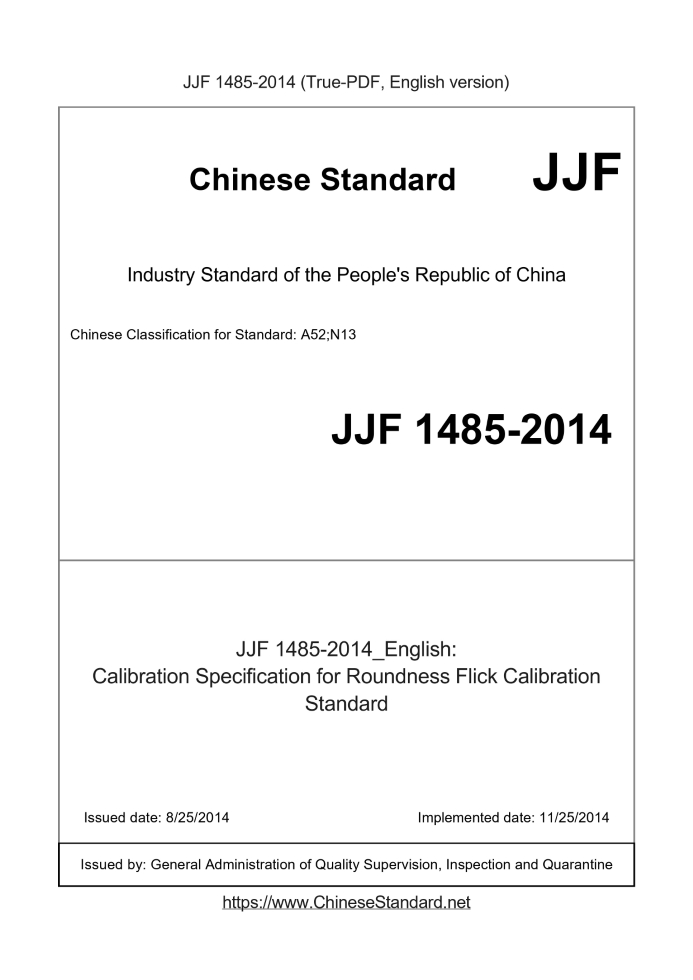

Basic dataStandard ID: JJF 1485-2014 (JJF1485-2014)Description (Translated English): Calibration Specification for Roundness Flick Calibration Standard Sector / Industry: Metrology & Measurement Industry Standard Classification of Chinese Standard: A52;N13 Word Count Estimation: 15,190 Date of Issue: 8/25/2014 Date of Implementation: 11/25/2014 Quoted Standard: GB/T 7234-2004; GB/T 7235-2004; GB/T 26098-2010 Regulation (derived from): People's Republic of China The State Administration of Quality Supervision, Inspection and Quarantine Notice 2014 (No. 95); AQSIQ Notice 2014 No. 95 Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine Summary: This Standard applies to string high nominal (1 ~ 50) ��m roundness calibration block (hereinafter referred to as scaling block) calibration. JJF 1485-2014: Calibration Specification for Roundness Flick Calibration Standard---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.Calibration Specification for Roundness Flick Calibration Standard People's Republic of China National Metrology Technical Specifications Roundness calibration block Calibration Specification Issued on. 2014-08-25 2014-11-25 implementation The State Administration of Quality Supervision, Inspection and Quarantine released Roundness calibration block Calibration Specification NFP. National Engineering Geometrical Parameters Measurement Technology Committee Main drafting unit. Shanghai Institute of Measurement and Testing China Institute of Metrology Participated in the drafting. AMETEK Taylor Hobson Company Group Hexagon Measurement Technology (Qingdao) Co., Ltd. This specification project commissioned by the National geometric parameter measurement technology committee responsible for the interpretation The main drafters of this specification. Advantages and Disadvantages (Shanghai Institute of Measurement and Testing) Zhang Heng (China Institute of Metrology) Had Yanhua (Shanghai Institute of Measurement and Testing) Bo (Shanghai Institute of Measurement and Testing) Drafters participate. Zhang Tong (Group AMETEK Taylor Hobson Company) Wang Jin (Hexagon Measurement Technology (Qingdao) Co., Ltd.) Yin Year (Group AMETEK Taylor Hobson Company) table of ContentsIntroduction (Ⅱ) 1 Scope (1) 2. References (1) 3 Overview (1) 4 Metrological characteristics (1) 4.1 Calibration block surface roughness (1) 4.2 roundness given standard blocks (1) 4.3 set a high value standard chord blocks (1) Calibration Condition 5 (2) 5.1 environmental conditions (2) 5.2 standards and other measuring equipment (2) 5.3 Other Conditions (2) 6 calibration items and calibration methods (2) 6.1 standard block given surface roughness (2) 6.2 roundness given standard blocks (2) 6.3 constant chord height value standard blocks (3) 7 Calibration Results The expression (3) 8 recalibration intervals (3) Appendix A scaled block chord high value Measurement Uncertainty in Measurement Example (4) Appendix B calibration certificate content and in-page format (8)IntroductionJJF 1071-2010 "National Calibration Specifications writing rules", JJF 1001-2011 "common terminology and measurement Definitions ", JJF 1059.1-2012" Evaluation and Expression of Uncertainty in Measurement "together constitute the support of the calibration Specification The basic series of specifications. The specification for the first time to develop. Roundness calibration block Calibration Specification1 ScopeThis standard applies to string high nominal value (1 ~ 50) μm roundness scaled block (hereinafter referred to as scaling blocks) calibration. 2. References This specification refers to the following documents. GB/T 7234-2004 Geometrical product specifications (GPS) roundness measurement terms, definitions and parameters GB/T 7235-2004 Geometrical product specifications (GPS) roundness error in radius change Of measurement GB/T 26098-2010 roundness measuring instrument For dated references, only the dated edition applies to this specification; who does not note date reference documents, The latest version (including all repair orders) are applicable to this specification.3 OverviewCalibration is a block on the surface roughness and roundness error is very small outer cylindrical surface machining a cylindrical Standard axis is parallel to the small plane. String small plane on the cylinder radial cross-section of the high value of the F chord is scaling block High value. Scaling block for calibration and testing equipment parameters such as magnification. Typical calibration block structure shown in Figure 1. Figure 1 Schematic diagram of the calibration block4 Metrological characteristics4.1 Calibration block surface roughness Scaling block measuring surface roughness Ra of the surface is generally not more than 0.05μm. 4.2 Calibration blocks roundness Roundness error calibration block is generally not more than 0.10μm. Chord height value 4.3 calibration block Scaling block chord value measurement uncertainty is generally 5% to 2%. Note. The above indicators are not used to determine eligibility for reference only. ......Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of JJF 1485-2014_English be delivered?Answer: Upon your order, we will start to translate JJF 1485-2014_English as soon as possible, and keep you informed of the progress. The lead time is typically 1 ~ 3 working days. The lengthier the document the longer the lead time.Question 2: Can I share the purchased PDF of JJF 1485-2014_English with my colleagues?Answer: Yes. The purchased PDF of JJF 1485-2014_English will be deemed to be sold to your employer/organization who actually pays for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. If you need your currency to be printed on the invoice, please write an email to Sales@ChineseStandard.net. In 2 working-hours, we will create a special link for you to pay in any currencies. Otherwise, follow the normal steps: Add to Cart -- Checkout -- Select your currency to pay. |
