JJF 1484-2014 English PDF

US$419.00 · In stock
Delivery: <= 3 days. True-PDF full-copy in English will be manually translated and delivered via email.

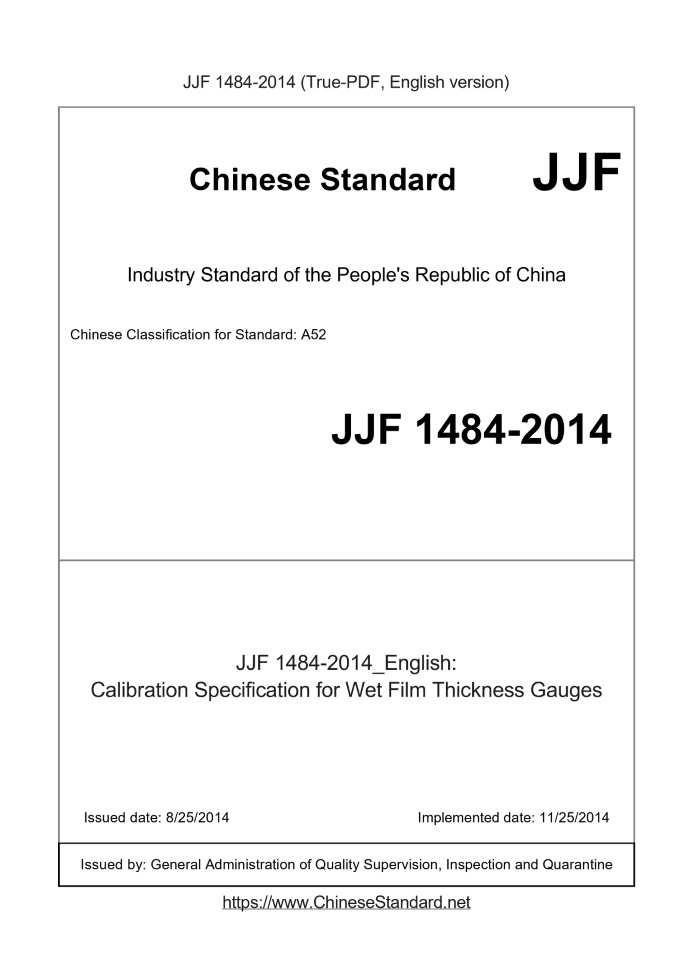

JJF 1484-2014: Calibration Specification for Wet Film Thickness Gauges
Status: Valid

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
JJF 1484-2014	419	Add to Cart	3 days	Calibration Specification for Wet Film Thickness Gauges	Valid

Similar standards

JJF 1561   JJF 1406   JJF 1280   JJF 1477   JJF 1485   JJF 1476

Basic data

Standard ID: JJF 1484-2014 (JJF1484-2014)
Description (Translated English): Calibration Specification for Wet Film Thickness Gauges
Sector / Industry: Metrology & Measurement Industry Standard
Classification of Chinese Standard: A52
Classification of International Standard: 17.040
Word Count Estimation: 18,122
Date of Issue: 8/25/2014
Date of Implementation: 11/25/2014
Quoted Standard: GB/T 13452.2-2008
Regulation (derived from): People's Republic of China The State Administration of Quality Supervision, Inspection and Quarantine Notice 2014 (No. 95); AQSIQ Notice 2014 No. 95
Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine
Summary: This Standard applies to measuring range (0-3000) ��m wet film thickness measurement gauge calibration.

JJF 1484-2014: Calibration Specification for Wet Film Thickness Gauges

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Calibration Specification for Wet Film Thickness Gauges People's Republic of China National Metrology Technical Specifications Wet film thickness measurement gauge calibration specification Issued on. 2014-08-25 2014-11-25 implementation The State Administration of Quality Supervision, Inspection and Quarantine released Wet film thickness measurement gauge calibration specification NFP. National Engineering Geometrical Parameters Measurement Technology Committee Drafted by. the Ministry of Industry Institute of Electronics fifth CEPREI measurement test center Anhui Institute of Metrology This specification project commissioned by the National geometric parameter measurement technology committee responsible for the interpretation Drafters of this specification. Huangwei Yan (Ministry of Industry Institute of Electronics fifth CEPREI measurement test center) Evergreen (Ministry of Industry Institute of Electronics fifth CEPREI measurement test center) Huang Xiuli (Anhui Institute of Metrology) Chun Li Sheng (Ministry of Industry Institute of Electronics fifth CEPREI measurement test center)

table of Contents

Introduction (Ⅱ) 1 Scope (1) 2. References (1) 3 Terms (1) Coating 3.1 (1) Wet film thickness of 3.2 (1) 4 Overview (1) 5 Metrological characteristics (2) 5.1 Face surface roughness (2) 5.2 Compliance two reference circle diameter difference (2) 5.3 Indication error (2) 6 calibration conditions (3) Environmental conditions 6.1 (3) 6.2 Calibration with standard equipment and the appropriate equipment (3) 7 calibration items and calibration methods (3) Face surface roughness of 7.1 (3) 7.2 Compliance two reference circle diameter difference (4) 7.3 Indication Error (4) Expression 8 calibration results (5) 9 Recalibration interval (5) Appendix A comb gauge wheel and regulations of the special fixture icon and technical requirements (6) Appendix B comb gauge indication error of measurement Uncertainty Evaluation (7) Appendix C wheel gauge indication error of measurement Uncertainty Evaluation (9) Appendix D calibration certificate within the page and format (12)

Introduction

This specification is for the measurement of technical regulations wet film thickness measurement gauge calibration. Preparation of this specification is based JJF 1071- 2010 "National calibration specifications write rules metering", JJF 1001-2011 "common measurement terms and definitions" and JJF 1059.1-2012 "Evaluation and Expression of Uncertainty in Measurement" as the basis and foundation, the newly developed measurement technology Regulation Fan. This specification is the main reference standard GB/T 13452.2-2008 "Paints and varnishes - Determination of film thickness." This specification is the first release. Wet film thickness measurement gauge calibration specification

1 Scope

This standard applies to the measurement range (0 ~ 3000) μm wet film thickness measurement gauge calibration. 2. References This specification references the following documents. Determination of GB/T 13452.2-2008 Paints and varnishes thickness For dated references, only the dated edition applies to this specification; undated reference documents Member, the latest edition (including any amendments) applies to this specification.

3 Terms

3.1 coating coating Single or continuous coating layer is applied repeatedly to the substrate after formation. 3.2 wet film thickness wet-filmthickness Measured immediately after coating the coating thickness of the wet coating.

4 Overview

Wet film thickness measurement gauge is a measuring tool for measuring wet film thickness. Press comb structure is divided into regulatory compliance and wheel Two kinds. Regulation is a comb made of corrosion resistant materials, edge gauge arranged a series of rectangles teeth. Each of its ends to form a side Baseline, baseline aligned along the crests and formed a baseline for measuring the height of the wet film thickness series. common A square, hexagonal, etc., structure type shown in Figure 1, is mainly used for measuring flat or slightly curved surfaces wet coating thickness. Regulation is a wheel made of a corrosion resistant material, and is composed of two identical rim diameter and the smaller diameter by an amount of the composition regulation. Rim having the same diameter and the outer concentric marked scale, each scale represents the position of the smaller rim (Face) Concentric rim (reference circle) and the height difference between the nominal value of the corresponding thickness. Structure type shown in Figure 2, is mainly used to measure the level Or even the entire curved surface of a wet coating thickness. ......
