JJF 1322-2011 English PDF

US$759.00 · In stock
Delivery: <= 6 days. True-PDF full-copy in English will be manually translated and delivered via email.

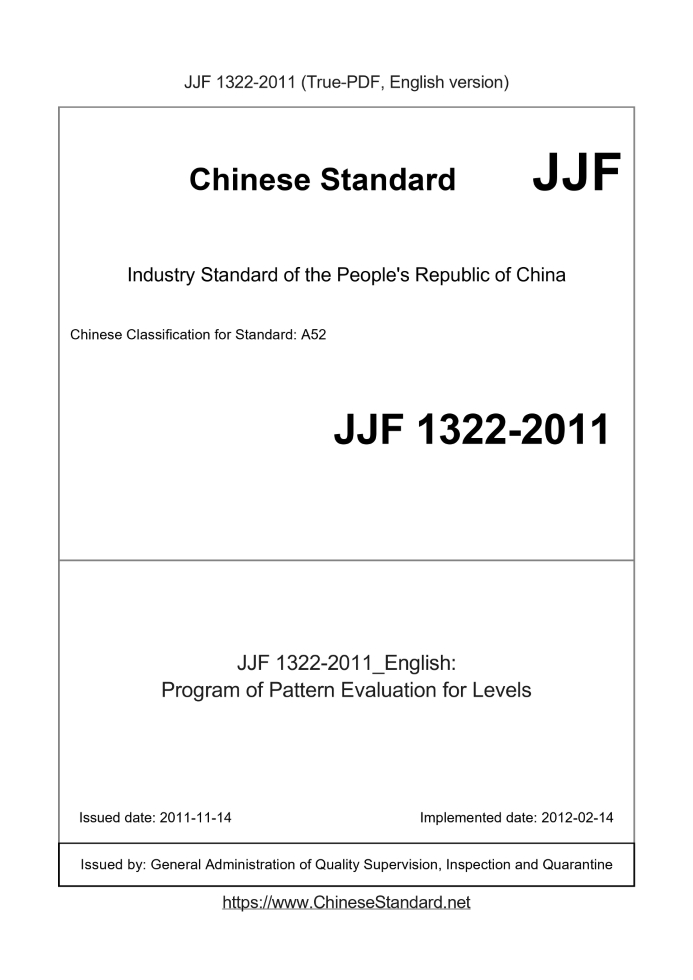

JJF 1322-2011: Program of Pattern Evaluation for Levels
Status: Valid

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
JJF 1322-2011	759	Add to Cart	6 days	Program of Pattern Evaluation for Levels	Valid

Similar standards

JJF 1406   JJF 1280   JJF 1126   JJF 1314   JJF 1318   JJF 1313

Basic data

Standard ID: JJF 1322-2011 (JJF1322-2011)
Description (Translated English): Program of Pattern Evaluation for Levels
Sector / Industry: Metrology & Measurement Industry Standard
Classification of Chinese Standard: A52
Classification of International Standard: 17.040
Word Count Estimation: 33,324
Date of Issue: 2011-11-14
Date of Implementation: 2012-02-14
Quoted Standard: JJG 8; GB/T 2423.4-2008; JB/T 9329-1999
Regulation (derived from): AQSIQ Announcement No. 165 of 2011
Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine
Summary: This standard applies to standard pipe, automatic Anping Level of type evaluation.

JJF 1322-2011: Program of Pattern Evaluation for Levels

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Program of Pattern Evaluation for Levels People's Republic of China National Metrology Technical Specifications Level type evaluation outline Issued on. 2011-11-14 2012-02-14 implementation The State Administration of Quality Supervision, Inspection and Quarantine released Level type evaluation outline This specification by the State Administration of Quality Supervision, Inspection and Quarantine approved on November 14, 2011, and from From February 14, 2012 into effect. Focal point. the National Technical Committee of length measuring geometry Main drafting unit. Hebei Supervision and Testing hospital National Testing Center EDM Participated in the drafting unit. a light Instrument Co., Ltd. in Suzhou This specification length measuring geometry commissioned the National Technical Committee is responsible for interpretation The main drafters of this Memorandum. Xie Ping (Hebei Supervision and Testing Institute) Zhaizheng Guang (Hebei Supervision and Testing Institute) Diqing Bin (National Testing Center EDM) Hao Yanbin (Hebei Supervision and Testing Institute) Drafters participate. Gonghao Han (Suzhou, a light Instrument Co., Ltd.)

table of Contents

Introduction (Ⅱ) 1 Scope (1) 2. References (1) 3 Overview (1) 4 legal management requirements (1) 4.1 units of measurement (1) 4.2 legal metrology marking and identification of measuring instruments (1) 4.3 offers the review of technical documents and test prototype (1) 5 measurement requirements (2) 6 General Requirements (2) 6.1 appearance and component interaction (2) 6.2 telescope reticle plumb of the vertical wire (3) 6.3 Operating temperature test (3) 6.4 transport, environmental testing (3) 7 type evaluation item list (4) Test conditions and test methods 8 items (4) 8.1 Legal Requirements Management (4) 8.2 metrological requirements (4) 8.2.1 magnification telescope (4) 8.2.2 telescope resolving power (6) 8.3 General Requirements (17) 9 type evaluation and determination of the results (21) 10 original record format type evaluation (21) Original record format in Appendix A (22)

Introduction

This outline is based on JJF 1015-2002 "Measuring Instruments type evaluation and type approval of universal norms" and JJF 1016-2009 "appliance type evaluation outline guidelines for the preparation of measurement" formed. The outline of the pilot projects and test procedures cited JJG425 "Level", GB/T 10156-2009 "Level" provisions on requirements for test equipment cited JJG960 provisions "Level Verification device". Also referring to the GB/T 12897-2006 "country, second leveling norms" and GB/T 12898-2009 "National third and fourth order leveling" content. Level type evaluation outline

1 Scope

This outline is applied to the standard tube, Type Evaluation of Automatic Level. 2. References JJG8 leveling staff GB/T 2423.4-2008 Environmental testing for electric and electronic products Part 2. Test methods - Test Db. cross Damp heat (12h 12h cycle) JB/T 9329-1999 instrumentation transportation, transportation, storage and basic environmental conditions and test methods These documents contain provisions which through reference in this syllabus constitute provisions of this outline, dated reference documents Member, all subsequent amendments (not including errata content) or revisions do not apply in this outline, however, to encourage root According to the parties that this outline agreement whether the latest versions of these documents. For undated reference documents Member, the latest versions apply to this outline.

3 Overview

Level is the level of the line of sight of the instrument as a baseline measurement of height measuring instruments performed. It is widely used In geodetic leveling, crustal deformation measurements, and a large variety of engineering leveling precision machinery installation. Press sensitive member Divided into vial spirit level, automatic Anping Level. Level different Anping divided into three accuracy level Gender. vial spirit level DS05 level, DS1 level, DS3 level and Automatic Level DSZ05 level, DSZ1 Level, DSZ3 level.

4 legal management requirements

4.1 units of measurement Level should be legal units of measurement. 4.2 legal metrology marking and measuring instruments logo In parts of the instrument should be clearly marked signs and legal metrology measuring instruments logos, marks, number and description must be cleared Xi discernible, solid and reliable. 4.2.1 legal metrology signs generally include the following Measurement equipment manufacturing license number and signs (of new products can leave the corresponding position, only domestic instrument); Measurement equipment type approval mark and number (of new products can leave the corresponding position, only domestic instrument). 4.2.2 identifies the generic measuring instruments should include the following Instrument name, manufacturer name, model number, date of manufacture, serial number. 4.3 offers the review of technical documents and test prototype 4.3.1 provide technical documentation review 4.3.1.1 prototype photos; ......
