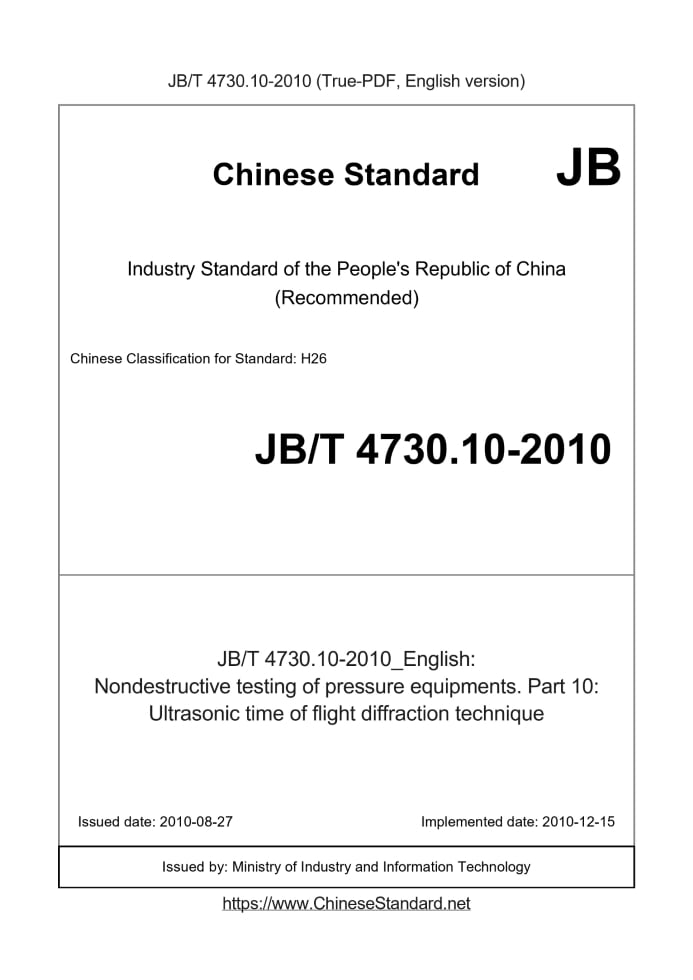

JB/T 4730.10-2010 English PDF
Basic dataStandard ID: JB/T 4730.10-2010 (JB/T4730.10-2010)Description (Translated English): Nondestructive testing of pressure equipments. Part 10: Ultrasonic time of flight diffraction technique Sector / Industry: Mechanical & Machinery Industry Standard (Recommended) Classification of Chinese Standard: H26 Classification of International Standard: 77.040.20 Word Count Estimation: 26,289 Date of Issue: 2010-08-27 Date of Implementation: 2010-12-15 Quoted Standard: GB/T 12604.1; JB/T 4730.1; JB/T 4730.2; JB/T 4730.3; JB/T 4730.4; JB/T 4730.5; JB/T 4730.6; JB/T 10061-1999; JB/T 10062-1999 Adopted Standard: CEN/TS 14751, NEQ; ASTM E2373-2004, NEQ; ENV 583-6-2000, NEQ; BS 7706-1993, NEQ ASME code case 2235-9, NEQ; NEN 1822-2005, NEQ Regulation (derived from): National Energy Board Notice 2010 No. 3 Issuing agency(ies): Ministry of Industry and Information Technology Summary: This standard specifies the pressure equipment using Time of Flight Diffraction ultrasonic testing (hereinafter referred to as "TOFD" ') the methods and quality classification requirements. This section applies to both of the following conditions welded joints: a) material is carbon steel or low alloy steel, b) structure type full penetration butt joints, c) workpiece thickness: 12mm �� t �� 400mm (not including welds I high, weld thickness of the base material is not the same on both sides, take the thin side thickness value). Pressure equipment with the relevant support and structural parts of the Time of Flight Diffraction ultrasonic testing, reference may be used in this section, For other fine-grained isotropic and whispered attenuating metal materials can also be used with reference to this section, but should consider the speed of sound changed. |
