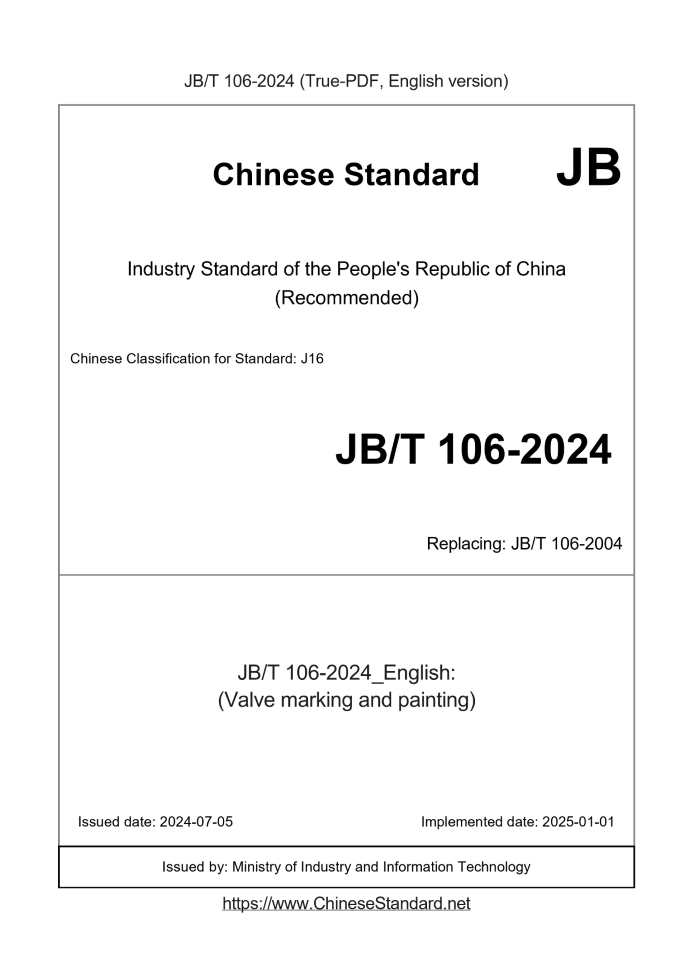

JB/T 106-2024 English PDFUS$209.00 · In stock
Delivery: <= 3 days. True-PDF full-copy in English will be manually translated and delivered via email. JB/T 106-2024: (Valve marking and painting) Status: Valid JB/T 106: Historical versions
Basic dataStandard ID: JB/T 106-2024 (JB/T106-2024)Description (Translated English): (Valve marking and painting) Sector / Industry: Mechanical & Machinery Industry Standard (Recommended) Classification of Chinese Standard: J16 Classification of International Standard: 23.060 Word Count Estimation: 9,916 Date of Issue: 2024-07-05 Date of Implementation: 2025-01-01 Older Standard (superseded by this standard): JB/T 106-2004 Issuing agency(ies): Ministry of Industry and Information Technology Summary: This standard specifies the marking and coating of industrial valves. JB/T 106-2004
JB
MECHANICAL INDUSTRY STANDARD
OF THE PEOPLE’S REPUBLIC OF CHINA
ICS 23.060
J 16
Replacing JB/T 106-1978
Valves marking and paint
ISSUED ON. OCTOBER 20, 2004
IMPLEMENTED ON. APRIL 01, 2005
Issued by. National Development and Reform Commission of PRC
Table of ContentsForeword ... 3 1 Scope ... 4 2 Normative references ... 4 3 Signs and marking methods... 4 3.1 Content of sign ... 4 3.2 Marking method of sign ... 4 3.3 Marking pattern of sign ... 5 3.4 Marking position of sign... 5 3.5 Marking size of sign... 6 4 Painting ... 7ForewordThis standard is a revision of JB/T 106-1978 “Valve - Marking and identification paint”. As compared with JB/T 106-1978, the main technical contents of this standard are as follows. - In accordance with the change of the standard’s content, CHANGE standard name from “Valve - Marking and identification paint” to “Valves marking and paint”; - ADD normative references; - ADD the marking pattern for valve’s drift diameter and pressure code, MODIFY the marking pattern in angular form; - MODIFY the provisions on the size of the casting mark and the font’s stamping depth of the stamped mark; - MODIFY the provisions on “valve material identification paint”; - DELETE the “identification paint of valve’s sealing surface material”; - MODIFY the requirements for the paint color of the valve’s drive device. This standard replaces JB/T 106-1978. This standard was proposed by the China Machinery Industry Federation. This standard shall be under the jurisdiction of the National Valve Standardization Technical Committee. Drafting organization of this standard. Hefei General Machinery Research Institute. Drafters of this standard. Wang Xiaojun, Huang Mingya, Song Zhongrong. This standard replaces the standard previously issued as follows. - JB/T 106-1978. Valves marking and paintScopeThis standard specifies the marking content, marking pattern, marking method and size, paint color of valve of various general-purpose valves. This standard applies to all types of general-purpose valves.Normative ReferencesThe provisions in following documents become the provisions of this standard through reference in this standard. For the dated references, the subsequent amendments (excluding corrections) or revisions do not apply to this standard; however, parties who reach an agreement based on this standard are encouraged to study if the latest versions of these documents are applicable. For undated references, the latest edition of the referenced document applies. GB/T 12220 General valve - Signs (GB/T 12220-1989, idt ISO 5209.1977) 3 Signs and marking methods 3.1 Content of sign The outer surface of the valve’s pressure bearing body shall be marked with a permanent sign in accordance with the provisions of GB/T 12220. The contents of the sign shall include the valve’s drift diameter, pressure code or working pressure code, material grade or code, manufacturer name or trademark, furnace number (casting valve). The valve with flow requirements shall be marked with the arrow of the flow direction of the medium. 3.2 Marking method of sign 3.2.1 When the valve body is formed by casting or die-casting method, its sign shall be casted or die-casted on the valve body together with the valve body. 3.2.2 When the shape of the valve body is formed by the die-forging method, the sign may be marked on the valve body by stamping, in addition to the die- forging or die-casting together with the valve body. When the shape of the valve ......Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of JB/T 106-2024_English be delivered?Answer: Upon your order, we will start to translate JB/T 106-2024_English as soon as possible, and keep you informed of the progress. The lead time is typically 1 ~ 3 working days. The lengthier the document the longer the lead time.Question 2: Can I share the purchased PDF of JB/T 106-2024_English with my colleagues?Answer: Yes. The purchased PDF of JB/T 106-2024_English will be deemed to be sold to your employer/organization who actually pays for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. If you need your currency to be printed on the invoice, please write an email to Sales@ChineseStandard.net. In 2 working-hours, we will create a special link for you to pay in any currencies. Otherwise, follow the normal steps: Add to Cart -- Checkout -- Select your currency to pay.Question 5: Should I purchase the latest version JB/T 106-2024?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version JB/T 106-2024 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically. |
