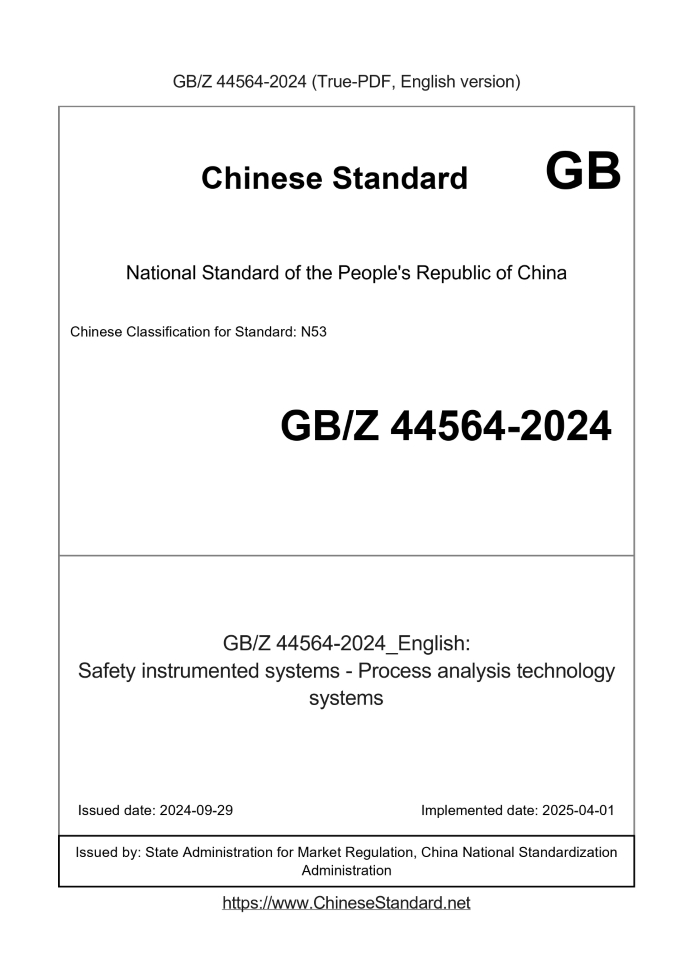

GBZ44564-2024: Safety instrumented systems - Process analysis technology systems
Status: Valid

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/Z 44564-2024	514	Add to Cart	5 days	Safety instrumented systems - Process analysis technology systems	Valid

Similar standards

GB/T 40219 GB/T 25929 GB/T 25930 GB/T 17365 GB/T 15074

Basic data

Standard ID: GB/Z 44564-2024 (GB/Z44564-2024)
Description (Translated English): Safety instrumented systems - Process analysis technology systems
Sector / Industry: National Standard
Classification of Chinese Standard: N53
Classification of International Standard: 71.040.10
Word Count Estimation: 26,216
Date of Issue: 2024-09-29
Date of Implementation: 2025-04-01
Issuing agency(ies): State Administration for Market Regulation, China National Standardization Administration

GBZ44564-2024: Safety instrumented systems - Process analysis technology systems

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
GB /Z 44564-2024.Safety Instrumented System Process Analysis Technology System ICS 71.040.10 CCSN53 Guiding technical documents of the People's Republic of China on national standardization Safety Instrumented System Process Analysis Technology System instrumented systems, IDT) Released on 2024-09-29 2025-04-01 Implementation State Administration for Market Regulation The National Standardization Administration issued

Preface III Introduction IV 1 Scope 1 2 Normative references 1 3 Terms, definitions, symbols and abbreviations 1 3.1 Terms and Definitions 1 3.2 Symbols and abbreviations 3 4 Audit procedures 4 4.1 Overview 4 4.2 Recommendations from installation engineers 5 4.3 Recommendations for job operator requirements 6 4.4 Basic Test (Analyzer Only) 6 4.5 Engineering Design 6 4.6 Debugging of safety systems 9 4.7 Records of the Audit Process 9 5 Normal operation 10 5.1 General Principles 10 5.2 Periodic testing during operation 10 5.3 Running files and records 10 5.4 Evaluation of fault data and deviation processing 11 5.5 Modification 11 5.6 Stopping and Restarting 11 5.7 Traceability12 Appendix A (Informative) Basic test items for analyzers 13 A.1 Organizational inspection 13 A.2 Analyser manufacturer specifications 13 A.3 Maintenance Assessment 13 A.4 Explosion protection assessment 14 A.5 Material compatibility assessment 14 A.6 Test 14 Appendix B (Informative) FMEDA Safety Assessment Document (Example) 16 Appendix C (Informative) PFD value time dispersion determination 17 References 19

Foreword

This document is in accordance with the provisions of GB/T 1.1-2020 "Guidelines for standardization work Part 1.Structure and drafting rules for standardization documents" Drafting. This document is equivalent to IEC TR63176.2019 "Process Analytical Technology System as Part of Safety Instrumented System". Document Type The model was adjusted from an IEC technical report to a national standardization guiding technical document for my country. The following minimal editorial changes were made to this document. --- In order to coordinate with the existing standards, the name of the standard is changed to "Safety Instrumented System Process Analysis Technology System"; ---Added the explanation of MooN in 3.2UMooN; --- Assign sequence numbers to the formulas in Appendix C. Please note that some of the contents of this document may involve patents. The issuing organization of this document does not assume the responsibility for identifying patents. This document was proposed by the China Machinery Industry Federation. This document is under the jurisdiction of the National Industrial Process Measurement, Control and Automation Standardization Technical Committee (SAC/TC124). This document was drafted by. China Instrument Industry Association, Mechanical Industry Instrument Comprehensive Technology and Economic Research Institute, Fujian Shunchang Hongrun Precision Instruments Co., Ltd., Beijing North Branch Rayleigh Analytical Instruments (Group) Co., Ltd., Beijing Xuedilong Technology Co., Ltd., Xike Maihak (Beijing) Instrument Co., Ltd., Jilin University, Beijing Beifen Maihak Analytical Instrument Co., Ltd., Focus Technology (Hangzhou) Co., Ltd. Company, Shandong Lunan Ruihong Chemical Instrument Co., Ltd., Zhejiang Fuli Analytical Instrument Co., Ltd., Jiangsu Fangtian Electric Power Technology Co., Ltd., Chongqing Chuanyi Analytical Instruments Co., Ltd. The main drafters of this document are. Yan Hairong, Xiong Wenze, Lin Shanping, Chen Jingwei, Gao Wu, Li Changyun, Gao Dejiang, Chen Miao, Yu Dahai, Jiang Hongzhao, Li Junke, Ye Jiaxing, Xiong Binfeng, Huang Yalong, Rong Jiwu.

Introduction

This document is intended to help users of process analyzers install and use the equipment in accordance with the requirements of the Safety Instrumented System (SIS). The content of the document may involve binding provisions related to safety, but the overall content of the document is recommendatory. For example, process analytical technology (PAT) measurement Devices used as sensor components in SIS in process industries represent, in most cases, the only or most effective means of monitoring process variables. The method, in itself, allows a reliable assessment of the use of the designed protection system. PAT measuring devices are generally more susceptible to interactions with materials than the widely used sensors for pressure, temperature, fill level and flow measurement. This interaction will result in a systematic failure that cannot be completely avoided, and regular inspections of the measuring equipment over a short period of time will This can avoid this problem. Due to the diversity of process analysis measurement variables and methods, and the limitations of signal and accuracy in each case, the applied PAT measurement The number of devices to be measured is relatively limited, so it is difficult to quantitatively evaluate functional safety according to IEC 61511 (all parts) in most cases. In addition to the lack of performance evaluation as a SIS component, the number of similar applications is too small. However, in the past three decades, process analyzers have The company has successfully applied hundreds of PAT measurement devices to SIS. In areas where regulatory requirements cannot be met or where only partial measures are proposed, these measures can only achieve an equivalent level of safety when applied with caution. Requirements related to the functional safety of electrical and electronic systems are described in IEC 61508 (all parts) and IEC 61511 (all parts). This document describes the procedural guidelines for PAT measurement equipment as part of a SIS. Safety Instrumented System Process Analysis Technology System

1 Scope

This document gives all the necessary steps for safety equipment certification and is supplemented by special requirements for PAT measuring equipment. Safety management of SIS equipment. This document is applicable to the planning, installation and operation (maintenance) of PAT measuring devices in SIS in process industries. This document does not address the safety management of the entire SIS equipment. The term "qualification" used in this document refers specifically to the suitability of a PAT system for testing SIS equipment, in contrast to the term used in the pharmaceutical environment. "Identification" is different.

2 Normative references

The contents of the following documents constitute essential clauses of this document through normative references in this document. For referenced documents without a date, only the version corresponding to that date applies to this document; for referenced documents without a date, the latest version (including all amendments) applies to This document. GB/T 20438.6-2017 Functional safety of electrical/electronic/programmable electronic safety-related systems Part 6. Application Guide for GB/T 20438.2 and GB/T 20438.3 (IEC 61508-6.2010, IDT) GB/T 21109.1-2022 Functional safety of safety instrumented systems in process industries Part 1.Framework, definitions, systems, hardware Software and application programming requirements (IEC 61151-1.2016, IDT) Note. GB/T 20438 (all parts) Functional safety of electrical/electronic/programmable electronic safety-related systems [IEC 61508 (all parts)] IEC 61511 (all parts) Functional safety - Safety instrumented systems for process industry Note. GB/T 21109 (all parts) Functional safety of safety instrumented systems in process industries [IEC 61511 (all parts)] 3 Terms, definitions, symbols and abbreviations 3.1 Terms and Definitions The following terms and definitions apply to this document. The terminology databases used for standardization maintained by ISO and IEC are located at. 3.1.1 The sum of the equipment and media necessary to achieve the measurement function of related substances. Note. This includes but is not limited to sampling equipment, sample delivery equipment, sample processing equipment, sample recovery equipment, analyzers, PAT control units and infrastructure, such as The equipment includes materials, references and calibration, and the necessary power supply. Depending on the specific situation, there are also instrument cabinets, analysis rooms or station buildings. ......
