GBZ44047-2024 English PDFUS$914.00 ยท In stock
Delivery: <= 6 days. True-PDF full-copy in English will be manually translated and delivered via email. GBZ44047-2024: Floating offshore wind turbines - Design requirements Status: Valid

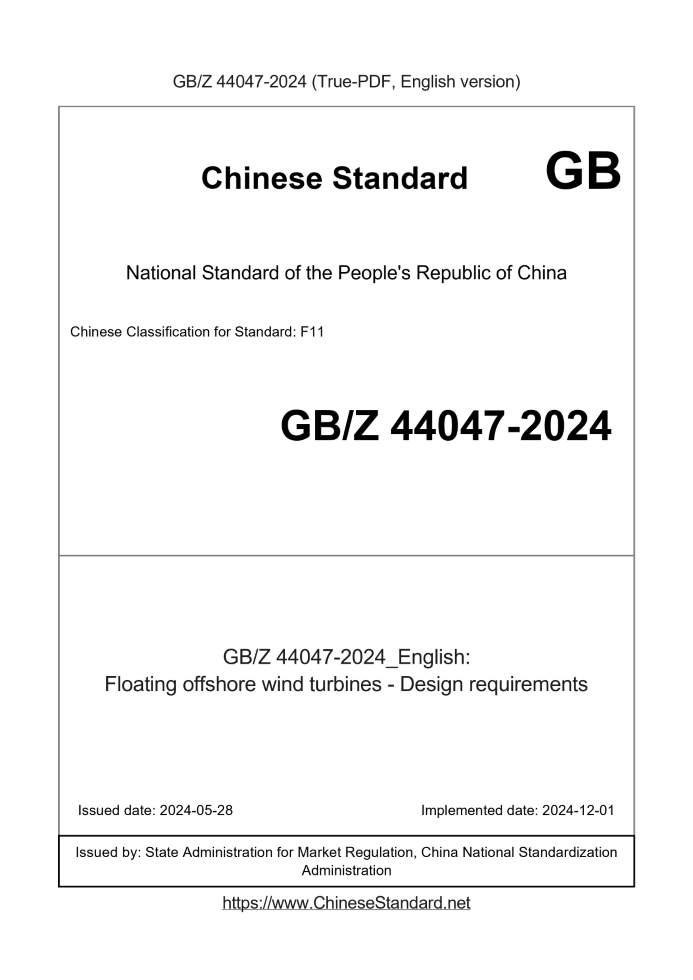

Basic dataStandard ID: GB/Z 44047-2024 (GB/Z44047-2024)Description (Translated English): Floating offshore wind turbines - Design requirements Sector / Industry: National Standard Classification of Chinese Standard: F11 Word Count Estimation: 45,430 Date of Issue: 2024-05-28 Date of Implementation: 2024-12-01 Issuing agency(ies): State Administration for Market Regulation, China National Standardization Administration GBZ44047-2024: Floating offshore wind turbines - Design requirements---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.GB /Z 44047-2024.Design requirements for floating offshore wind turbines ICS 27.180 CCSF11 Guiding technical documents of the People's Republic of China on national standardization Design requirements for floating offshore wind turbines Released on 2024-05-28 2024-12-01 implementation State Administration for Market Regulation The National Standardization Administration issued Table of ContentsPreface III 1 Scope 1 2 Normative references 1 3 Terms and Definitions 2 4 Symbols and abbreviations 4 4.1 Symbols and units 4 4.2 Abbreviations 4 5 General requirements 5 5.2 Design Method 5 5.6 Support structure identification 6 6 External conditions - definition and assessment 6 6.1 General 6 7 Structural design 7 7.1 General 7 7.3 Load 7 7.4 Design conditions and load cases 8 7.5 Calculation of loads and load effects 9 7.6 Limit state analysis 12 8 Control and protection systems 13 9 Mechanical System 14 10 Electrical system 14 11 Design of pile foundation and its auxiliary structures14 12 Assembly, installation and hoisting 14 12.1 Overview 14 12.2 General 14 12.3 Plan 15 12.13 Floating specific projects 15 13 Debugging, operation and maintenance 15 13.1 Overview 15 13.3 Debugging Instructions 15 13.4 Operator's Manual 15 13.5 Maintenance Manual 15 14 Anchoring system15 15 Floating stability 16 15.1 General 16 15.2 Complete static stability criteria 16 15.3 Alternative criteria for intact stability based on dynamic response 16 15.4 Damage stability criteria 16 16 Materials 16 17 Offshore support systems17 17.1 General 17 17.2 Bilge Water Treatment System 17 17.3 Ballast system 17 Appendix A (Informative) Key Design Parameters of Floating Offshore Wind Turbines 18 A.1 Floating offshore wind turbine identifier 18 A.2 Other environmental conditions 20 A.3 Restrictions on transportation, installation and maintenance 20 Appendix B (informative) Shallow water hydrodynamics and breaking waves 21 Appendix C (Informative) Guidelines for Calculation of Hydrodynamic Loads 22 Appendix D (Informative) Recommendations for the design of supporting structures for floating offshore wind turbines considering ice loads 23 Appendix E (Informative) Design of anchorage and auxiliary structures of floating offshore wind turbines 24 Appendix F (Informative) Statistical Extrapolation Method of Marine Meteorological Parameters for Ultimate Strength Analysis 25 Appendix G (informative) Corrosion protection 26 Appendix H (Informative) Prediction of Extreme Wave Height During Tropical Cyclones27 Appendix I (Informative) Recommendations for Calibration of Safety Levels in Tropical Cyclone Regions 28 Appendix J (Informative) Earthquake 29 Appendix K (Informative) Model Test 30 Appendix L (Informative) Tsunami 32 L.1 Overview 32 L.2 Numerical model of tsunami 32 L.3 Assessment of water level and flow velocity changes 34 L.4 References 35 Appendix M (Informative) Non-redundant anchoring systems 36 Appendix N (Informative) Differences between limit state methods in wind power and marine standards 37 Appendix O (Informative) Application of non-standard sustained extreme operating gusts 38 References 39ForewordThis document is in accordance with the provisions of GB/T 1.1-2020 "Guidelines for standardization work Part 1.Structure and drafting rules for standardization documents" Drafting. This document is equivalent to IEC TS61400-3-2.2019 "Wind energy generation systems Part 3-2.Floating offshore wind turbines Design Requirements", the document type was adjusted from ISO technical specifications to my country's guiding technical documents. The following minimal editorial changes were made to this document. --- To coordinate with the existing standards, the name of the standard is changed to "Design Requirements for Floating Offshore Wind Turbines". Please note that some of the contents of this document may involve patents. The issuing organization of this document does not assume the responsibility for identifying patents. This document was proposed by the China Machinery Industry Federation. This document is under the jurisdiction of the National Technical Committee for Standardization of Wind Power Generation (SAC/TC50). This document was drafted by. Shanghai Electric Wind Power Group Co., Ltd., China Shipbuilding Industry Corporation Haizhuang Wind Power Co., Ltd., Jin Wind Science & Technology Co., Ltd., Guodian United Power Technology Co., Ltd., China Power Construction Group Northwest Survey and Design Institute Co., Ltd., China PowerChina Central South Survey and Design Institute Co., Ltd., PowerChina East China Survey and Design Institute Co., Ltd., Shanghai Survey and Design Institute Co., Ltd. China Electric Power Research Institute Co., Ltd., China Quality Certification Center, China Electric Power Research Institute Co., Ltd., Shanghai Electric Power Industry Co., Ltd., CRRC Zhuzhou Electric Wind Power Division of China Shipbuilding Industry Corporation, China Shipbuilding Wind Power Engineering Technology (Tianjin) Co., Ltd., China Huaneng Group Clean Energy Technology Research Institute Institute Co., Ltd., Beijing Jianheng Certification Center Co., Ltd., Mingyang Smart Energy Group Co., Ltd., Harbin Electric Wind Energy Co., Ltd., Chongqing Da Dongfang Electric Wind Power Co., Ltd., Longyuan Power Group Co., Ltd., China Energy Engineering Group Guangdong Electric Power Design Research Institute Co., Ltd., Poly Changda Engineering Co., Ltd., China Classification Society Quality Certification Co., Ltd., Shanxi Tianbao Group Co., Ltd., CCCC Third Navigation Engineering Bureau Co., Ltd., Jiangsu Yaxing Anchor Chain Co., Ltd., Tianshun Wind Energy (Suzhou) Co., Ltd., Xiamen Shuangrui Wind Power Technology Co., Ltd., Qingdao Shuangrui Marine Environmental Engineering Co., Ltd., Shandong Electric Power Engineering Consulting Institute Co., Ltd., Nantong Huisheng Wind Power Technology Co., Ltd. Co., Ltd., China Power Engineering Group Fujian Electric Power Survey and Design Institute Co., Ltd., and China Power Engineering Offshore Wind Power Engineering Co., Ltd. The main drafters of this document are. Xu Yiqing, Zhao Dawen, Wang Ye, Dong Yehong, Wang Lijuan, Li Hongmei, Zhai Endi, Li Xuelin, Tian Weihui, Huang Chunfang, Shen Kanmin, Fan Ke, Yuan Ying, Zhao Na, Sun Lei, Li Xiuzhen, Li Yajie, Guo Chen, Cai Zhisong, Liu Fanying, Zeng Xingguo, Liu Zhanfang, Zhang Hao, Wang Qijun, Cao Shugang, Yang Mindong, Zhang Xianxiong, Fu Cheng, Hu Dawei, Wang Liliang, Zhang Yanling, Du Yu, Zhang Weixin, Wang Zhijian, Xiong Gang, Zhao Yongtao, Xu Junxiang, Pan Xujie, Wang Zijun, Yan Jianguo, and Yang Xueliang. Design requirements for floating offshore wind turbines1 ScopeThis document specifies additional requirements for the assessment of external conditions at floating offshore wind turbine (FOWT) sites and for ensuring The basic design requirements for the engineering integrity of FOWTs are to provide an appropriate level of protection during the expected life cycle of the unit against Prevent various risks from causing damage to the unit. This document focuses on the engineering integrity of the FOWT structural components, but also addresses the mechanical devices of the control and protection systems, the internal electrical systems, and the subsystems such as system and mechanical system. If the floating foundation of a wind turbine is subjected to hydrodynamic loads and supported by buoyancy and an anchoring system, the wind The generator set is considered as FOWT. FOWT consists of five main subsystems. wind turbine nacelle assembly (RNA), tower, floating foundation, anchor Systems and supporting machinery, equipment and systems that do not belong to RNA. The following types of floating foundation structures are explicitly considered in this document. a) Ship and barge structures; b) Semi-submersible; c) Single column type (Spar); d) Tension Leg Platform/Buoy (TLP/T LB). In addition to the types of structures listed above, this document also generally includes other floating platforms used to support wind turbines. These platform structures may vary greatly in geometry and construction type and therefore may only partially meet the requirements of this document. In all such cases, the specific requirements set forth in this document may not apply to the design of all or part of such structures. The conformity of the components requires that the basic principles followed in the design meet or exceed the safety level required by this document. This document applies to unmanned floating structures with a single horizontal axis wind turbine. Axis wind turbines or combined wind/wave energy systems may require additional design considerations. This document is used in conjunction with the corresponding IEC and ISO standards referenced in Chapter 2.This document fully complies with IEC 61400-1 and The safety level of FOWT designed according to this document meets or exceeds the requirements of IEC 61400-1 and IEC 61400- The level specified in 3-1.2 Normative referencesThe contents of the following documents constitute the essential clauses of this document through normative references in this document. For referenced documents without a date, only the version corresponding to that date applies to this document; for referenced documents without a date, the latest version (including all amendments) applies to This document. 1.Design requirements) Note. GB/T 18451.1-2022 Design requirements for wind turbines (IEC 61400-1.2019, IDT) IEC 61400-3-1.2019 Wind energy generation systems Part 3-1.Design requirements for fixed offshore wind turbines Note. GB/T 31517.1-2022 Design requirements for fixed offshore wind turbines (IEC 61400-3-1.2019, IDT) ISO.19901-1.2015 Particular requirements for offshore structures for the petroleum and natural gas industries Part 1.Marine meteorological design and operation ...... |
