GB/T 5633-2008: Flared couplings -- Straight thread branch tee

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.

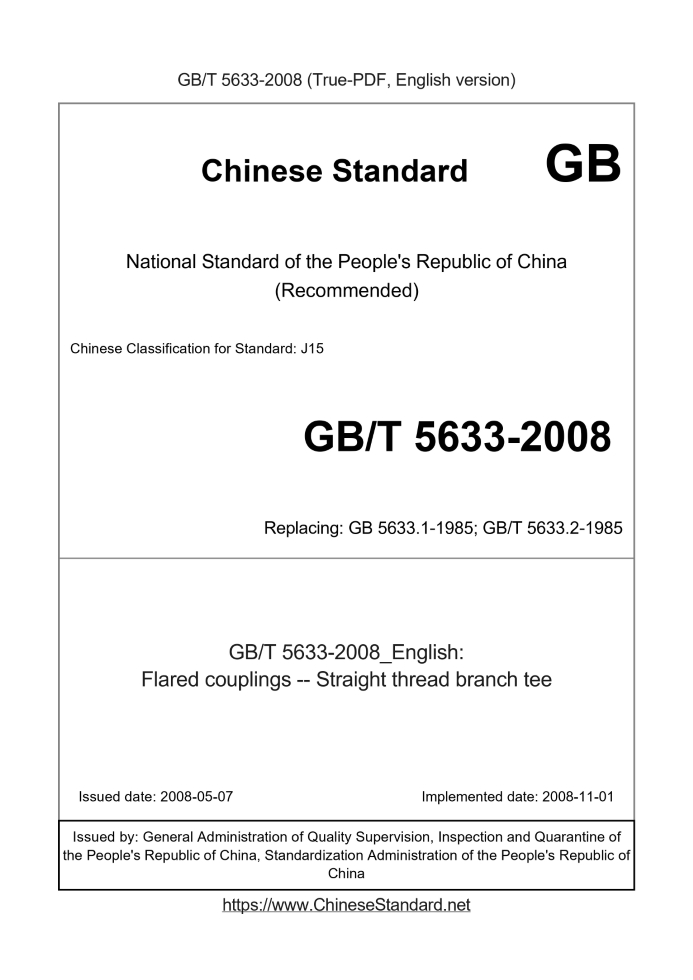

Flared couplings. Straight thread branch tee ICS 21.060.60 J15 National Standards of People's Republic of China Replacing GB/T 5633.1-1985, GB/T 5633.2-1985 Adjustable end flared tee Posted 2008-05-07 2008-11-01 implementation Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China Standardization Administration of China released

Foreword

This standard is one flared fittings series. This standard is GB/T 5633.1-1985 "flared adjustable to the end of the tee," and GB/T 5633.2-1985 "the flare may Amendment to the end of the tune tee Style ". The main amendments are. --- The two standard content integration; --- Modify the English name; --- Increasing the hexagonal structure of the blank; --- Adjustable to modify the size of the end; --- Reducing the parameters should be part of the manufacturer's control; --- Tolerance on the part of prevailing standards of tolerance and fit adjustment; --- Cancel the marked surface roughness, surface roughness is given in GB/T 5653 "flared fittings technical conditions" in. Since the implementation of this standard replaces GB/T 5633.1-1985, GB/T 5633.2-1985. The standard proposed by China Machinery Industry Federation. This standard by the National Standardization Technical Committee pipe accessories. This standard is drafted by. The machine Productivity Promotion Center, Haiyan Pipe Manufacturing Co., Ltd., Haiyan tube Manufacturing Co., the company. Participated in the drafting of this standard. Eaton (Ningbo) fluid connector Ltd., Jiaxing Mai Site Pipe Manufacturing Co., Ltd., Jianhu special Jia Hydraulic Fittings Co., Ltd., a high-Bo Haiyan Pipe Fittings Co., Ltd. Jiaozuo City roads lead to hydraulic attachments. The main drafters of this standard. Gengzhi school, Li Weirong, Zhou Shunhua, Zhou Jianfei, Zuo Jun, Tao Zhongming, Ruanhao Feng, Wang Limin, Feng Feng. This standard replaces the standards previously issued as follows. --- GB/T 5633.1-1985, GB/T 5633.2-1985. Adjustable end flared tee

1 Scope

This standard specifies the end flare Adjustable tee fitting body and the dimensions, marking and technical requirements. This standard applies to pipe outside diameter 4mm ~ 34mm, the maximum working pressure of the hydraulic fluid and transmission of a 3.5MPa ~ 16MPa General purpose piping system.

2 Normative references

The following documents contain provisions which, through reference in this standard and become the standard terms. For dated references, subsequent Amendments (not including errata content) or revisions do not apply to this standard, however, encourage the parties to the agreement are based on research Whether the latest versions of these documents. For undated reference documents, the latest versions apply to this standard. GB/T 3765-2008 bite type tube fittings GB/T 5646-2008 flared pipe joint socket GB/T 5647-2008 flared tube fittings A nut GB/T 5648-2008 flared tube fittings B nuts GB/T 5649-2008 fittings with nut and washer GB/T 5652-2008 flared flared end fittings Dimensions GB/T 5653-2008 flared tube fittings

3 Dimensions

Adjustable size flared end tee and the joint body shall comply with Figs. 1 to 4 and Table 1, the size should be adjustable to the end symbol Co GB/T 3765 Appendix A in the L series of provisions, the flared end connector body size should be consistent with the provisions of GB/T 5652's.

4 Mark

4.1 labeling method Flared end to the three-way adjustable fittings and joints labeling method body should be consistent with GB/T 5653 regulations. 4.2 tag example Flared type A, the pipe diameter of 10mm, the common thread (M) Adjustable threaded post terminals, steel flared surface galvanized adjustable To the end of the tee markers are. Fittings GB/T 5633 A10 Flared type A, the pipe diameter of 10mm, the common thread (M) Adjustable threaded post terminals, steel flared surface galvanized adjustable To the end of the tee body marked. Joint body GB/T 5633 A10

5 Technical requirements

Technical requirements according to GB/T 5653 regulations. ......
