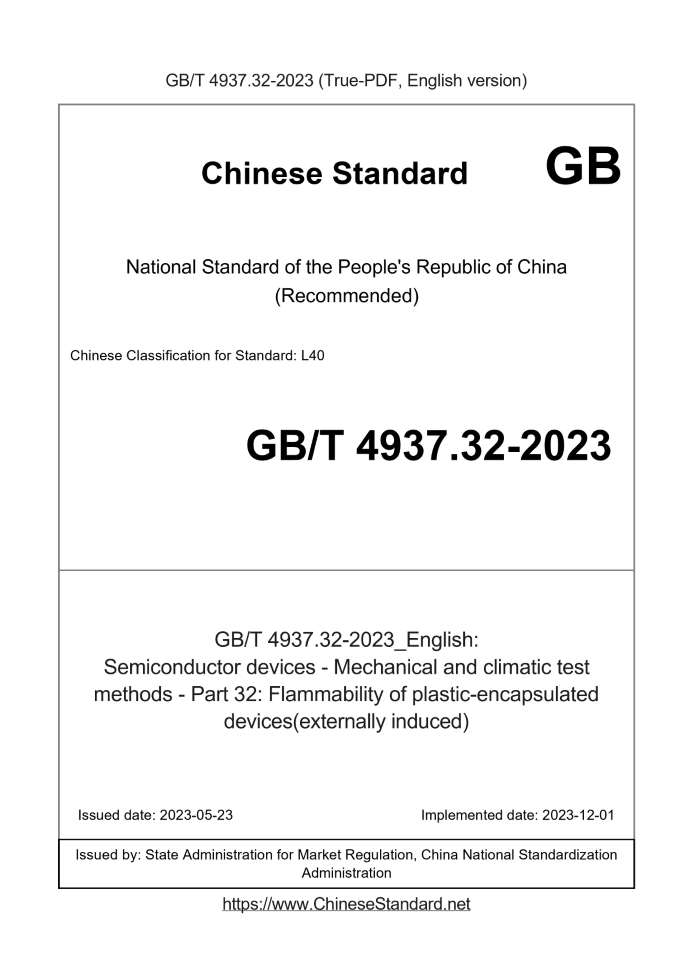

GB/T 4937.32-2023 English PDFUS$154.00 ยท In stock
Delivery: <= 3 days. True-PDF full-copy in English will be manually translated and delivered via email. GB/T 4937.32-2023: Semiconductor devices - Mechanical and climatic test methods - Part 32: Flammability of plastic-encapsulated devices(externally induced) Status: Valid
Basic dataStandard ID: GB/T 4937.32-2023 (GB/T4937.32-2023)Description (Translated English): Semiconductor devices - Mechanical and climatic test methods - Part 32: Flammability of plastic-encapsulated devices(externally induced) Sector / Industry: National Standard (Recommended) Classification of Chinese Standard: L40 Classification of International Standard: 31.080.01 Word Count Estimation: 7,723 Date of Issue: 2023-05-23 Date of Implementation: 2023-12-01 Issuing agency(ies): State Administration for Market Regulation, China National Standardization Administration GB/T 4937.32-2023: Semiconductor devices - Mechanical and climatic test methods - Part 32: Flammability of plastic-encapsulated devices(externally induced)---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order. ICS 31:080:01 CCSL40 National Standards of People's Republic of China Mechanical and climatic test methods for semiconductor devices Part 32: Flammability of plastic encapsulated devices (externally induced) (IEC 60749-32:2010, IDT) Released on 2023-05-23 2023-12-01 Implementation State Administration for Market Regulation Released by the National Standardization Management Committee forewordThis document is in accordance with the provisions of GB/T 1:1-2020 "Guidelines for Standardization Work Part 1: Structure and Drafting Rules for Standardization Documents" drafting: This document is part 32 of GB/T 4937 "Mechanical and Climate Test Methods for Semiconductor Devices": GB/T 4937 has been released The following sections: --- Part 1: General; --- Part 2: Low pressure; --- Part 3: External visual inspection; --- Part 4: Highly Accelerated Steady State Damp Heat Test (HAST); --- Part 11: Rapid temperature change double tank method; --- Part 12: Frequency sweep vibration; --- Part 13: Salt spray; --- Part 14: Terminal strength (lead fastness); --- Part 15: Resistance to soldering heat of through-hole mounted devices; --- Part 17: Neutron irradiation; --- Part 18: Ionizing radiation (total dose); --- Part 19: Chip shear strength; --- Part 20: Plastic-encapsulated surface mount devices are resistant to the combined effects of moisture and soldering heat; --- Part 20-1: Handling, packaging, marking and transportation of surface mount devices sensitive to the combined effects of moisture and soldering heat; --- Part 21: Solderability; --- Part 22: Bonding strength; --- Part 23: High temperature working life; --- Part 26: Electrostatic discharge (ESD) susceptibility test Human body model (HBM); --- Part 27: Electrostatic discharge (ESD) susceptibility test machine model (MM); --- Part 30: Pretreatment of non-hermetic surface mount devices before reliability tests; --- Part 31: Flammability of plastic encapsulated devices (internal causes); --- Part 32: Flammability of plastic encapsulated devices (external causes); --- Part 42: Temperature and humidity storage: This document is equivalent to IEC 60749-32:2010 "Mechanical and climatic test methods for semiconductor devices - Part 32: Plastic encapsulated devices Flammability (externally induced)": A chapter "Terms and Definitions" has been added to this document: Please note that some contents of this document may refer to patents: The issuing agency of this document assumes no responsibility for identifying patents: This document is proposed by the Ministry of Industry and Information Technology of the People's Republic of China: This document is under the jurisdiction of the National Semiconductor Device Standardization Technical Committee (SAC/TC78): This document is drafted by: The Thirteenth Research Institute of China Electronics Technology Group Corporation, Hebei Beixin Semiconductor Technology Co:, Ltd:, Hefei Liannuo Technology Co:, Ltd:, Hebei Zhongdian Kehang Testing Technology Service Co:, Ltd:, Guangdong Zhongshaoxuan Standardization Technology Research Institute Co:, Ltd:, Foshan Chuandong Magnetic Electric Co:, Ltd: The main drafters of this document: Pei Xuan, Zhang Kui, Huang Jiye, Xi Shanbin, Peng Hao, Wei Bing, Lin Yupan, Yan Tianbao:IntroductionSemiconductor devices are common basic products in the electronics industry chain and are the most basic units in electronic systems: GB/T 4937 "Semiconductors Mechanical and Climatic Test Methods for Bulk Devices" is the basic and universal standard for testing semiconductor devices: The quality and reliability of the device play an important role, and it is proposed to be composed of 44 parts: --- Part 1: General: The purpose is to specify general guidelines for mechanical and climatic test methods for semiconductor devices: --- Part 2: Low air pressure: The purpose is to detect the ability of components and materials to avoid electrical breakdown failure: --- Part 3: External visual inspection: The purpose is to detect whether the material, design, structure, marking and process quality of semiconductor devices meet the Purchasing Documentation Requirements: --- Part 4: Strongly Accelerated Steady State Damp Heat Test (HAST): The purpose is to specify the highly accelerated steady state damp heat test (HAST) to detect Test the reliability of non-hermetic packaged semiconductor devices in humid environment: --- Part 5: Steady-state temperature and humidity bias life test: The purpose is to specify the steady-state temperature and humidity bias life test to detect non-airtight Reliability of packaged semiconductor devices in wet environments: --- Part 6: High temperature storage: The purpose is to detect the influence of high temperature storage on semiconductor devices without applying electrical stress: --- Part 7: Internal water vapor measurement and other residual gas analysis: The purpose is to detect the quality of the packaging process and provide relevant information on the long-term chemical stability of the body in the shell: --- Part 8: Sealing: The purpose is to detect the leak rate of semiconductor devices: --- Part 9: Sign durability: The purpose is to test the durability of marks on semiconductor devices: --- Part 10: Mechanical shock: The purpose is to test the suitability of semiconductor devices and printed board assemblies to withstand moderately severe shocks ability: --- Part 11: Rapid temperature change double tank method: The purpose is to specify the rapid temperature change of semiconductor devices (double tank method) Test procedures, failure criteria, etc: --- Part 12: Frequency sweep vibration: The purpose is to detect the impact of vibration on semiconductor devices within the specified frequency range: --- Part 13: Salt spray: The purpose is to detect the corrosion resistance of semiconductor devices: --- Part 14: Terminal strength (lead fastness): The purpose is to detect the lead/package interface of semiconductor devices and the firmness of leads: Solidity: --- Part 15: Resistance to soldering heat of through-hole mounted devices: The purpose is to test the vibration of through-hole mounted solid-state packaged semiconductor devices The ability of peak soldering or soldering iron soldering leads to generate thermal stress: --- Part 16: Particle collision noise detection (PIND): The purpose is to specify the detection method for the presence of free particles in cavity devices: --- Part 17: Neutron irradiation: The purpose is to examine the susceptibility of semiconductor devices to performance degradation in a neutron environment: --- Part 18: Ionizing radiation (total dose): The purpose is to provide for the assessment of the impact of low dose rate ionizing radiation on semiconductor devices: Rapid annealing test method: --- Part 19: Chip shear strength: The purpose is to detect the materials and processes used to mount semiconductor chips on sockets or substrates: completeness of the process steps: --- Part 20: Plastic surface mount devices resistance to combined effects of moisture and soldering heat: The purpose is to store in warehouse or dry by simulating The moisture absorbed by plastic-encapsulated surface-mounted semiconductor devices in a dry packaging environment was evaluated to evaluate its resistance to soldering heat: --- Part 20-1: Handling, packaging, marking and transportation of surface mount devices sensitive to the combined effects of moisture and soldering heat: Purpose It is to regulate the operation, packaging, transportation and use of plastic-encapsulated surface-mounted semiconductor devices that are sensitive to the combined effects of moisture and soldering heat method: --- Part 21: Solderability: The purpose is to specify the lead-out terminals of component packages that are soldered with lead-tin solder or lead-free solder: Solderability test procedure: --- Part 22: Bonding strength: The purpose is to detect the bonding strength of semiconductor devices: --- Part 23: High temperature working life: The purpose is to specify the effects of bias conditions and temperature on solid-state devices over time: experiment method: --- Part 24: Accelerated humidity unbiased strong accelerated stress test: The purpose is to test non-hermetic packaged solid-state devices in humid environment environment reliability: --- Part 25: Temperature cycle: The purpose is to detect semiconductor devices, components and circuit board assemblies subjected to extreme high temperatures and extreme The ability of low temperature alternating action to induce mechanical stress: --- Part 26: Electrostatic discharge (ESD) susceptibility test Human body model (HBM): The purpose is to specify reliable, repeatable HBMESD test method: --- Part 27: Electrostatic discharge (ESD) susceptibility test machine model (MM): The purpose is to specify reliable, repeatable MMESD test method: --- Part 28: Electrostatic discharge (ESD) susceptibility testing Charged Device Model (CDM) device level: The purpose is to provide reliable, Repeatable CDMESD test method: --- Part 29: Latch-up test: The purpose is to specify the method of detecting the latch-up characteristics of integrated circuits and the failure criterion of the latch: --- Part 30: Pretreatment of non-hermetic surface mount devices before reliability testing: Intended to specify unsealed surface mount Standard procedure for preconditioning components before reliability testing: --- Part 31: Flammability of plastic encapsulated devices (internal causes): The purpose is to detect whether the plastic packaged device is caused by overload Burning with heat: --- Part 32: Flammability of plastic encapsulated devices (external causes): The purpose is to detect whether the plastic packaged device is caused by external heating combustion: --- Part 33: Accelerated moisture-resistant unbiased high-pressure cooking: The purpose is to identify the internal failure mechanisms of semiconductor device packages: --- Part 34: Power cycle: The purpose is to detect the To measure the thermal and mechanical stress resistance of semiconductor devices: --- Part 35: Acoustic microscopy of plastic packaged electronic components: The purpose is to specify the accuracy of acoustic microscopes for plastic-encapsulated electronic components Methods for performing defect (lamination, cracks, voids, etc:) detection: --- Part 36: Steady-state acceleration: The purpose is to specify the test method for the steady-state acceleration of cavity semiconductor devices in order to detect their junction Structural and mechanical type defects: --- Part 37: Board-level drop test methods using accelerometers: The purpose is to specify the board level drop test using accelerometer method, the drop test of surface mount devices can be repeatedly detected, and the common failure modes during product level testing can be reproduced at the same time: --- Part 38: Soft error test methods for semiconductor devices with memory: The purpose is to specify the operation of semiconductor devices with memory Test method for soft error susceptibility in energetic particle environments (e:g: alpha radiation): --- Part 39: Measurement of moisture diffusivity and water solubility of organic materials for semiconductor devices: The purpose is to specify the application of semiconductor Method for measuring moisture diffusivity and water solubility of organic materials for bulk device packaging: --- Part 40: Board-level drop test methods using strain gauges: The purpose is to specify the board level drop test method using strain gauges: This method enables repeatable testing of surface mount device drop tests while reproducing common failure modes during product-level testing: --- Part 41: Non-volatile memory reliability test methods: The purpose is to specify the effective endurance, data According to the requirements of maintenance and temperature cycle test: --- Part 42: Temperature and humidity storage: The purpose is to specify the test method for testing the ability of semiconductor devices to withstand high temperature and high humidity environments: --- Part 44: Neutron irradiation single event effects (SEE) test methods for semiconductor devices: The purpose is to specify the detection of high-density set Test method for single event effect (SEE) of integrated circuits: GB/T 4937 (all parts) is a one-to-one correspondence with IEC 60749 (all parts) to ensure that the test methods of semiconductor devices are consistent with those of the national Consistent with international standards, to achieve semiconductor device inspection methods, reliability evaluation, and quality levels in line with international standards: Through the formulation of this series of standards, it is determined that Unified test methods and stresses, while improving the semiconductor device standard system: Mechanical and climatic test methods for semiconductor devices Part 32: Flammability of plastic encapsulated devices (externally induced)1 ScopeThis document applies to semiconductor devices (discrete devices and integrated circuits), hereinafter referred to as devices: This document is used to determine whether a device has burned due to external heat generation: This test uses a needle flame to simulate equipment with components inside Effects of small flames that may arise under fault conditions: Note: Except for the content added in this chapter and the titles and renumbering of Chapters 2 and 4, this test method is consistent with 1:2 of Chapter 4 of IEC 60749 (1996): The test method is the same:2 Normative referencesThe contents of the following documents constitute the essential provisions of this document through normative references in the text: Among them, dated references For documents, only the version corresponding to the date is applicable to this document; for undated reference documents, the latest version (including all amendments) is applicable to this document: GB/T 5169:5-2020 Fire Hazard Tests for Electrical and Electronic Products Part 5: Test Flame Needle Flame Test Method Device, Confirmation test methods and guidelines (IEC 60695-11-5:2016, IDT) Note: IEC 60695-11-5:2004 quoted in the original text of the international standard has been replaced by IEC 60695-11-5:2016: GB/T 5169:5-2020 quoted content There is no technical difference between the content and the referenced content of IEC 60695-11-5:2004:3 Terms and DefinitionsThis document does not have terms and definitions that need to be defined:4 Test procedureThis test shall comply with the needle flame test, the requirements are as follows: a) Pretreatment: none; b) Number of test samples: three, unless otherwise specified in relevant documents; c) Sample position: in accordance with Figure 2a in GB/T 5169:5-2020); d) Tested surface and applicable points: in accordance with Figure 2a in GB/T 5169:5-2020); e) Underlayment: paper on pine wood, complying with 5:6 of GB/T 5169:5-2020; f) Flame continuous application time (ta): 10s; g) Sample burning time: 10s; h) Burning range: It cannot significantly exceed the area exposed to the flame: ......Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of GB/T 4937.32-2023_English be delivered?Answer: Upon your order, we will start to translate GB/T 4937.32-2023_English as soon as possible, and keep you informed of the progress. The lead time is typically 1 ~ 3 working days. The lengthier the document the longer the lead time.Question 2: Can I share the purchased PDF of GB/T 4937.32-2023_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 4937.32-2023_English will be deemed to be sold to your employer/organization who actually pays for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. If you need your currency to be printed on the invoice, please write an email to Sales@ChineseStandard.net. In 2 working-hours, we will create a special link for you to pay in any currencies. Otherwise, follow the normal steps: Add to Cart -- Checkout -- Select your currency to pay. |
