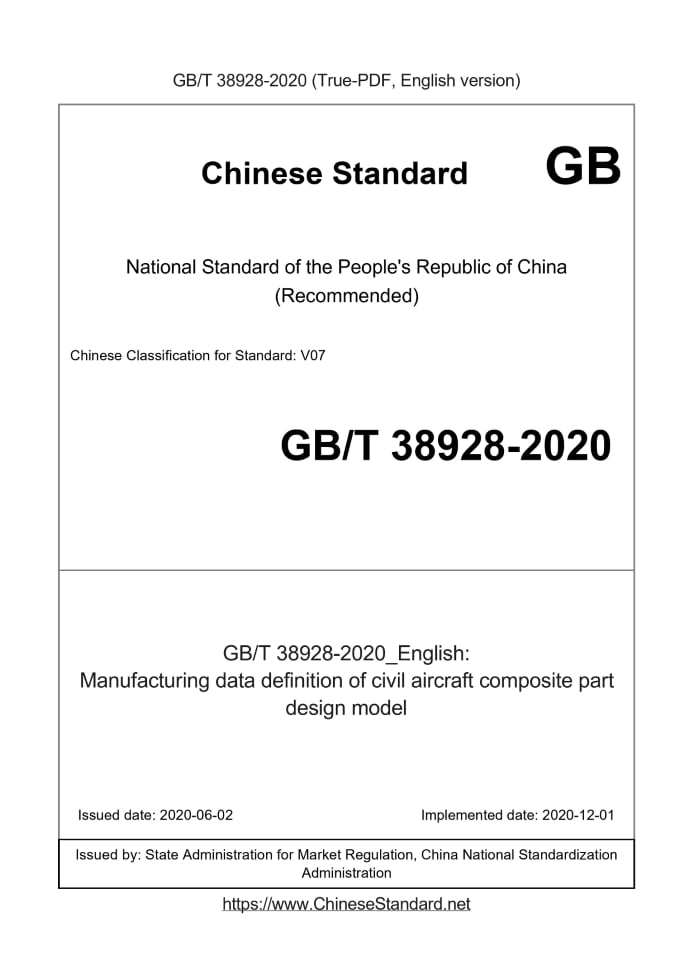

GB/T 38928-2020 English PDF

US$189.00 · In stock
Delivery: <= 3 days. True-PDF full-copy in English will be manually translated and delivered via email.
GB/T 38928-2020: Manufacturing data definition of civil aircraft composite part design model
Status: Valid

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 38928-2020	189	Add to Cart	3 days	Manufacturing data definition of civil aircraft composite part design model	Valid

Similar standards

GB/T 38026   GB/T 38028   GB/T 36249   GB/T 44397   GB/T 36247

Basic data

Standard ID: GB/T 38928-2020 (GB/T38928-2020)
Description (Translated English): Manufacturing data definition of civil aircraft composite part design model
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: V07
Classification of International Standard: 49.020
Word Count Estimation: 10,170
Date of Issue: 2020-06-02
Date of Implementation: 2020-12-01
Issuing agency(ies): State Administration for Market Regulation, China National Standardization Administration

GB/T 38928-2020: Manufacturing data definition of civil aircraft composite part design model

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Manufacturing data definition of civil aircraft composite part design model ICS 49.020 V07 National Standards of People's Republic of China Definition of manufacturing data for composite design model of civil aircraft 2020-06-02 release 2020-12-01 implementation State Administration of Market Supervision and Administration Issued by the National Standardization Management Committee

Foreword

This standard was drafted in accordance with the rules given in GB/T 1.1-2009. This standard was proposed and managed by the National Aircraft Standardization Technical Committee (SAC/TC435). This standard was drafted by. China Aviation Comprehensive Technology Research Institute, Harbin Aircraft Industry Group Co., Ltd., Hefei Jianghang Aircraft Equipment Co., Ltd., China Aviation Industry Shenyang Aircraft Design Institute. The main drafters of this standard. Li Xuechang, Liu Zhongchao, Zhang Yongkai, Xia Xiaoli, Xia Bing, Yang Bao, Wu Canhui, Zhang Ming, Liu Chang, Zhao Wentao. Definition of manufacturing data for composite design model of civil aircraft

1 Scope

This standard specifies the basic process and technical requirements (including manufacturing model Manufacturing, manufacturing model analysis and manufacturing data storage). This standard applies to the data preparation work before the manufacture of composite parts for automatic blanking and manual paving of civil aircraft. 2 Terms, definitions and abbreviations 2.1 Terms and definitions The following terms and definitions apply to this document. 2.1.1 Manufacturing data definition manufacturing data definition A data set derived from design data used to simulate and verify manufacturing feasibility. Note. For composite parts, it mainly refers to manufacturing ply data, ply analysis data, ply smoothing data, etc. 2.2 Abbreviations The following abbreviations apply to this document. CATIA. computer-aided tri-dimensional application interface (computeraidedtri-dimensionalapplicationinterface) PDM. product data management (productdatamanagement) EEOP. part engineering boundary, also known as net edge (engineering edge of part) MEOP. part manufacturing boundary, also known as manufacturing edge of part MDM. manufacturing data management (manufacturing data management)

3 Basic process

Based on the composite material design model created by the design department and containing the definition information of the layup, by generating the composite material manufacturing model, it can be The manufacturing process of composite materials is verified and provides guidance for subsequent manufacturing execution. The definition process of manufacturing data for civil aircraft composite materials is shown in Figure 1.The definition of manufacturing data for composite material design model based on CATIAV5 See Appendix A for examples. ......
