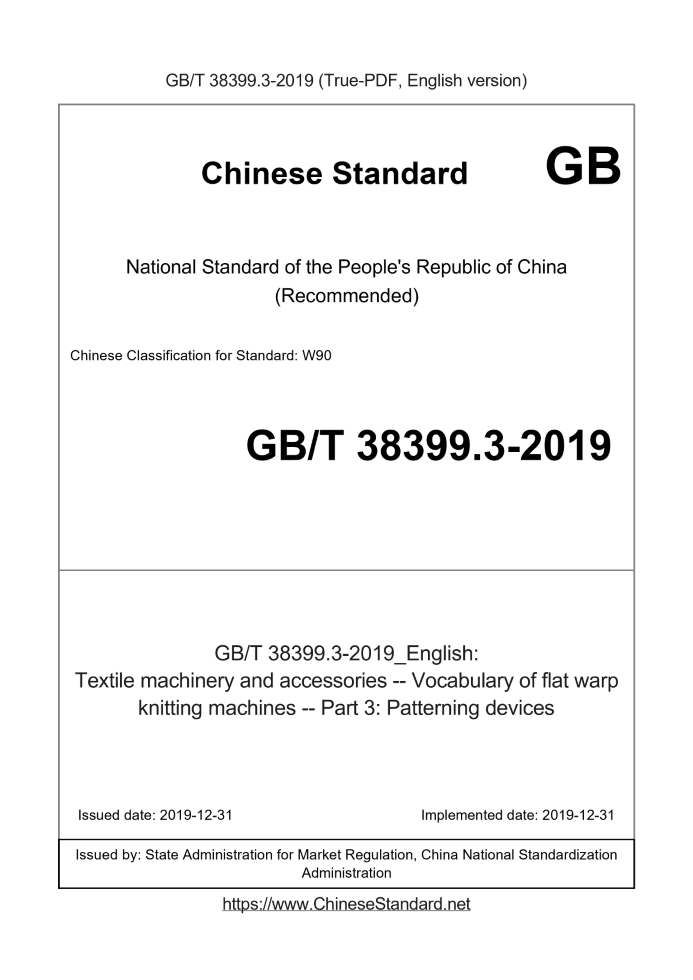

GB/T 38399.3-2019: Textile machinery and accessories -- Vocabulary of flat warp knitting machines -- Part 3: Patterning devices

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Textile machinery and accessories--Vocabulary of flat warp knitting machines--Part 3. Patterning devices ICS 59.120.40; 01.040.59 W90 National Standards of People's Republic of China Vocabulary of flat warp knitting machines for textile machinery and accessories Part 3. Jacquard device Vocabularyofflatwarpknittingmachines-Part 3. Patterningdevices (ISO 8640-3..2002, Textilemachineryandaccessories-Flatwarpknitting machines-Part 3. Vocabularyofpatterningdevices, MOD) 2019-12-31 release 2019-12-31 implementation State Administration of Market Supervision Published by the National Standardization Administration

Contents

Foreword I 1 Scope 1 2 Terms and definitions 1 2.1 Traverse device 1 2.2 Flower platen device 6 2.3 Gauze jacquard device 8 2.4 Warp let-off device and/or warp tension device 9 2.5 Needle bed stop device 12 2.6 Weft insertion device 13 2.7 Pulling jacquard device 15 Index 16

Foreword

GB/T 38399 `` Glossary of Flat Warp Knitting Machines for Textile Machinery and Accessories '' is divided into the following four parts. --- Part 1. Basic structure and loop forming mechanism; --- Part 2. let-off, fabric pulling and winding; --- Part 3. Jacquard device; --- Part 4. sewing machine and sewing device. This part is the third part of GB/T 38399. This section is drafted in accordance with the rules given in GB/T 1.1-2009. This part uses the redrafting method to modify and adopt ISO 8640-3..2002 "Textile Machinery and Accessories Flat Warp Knitting Machines. Part 3. Flower installation vocabulary. The technical differences of this part compared with ISO 8640-3..2002 and their reasons are as follows. --- Added "flat warp knitting machines suitable for the production of warp knitted fabrics in this section", in order to limit the scope of application of this standard (see Chapter 1); --- The original Figure 11 and Figure 12 are merged because Figure 11 and Figure 12 are both ways in which the Jaka device controls the traverse (see Figure 11); --- Added the "piezo Jaka device" legend (see Figure 12), because the piezoelectric Jaka device is currently more popular Jaka device to control the lateral movement the way. The following editorial changes have been made in this section. --- In keeping with the existing series of standards, the standard name was changed to "Textile Machinery and Accessories Flat Warp Knitting Machine Vocabulary Part 3. Jacquard device "; --- Added picture title; --- Added Chinese Pinyin index. This section is proposed by China Textile Industry Federation. This section is under the jurisdiction of the National Technical Committee for Standardization of Textile Machinery and Accessories (SAC/TC215). This section was drafted. Wuyang Textile Machinery Co., Ltd., Guangzhou Yehong Electromechanical Technology Co., Ltd., Fujian Hongyu Electronic Technology Co., Ltd., Changzhou No. 8 Textile Machinery Co., Ltd., Fujian Nine Dragon Machinery Technology Co., Ltd., Zhejiang Yuejian Intelligent Equipment Co., Ltd., Jiangxi University, Changde Textile Machinery Co., Ltd., KARL MAYER (China) Co., Ltd., Fujian Xingang Textile Machinery Co., Ltd., Donghua University, Changzhou Saijia Machinery Co., Ltd., Jiangsu Runyuan Holding Group Co., Ltd., Changzhou Xiangyun Intelligent Control System Co., Ltd., Zhejiang Fangyuan Inspection Group Co., Ltd., China Textile Machinery Association. The main drafters of this section. Wang Minqi, Cong Honglian, Jiang Jinhua, Yan Zhonghua, Li Yijia, Xu Ying, Wang Zhanhong, Yang Xingcai, Lai Qiuyu, Liu Shihai, Song Saisai, Cong Zheng, Shao Hong, Li Bing, Li Mingwen, Jiang Fei, Wu Jianbin, Long Zhengxiang. Vocabulary of flat warp knitting machines for textile machinery and accessories Part 3. Jacquard device

1 Scope

This section of GB/T 38399 defines the following terms related to various types of jacquard devices of flat warp knitting machines. traverse devices, flower press plates Setting, platen jacquard device, warp feeding device and warp tension device, needle bed stop device, weft insertion device, pull jacquard device. This section applies to flat warp knitting machines for the production of warp knitted fabrics. Note. The illustrations in this section only show the working principles of various types of mechanisms, and do not indicate that this is the only or most common type of structure. Fans allowed in technology Within the fence, the combination mechanism can also be applied.

2 terms and definitions

2.1 Traversing device lappingdeviceforwarpends Pattern device for laterally moving the yarn guide needle. 2.1.1 Pattern drive (for control bar) Control the traverse of the comb in front of and behind the needle. 2.1.1.1 One-shaft flower drive one-shaftpatterndrive The swaying device of the comb is controlled by a single shaft through a pattern cam or a knitting roller and a chain block. 2.1.1.1.1 Direct controlled single-shaft flower cam drive directcontroledone-shaftpatterndrive The uniaxial flower cam drive directly controls the traverse device of the comb (see Figure 1). Figure 1 Directly controlled single-shaft flower cam drive 2.1.1.1.2 Indirect controled one-shaft pattern drive The uniaxial pattern drive indirectly controls the traverse device of the comb (see Figure 2). ......
