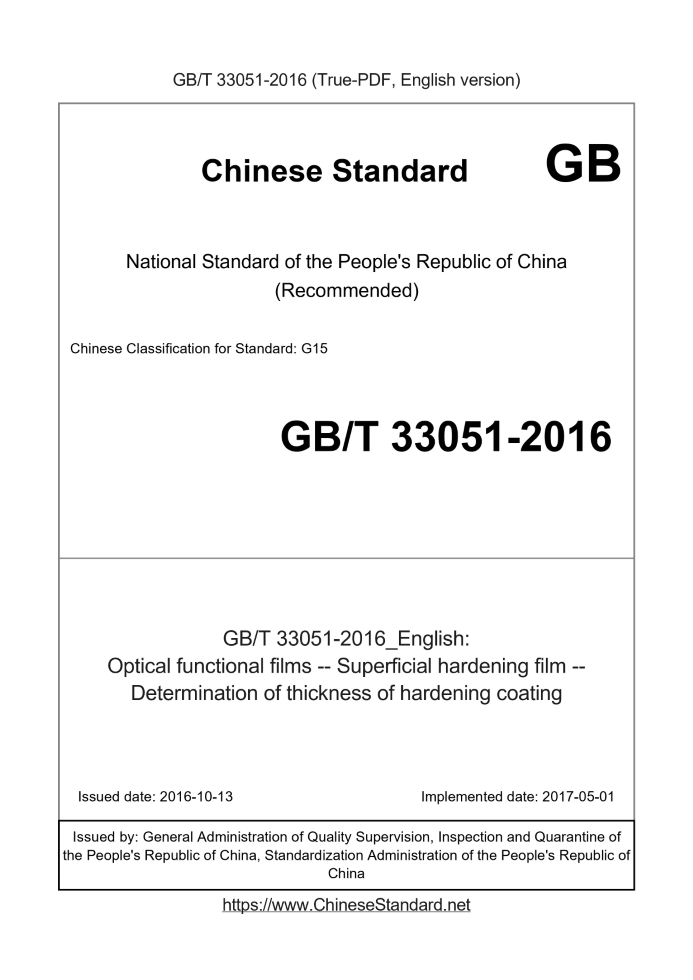

GB/T 33051-2016 English PDF

US$199.00 · In stock
Delivery: <= 3 days. True-PDF full-copy in English will be manually translated and delivered via email.
GB/T 33051-2016: Optical functional films -- Superficial hardening film -- Determination of thickness of hardening coating
Status: Valid

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 33051-2016	199	Add to Cart	3 days	Optical functional films -- Superficial hardening film -- Determination of thickness of hardening coating	Valid

Similar standards

GB/T 37382   GB/T 6324.6   GB/T 7531   GB/T 33049   GB/T 33048

Basic data

Standard ID: GB/T 33051-2016 (GB/T33051-2016)
Description (Translated English): Optical functional films -- Superficial hardening film -- Determination of thickness of hardening coating
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: G15
Classification of International Standard: 71.080.99
Word Count Estimation: 10,189
Date of Issue: 2016-10-13
Date of Implementation: 2017-05-01
Regulation (derived from): National Standard Notice No.1716 of 2016
Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China

GB/T 33051-2016: Optical functional films -- Superficial hardening film -- Determination of thickness of hardening coating

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Optical functional films - Superficial hardening film - Determination of thickness of hardening coating ICS 71.080.99 G15 National Standards of People's Republic of China Optical function film surface hardening film Hardness layer thickness determination method 2016-10-13 released 2017-05-01 implementation General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China China National Standardization Management Committee released

Foreword

This standard is drafted in accordance with the rules given in GB/T 1.1-2009. This standard is proposed by the China Petroleum and Chemical Industry Association. This standard by the National Optical Functional Film Materials Standardization Technical Committee (SAC/TC431) centralized. The drafting of this standard. China Le Kai Group Co., Ltd., Hefei Le Kai Technology Industry Co., Ltd. The main drafters of this standard. Jiao Congxuan, Li Xiuzhen, Jiang Ning, Xu Lili. Optical function film surface hardening film Hardness layer thickness determination method

1 Scope

This standard specifies a method for the determination of the thickness of a hardened film coating using a reflection interference spectroscopy. This standard applies to polyethylene terephthalate (PET) as the substrate of the polyester film, in its surface coated with a single layer of transparent hardening layer The thickness of the measurement. The measurement of the thickness of the transparent coating on the surface of the film with other materials is also referred to.

2 terms and definitions

The following terms and definitions apply to this document. 2.1 Coherent light coherentlight The light that satisfies the coherent condition. The coherent conditions include. (1) the same frequency of the two beams; (2) the vibration direction of the two beams is the same; (3) The vibration of the two beams has a constant phase difference. 2.2 Optical path difference opticalpathdifference The two coherent lights from the same point of light are subjected to different optical path distances encountered at a certain point of encounter. Indicated by Δ. 2.3 Phase difference phasedifference The two coherent lights from the same point of light are subjected to different optical paths at a certain point where the two beams of coherent light vibrate at the phase Poor, indicated by δ.

3 principle

As shown in Fig. 1, by using the principle of light interference, by analyzing the reflected coherent light generated by the vertical incident light at the upper and lower interfaces of the coating, The thickness of the hardened layer is measured by calculating the optical path difference between the two beams of light passing through the upper and lower interfaces of the coating. Description. 1 - incident light; 3 --- transmitted light; 2 --- Reflected light; 4 --- hardened layer. Fig.1 Schematic diagram of reflection spectrum ......
