GB/T 32998-2016 English PDF

US$514.00 · In stock
Delivery: <= 3 days. True-PDF full-copy in English will be manually translated and delivered via email.

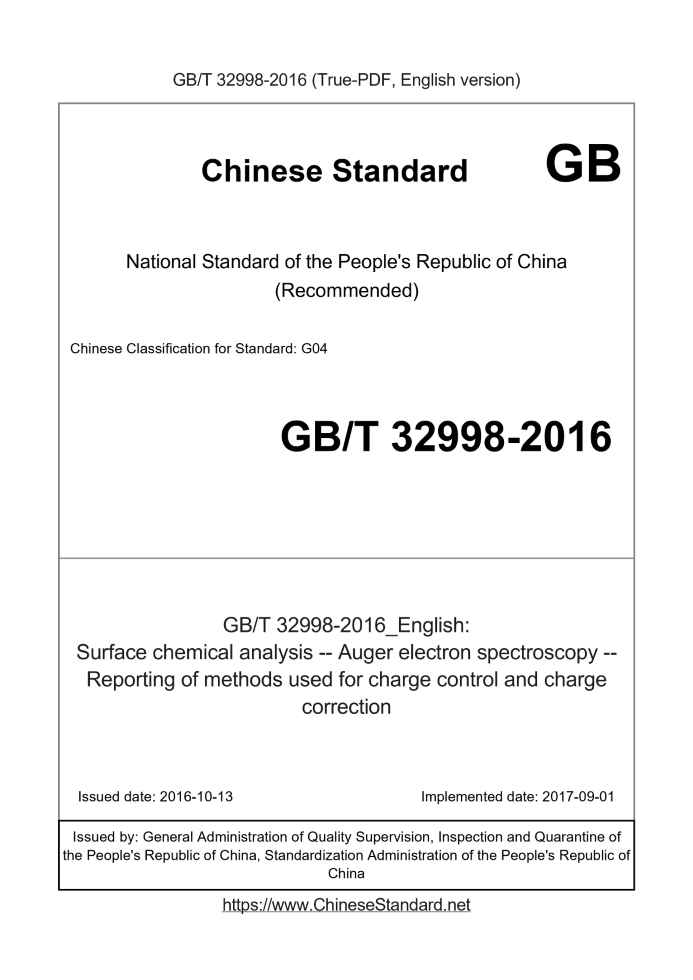

GB/T 32998-2016: Surface chemical analysis -- Auger electron spectroscopy -- Reporting of methods used for charge control and charge correction
Status: Valid

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 32998-2016	514	Add to Cart	3 days	Surface chemical analysis -- Auger electron spectroscopy -- Reporting of methods used for charge control and charge correction	Valid

Similar standards

GB/T 40244   GB/T 35930   GB/T 35924   GB/T 32996   GB/T 32996

Basic data

Standard ID: GB/T 32998-2016 (GB/T32998-2016)
Description (Translated English): Surface chemical analysis -- Auger electron spectroscopy -- Reporting of methods used for charge control and charge correction
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: G04
Classification of International Standard: 71.040.40
Word Count Estimation: 26,274
Date of Issue: 2016-10-13
Date of Implementation: 2017-09-01
Regulation (derived from): National Standard Notice No.1716 of 2016
Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China

GB/T 32998-2016: Surface chemical analysis -- Auger electron spectroscopy -- Reporting of methods used for charge control and charge correction

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Surface chemical analysis - Auger electron spectroscopy - Reporting of methods used for charge control and charge correction ICS 71.040.40 G04 National Standards of People's Republic of China Surface chemistry analysis Auger electron spectroscopy Specification of charge control and calibration method reporting (ISO 29081..2010, IDT) 2016-10-13 released 2017-09-01 implementation General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China China National Standardization Management Committee released Directory Preface III Introduction IV 1 Scope 1 2 normative reference document 1 3 Terms and definitions 1 4 symbols and abbreviations 1 5 equipment 2 5.1 Charge control technology 2 5.2 special equipment 2 5.3 Sample installation and preparation 2 5.4 Instrument calibration 2 6 charge control information report 2 6.1 Charge control method 2 Reason for charge control and its method selection 6.3 Sample information 3 6.4 the value of the experimental parameters 3 6.5 charge control method efficiency information 4 7 Report the method used for charge correction and the correction value 4 7.1 Charge correction method 4 7.2 Method 4 7.3 Energy correction value 4 Appendix A (informative) Description of the method of charge control for Auger electron spectroscopy 5 Reference 18

Foreword

This standard is drafted in accordance with the rules given in GB/T 1.1-2009. This standard uses the translation method equivalent to ISO 29081..2010 "Surface Chemistry Analysis Auger Electron Spectroscopy Charge Control and Correction Legal reporting requirements ". And the normative reference in this standard international documents are consistent with the relationship between China's documents are as follows. Surface chemistry analysis vocabulary (ISO 18115..2001, IDT); GB/T 29731-2013 Surface Chemistry Analysis High Resolution Auger Electron Spectrometer Element and Chemical State Analysis Energy Metals Calibration (ISO 17974..2002, MOD); GB/T 29732-2013 Surface Chemistry Analysis Medium Resolution Auger Electron Spectrometer Elemental Analysis Energy Standard Calibration (ISO 17973..2002, MOD). This standard is proposed by the National Microparraph Analysis Standardization Technical Committee (SAC/TC38). The drafting of this standard. School of Physics, University of Science and Technology of China. The main drafters of this standard. Zhang Zengming, Ding Zejun, Mao Shifeng, Zeng Rongguang, Dabo, Zhang Peng, Ruan Yan, Tang Tao.

Introduction

Auger electron spectroscopy (AES) is widely used in the surface characterization of materials. The measured Auger electron peak energy is compared with the manual value Other samples contain different elements other than hydrogen and helium. Although X-ray irradiated samples (X-ray photoelectron spectroscopy) will also be observed in Russia The electrons of the Auger electrons mentioned in this paper are measured under electron irradiation. Since the electron beam can be focused to nearly 10 nm The Auger electron spectroscopy is an important research tool for characterizing nanostructures and microscopic surface features. The energy of the peak, linear analysis, often available The information contained in the sample is even the chemical state of the element being detected [43]. Therefore, the reliable judgment of the elements contained in the sample is required (See ISO 17973 and ISO 17974 for details). During the Auger spectrum measurement, the surface potential of the insulating sample is changed due to the accumulation of charge in the sample surface and the near surface region The These accumulated charges can alter the energy of the Auger electrons, especially when the negative surface potential enables the movement of the Auger spectrum beyond the electronic analyzer When the energy interval is selected, the characterization of the element (chemical state) is complicated. The accumulation of surface potential can also change the area of action of the electron beam The beamlets move significantly on the sample surface, even deviating from the selected analysis area. If the metal sample is not grounded, a similar charge will also appear. example Such as small metal particles into the insulating substrate may lead to charge accumulation. The secondary electron yield determines the positive and negative surface potential. In some cases, changes in energy and location of these two factors may cause no change Stable feedback system, resulting in the collection of Auger electron spectroscopy is almost impossible. In addition to the Auger peak intensity, the energy changes, the incident electron beam or Diffusion due to the presence of an electric field in the surface area of the sample may also directly alter the sample surface component (sample damage). A number of methods have been developed to control and minimize the charge effect in the Auger electron spectroscopy. The application of a particular method depends on the use The details of the equipment, the shape and size of the sample to be measured, the sample morphology and composition, and the information to be collected. Although the accumulation of surface charge makes the analysis complex Hybrid, but in some cases, the use of appropriate samples can also provide some information. The amount of induced charge in the near surface region and its distribution on the surface of the sample, depending on the experimental conditions can be determined by many factors, these factors And the nature of the sample, spectrometer. Charge accumulation has a three-dimensional feature [1]. along the sample surface and then extended to the material inside. Charge accumulation will also be Appear in the electrons can reach the depth of the sample within the two-phase boundary or interface area. Due to incident electrons, secondary electrons, heating and other factors Induced charge trapping, chemical changes, component diffusion or volatilization, and the charge accumulation of some samples will change over time. These samples may be from Will not reach steady potential. In the case of the Auger electron spectrum, there is currently no pervasive method to control or correct the charge [2,3]. This standard specifies the number According to the collection must be recorded when the method of charge control, and/or in the insulation sample data analysis records the charge calibration method and other information. In the attached The general method of charging control described in A is very useful in practical applications. In the actual operation of the selected charge to control the specific party The method depends on the type of sample (powder, film or thick sample), the nature of the instrument, the size of the sample, and the surface of the sample subject to specific treatment influence level. In order to facilitate the use of analysts, according to the simplicity of the application of the general charge control method for a summary list. There are two main areas of application for this standard. First, in order to assess the reproduction of insulating material measurement data to ensure that the measurement of similar materials The method of comparability, charge control and/or charge calibration should be included in the measurement report of the AES spectrum; second, compliance with this standard will The published AES spectrum enables other analysts to use it with confidence. Surface chemistry analysis Auger electron spectroscopy Specification of charge control and calibration method reporting

1 Scope

This standard specifies the minimum information required to describe the charge control method in the Auger electron spectroscopy of electronically energized insulating samples, which The information is also reported in the analysis results. Refer to Appendix A for available AES analysis before or during analysis of charge control law. Table A.1 summarizes the various approaches and approaches and arranges them according to the simplicity of the method. Some of the methods in Table A.1 are for most instruments Devices are available, some require special hardware, and some may involve reloading or variations of the sample.

2 normative reference documents

The following documents are indispensable for the application of this document. For dated references, only the dated edition applies to this article Pieces. For undated references, the latest edition (including all modifications) applies to this document. ISO 17973 Surface chemistry analysis Medium resolution Auger electron spectrometer Elemental analysis Energy standard calibration (Surface chemicalanalysis-Medium-resolutionAugerelectronspectrometers-Calibration ofenergyscalesfor elementalanalysis ISO 17974 Surface Chemistry Analysis High Resolution Auger Electron Spectrometer Element and Chemical State Analysis Energy Standard Calibration (Surface chemicalanalysis-High-resolutionAugerelectronspectrometers-Calibration of energyscalesforel- ementalandchemical-stateanalysis ISO 18115 Surface chemistry analysis Vocabulary (Surfacechemicalanalysis-Vocabulary)

3 terms and definitions

The terms and definitions defined in ISO 18115 apply to this document. The

4 symbols and abbreviations

The following symbols and abbreviations apply to this document. AES Auger Electron Spectroscopy (Augerelectronspectroscopy) Ep electron energy, in units of electrons (keV) Ep (max) The energy at the maximum secondary electron output E0p1 secondary electrons output to rise to more than 1 when the energy E0p2 secondary electrons output fell to less than 1 when the energy Ecp2 The incident electron range is approximately equal to the energy at the maximum depth of escape of the secondary electrons FIB focused ion beam (focusedionbeam) FWHM half-value full width (fulwidthathalfmaximum), the unit is the electronic volt (eV) Ip incident electron current Is the secondary electron current jp The current density of the incident electron beam on the surface of the sample ......
