GB/T 32584-2016: Evaluation of mechanical vibration for machine sets in hydraulic power plants and pump-storage plants
Status: Valid

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 32584-2016	759	Add to Cart	6 days	Evaluation of mechanical vibration for machine sets in hydraulic power plants and pump-storage plants	Valid

Similar standards

GB/T 14478 GB/T 15468 GB/T 14478 GB/Z 32585 GB/Z 32583

Basic data

Standard ID: GB/T 32584-2016 (GB/T32584-2016)
Description (Translated English): Evaluation of mechanical vibration for machine sets in hydraulic power plants and pump-storage plants
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: K55
Classification of International Standard: 27.140
Word Count Estimation: 38,387
Date of Issue: 2016-04-25
Date of Implementation: 2016-11-01
Quoted Standard: GB/T 2900.45; GB/T 6075.1; GB/T 11348.1; GB/T 11348.3; GB/T 13866; GB/T 14412; GB/T 17189; GB/T 21487.1
Regulation (derived from): National Standard Announcement No
Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary: This standard specifies the measurement methods and evaluation criteria for mechanical vibration of hydraulic power plant and storage pump station, and is applicable to the evaluation of mechanical vibration within the normal operation range of hydraulic power plant and storage pump station. This standard specifies two criteria for evaluating the mechanical vibration: - the use of the measured vibration amplitude for evaluation; and (2) the evaluation of the measured vibration amplitude versus the vibration reference value. This standard applies to hydropower plants and storage pump station unit, the rated speed of 50r/min ~ 1800r/min, generator/motor power greater than or equal to 1MW. This standard applies to the following units: a) turbines and hydro-generators (hydro-generators); b) pump and turbine generators (reversible pumped storage units); c) independent water pumps, turbines and

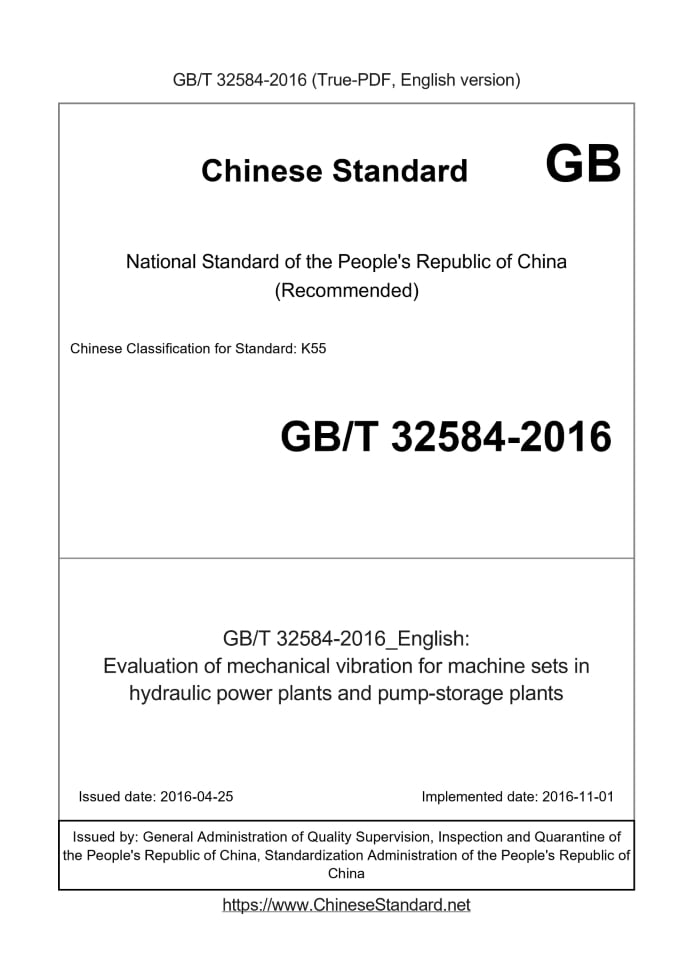

GB/T 32584-2016: Evaluation of mechanical vibration for machine sets in hydraulic power plants and pump-storage plants

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Evaluation of mechanical vibration for machine sets in hydraulic power plants and pump-storage plants ICS 27.140 K55 National Standards of People's Republic of China Hydropower plants and energy storage pumping station units Evaluation of mechanical vibration Evaluation of mechanicalvibrationformachinesetsinhydraulicpower 2016-04-25 released 2016-11-01 implementation General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China China National Standardization Management Committee released Directory Preface I 1 Scope 1 2 normative reference document 1 3 Terms and definitions 2 Classification of unit structure type 2 5 measurement methods and conditions 7 5.1 Overview 7 5.2 Measurement Type 8 5.3 Measuring position and orientation 8 5.4 Measuring equipment 10 5.5 Test conditions 11 Evaluation Criteria for Vibration Measurements 6.1 Overview 11 6.2 Criterion I. Evaluation using vibration amplitude 11 6.3 Criterion II. Evaluation using changes in vibration amplitude values 14 6.4 Operating limits 14 Comparison of vibration results of spindle vibration (swing) and bearing (bracket) 6.6 Assessment based on vibration vector information 15 Appendix A (Normative Appendix) Sensor Selection 16 Appendix B (Normative Appendix) Evaluation Area Boundary Value 17 Appendix C (Informative Annex) Database, Analytical Procedures and Statistical Assessment 22 Appendix D (informative) Vibration characteristics of bearing housings (supports) and spindles of hydraulic units 25 Appendix E (Informative Annex) Prerequisites for Vibration Monitoring - Trend Analysis 27 Appendix F (informative) Calculate bearing load based on shaft displacement Appendix G (informative) Recommended method for vibration data processing

Foreword

This standard is drafted in accordance with the rules given in GB/T 1.1-2009. This standard is proposed by China Electrical Equipment Industry Association. This standard is under the jurisdiction of the National Commission for Standardization of Hydraulic Turbines (SAC/TC175). The main drafting unit of this standard. China Water Resources and Hydropower Research Institute, Harbin Electric Factory Co., Ltd., Dongfang Electric Group East Electric Co., Ltd., Harbin Institute of large motor, China Yangtze Power Co., Ltd., Ministry of Water Resources and Hydropower Planning and Design Institute, the Yangtze River Survey and Planning Design and Research Co., Ltd., China Power Construction Group East China Investigation and Design Institute Co., Ltd., Ministry of Water Resources Rural electrification research , Huazhong University of Science and Technology, Yalong River Basin Hydropower Development Co., Ltd., North Water Survey and Design Research Co., Ltd., China Power Investment Group Electricity Science Institute, State Grid, Liaoning Electric Power Research Institute, State Grid, Hunan Electric Power Company Electric Power Research Institute, State Gansu Electric Power Company Electric Power Research Institute, Harbin Institute of Technology, Sichuan Zhongding Technology Co., Ltd., State Power Science and Technology Research Institute, the country Electric Dadu River overhaul Installation Co., Ltd., Guangxi Electric Power Research Institute, West China University, Guizhou Electric Power Test and Research Institute. The main drafters of this standard. Pan Luo Ping, Tang Shu, Zhong Su, Chen Changlin, Gong Rongqin, Fu Jianping, You Chao, Tan Daqing, Tian Ziqin, Chen Shunyi, XU Wei, SUN Jian-ping, SHANG Chang-song, LI You-ping, HE Cheng-lian, WANG Qing-hua, ZHANG Enbo, TIAN Hai-ping, WU Chang-li, MA Yue, LI Xiang-dong, ZHANG Hai-ku, Wang Hongjie, Dong Kai-song, Yang Qizhong, Lei Ting, Liu Xiaobing, Mao Cheng, Liu Shiqi. Hydropower plants and energy storage pumping station units Evaluation of mechanical vibration

1 Scope

This standard specifies the measurement methods and evaluation criteria for mechanical vibration of hydroelectric power plants and energy storage pumping stations. It is suitable for hydroelectric power plants and Evaluation of mechanical vibration in normal operation range of energy storage pumping station. This standard specifies two kinds of mechanical vibration evaluation criteria, one is to use the measured vibration amplitude to evaluate; the second is the use of measured vibration The amplitude is evaluated relative to the amount of change in the vibration reference value. This standard applies to hydroelectric power plants and energy storage pumping station units, the rated speed of 50r/min ~ 1800r/min, generator/motor Power greater than or equal to 1MW. This standard applies to the following units. a) Turbine and hydroelectric generators (hydroelectric generating units); b) Pump turbine and generator motor (reversible pump storage unit); c) independent of the pump, turbine and generator motor (three-type pumped storage unit). This standard does not apply to the following units. a) pumps on thermal power plants or industrial equipment (see GB/T 11348.3); b) hydraulic machinery or units with rolling bearings; c) hydraulic machinery or units lubricated with water; d) in addition to the motor for driving the accumulator; e) A hydro-generator used as a synchronous condenser (using compressed air to relieve water in the turbine). The purpose of measuring the bearing (bracket) and spindle vibration (swing) of the hydroelectric power plant and the accumulator pumping station unit is as follows. a) prevent the vibration caused by excessive damage to the unit; b) Monitor changes in vibration characteristics.
