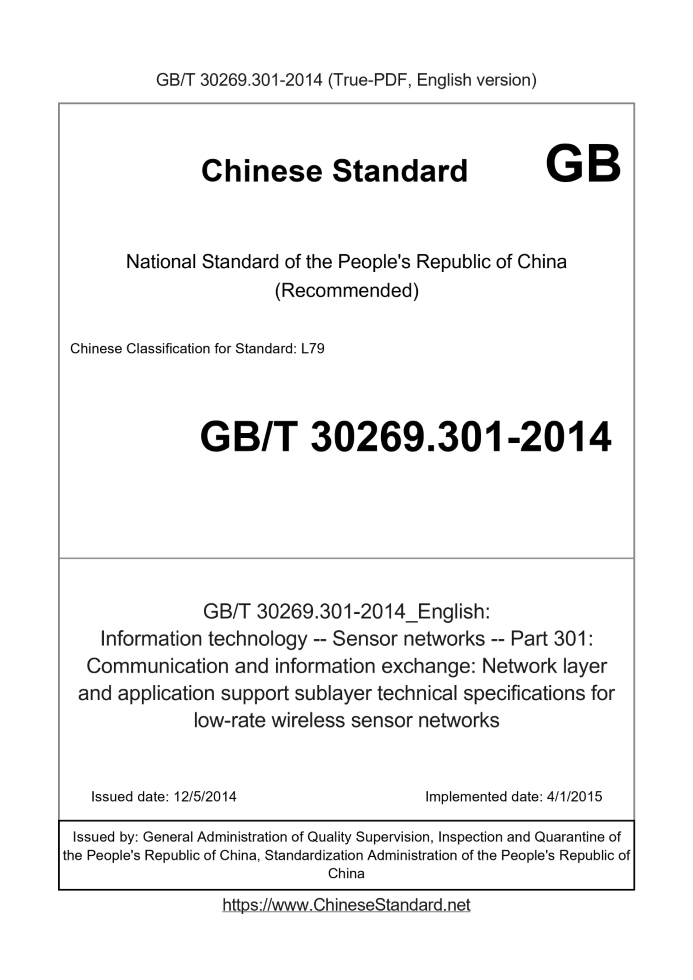

GB/T 30269.301-2014 English PDF

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 30269.301-2014	RFQ	ASK	3 days	Information technology -- Sensor networks -- Part 301: Communication and information exchange: Network layer and application support sublayer technical specifications for low-rate wireless sensor networks	Valid

Similar standards

GB/T 31024.3   GB/T 31024.4   GB/T 31024.1   GB/T 30269.809   GB/T 30269.304   GB/T 30269.303

Basic data

Standard ID: GB/T 30269.301-2014 (GB/T30269.301-2014)
Description (Translated English): Information technology -- Sensor networks -- Part 301: Communication and information exchange: Network layer and application support sublayer technical specifications for low-rate wireless sensor networks
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: L79
Classification of International Standard: 35.110
Word Count Estimation: 178,157
Date of Issue: 12/5/2014
Date of Implementation: 4/1/2015
Quoted Standard: GB/T 15629.15-2010; GB/T 30269.2-2013
Regulation (derived from): Announcement of Newly Approved National Standards 2014 No. 27
Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary: This standard specifies low-rate wireless sensor networks at the network layer and application support sub-layer protocols and services. This standard applies to no or only very limited battery power of the battery fixed, portable and mobile devices, and

GB/T 30269.301-2014: Information technology -- Sensor networks -- Part 301: Communication and information exchange: Network layer and application support sublayer technical specifications for low-rate wireless sensor networks

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Information technology - Sensor networks - Part 301. Communication and information exchange. Network layer and application support sublayer technical specifications for low-rate wireless sensor networks ICS 35.110 L79 National Standards of People's Republic of China IT Sensor Networks Part 301. Communication and information exchange. low speed wireless sensors Network network layer and application support sub-layer specification Informationtechnology-Sensornetworks-Part 301. Communicationand informationexchange. Networklayerandapplicationsupportsublayertechnical Issued on. 2014-12-05 2015-04-01 implementation Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China Standardization Administration of China released

Table of Contents

Introduction Ⅲ Introduction Ⅳ 1 Scope 1 2 Normative references 1 3 Terms and definitions 4 Abbreviations 4 5 general description 6 5.1 Summary 6 5.2 Network Topology 6 5.3 Stack Structure 9 6 network layer 10 6.1 Overview 10 6.2 Service Specification 11 6.3 47 format 53 6.4 Command Frame 6.5 constants and properties NIB 81 6.6 Functional Description 86 6.7 Network Layer state value 137 7 APS 138 7.1 Overview 138 7.2 139 service specification 7.3 158 format 164 7.4 Command Frame 7.5 constants and PIB attributes 164 7.6 Functional Description 165 7.7 APS status value 173

Foreword

GB/T 30269 "Information technology Sensor Networks" is divided into the following sections. --- Part 1. Reference architecture and general technical requirements; --- Part 2. Terminology; --- Part 301. Communication and information exchange. Low-speed wireless sensor networks at the network layer and application support sub-layer specification; --- Part 302. Communication and information exchange. the high reliability of the sensor network MAC and physical layer specifications; --- Part 303. Communication and information exchange. IP-based network layer specification; --- Part 304. Communication and information exchange. MAC layer and physical layer specifications for video; --- Part 401. Collaborative Information Processing. Support services and interfaces; --- Part 501. Identification. The rule for sensing node identifier; --- Part 502. ID. sensing node identifier resolution and management practices; --- Part 503. ID. sensing node identifier registration procedure; --- Part 601. Information Security. General technical specifications; --- Part 602. Information Security. Network transmission security specifications; --- Part 701. Sensor Interface. signal interface; --- Part 702. Sensor Interface. data interface; --- Part 801. Test. General requirements; --- Section 802. Test. Low-speed wireless sensor networks MAC and physical layer; --- Part 803. Test. Low-speed wireless sensor networks at the network layer and application support sub-layer; --- Part 901. Gateway. General Requirements; Part --- 1001. Middleware. sensor network node data exchange specification. This section is GB/T Part of 30,130,269. This part of the National Information Technology Standardization Technical Committee (SACTC28) and focal points. This section drafted by. China Electronics Standardization Institute, HiSilicon Technologies Co., Ltd., Datang Mobile Communications Limited Division, Huawei Technologies Co., Ltd., Wuxi Things Industry Research Institute was, the CAS Shanghai Institute of Micro-system and Information Technology, Beijing University of Posts and Telecommunications, Chongqing University of Posts and Telecommunications, Southeast University, Beijing Jiaotong University, Chinese Academy of Sciences Jiaxing wireless sensor network engineering center. The main drafters of this section. Pei, Zhuolan, Xu Yong, Qing Huang, Wang Hao, Zouwei Xia, Xu Pingping, Li Feng, Li Xu.

Introduction

The issuing authority of this document draws attention, in line with the statement when files may involve 5.1 "based on a combination of clustering and Mesh wireless transmission Sensor network networking method ", 6.4" coordinator Transform "" Alarm Routing Information "and" Route negative feedback ", and 7.6" segment retransmission "and other relevant award And pending patent right of use. The issuing authority for the patent document authenticity, validity and scope without any position. The patent holder has to ensure that the issuing authority of this document, they are willing to work with any applicant reasonable and non-discriminatory terms and conditions Under patent license negotiations. The patent holder's statement has been filed in the release mechanism of the present document. Related information can be Contact the following ways. Patent holders Contact Address Contact Jiaxing wireless sensor networks, Chinese Academy of Engineering Cheng Center Building No. 7782 (200335) Asia-Pacific Road, Jiaxing, Zhejiang Gao Huawei Technologies Co., Ltd Haidian District, Beijing Information Industry Base information Road A five streets Nine Kuike Building (100 085) Pei Southeast University Nanjing Sipailou No. 2 National Mobile Communications Research Laboratory, Southeast University Li Wen floor is five (210096) Xu Pingping Please note that in addition to the above patents, some of the contents of this document may still involve patents. The issuing authority of this document does not undertake to recognize these special Lee responsibility. IT Sensor Networks Part 301. Communication and information exchange. low speed wireless sensors Network network layer and application support sub-layer specification

1 Scope

GB/T 30269 provisions of this part of the low-rate wireless sensor networks at the network layer and application support sub-layer protocols and services. This section applies without batteries or only a very limited battery power of fixed, portable and mobile devices, and the main work in Limited personal space (0 ~ 10m).

2 Normative references

The following documents for the application of this document is essential. For dated references, only the dated version suitable for use herein Member. For undated references, the latest edition (including any amendments) applies to this document. Between GB/T 15629.15-2010 Information technology - Telecommunications and information exchange between local area networks and metropolitan area networks-specific requirements - Part 15. Low-speed wireless personal area network (WPAN) MAC and physical layer specifications GB/T 30269.2-2013 Information technology - Sensor networks - Part 2. Terminology

3 Terms and Definitions

GB/T 30269.2-2013 and as defined in the following terms and definitions apply to this document. 3.1 Access control lists accesscontrollist For a device used to determine which devices can be authorized to perform specific operations form. Note. This form can also be used to store data from other security devices to communicate with the security needed (such as a security key, frame count, the count and the security level of the letter keys interest). 3.2 Application support sub-layer protocol data unit applicationsupportsublayerprotocoldataunit According to a certain protocol that supports data unit exchanged between the sub-layer in the application of the peer entity. 3.3 Application support sub-layer command frame applicationsupportsublayercommandframe Instructions for the sending application support sub-layer management entity in the frame of a device to another device like entity. 3.4 Property attribute Representing a physical quantity or state of the data entities. Property using the command interacts with other devices. 3.5 Binding binding Created by the source endpoint or cluster pairs to identify the operating target endpoint unidirectional logical link. Note. The binding may be present in one or more than one device. ......
