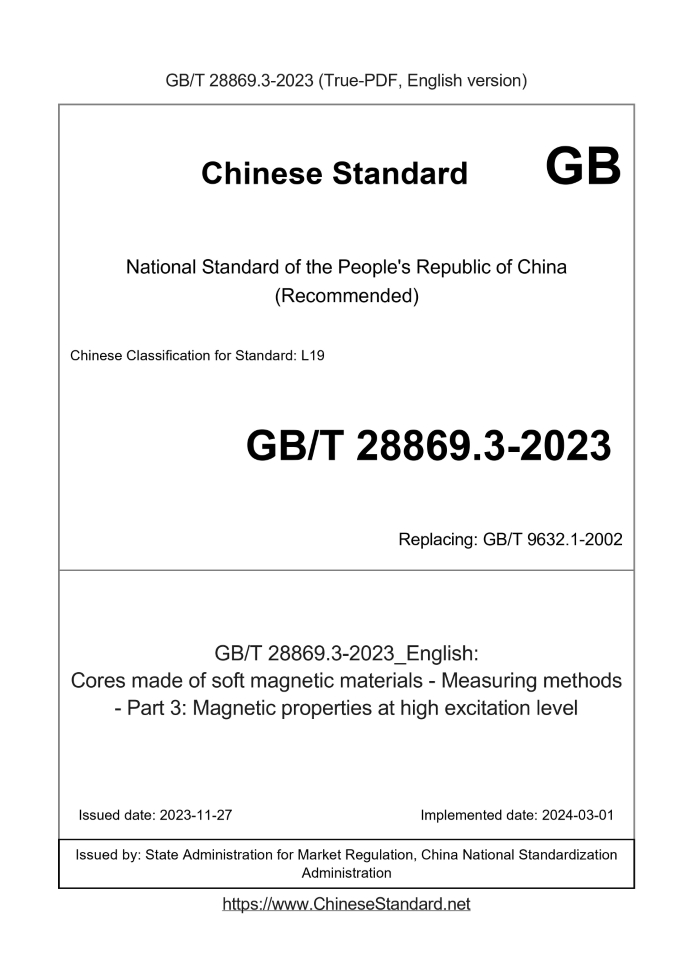

GB/T 28869.3-2023 English PDF

US$769.00 · In stock
Delivery: <= 6 days. True-PDF full-copy in English will be manually translated and delivered via email.
GB/T 28869.3-2023: Cores made of soft magnetic materials - Measuring methods - Part 3: Magnetic properties at high excitation level
Status: Valid

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 28869.3-2023	769	Add to Cart	6 days	Cores made of soft magnetic materials - Measuring methods - Part 3: Magnetic properties at high excitation level	Valid

Similar standards

GB/Z 40842   GB/T 36103.1   SJ/T 10410   GB/T 28869.2   GB/T 28864.2   GB/T 28868

Basic data

Standard ID: GB/T 28869.3-2023 (GB/T28869.3-2023)
Description (Translated English): Cores made of soft magnetic materials - Measuring methods - Part 3: Magnetic properties at high excitation level
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: L19
Classification of International Standard: 29.100.10
Word Count Estimation: 38,342
Date of Issue: 2023-11-27
Date of Implementation: 2024-03-01
Older Standard (superseded by this standard): GB/T 9632.1-2002
Issuing agency(ies): State Administration for Market Regulation, China National Standardization Administration

GB/T 28869.3-2023: Cores made of soft magnetic materials - Measuring methods - Part 3: Magnetic properties at high excitation level

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
ICS 29:100:10 CCSL19 National Standards of People's Republic of China Partially replaces GB/T 9632:1-2002 Measurement method for magnetic cores made of soft magnetic materials Part 3: Magnetic properties at high excitation levels (IEC 62044-3:2000, MOD) Published on 2023-11-27 2024-03-01 Implementation State Administration for Market Regulation Released by the National Standardization Administration Committee

Table of contents

Preface III Introduction V 1 Scope 1 2 Normative references 1 3 Terms, definitions and symbols 1 3:1 Terms and definitions 1 3:2 Symbol 4 4 General considerations for measurements at high excitation levels 5 4:1 General 5 4:2 Measuring coil 6 4:3 Fixing of multi-part composite core 6 4:4 Measuring equipment 7 5 samples 8 6 Measurement procedures 8 6:1 General procedures 8 6:2 Measurement method of (effective) amplitude permeability 9 6:3 Measurement method of power consumption 10 7 Information Statement12 8 Test Report 12 Appendix A (informative) Basic circuit and related equipment for measuring amplitude permeability 13 Appendix B (informative) Measurement of power consumption by effective value method---Circuit examples and corresponding measurement procedures 14 B:1 Measurement method 14 B:2 Measuring coil 14 B:3 Measuring equipment14 B:4 Measurement procedures15 B:5 Pulse measurement and accuracy15 Appendix C (informative) Product method to measure power consumption---Basic circuit and related measurement procedures 16 C:1 Requirement 16 C:2 Measuring coil 17 C:3 Accuracy17 C:4 VAW (volt-ampere-watt) table method 17 C:5 Impedance analyzer method 17 C:6 Digitization method17 C:7 Vector Spectrum Method 18 C:8 Mutual power method18 Appendix D (informative) Measurement of power consumption by reflection method---Basic circuit and related measurement procedures 19 D:1 Requirement 19 D:2 Measuring coil 19 D:3 Measurement procedures and accuracy19 Appendix E (informative) Calorimetry measurement of power consumption 20 E:1 Requirement 20 E:2 Measuring coil 20 E:3 Accuracy 20 E:4 Measurement in thermal equilibrium 21 E:5 Measurement in non-thermal equilibrium state 21 Appendix F (normative) Magnetic properties under pulsed state 22 F:1 Overview 22 F:2 Method Principle 22 F:3 Sample 22 F:4 Measuring coil 22 F:5 Measuring instruments 22 F:6 Measurement procedure 23 F:7 Calculation 25 Appendix G (informative) Circuit example for pulse measurement 27 Reference 28 Figure 1 Pulse excitation without bias field 3 Figure 2 Pulse excitation with bias field 3 Figure A:1 Basic circuit for measuring amplitude permeability13 Figure B:1 Effective value method measurement circuit example 14 Figure C:1 Basic circuit of product method 16 Figure D:1 Basic circuit 19 Figure E:1 Basic circuit and related measurement procedures---Measurement scheme 20 Figure F:1 Voltage pulse parameters 23 Figure F:2 Typical measurement waveform 24 Figure F:3 Nonlinearity of magnetizing current25 Figure G:1 Circuit measured without bias field and isolated pulse excitation 27 Figure G:2 Circuit measured with bias field and repetitive pulse excitation 27 Table 1 Partial product method and its related excitation waveform detection and data processing projects 10

Foreword

This document complies with the provisions of GB/T 1:1-2020 "Standardization Work Guidelines Part 1: Structure and Drafting Rules of Standardization Documents" Drafting: This document is Part 3 of GB/T 28869 "Measurement Methods for Magnetic Cores Made of Soft Magnetic Materials": GB/T 28869 has been released The following parts: ---Part 1: General specifications; ---Part 2: Magnetic properties at low excitation levels; ---Part 3: Magnetic properties at high excitation levels: This document partially replaces GB/T 9632:1-2002 "Measurement Method for Magnetic Cores of Inductors and Transformers for Communications": With GB/T 9632:1- Compared with:2002, in addition to structural adjustments and editorial changes, the main technical changes are as follows: ---Changed the scope of the file (see Chapter 1, Chapter 1 of the:2002 edition); ---Added terms, definitions and symbols (see Chapter 3); ---Added information statement (see Chapter 7); ---Added test report (see Chapter 8): This document is modified to adopt IEC 62044-3:2000 "Measurement methods for magnetic cores made of soft magnetic materials - Part 3: High excitation levels" Magnetic Properties": Compared with IEC 62044-3:2000, this document has made the following structural adjustments: ---4:4:1 corresponds to the suspended section in 4:4 of IEC 62044-3:2000, 6:3:2:1 corresponds to 6:3:2 of IEC 62044-3:2000 Suspended section, 6:3:2:3:1 corresponds to the suspended section in 6:3:2:2 of IEC 62044-3:2000, E:4:1 corresponds to IEC 62044-3: The suspension section in E:4 of:2000 has been adjusted in sequence; ---Appendix F corresponds to the content in IEC 60367-1:1982 cited in 4:4 of IEC 62044-3:2000, and the "technical The content of "Words" has been adjusted to Chapter 3 (see 3:1:10~3:1:18), and the appendix content mentioned therein has been adjusted to Appendix G: Related figures Numbers and formula numbers have been adjusted in sequence: The technical differences between this document and IEC 62044-3:2000 and their reasons are as follows: ---Replaced IEC 60050(221):1990 (see 3:1) with the normatively quoted GB/T 9637 to adapt to my country's technical conditions parts to increase operability; ---Replace IEC 60367-1:1982 (see 6:1) with the normatively quoted GB/T 28869:1-2012 to adapt to my country's technical conditions parts to increase operability: The following editorial changes have been made to this document: ---Incorporated the errata content of IEC 62044-3:2000/COR1:2021, the outer margins of the clauses involved are marked with vertical Straight double lines (‖) are marked; ---Added a note (see Note 3, 3:13, 3:14 of 3:1:12); ---The ordering of symbols in Chapter 3 has been adjusted; ---Deleted Note 4 of 3:2 in IEC 62044-3:2000; --- Processed suspension sections 4:4:1, 6:3:2:1, 6:3:2:3:1, and E:4:1 in IEC 62044-3:2000; ---Replace Note 4:2:1, Note 3 of 6:1:3, Note 6:1:5, and 6:2:3 of the recommended clauses containing requirement-type clauses in IEC 62044-3:2000: Note, Note 1 of Chapter 7, Note 2 of Figure C:1, Note 1 to Note 4 of Figure E:1 are changed to paragraphs; ---Changed the item numbers in Chapter 7; ---The numbering of figures and formulas has been adjusted; ---Added references: Please note that some content in this document may be subject to patents: The publisher of this document assumes no responsibility for identifying patents: This document is proposed by the Ministry of Industry and Information Technology of the People's Republic of China: This document is under the jurisdiction of the National Magnetic Components and Ferrite Materials Standardization Technical Committee (SAC/TC89): This document was drafted by: Ninth Research Institute of China Electronics Technology Group Corporation: The main drafters of this document: Peng Qinggui, Li Wei, Gao Xiaoqin, Wang Huili, and Gan Pi: The previous versions of the documents replaced by this document are as follows: ---GB/T 9632-1988, GB/T 9632:1-2002:

Introduction

GB/T 9632:1-2002 "Measurement Method for Magnetic Cores of Inductors and Transformers for Communications", as the basic standard of the soft magnetic industry, is widely used by enterprises: Widely adopted: GB/T 9632:1-2002 is equivalent to IEC 60367-1:1982, which has been replaced by IEC 62044 series standard, so it is revised according to the structural relationship of the new IEC standard: IEC 62044-1:2002 has been converted into GB/T 28869:1- 2012: GB/T 28869 "Measurement Method for Magnetic Cores Made of Soft Magnetic Materials" consists of three parts: ---Part 1: General specifications: The purpose is to establish a general standard to be followed for all possible measurement methods of magnetic cores made of soft magnetic materials: in principle: ---Part 2: Magnetic properties at low excitation levels: The purpose is to establish the magnetic and electrical properties of cores operating at low excitation levels Normative guidelines for energy measurement methods: ---Part 3: Magnetic properties at high excitation levels: The purpose is to specify the power dissipation and amplitude magnetism of closed-circuit cores at high excitation levels: conductivity measurement method: The revision of GB/T 28869 is conducive to the test methods of magnetic cores made of soft magnetic materials being in line with international standards, and the test results are internationally recognized: And expand export trade of related products: Measurement method for magnetic cores made of soft magnetic materials Part 3: Magnetic properties at high excitation levels

1 Scope

This document specifies closures for inductors, chokes, transformers and other electronic devices with power requirements operating at high excitation levels: Measurement method of power consumption and amplitude permeability of magnetic core: The measurement methods given in this document, such as calorimetry and reflection methods, enable the measurement of magnetic properties in the frequency range from direct current (dc) to 10MHz, or even higher: For measuring magnetic properties in a given frequency range, which measurement method is chosen depends on the accuracy required: The measurement methods in this document are based on usual sinusoidal excitation conditions and are also applicable to other periodic waveforms: However, only if the corresponding The measurement circuits and instruments used can control the magnetic flux density and magnetic field strength waveform accuracy within the spectrum range with only a slight reduction amplitude and phase to obtain sufficient accuracy: Note: For some soft magnetic alloy materials, it is necessary to follow general principles and material practices related to sample preparation and calculation regulations: These principles are found in IEC 60404-8-6:

2 Normative reference documents

The contents of the following documents constitute essential provisions of this document through normative references in the text: Among them, the dated quotations For undated referenced documents, only the version corresponding to that date applies to this document; for undated referenced documents, the latest version (including all amendments) applies to this document: GB/T 9637 Electrical terminology Magnetic materials and components [GB/T 9637-2001, eqvIEC 60050(221):1990] GB/T 28869:1-2012 Measurement methods for magnetic cores made of soft magnetic materials Part 1: General specifications (IEC 62044-1: 2002,IDT) 3 Terms, definitions and symbols 3:1 Terms and definitions The terms and definitions defined in GB/T 9637 and the following apply to this document: 3:1:1 μa;μea When the magnetic flux density and magnetic field strength change periodically with time and their average value is 0, and the material starts to be in the specified magnetic neutral state When in the state, the magnetic permeability is calculated from the peak value Be of the effective magnetic flux density and the peak value He of the effective magnetic field intensity (one of the two is at a specified amplitude): Note 1: This definition is different from the definition in GB/T 9637-2001 221-03-07: Note 2: There are two commonly used amplitude permeabilities, namely: ---The peak value of the magnetic flux density and the peak value of the magnetic field intensity are both taken from the peak value of the actual waveform; ---The peak values of magnetic flux density and magnetic field intensity are both taken from the peak value of the fundamental wave component: Note 3: If the core is magnetized repeatedly and the BH curve does not shift, the magnetic flux density, magnetic field strength and amplitude permeability can even be static values: 3:1:2 μeamax ......
