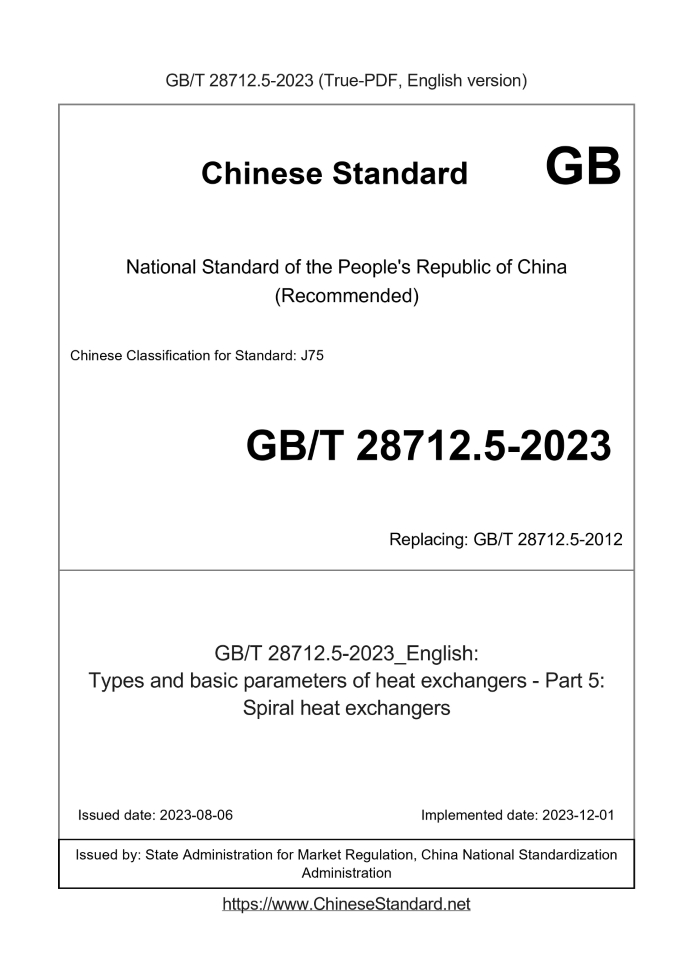

GB/T 28712.5-2023 English PDFUS$349.00 · In stock
Delivery: <= 4 days. True-PDF full-copy in English will be manually translated and delivered via email. GB/T 28712.5-2023: Types and basic parameters of heat exchangers - Part 5: Spiral heat exchangers Status: Valid GB/T 28712.5: Historical versions
Basic dataStandard ID: GB/T 28712.5-2023 (GB/T28712.5-2023)Description (Translated English): Types and basic parameters of heat exchangers - Part 5: Spiral heat exchangers Sector / Industry: National Standard (Recommended) Classification of Chinese Standard: J75 Classification of International Standard: 71.120.30 Word Count Estimation: 18,163 Date of Issue: 2023-08-06 Date of Implementation: 2023-12-01 Older Standard (superseded by this standard): GB/T 28712.5-2012 Issuing agency(ies): State Administration for Market Regulation, China National Standardization Administration GB/T 28712.5-2023: Types and basic parameters of heat exchangers - Part 5: Spiral heat exchangers---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.ICS 71.120.30 CCSJ75 National Standards of People's Republic of China Replace GB/T 28712.5-2012 Heat exchanger types and basic parameters Part 5.Spiral Plate Heat Exchanger Part 5.Spiralheatexchangers Implemented on 2023-12-01 State Administration for Market Regulation Released by the National Standardization Administration Committee Table of contentsPrefaceⅠ Introduction II 1 Scope 1 2 Normative reference documents 1 3 Terms and Definitions 1 4 symbols 1 5 Type 2 6 Basic parameters 3 7 Determination of structural parameters 4ForewordThis document complies with the provisions of GB/T 1.1-2020 "Standardization Work Guidelines Part 1.Structure and Drafting Rules of Standardization Documents" Drafting. This document is Part 5 of GB/T 28712 "Heat exchanger types and basic parameters". GB/T 28712 has released the following part. ---Part 1.Floating head heat exchanger; ---Part 2.Fixed tube plate heat exchanger; ---Part 3.U-shaped tube heat exchanger; ---Part 4.Thermosiphon reboiler; ---Part 5.Spiral plate heat exchanger; ---Part 6.Air-cooled heat exchanger. This document replaces GB/T 28712.5-2012 "Heat exchanger types and basic parameters - Part 5.Spiral plate heat exchangers" and is consistent with Compared with GB/T 28712.5-2012, in addition to structural adjustments and editorial changes, the main technical changes are as follows. ---The applicable nominal pressure of the non-detachable spiral plate heat exchanger is changed from no more than 2.5MPa to no more than 3.0MPa; the maximum nominal pressure The nominal diameter is increased from.2000mm to 2500mm; the maximum nominal heat exchange area is changed from.200m2 to 350m2 (see section Chapter 1, Chapter 1 of the.2012 edition); ---The applicable nominal pressure of the detachable spiral plate heat exchanger is changed from no more than 1.0MPa to no more than 3.0MPa; the maximum nominal pressure The diameter is increased from 1200mm to 2500mm; the maximum nominal heat exchange area is changed from 90m2 to 350m2 (see Chapter 1, Chapter 1 of the.2012 edition); ---Deleted the basic parameter combinations with lower energy efficiency levels in Table 1, Table 2, Table 4 and Table 5 (see 5.4 of the.2012 version); ---Added table 3 (2.5MPa < PN ≤ 3.0MPa) basic parameter set of carbon steel and low alloy steel spiral plate heat exchangers Together, Table 6 (2.5MPa < PN ≤ 3.0MPa) basic parameter combination of austenitic stainless steel spiral plate heat exchanger (see 6.4); ---Increased the structural dimensions of PN1.6MPa inverted cone flat cover (see 7.2). Please note that some content in this document may be subject to patents. The publisher of this document assumes no responsibility for identifying patents. This document is proposed and coordinated by the National Boiler and Pressure Vessel Standardization Technical Committee (SAC/TC262). This document was drafted by. Hefei General Machinery Research Institute Co., Ltd., Suzhou Jinxiang Pressure Vessel Manufacturing Co., Ltd., Lanzhou Lanluo Refining Chemical High-tech Equipment Co., Ltd., Zhenhai Petrochemical Construction and Installation Engineering Co., Ltd., Ruineng (Siping) Northern Energy Technology Co., Ltd. The main drafters of this document. Chen Yongdong, Wu Xiaohong, Li Xue, Li Zhi, Wang Lin, Wang Xiaoyuan, Liu Lansheng, Hu Xingmiao, Chen Feng. This document was first published in.2012 and this is the first revision.IntroductionGB/T 28712 "Heat exchanger types and basic parameters" aims to standardize the typical structural types of heat exchangers used in the energy industry, fully considering the installation In line with the development trend of large-scale installations, taking into account the product standards and construction level of my country's heat exchangers, the applicable range of parameters and their supporting dimensions are clarified. consider The functions, structures, and parameters of different heat exchangers are obviously different, and they are composed of six parts. ---Part 1.Floating head heat exchanger. ---Part 2.Fixed tube plate heat exchanger. ---Part 3.U-shaped tube heat exchanger. ---Part 4.Thermosiphon reboiler. ---Part 5.Spiral plate heat exchanger. ---Part 6.Air-cooled heat exchanger. Heat exchanger type and basic parameter standards are of great significance to the realization of standardization, serialization, generalization and scale of heat exchangers in my country. righteous. For large-volume and wide-ranging heat exchanger products, the standardization of their structures and parameters can first promote the standardization of product construction, improve design quality, efficiency; secondly, it can save tools, tooling, material consumption and backlog in manufacturing and use; finally, it can facilitate users to select and use products. Replacement, repair and interchange. In recent years, the construction of large-scale refining and chemical integration projects in our country has entered a period of rapid development. As a typical energy-consuming equipment The usage of heat exchangers has increased significantly; the large-scale installation has pushed the structural size of heat exchangers to new heights, and the demand for large-scale single equipment is increasing. Outstanding; the construction and implementation of a large number of engineering projects has accumulated rich experience in design, manufacturing and engineering application for the construction of heat exchangers. at the same time, GB/T 151 "Heat Exchanger" has also been revised accordingly, forming for the first time a comprehensive product standard that comprehensively covers the typical structure of heat exchangers, and Applicable parameters have been significantly adjusted. To this end, it is necessary to revise the heat exchanger type and basic parameter standards to adapt to industry and standard development. exhibition needs. Based on current product standards and industry common needs, this document focuses on expanding the applicable scope of spiral plate heat exchanger types and parameters, providing The corresponding matching dimensions have been introduced, and the basic parameters of some low-energy-efficiency products have been deleted to comply with the development requirements of large-scale equipment and energy-saving in various fields. requirements to meet the urgent needs of industrial upgrading and development; through the completeness and normative expansion of standard data, combined with the principle of energy conservation and consumption reduction, the promotion of The digitalization and green development of the industry and improving the level of standardization have a positive role in promoting. Heat exchanger types and basic parameters Part 5.Spiral Plate Heat Exchanger1 ScopeThis document specifies the types and basic parameters of non-detachable and detachable spiral plate heat exchangers. This document applies to applications where the nominal pressure is not greater than 3.0MPa, the nominal diameter is not greater than 2500mm, and the nominal heat exchange area is not greater than 350m2 Non-detachable and detachable spiral plate heat exchanger.2 Normative reference documentsThe contents of the following documents constitute essential provisions of this document through normative references in the text. Among them, the dated quotations For undated referenced documents, only the version corresponding to that date applies to this document; for undated referenced documents, the latest version (including all amendments) applies to this document. GB/T 150.3-2011 Pressure vessel Part 3 design NB/T 47048-2015 Spiral plate heat exchanger3 Terms and definitionsThe terms and definitions defined in NB/T 47048 apply to this document.4 symbolsThe following symbols apply to this document. A---Nominal heat exchange area, unit is square meter (m2); AY---effective heat exchange area, refer to NB/T 47048-2015, unit is square meter (m2); AT---spiral channel cross-sectional area, unit is square meter (m2); b---spiral channel spacing, unit is millimeter (mm); Do---the outer diameter of the inverted cone flat cover of the detachable spiral plate heat exchanger, in millimeters (mm); DN---Nominal diameter, based on the outer diameter of the spiral body, in millimeters (mm); d---Helix center diameter, unit is millimeter (mm); dn---Nominal diameter of nozzle, unit is millimeter (mm); H---Helix plate width, unit is meter (m); h---The height of the inverted cone flat cover circular ring rib, in millimeters (mm); h1---The welding height of the inner and outer cones, in millimeters (mm); k---the positioning size coefficient of the inverted cone flat cover circular ring bar; Lt---The length of the spiral channel, in meters (m); l---The positioning size coefficient of the inner and outer cones of the inverted cone flat cover; PN---Nominal pressure, unit is MPa; Rc---The calculated radius of the detachable spiral plate heat exchanger, in millimeters (mm); ......Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of GB/T 28712.5-2023_English be delivered?Answer: Upon your order, we will start to translate GB/T 28712.5-2023_English as soon as possible, and keep you informed of the progress. The lead time is typically 2 ~ 4 working days. The lengthier the document the longer the lead time.Question 2: Can I share the purchased PDF of GB/T 28712.5-2023_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 28712.5-2023_English will be deemed to be sold to your employer/organization who actually pays for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. If you need your currency to be printed on the invoice, please write an email to Sales@ChineseStandard.net. In 2 working-hours, we will create a special link for you to pay in any currencies. Otherwise, follow the normal steps: Add to Cart -- Checkout -- Select your currency to pay.Question 5: Should I purchase the latest version GB/T 28712.5-2023?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB/T 28712.5-2023 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically. |
