GB/T 27698.2-2023: Test methods for the performance of heat exchangers and heat exchange elements - Part 2: Heat exchangers Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid GB/T 27698.2: Historical versions

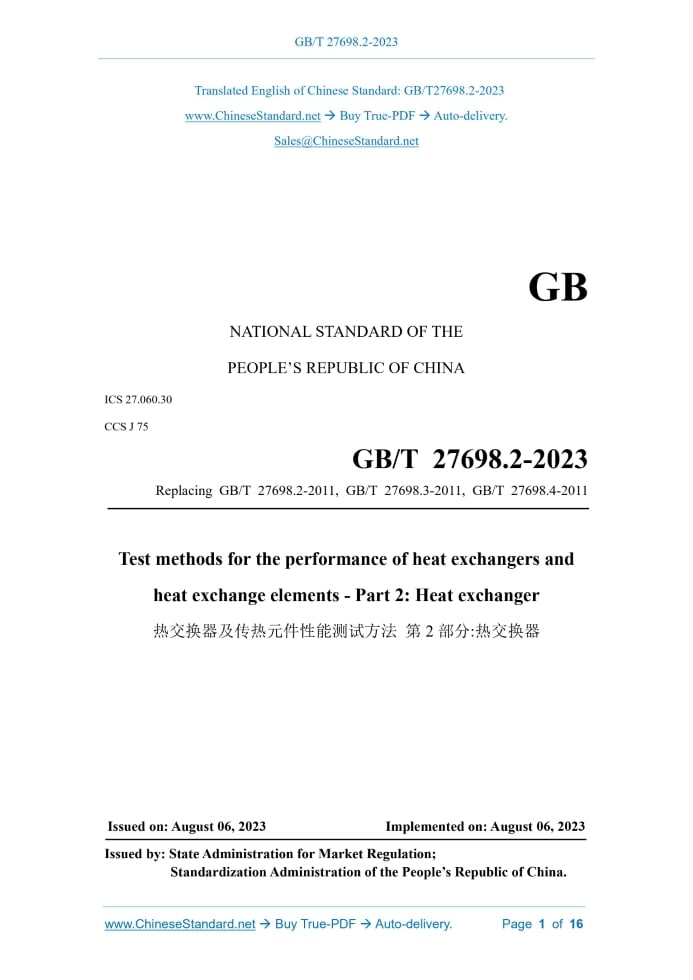

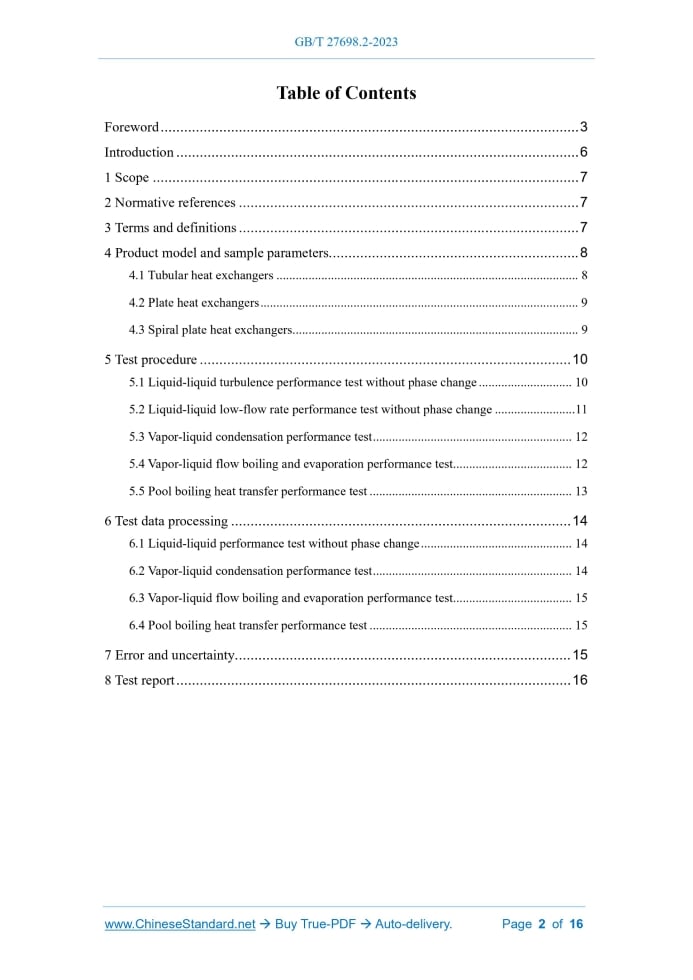

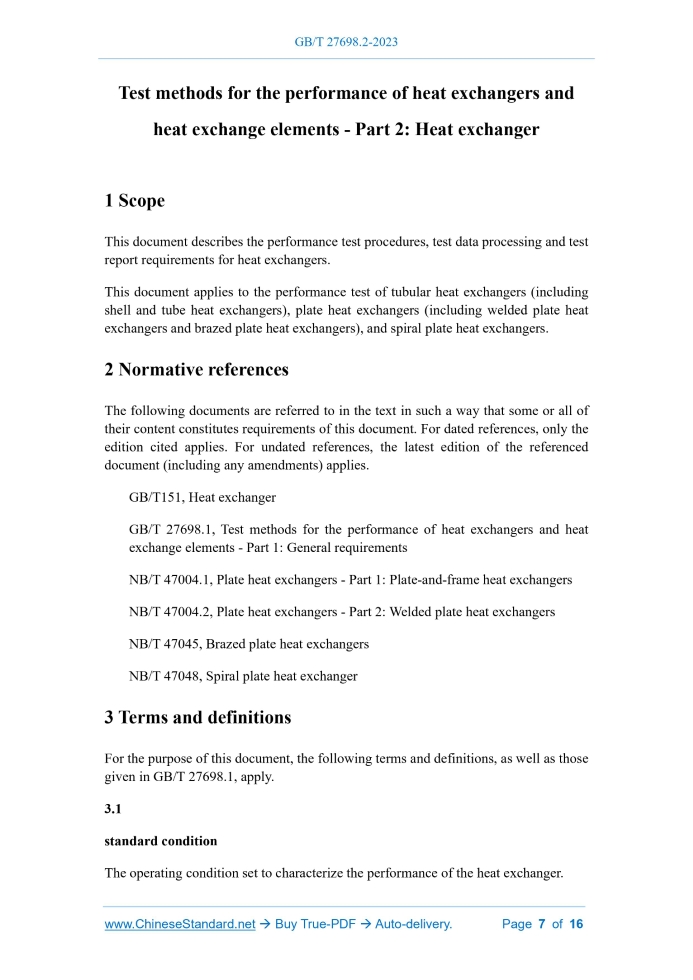

Similar standardsGB/T 27698.2-2023: Test methods for the performance of heat exchangers and heat exchange elements - Part 2: Heat exchangers---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT27698.2-2023 GB NATIONAL STANDARD OF THE PEOPLE’S REPUBLIC OF CHINA ICS 27.060.30 CCS J 75 Replacing GB/T 27698.2-2011, GB/T 27698.3-2011, GB/T 27698.4-2011 Test methods for the performance of heat exchangers and heat exchange elements - Part 2: Heat exchanger ISSUED ON: AUGUST 06, 2023 IMPLEMENTED ON: AUGUST 06, 2023 Issued by: State Administration for Market Regulation; Standardization Administration of the People’s Republic of China. Table of ContentsForeword ... 3 Introduction ... 6 1 Scope ... 7 2 Normative references ... 7 3 Terms and definitions ... 7 4 Product model and sample parameters... 8 4.1 Tubular heat exchangers ... 8 4.2 Plate heat exchangers ... 9 4.3 Spiral plate heat exchangers ... 9 5 Test procedure ... 10 5.1 Liquid-liquid turbulence performance test without phase change ... 10 5.2 Liquid-liquid low-flow rate performance test without phase change ... 11 5.3 Vapor-liquid condensation performance test ... 12 5.4 Vapor-liquid flow boiling and evaporation performance test ... 12 5.5 Pool boiling heat transfer performance test ... 13 6 Test data processing ... 14 6.1 Liquid-liquid performance test without phase change ... 14 6.2 Vapor-liquid condensation performance test ... 14 6.3 Vapor-liquid flow boiling and evaporation performance test ... 15 6.4 Pool boiling heat transfer performance test ... 15 7 Error and uncertainty ... 15 8 Test report ... 16 Test methods for the performance of heat exchangers and heat exchange elements - Part 2: Heat exchanger1 ScopeThis document describes the performance test procedures, test data processing and test report requirements for heat exchangers. This document applies to the performance test of tubular heat exchangers (including shell and tube heat exchangers), plate heat exchangers (including welded plate heat exchangers and brazed plate heat exchangers), and spiral plate heat exchangers.2 Normative referencesThe following documents are referred to in the text in such a way that some or all of their content constitutes requirements of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenced document (including any amendments) applies. GB/T151, Heat exchanger GB/T 27698.1, Test methods for the performance of heat exchangers and heat exchange elements - Part 1: General requirements NB/T 47004.1, Plate heat exchangers - Part 1: Plate-and-frame heat exchangers NB/T 47004.2, Plate heat exchangers - Part 2: Welded plate heat exchangers NB/T 47045, Brazed plate heat exchangers NB/T 47048, Spiral plate heat exchanger3 Terms and definitionsFor the purpose of this document, the following terms and definitions, as well as those given in GB/T 27698.1, apply. 3.1 standard condition The operating condition set to characterize the performance of the heat exchanger. 4.2 Plate heat exchangers 4.2.1 The number of plates in the plate heat exchanger sample shall be determined by considering the uniformity of fluid distribution within the measured flow rate range, and the number of plates installed shall not be less than 9. 4.2.2 When testing plate heat exchangers, the product model and the following parameters shall be clearly stated: a) Plate corrugation form (corrugation angle, corrugation depth, corrugation spacing, mixing angle); b) Plate geometric dimensions (length, width, corner hole diameter, longitudinal and transverse center distance); c) Heat transfer area of a single plate; d) Spacing between plates; e) Flow channel cross-sectional area; f) Plate thickness; g) Plate material; h) Number of plates; i) Clamping dimensions; j) Process combination; k) Design temperature; l) Design pressure. The above structure and design data shall be determined in accordance with the requirements of GB/T 27698.1 and NB/T 47004.1, NB/T 47004.2 as well as NB/T 47045. 4.2.3 When the product model or any of the parameters a) ~ e) in 4.2.2 changes, the performance test shall be repeated. 4.3 Spiral plate heat exchangers 4.3.1 When testing spiral plate heat exchanger, the product model and the following parameters shall be clearly stated: a) Layout and geometric dimensions of spacing columns; b) Spacing between plates; c) Equivalent diameter; d) Flow cross-sectional area; e) Flow channel length; f) Heat transfer plate material; g) Heat transfer plate thickness; h) Heat transfer area (based on the neutral surface of the heat transfer plate); i) Design temperature; j) Design pressure. The above structure and design data shall be determined in accordance with the requirements of GB/T 27698.1 and NB/T 47048. 4.3.2 When the product model or any of the parameters a) ~ d) in 4.3.1 changes, the performance test shall be repeated.5 Test procedure5.1 Liquid-liquid turbulence performance test without phase change 5.1.1 Before testing, the reliability of the test sample, pipeline and measuring instruments shall be checked. 5.1.2 After starting operation, the gas in the test sample shall be exhausted in time, so that the test sample can be operated under the condition of being fully filled with test fluid and adjusted to the standard condition according to Table 1. 5.1.3 After running stably for 30 minutes under standard conditions, the following test requirements should be followed: a) The fluid flow rate on both sides remains the same, the flow rate changes within the range of Table 1, and the change interval meets the requirements of Table 1; b) The fluid on one side (hot side or cold side) is fixed at the flow rate under standard conditions; the flow rate of the fluid on the other side varies within the range of Table 1, and the variation interval meets the requirements of Table 1; 5.4.2 After starting operation, the non-condensable gas in the test sample shall be discharged in time and adjusted to the standard condition. 5.4.3 After running stably for 30 minutes under standard condition, the following test requirements should be followed: a) Keep the steam temperature entering the pre-heater and the test sample inlet at 1 ℃ ~ 3 ℃ superheat, and the condensate temperature slightly lower than the saturation temperature corresponding to the outlet steam pressure, but within the range of 2 ℃; obtain the steam flow rate by measuring the condensate; b) The flow rate of the cold fluid varies within the range of Table 1, and the variation interval meets the requirements of Table 1; c) The inlet dryness of the cold fluid of the test sample is adjusted by the pre- heater, and the minimum inlet dryness is 0; d) The average dryness of the cold fluid of the test sample changes according to the use range, and the change interval increases with the increase of dryness; e) When each test condition is stable for more than 5 minutes, carry out data collection simultaneously. During the condensate metering process, the condition remains relatively stable; f) Repeat the measurement at each test point at least 3 times, with an interval of more than 5 minutes between each measurement; take the average value of the measurement results. 5.4.4 The test conditions can be determined through negotiation based on user requirements and equipment characteristics. 5.5 Pool boiling heat transfer performance test 5.5.1 Before testing, the reliability of the test sample, pipeline and measuring instruments shall be checked. 5.5.2 After running stably for 30 minutes, the test should be carried out according to the following test requirements: a) Ensure that the liquid level of the cold fluid is higher than that of the test sample; b) When each test condition is stable for more than 5 minutes and the relative error of thermal balance is no more than 5%, carry out data collection synchronously; the condition remains relatively stable during the condensate metering process; c) Change the heat load at least 5 times during the test; collect at least 3 sets of data simultaneously at each test point. 5.5.3 The test conditions can be determined through negotiation based on user requirements and equipment characteristics.6 Test data processing6.1 Liquid-liquid performance test without phase change 6.1.1 Give the test curve of total heat transfer coefficient (k) and flow rate (u). 6.1.2 Summarize the criterion relation between the Nusselt number (Nu) and the Reynolds number (Re) as well as the Prandtl number (Pr). 6.1.3 In the same coordinate system, calculate the relationship curve between the total heat transfer coefficient (k) and the flow rate (u) when the reference temperatures of the cold/hot fluids are 20 ℃/40 ℃, 30 ℃/50 ℃, and 40 ℃/60 ℃ respectively. 6.1.4 Provide the test curve of pressure drop (Δp) and flow rate (u). 6.1.5 Summarize the criterion relation between the Euler number (Eu) and the Reynolds number (Re). 6.1.6 In the same coordinate system, calculate the relationship curve between the pressure drop (Δp) and the flow rate (u) of the cold fluid when the reference temperatures are 20 °C, 30 °C and 40 °C, respectively. 6.1.7 In the same coordinate system, calculate the relationship curve between the pressure drop (Δp) and flow rate (u) of the hot fluid when the reference temperatures are 40 °C, 50 °C, and 60 °C, respectively. 6.1.8 Give the values of the total heat transfer coefficient (k) and pressure drop (Δp) at the flow rate under standard condition when the hot fluid reference temperature is 50 °C and the cold fluid reference temperature is 30 °C. 6.2 Vapor-liquid condensation performance test 6.2.1 Provide the test curve of the total heat transfer coefficient (k) and the liquid side flow rate (u) or Reynolds number (Re). 6.2.2 Summarize the relationship between the condensation convection heat transfer coefficient (α) and the flow rate (u) or the Reynolds number (Re). 6.2.3 Provide the test curve of the pressure drop (Δp) on both sides and the flow rate (u) or the Reynolds number (Re). ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 27698.2-2023 be delivered?Answer: The full copy PDF of English version of GB/T 27698.2-2023 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 27698.2-2023_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 27698.2-2023_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 27698.2-2023 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.Question 5: Should I purchase the latest version GB/T 27698.2-2023?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB/T 27698.2-2023 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically.How to buy and download a true PDF of English version of GB/T 27698.2-2023?A step-by-step guide to download PDF of GB/T 27698.2-2023_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 27698.2-2023". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
