GB/T 2851-2008: Sliding guide die sets for stamping dies
Status: Valid

GB/T 2851: Historical versions

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 2851-2008	559	Add to Cart	5 days	Sliding guide die sets for stamping dies	Valid
GB/T 2851.1-1990	319	Add to Cart	3 days	Sliding guide die sets for press tools--Diagonal pillar sets	Obsolete

Similar standards

GB/T 45677 GB/T 6110 JB/T 3943 GB/T 2855.1 GB/T 2855.2 GB/T 2852

Basic data

Standard ID: GB/T 2851-2008 (GB/T2851-2008)
Description (Translated English): Sliding guide die sets for stamping dies
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: J46
Classification of International Standard: 25.120.30
Word Count Estimation: 24,225
Date of Issue: 2008-04-10
Date of Implementation: 2008-10-01
Older Standard (superseded by this standard): GB/T 2851.1-1990; GB/T 2851.3-1990; GB/T 2851.4-1990; GB/T 2851.5-1990; GB/T 2851.6-1990; GB/T 2851.7-1990
Quoted Standard: GB/T 2855.1; GB/T 2855.2; GB/T 2861.1; GB/T 2861.3; JB/T 8050
Regulation (derived from): National Standard Approval Announcement 2008 No.5 (Total No.118)
Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary: This standard specifies the sliding guide die mold structure, dimensions and markings. This standard applies sliding guide die cast mold.

GB/T 2851-2008: Sliding guide die sets for stamping dies

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.

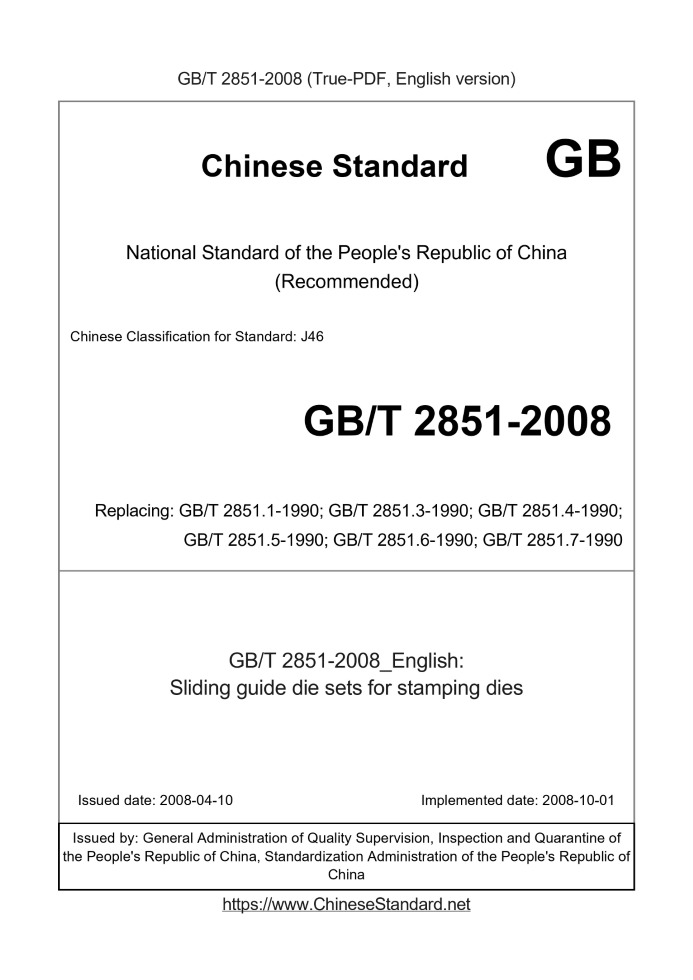

Sliding guide die sets for stamping dies ICS 25.120.30 J46 National Standards of People's Republic of China Replacing GB/T 2851.1-1990, GB/T 2851.3 ~ 2851.7-1990 Sliding guide die mold Posted 2008-04-10 2008-10-01 implementation Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China Standardization Administration of China released

Foreword

This standard is GB/T 2851.1-1990 "die mold slide guide diagonal pillar sets", GB/T 2851.3-1990 "dies Sliding rear side mold guide pillar sets ", GB/T 2851.4-1990" Sliding guide die mold narrow rear side pillar-shaped mold " GB/T 2851.5-1990 "Sliding guide die mold intermediate pillar sets", GB/T 2851.6-1990 "die mold slide guide Intermediate circular pillar mold "and GB/T 2851.7-1990" die mold slide guide 4 post mold "consolidated amendments. This standard and GB/T 2851.1-1990, GB/T 2851.3-1990, GB/T 2851.4-1990, GB/T 2851.5-1990, GB /and GB/T 2851.7-1990 compared to T 2851.6-1990 main changes are as follows. --- The standard name be changed to "die mold slide guide"; --- Added "preface" and "normative references"; --- Delete the contents of the rear side of a narrow pillar-shaped mold frame; --- Intermediate pillar formwork structures and sizes made major changes. This standard by the National Standardization Technical Committee mold (SAC/TC33) and focal points. This standard was drafted. Guilin Electrical Apparatus Research Institute, Hangzhou Xiaoshan precision mold standard factory, Zhenjiang Chuanshan mold factory, electronic Guilin Branch Technical University. The main drafters of this Standard. Weng Zhen history, Zhang Yuqin, Qi Wei root, Liao Wang Yi, Feng double. This standard replaces the standards previously issued as follows. --- GB 2851.1 ~ 2851.7-1981; --- GB/T 2851.1-1990, GB/T 2851.3 ~ 2851.7-1990. Sliding guide die mold

1 Scope

This standard specifies the sliding guide die mold structure, dimensions and marking. This standard applies to the sliding guide die cast iron mold.

2 Normative references

The following documents contain provisions which, through reference in this standard and become the standard terms. For dated references, subsequent Amendments (not including errata content) or revisions do not apply to this standard, however, encourage the parties to the agreement are based on research Whether the latest versions of these documents. For undated reference documents, the latest versions apply to this standard. GB/T 2855.1 die slide die - Part 1. punch holder GB/T 2855.2 sliding guide die holder dies - Part 2. the lower die GB/T 2861.1 Part 1 die guide. slide guide pillar GB/T 2861.3 Part 3 die guides. Slide guide bushings JB/T 8050 Die mold technical conditions

3 Dimensions

3.1 pairs of diagonal pillar sets Diagonal pillar mold structure and dimensions shown in Figure 1, Table 1. 1 --- punch holder; 2 --- lower die; 3 --- pillar; 4 --- guide sleeve.

1 diagonal pillar sets

......
