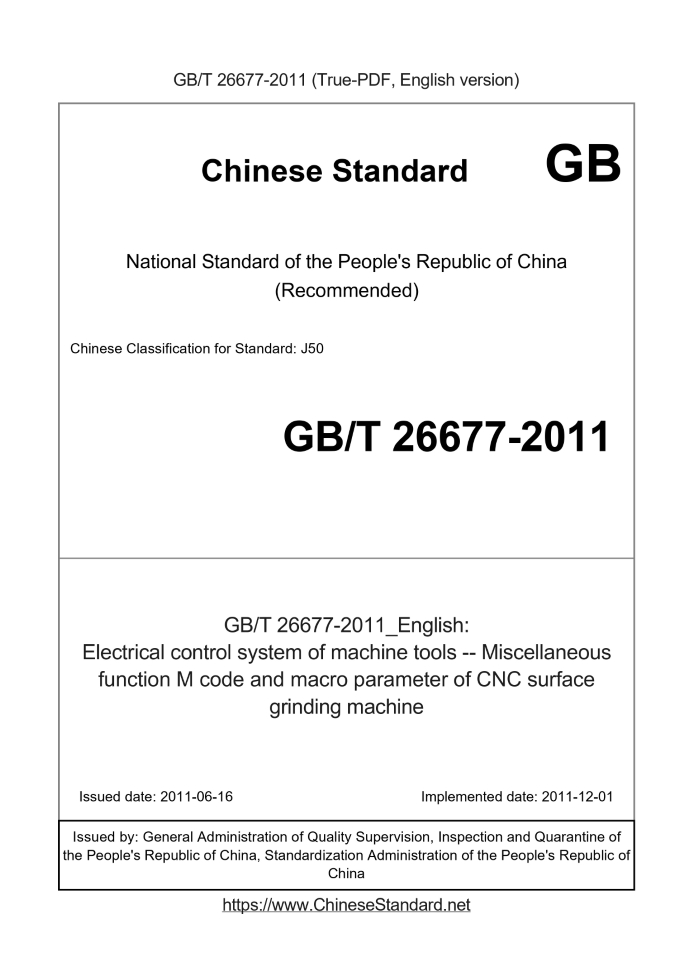

GB/T 26677-2011: Electrical control system of machine tools -- Miscellaneous function M code and macro parameter of CNC surface grinding machine
Status: Valid

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 26677-2011	489	Add to Cart	4 days	Electrical control system of machine tools -- Miscellaneous function M code and macro parameter of CNC surface grinding machine	Valid

Similar standards

GB/T 28615 GB/T 24343 GB/T 24344 GB/T 26676 GB/T 26678 GB/T 26675

Basic data

Standard ID: GB/T 26677-2011 (GB/T26677-2011)
Description (Translated English): Electrical control system of machine tools -- Miscellaneous function M code and macro parameter of CNC surface grinding machine
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: J50
Classification of International Standard: 29.020
Word Count Estimation: 21,269
Date of Issue: 2011-06-16
Date of Implementation: 2011-12-01
Quoted Standard: GB/T 19660-2005
Regulation (derived from): Announcement of Newly Approved National Standards No. 9 of 2011
Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary: This standard provides for programming CNC surface grinding auxiliary function M code and macro variables. This standard applies to CNC horizontal spindle and rectangular table surface grinder, CNC gantry surface grinder, CNC horizontal axis rotary table surface grinder, CNC Spindle Surface Grinding Machine and CNC spindle and round table surface grinder.

GB/T 26677-2011: Electrical control system of machine tools -- Miscellaneous function M code and macro parameter of CNC surface grinding machine

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Electrical control system of machine tools. Miscellaneous function M code and macro parameter of CNC surface grinding machine ICS 29.020 J50 National Standards of People's Republic of China Machine electrical control system CNC surface grinder auxiliary Function M code and macro arguments Issued on. 2011-06-16 2011-12-01 implementation Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China Standardization Administration of China released

Introduction Ⅲ 1 Scope 1 2 Normative references 1 3 Terms and definitions 4 auxiliary function M code 2 5 macro variable 5 6 Application Example 7 Appendix A (normative) CNC surface grinding machine axis movement Example 8 Annex B (informative) Example 11 macro parameters Annex C (informative) CNC surface grinder auxiliary codes and application example 13 macro argument binding References 16

Foreword

This standard was drafted in accordance with GB/T 1.1-2009 given rules. The standard proposed by China Machinery Industry Federation. The standard mechanical and electrical systems by the National Standardization Technical Committee (SAC/TC231) centralized. This standard is drafted by. Hangzhou Machine Tool Group Co., Ltd. This standard is mainly drafted by. Guilin North Machine Co., Ltd, Beijing KND CNC Technology Co., Ltd., Shenzhen City, measuring seized Measurement Technology Co., Ltd., Zhejiang Kaida Machine Tool Group Co., Jiuchuan (Group) Technology Co., Ltd., Zhejiang. Drafters of this standard. Chen Jianming, Chenai Hui, Yang Hongli, Zhu Ping, Ruan Zhibin, He Yujun, Chen Jianguo, pension Edward. Machine electrical control system CNC surface grinder auxiliary Function M code and macro arguments

1 Scope

This standard specifies the CNC surface grinding machine programmed with auxiliary functions M codes, and macro variables. This standard applies to CNC horizontal axis moments Taiwan surface grinder, CNC gantry surface grinding machine, CNC horizontal axis yen Taiwan surface grinder, CNC vertical rectangular table CNC surface grinders and vertical shaft yen Taiwan surface grinder.

2 Normative references

The following documents for the application of this document is essential. For dated references, only the dated version suitable for use herein Member. For undated references, the latest edition (including any amendments) applies to this document. GB/T 19660-2005 Industrial automation systems and integration - Numerical control of machines and motion coordinate system named (ISO 841. 2001, IDT)

3 Terms and Definitions

GB/T 19660-2005 define the following terms and definitions apply to this document. 3.1 Handwheel compensation compensationfeedoftheelectronichandwheel When state machine from working by hand wheel to compensate for feed. 3.2 Dresser grindingwheeldressing Grinding wheel dressing and shaping. 3.3 Kibble roughgrinding To remove most of the allowance for the primary purpose of grinding. 3.4 Grinding finishgrinding So that the workpiece surface to achieve the accuracy and quality of grinding predetermined. 3.5 No feed grinding spark-outgrinding After stopping the cutting direction, in order to eliminate the residual amount of deformation caused by systemic and continue grinding. 3.6 Intermittent feed interruptedfeed Longitudinal direction of movement of the machine table for a reciprocating cycle, infeed feed a set amount. 3.7 Continuous feed continuousfeed Infeed from the longitudinal direction of the impact of the feed movement. ......
