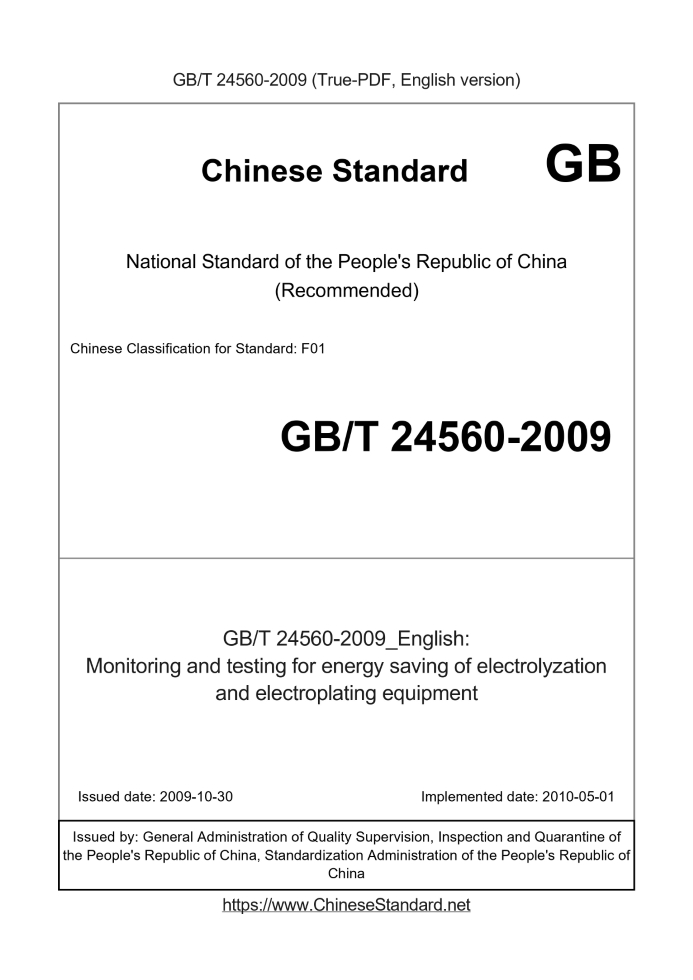

GB/T 24560-2009 English PDFUS$189.00 · In stock
Delivery: <= 3 days. True-PDF full-copy in English will be manually translated and delivered via email. GB/T 24560-2009: Monitoring and testing for energy saving of electrolyzation and electroplating equipment Status: Valid
Basic dataStandard ID: GB/T 24560-2009 (GB/T24560-2009)Description (Translated English): Monitoring and testing for energy saving of electrolyzation and electroplating equipment Sector / Industry: National Standard (Recommended) Classification of Chinese Standard: F01 Classification of International Standard: 27.010 Word Count Estimation: 8,875 Date of Issue: 2009-10-30 Date of Implementation: 2010-05-01 Regulation (derived from): Announcement of Newly Approved National Standards No. 12 of 2009 (No. 152 overall) Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China Summary: This standard specifies the electrolysis, electroplating equipment, energy monitoring program, monitoring methods and assessment indicators. This standard applies to electrolysis, electroplating equipment. GB/T 24560-2009: Monitoring and testing for energy saving of electrolyzation and electroplating equipment---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order. Monitoring and testing for energy saving of electrolyzation and electroplating equipments ICS 27.010 F01 National Standards of People's Republic of China Electrolysis, electroplating energy monitoring equipment Posted 2009-10-30 2010-05-01 implementation Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China Standardization Administration of China released ForewordAppendix A of this standard is a normative appendix. This standard by the National Standardization Technical Committee for Energy Management and focal points. This standard was drafted. Tianjin energy monitoring four points, Tianjin Institute of Energy Technology. The main drafters of this standard. Huoquan Lan, Jia Jun, Ren Changqing, Shangke Wu, Zhu Tianli, Liu Feng, Zhang review, Wang Jinxiang, Chen Shan, Song Wei, Zhangdian Jun, left light. Electrolysis, electroplating energy monitoring equipment1 ScopeThis standard specifies the electrolysis, energy monitoring project plating equipment, monitoring methods and assessment indicators. This standard applies to electrolysis, electroplating equipment. 2 electrolysis, plating equipment energy monitoring project Check item 2.1 2.1.1 electrolysis, electroplating production equipment should be configured DC voltmeter, DC ammeter and AC electrical measuring instruments. 2.1.2 measuring instruments equipped, reasonable, and in the test cycle. 2.1.3 DC connection point system to maintain good contact. 2.2 Test Project 2.2.1 The current efficiency of electrolysis, electroplating equipment. 2.2.2 electrolysis, electroplating average cell voltage. 3 electrolysis, plating equipment energy monitoring method 3.1 Conditions and Monitoring time 3.1.1 continuous production of plating equipment monitoring 2h, plating equipment to monitor non-continuous production of one or more periods. 3.1.2 electrolysis device continuously monitored 24h. 3.2 Monitoring Instruments Monitoring equipment used should be able to meet the requirements of the test project monitoring, equipment in good condition, the measurement range and resolution should be measured with the appropriate project phase Should, its accuracy is not less than the requirements of Table 1, and in the test cycle. Table 1 Monitoring Instruments No. Monitoring Project Title instrumentation accuracy1 electrolytic plating product quality and quality1. Electrolyte flow meter, a thermometer, densimeter 2. Weighing 0.1 2 DC Current DC ammeter 1.0 3 cell voltage DC voltmeter 1.0 3.3 plating equipment testing 3.3.1 Quality Plating By weighing before and after weighing the quality of the plating workpiece, and calculate the difference between before and after plating quality of the workpiece. 3.3.2 plating current At the output of the rectifying means, with the current DC ammeter test plating equipment, recorded once every 15min, the arithmetic mean. 3.3.3 plating current efficiency equipment 3.3.3.1 The current efficiency according to equation (1). η1 = M1 m1 2- 100 (1) Where. η1 --- plating equipment current efficiency,%; ......Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of GB/T 24560-2009_English be delivered?Answer: Upon your order, we will start to translate GB/T 24560-2009_English as soon as possible, and keep you informed of the progress. The lead time is typically 1 ~ 3 working days. The lengthier the document the longer the lead time.Question 2: Can I share the purchased PDF of GB/T 24560-2009_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 24560-2009_English will be deemed to be sold to your employer/organization who actually pays for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. If you need your currency to be printed on the invoice, please write an email to Sales@ChineseStandard.net. In 2 working-hours, we will create a special link for you to pay in any currencies. Otherwise, follow the normal steps: Add to Cart -- Checkout -- Select your currency to pay. |
