GB/T 22571-2017 English PDFUS$519.00 · In stock
Delivery: <= 5 days. True-PDF full-copy in English will be manually translated and delivered via email. GB/T 22571-2017: Surface chemical analysis -- X-ray photoelectron spectrometers -- Calibration of energy scales Status: Valid GB/T 22571: Historical versions

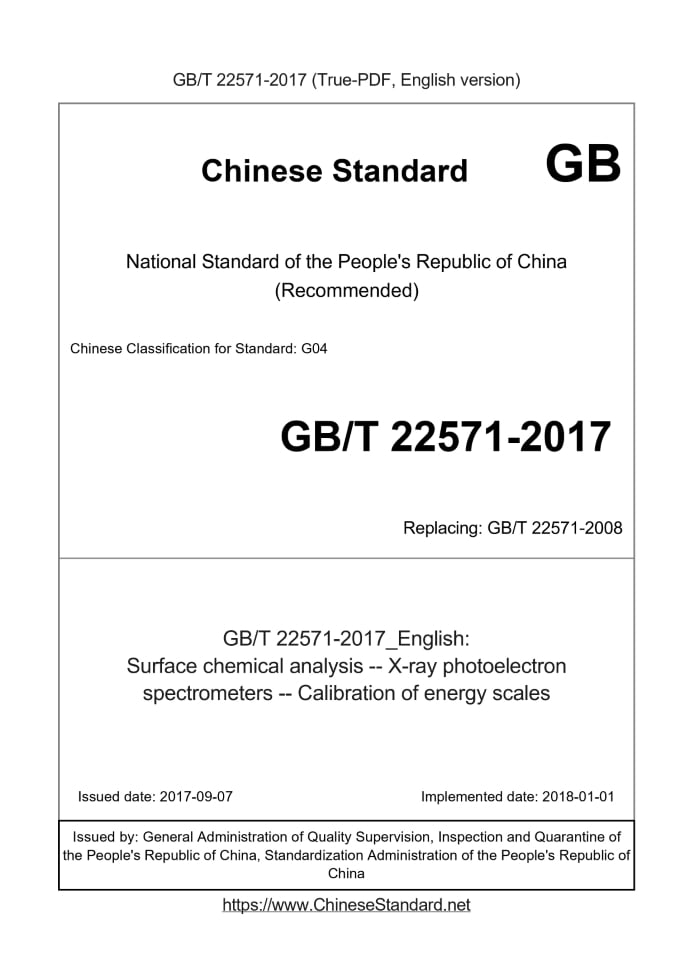

Basic dataStandard ID: GB/T 22571-2017 (GB/T22571-2017)Description (Translated English): Surface chemical analysis -- X-ray photoelectron spectrometers -- Calibration of energy scales Sector / Industry: National Standard (Recommended) Classification of Chinese Standard: G04 Classification of International Standard: 71.040.40 Word Count Estimation: 26,283 Date of Issue: 2017-09-07 Date of Implementation: 2018-01-01 Older Standard (superseded by this standard): GB/T 22571-2008 Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China GB/T 22571-2017: Surface chemical analysis -- X-ray photoelectron spectrometers -- Calibration of energy scales---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order. Surface chemical analysis - X-ray photoelectron spectrometers - Calibration of energy scales ICS 71.040.40 G04 National Standards of People's Republic of China Replacing GB/T 22571-2008 Surface Chemical Analysis X - ray Photoelectron Spectroscopy Calibration of energy ruler (ISO 15472.2010, IDT) 2017-09-07 Posted 2018-01-01 implementation General Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China China National Standardization Administration released Directory Preface Ⅰ Introduction Ⅱ 1 Scope 1 2 Normative references 1 3 symbols and abbreviations 1 4 Method Overview 2 5 Step 5 of calibrating the energy ruler Appendix A (Normative) Determination of peak binding energy using a simple least square method 13 Appendix B (informative) Derivation of uncertainty Appendix C (Informative) Reference to the measured binding energy uncertainty 17 Appendix D (Informative) XPS spectrometer configured with monochromatic AlX ray source to measure the modified Auger parameters 19 References 21 ForewordThis standard was drafted in accordance with the rules given in GB/T 1.1-2009. This standard replaces GB/T 22571-2008 "surface chemical analysis X-ray photoelectron spectrometer energy scale calibration", and GB/T 22571-2008 compared to editorial changes in addition to the main technical changes are as follows. --- Modify the normative references (see Chapter 2); --- Modify some terms, added some terminology notes (see Chapter 3); --- Modify part of the instructions in Table 1 (see Chapter 5); --- Increasing the calculation of peak combined with repeatability standard deviation supplement (see Chapter 5); --- Modify the correction instrument combined with energy scale steps (see Chapter 5). This standard uses the translation method identical with ISO 15472.2010 "surface chemical analysis of X-ray photoelectron spectrometer energy scale calibration". This standard by the National Microbeam Analysis Standardization Technical Committee (SAC/TC38) and focal point. This standard drafting unit. Institute of Chemistry, Chinese Academy of Sciences, Fudan University. Drafters of this standard .Zhao Zhijuan, Ding Xunmin, Wu Yang, Yu Ling, Liu Fen, Zhang Xiaoyu. This standard replaces the standards previously issued as. --- GB/T 22571-2008.IntroductionX-ray photoelectron spectroscopy (XPS) is widely used for surface analysis of materials. The elements of the sample (except hydrogen and helium) can be measured The photoelectron-determined core energy level binding can be identified by comparing the elements corresponding to these energies given in the table. Chemistry about these elements The state information can be derived from the chemical shifts of the characteristic peaks of photoelectrons and Auger electrons relative to the reference state. Identify the chemical state required for chemical position The measurement accuracy of the shift is 0.1 eV; therefore, measurements should be made on a one-by-one basis with a sufficiently accurate reference source. Thus requiring the XPS spectrometer Of the combined energy scale calibration, the uncertainty needs to reach 0.2eV or less. The method uses a calibrated spectrometer combined energy scale with pure copper (Cu), silver (Ag) and gold (Au) metal samples for the configuration of non-monochromated aluminum (Al) or magnesium (Mg) X-rays or monochromatic AlX rays. Its effective binding energy range of 0eV ~ 1040eV. XPS spectrometers that may be required to provide analyzes that meet the requirements of GB/T 27025 (ISO 17025) [1] and that are calibrated for other purposes Have a statement that estimates the uncertainty of the calibration. These instruments are limited to obtaining a measure of their binding energy within a certain tolerance limit ± δ calibration. The value of δ is not specified in this standard because it depends on the application and design of the XPS spectrometer. The value of δ is based on the user of this standard Use standard experience, instrument calibration stability, the uncertainty the instrument needs to perform the binding energy measurement in the intended application, and perform calibration The amount of work required to choose. This standard provides information that can be used to select the appropriate δ value. In general, δ is greater than or equal to 0.1 eV and large 4 times the standard deviation of repeatability σR. In a well calibrated state, taking into account the instrument drift over time, the discrepancy of the reference binding energy value The 95% confidence level plus the calibration uncertainty must not exceed the selected tolerance limit. Before the spectrometer may be out of calibration, it should be recalibrated Maintain a good state. A spectrometer is recalibrated, meaning that it has been calibrated and measures taken to reduce the measurement and reference values Difference. This difference does not have to be reduced to zero, but it is usually reduced to a fraction of the tolerance limit required for this type of analysis. This standard does not consider all the possible defects of the instrument itself, because the required test can be very time-consuming, and need both professional knowledge and equipment. This standard is only intended to address the basic commonalities in the XPS spectrometer combined with the calibration of energy standards. Surface Chemical Analysis X - ray Photoelectron Spectroscopy Calibration of energy ruler1 ScopeThis standard specifies a method for the general purpose of analysis X-ray photoelectron spectrometer calibration with energy scale, the spectrometer used Monochromatic Al or MgX rays or monochromatic AlX rays. It is only suitable for instruments with sputter-cleaning ion guns. This standard also Further specifies a method to establish a calibration procedure, in the middle of a certain energy value test combined with the linearity of the scale, in the high and low binding energy District to take a little to confirm the uncertainty of the calibration of the ruler, the minor drift of the ruler to be amended and the provisions of the 95% confidence level when the combined energy ruler Calibration of the extended uncertainty. This uncertainty includes the contribution from the phenomena observed in laboratory studies, but does not cover all Can occur defects. This standard does not apply to the following instruments. Combined with the energy of the rod error significantly different with the energy change, the work in the solid The constant reduction ratio mode with the reduction ratio less than 10 has a resolution of less than 1.5eV or a tolerance of ± 0.03eV or less. this The standard does not provide a full scale calibration test, which verifies every point found on the energy ruler, as instructed by the instrument manufacturer Recommended procedures.2 Normative referencesThe following documents for the application of this document is essential. For dated references, only the dated version applies to this article Pieces. For undated references, the latest edition (including all amendments) applies to this document. ISO 18115-1 Glossary of surface chemical analysis - Part 1. General terms and spectroscopy terms (Surfacechemical analysis-Vocabulary-Part 1.Generaltermsandtermsusedinspectroscopy)3 symbols and abbreviationsThe following symbols and abbreviations apply to this document. a Measured energy ratio error b Measured zero offset error in eV Ecorr The corrected binding energy results for a given Emeas in eV Eelem element of a frequently-measured binding energy, the value of the binding energy in the ruler has been set, after calibration can accurately read Out, the unit is eV Emeas measured binding energy in eV Emeasn Average binding energy measured in Table 2 for the nth peak in eV Emeasni Table 2, the nth peak of a group of binding energy measurement in one of the units eV Erefn Reference value of the nth peak in Table 2 on the binding energy scale in eV The full width at half the maximum peak strength above the FWHM background, in eV j The number of repeated measurements of a new peak k Duplication of Au4f7/2, Cu2p3/2, and Ag3d5/2 (or CuL3VV) peaks in determining repeatability standard deviation and linearity The number of measurements m Number of repeated measurements of Au4f7/2 and Cu2p3/2 during periodic calibration n Table 2 identifies the label of the peak tx "Student" t value over x degrees of freedom distributed on both sides at 95% confidence ......Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of GB/T 22571-2017_English be delivered?Answer: Upon your order, we will start to translate GB/T 22571-2017_English as soon as possible, and keep you informed of the progress. The lead time is typically 3 ~ 5 working days. The lengthier the document the longer the lead time.Question 2: Can I share the purchased PDF of GB/T 22571-2017_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 22571-2017_English will be deemed to be sold to your employer/organization who actually pays for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. If you need your currency to be printed on the invoice, please write an email to Sales@ChineseStandard.net. In 2 working-hours, we will create a special link for you to pay in any currencies. Otherwise, follow the normal steps: Add to Cart -- Checkout -- Select your currency to pay.Question 5: Should I purchase the latest version GB/T 22571-2017?Answer: Yes. Unless special scenarios such as technical constraints or academic study, you should always prioritize to purchase the latest version GB/T 22571-2017 even if the enforcement date is in future. Complying with the latest version means that, by default, it also complies with all the earlier versions, technically. |
