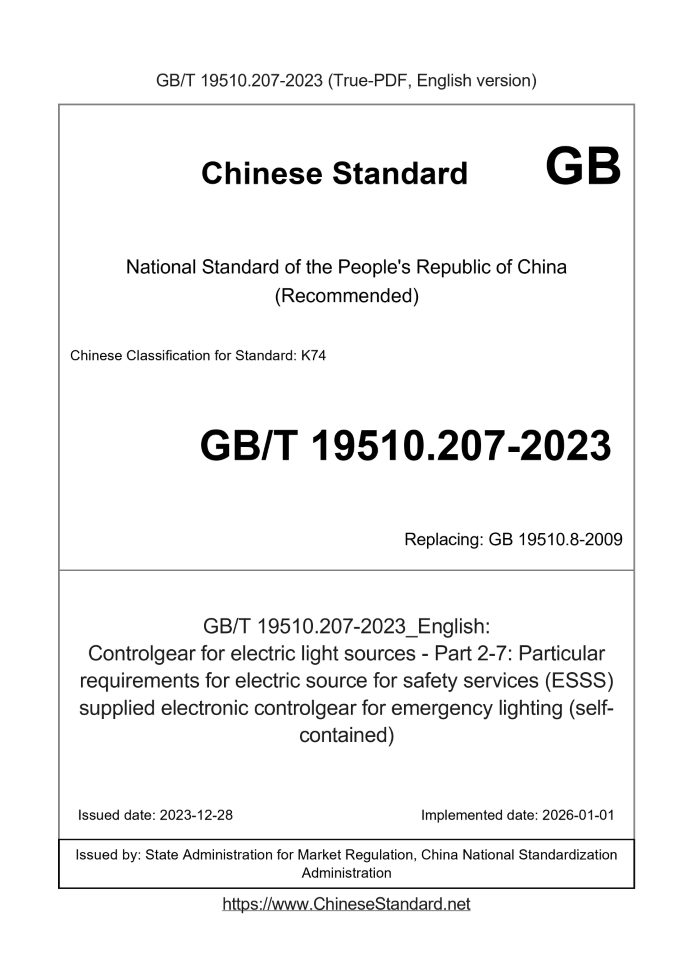

GB/T 19510.207-2023 English PDFUS$1009.00 · In stock
Delivery: <= 7 days. True-PDF full-copy in English will be manually translated and delivered via email. GB/T 19510.207-2023: Controlgear for electric light sources - Part 2-7: Particular requirements for electric source for safety services (ESSS) supplied electronic controlgear for emergency lighting (self-contained) Status: Valid
Basic dataStandard ID: GB/T 19510.207-2023 (GB/T19510.207-2023)Description (Translated English): Controlgear for electric light sources - Part 2-7: Particular requirements for electric source for safety services (ESSS) supplied electronic controlgear for emergency lighting (self-contained) Sector / Industry: National Standard (Recommended) Classification of Chinese Standard: K74 Classification of International Standard: 29.140.99 Word Count Estimation: 50,520 Date of Issue: 2023-12-28 Date of Implementation: 2026-01-01 Older Standard (superseded by this standard): GB 19510.8-2009 Issuing agency(ies): State Administration for Market Regulation, China National Standardization Administration GB/T 19510.207-2023: Controlgear for electric light sources - Part 2-7: Particular requirements for electric source for safety services (ESSS) supplied electronic controlgear for emergency lighting (self-contained)---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order. ICS 29:140:99 CCSK74 National Standards of People's Republic of China Replace GB 19510:8-2009 Light source control devices Part 2-7: Emergency lighting (Self-contained) Safety Service Power Supply (ESSS) Special requirements for power supply electronic control devices Published on 2023-12-28 and implemented on 2026-01-01 State Administration for Market Regulation Released by the National Standardization Administration Committee Table of contentsPreface III Introduction V 1 Scope 1 2 Normative references 1 3 Terms and Definitions 2 4 General requirements 4 5 General requirements for testing 5 6 Category 5 7 signs 5 8 Measures to prevent accidental contact with live parts 7 9 Terminal 7 10 Protective grounding regulations 7 11 Moisture proof and insulation 7 12 Electrical strength 7 13 Heat resistance test of control device windings 8 14 blank 8 15 Startup status 8 16 Lamp current 8 17 Supply current 8 18 Maximum current of any lead (with preheated cathode) 8 19 Lamp operating current waveform 8 20 Functional safety (EBLF, EOFX) 9 21 Conversion function 11 22 Charging device 12 23 Over-discharge protection 15 24 indicator 16 25 Remote control, sleep mode, suppression mode 16 26 Temperature cycle test and durability test 17 27 Polarity reverse 17 28 Fault status 17 29 Structure 17 30 Creepage distances and clearances18 31 Screws, current-carrying parts and connections18 32 Heat resistance, fire resistance and marking resistance18 33 Corrosion resistance 18 34 Lamp abnormal status 18 35 Protection of related parts 22 Appendix A (Normative) Tests to determine whether conductive parts are live parts that may cause electric shock 23 Appendix B (normative) Special requirements for thermally protected control devices 24 Appendix C (normative) Special requirements for light source electronic control devices with thermal protectors 25 Appendix D (Normative) Heating test requirements for thermally protected control devices 26 Appendix E (Normative) Application of constant S different from 4500 in tw (winding temperature) test 27 Appendix F (Normative) Windshield 28 Appendix G (normative) Derivation method of pulse voltage value 29 Appendix H (Normative) Test 30 Appendix I (normative) ESSS 31 for emergency lighting fixtures Appendix J (informative) Sleep mode and inhibit mode devices 32 Appendix K (Normative) Control device with automatic test function for emergency lighting work 33 Appendix L (informative) Compatibility of normal power supply electronic control device and ESSS power supply emergency operation control device 36 Appendix M (Informative) Example of battery manufacturer’s lithium battery design statement39 Reference 41 Figure 1 Applicable circuit for measuring lamp current and luminous flux10 Figure 2 Rectification effect test circuit 19 Figure 3 Test circuit 20 to determine whether the control device can withstand arc tube gas leakage Figure 4 Test circuit for whether the control device can withstand the rectified waveform 21 Figure L:1 Timing diagram: conversion work 37 Figure L:2 Functional test supply voltage 38 Table 1 Battery discharge unit voltage 12 Table 2 Voltage, current and temperature values of battery cells14 Table 3 Relationship between effective value voltage and peak voltage 22 Table K:1 Relevant requirements of IEC 62034:201233 Table M:1 Example of lithium battery design statement from a battery manufacturer39ForewordThis document complies with the provisions of GB/T 1:1-2020 "Standardization Work Guidelines Part 1: Structure and Drafting Rules of Standardization Documents" Drafting: This document is Part 2-7 of GB/T 19510 "Light Source Control Device": GB/T 19510 has published the following parts: ---Part 1: General requirements and safety requirements; ---Part 2-1: Special requirements for starting devices (except glow starters); ---Part 2-2: Special requirements for DC/AC electronic buck converters for tungsten lamps; ---Part 2-3: Special requirements for AC and/or DC electronic control devices for fluorescent lamps; ---Part 2-7: Special requirements for electronic control devices powered by safety service power supply (ESSS) for emergency lighting (self-contained); ---Part 2-8: Special requirements for ballasts for fluorescent lamps; ---Part 2-9: Special requirements for electromagnetic control devices for discharge lamps (except fluorescent lamps); ---Part 2-10: Special requirements for electronic inverters and frequency converters for high-frequency cold start tubular discharge lamps (neon lamps); ---Part 2-11: Special requirements for miscellaneous electronic circuits used with lamps; ---Part 2-12: Special requirements for DC or AC electronic ballasts for discharge lamps (except fluorescent lamps); ---Part 2-13: Special requirements for DC or AC electronic control devices for LED modules: This document replaces GB 19510:8-2009 "Lamp control devices - Part 8: Special requirements for DC electronic ballasts for emergency lighting" "Requirements", compared with GB 19510:8-2009, in addition to structural adjustments and editorial changes, the main technical changes are as follows: ---The scope of application of this document has been changed to make it only for safety service power supplies for self-contained emergency lighting used in non-central power supplies: (ESSS) Standard for power supply electronic control devices (see Chapter 1, Chapter 1 of GB 19510:8-2009); ---Added the content of automatic test function (see Chapter 4 ~ Chapter 7 and Appendix K); ---Added the terms automatic test function, emergency output factor, emergency output current, rest mode, remote suppression mode, and deleted the terms Ballast lumen coefficient and starting aids (see Chapter 3, Chapter 3 of GB 19510:8-2009); ---The number of samples that can be used for Chapter 15 tests has been increased to 3, and "new samples of the type matching the control device should be submitted" “ESSS or ESSS of the type specified by the manufacturer of the control device” (see Chapter 5); ---Added "automatic test function classification" (see Chapter 6); ---Added "Identification symbols for control devices that comply with this document and control devices with automatic test functions", and added a new Chapter 35 Statement of the maximum operating voltage (see 7:1); ---Added the information needed to select the correct battery and (electric double layer capacitor) (EDLC), and added the emergency input of the LED control device Parameter information of output factors and output parameters, information on the installation and use of the automatic test function, sleep mode and remote Suppression mode allows dwell time information (see 7:2); ---Deleted the "pulse voltage of ballast common system" and changed it to "blank" section (see Chapter 14 of GB 19510:8-2009); ---Changed the battery voltage characteristics to support EBLF testing and added requirements for LED control devices and other light control devices (see Chapter 20, Chapter 20 of GB 19510:8-2009); ---Added new types of batteries and EDLC discharge voltage requirements, added "battery discharge characteristics" and "light failure", added lithium The requirements for battery charging devices have added requirements for voltage, current and temperature values of various types of batteries (see Chapter 22); ---Added specific requirements for preventing polarity change and over-discharge for different battery types (see Chapter 23); ---Added the contents of rest mode and suppression mode (see Chapter 25); ---Added "The operation of the control device in emergency mode should not be affected by short circuit, contact with the ground wire, or connection to the normal power line of the control device: "The impact of circuit interruption" and "For lithium batteries, the values of Vmax and Imax in Table 2 or the battery manufacturer's design statement should not be exceeded: "specified value" (see 28:2, 28:3); ---Added "Lamp Abnormal Status", specifying the abnormal status of each type of lamp respectively (see Chapter 34); ---Added "protection of related components" (see Chapter 35); ---Added Appendix K "Control device with automatic test function for emergency lighting work" and Appendix L "Normal power supply operating circuit" Compatibility of sub-control devices and ESSS power supply emergency work control devices”: This document is modified to adopt IEC 61347-2-7:2021 "Lamp control devices Part 2-7: Safety for emergency lighting (self-contained safety)" Special requirements for electronic control devices powered by service power supplies (ESSS): Compared with IEC 61347-2-7:2021, this document has made the following structural adjustments: ---Table 2 corresponds to Table 3 in IEC 61347-2-7:2021; ---Table 3 corresponds to Table 2 in IEC 61347-2-7:2021; ---25:6a) and 25:6b) correspond to 25:6:1 and 25:6:2 in IEC 61347-2-7:2021; ---34:1a), 34:1b) and 34:1c) correspond to 34:1:1, 34:1:2 and 34:1:3 in IEC 61347-2-7:2021: The technical differences between this document and IEC 61347-2-7:2021 and their reasons are as follows: ---Replaced IEC 61347-1 with normatively cited GB/T 19510:1-2023 for ease of use; ---Replaced IEC 60598-2-22 with normatively cited GB/T 7000:222-2023 for ease of use; ---Replaced IEC 60929 with normatively cited GB/T 15144-2020 for ease of use: The following editorial changes have been made to this document: ---In order to coordinate with the existing standards, the name of the standard is changed to "Light source control device Part 2-7: Safety for emergency lighting (self-contained) Special requirements for electronic control devices powered by service power supplies (ESSS); ---Replaced IEC 61347-2-3 with the informative reference GB/T 19510:203-2023 (see Appendix L); ---Replaced IEC 61347-2-13 with the informative reference GB/T 19510:213-2023 (see 3:16): Please note that some content in this document may be subject to patents: The publisher of this document assumes no responsibility for identifying patents: This document is proposed by China Light Industry Federation: This document is under the jurisdiction of the National Lighting Appliances Standardization Technical Committee (SAC/TC224): This document was drafted by: Zhejiang Shanggang Lighting Co:, Ltd:, Foshan Huaquan Electric Lighting Co:, Ltd:, Beijing Electric Light Source Research Institute Co:, Ltd: Company, Xiamen Yatech Electronic Technology Co:, Ltd: The main drafters of this document: Lu Min, Zeng Haisheng, Zhang Bo, and Wang Huanhua: The previous versions of this document and the documents it replaces are as follows: ---First published as GB 19510:8-2005 in:2005, first revised in:2009;IntroductionWith the development of light source control device technology, the safety specifications of the previous version of the light source control device can no longer be adapted to meet the current light source control requirements: Technical requirements and product safety requirements of the device: Safety requirements ensure that electrical equipment is correctly installed, maintained and used in the manner intended Reduce harm to people, livestock or property: GB/T 19510 "Light Source Control Device" updates the technical and safety requirements to the regulations: It is of great significance to standardize light source control devices, reduce product safety risks, improve product quality, and enhance the competitiveness of our products: GB/T 19510 aims to standardize light source control devices and is intended to consist of the following parts: ---Part 1: General requirements and safety requirements: The purpose is to standardize the general requirements for control devices and their safety requirements: ---Part 2-1: Special requirements for starting devices (except glow starters): The purpose is to standardize starting devices (except glow starters) (external) special requirements for safety requirements: ---Part 2-2: Special requirements for DC/AC electronic step-down converters for tungsten lamps: The purpose is to standardize the direct use of tungsten filament lamps Special requirements for safety requirements of current/AC electronic buck converters: ---Part 2-3: Special requirements for AC and/or DC electronic control devices for fluorescent lamps: The purpose is to standardize AC for fluorescent lamps and/or special requirements for safety requirements of DC electronic control devices: ---Part 2-7: Special requirements for electronic control devices powered by safety service power supplies (ESSS) for emergency lighting (self-contained): Purpose Special requirements for regulating the safety requirements of electronic control devices powered by safety service power supplies (ESSS) for emergency lighting (self-contained): ---Part 2-8: Special requirements for ballasts for fluorescent lamps: The purpose is to standardize special safety requirements for ballasts for fluorescent lamps: Require: ---Part 2-9: Special requirements for electromagnetic control devices for discharge lamps (except fluorescent lamps): The purpose is to standardize discharge lamps (fluorescent lamps Except) special requirements for safety requirements for electromagnetic control devices: ---Part 2-10: Special requirements for electronic inverters and frequency converters for high-frequency cold start tubular discharge lamps (neon lamps): The purpose is Special requirements for regulating the safety requirements of electronic inverters and frequency converters for high-frequency cold start tubular discharge lamps (neon lamps): ---Part 2-11: Special requirements for miscellaneous electronic circuits used with lamps: The purpose is to standardize miscellaneous electronics used in conjunction with lamps Special requirements for line safety requirements: ---Part 2-12: Special requirements for DC or AC electronic ballasts for discharge lamps (except fluorescent lamps): The purpose is to regulate discharge Special requirements for the safety of DC or AC electronic ballasts for lamps (other than fluorescent lamps): ---Part 2-13: Special requirements for DC or AC electronic control devices for LED modules: The purpose is to standardize the use of LED modules Special requirements for safety requirements for DC or AC electronic control devices: This document is used together with GB/T 19510:1, which is revised after supplementing or modifying the corresponding provisions of GB/T 19510:1 made: This document and GB/T 19510:201~GB/T 19510:213 stipulate this when citing any clause of GB/T 19510:1: The scope of application of the clauses and the test sequence of each test are specified, and necessary supplementary requirements are specified: Each part of GB/T 19510 is independent Established without reference to each other to facilitate future revisions and revisions: If deemed necessary, new requirements will be added: Light source control devices Part 2-7: Emergency lighting (Self-contained) Safety Service Power Supply (ESSS) Special requirements for power supply electronic control devices1 ScopeThis document specifies the requirements for electronic control devices powered by safety service power supplies (hereinafter referred to as ESSS) for continuous and non-continuous emergency lighting: Special safety requirements: This document includes electronic control devices and control units for emergency lighting self-contained lamps described in GB/T 7000:222-2023 specific requirements: This document applies to control devices for fluorescent lamps and other types of lamps, such as incandescent lamps, high-intensity discharge lamps and LED lamps device: This document is applicable to the emergency mode operation of the control device: For the control device that combines normal lighting and emergency lighting operation, normal lighting The working aspects are specified in the corresponding Part 2 of the IEC 61347 series: DC powered electronic controls for emergency lighting may or may not contain a safety service power source (ESSS): This document does not apply to DC powered electronic control devices for emergency lighting connected to a central emergency power supply system: Central emergency power supply system The system can be a central battery system: Note: Appendix J of GB/T 19510:203-2023 is applicable to electronic control devices with AC, AC, DC or DC power supply connected to the central power supply emergency system: The central emergency power supply system is also used for emergency lighting work with AC and DC power supply:2 Normative reference documentsThe contents of the following documents constitute essential provisions of this document through normative references in the text: Among them, the dated quotations For undated referenced documents, only the version corresponding to that date applies to this document; for undated referenced documents, the latest version (including all amendments) applies to this document: GB/T 7000:222-2023 Luminaires Part 2-22: Special requirements for emergency lighting luminaires (IEC 60598-2-22:2021, MOD) GB/T 15144-2020 Performance requirements for AC and/or DC electronic control devices for tubular fluorescent lamps (IEC 60929:2015, IDT) GB/T 19510:1-2023 Light source control device Part 1: General requirements and safety requirements (IEC 61347-1:2017, MOD) tions) Note: GB/T 10682-2010 Performance requirements for double-ended fluorescent lamps (IEC 60081:2005, NEQ) tions) Note: GB/T 17262-2011 Performance requirements for single-ended fluorescent lamps (IEC 60901:2007, NEQ) requirements) ...... |
