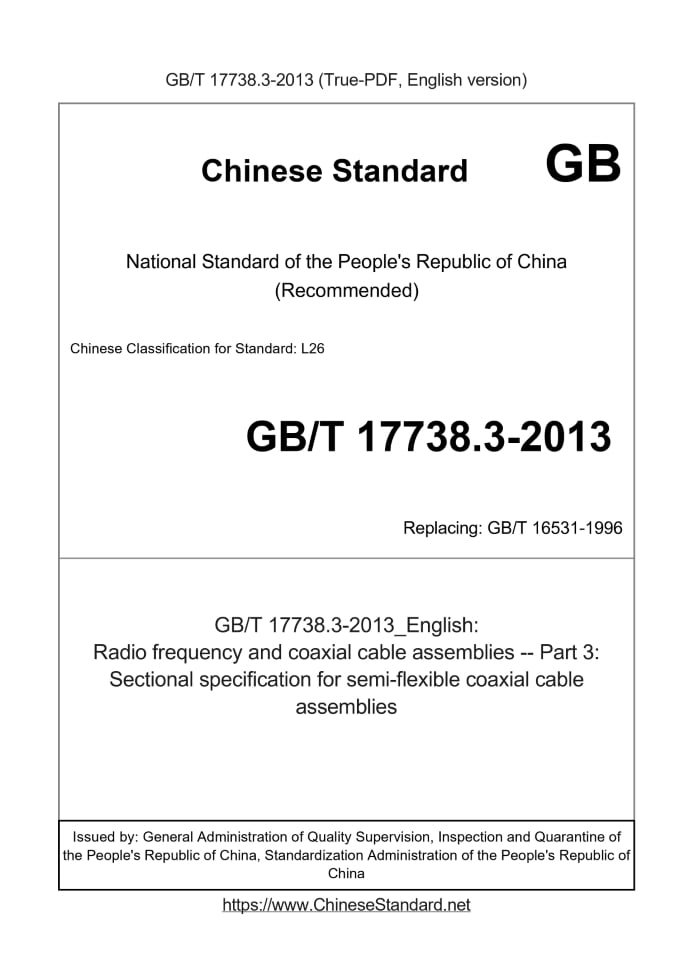

GB/T 17738.3-2013: Radio frequency and coaxial cable assemblies -- Part 3: Sectional specification for semi-flexible coaxial cable assemblies
Status: Valid

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 17738.3-2013	314	Add to Cart	3 days	Radio frequency and coaxial cable assemblies -- Part 3: Sectional specification for semi-flexible coaxial cable assemblies	Valid

Similar standards

GB/T 17737.104 GB/T 17737.103 GB/T 17738.2 GB/T 17737.10 GB/T 17737.11 GB/T 17737.113

Basic data

Standard ID: GB/T 17738.3-2013 (GB/T17738.3-2013)
Description (Translated English): Radio frequency and coaxial cable assemblies -- Part 3: Sectional specification for semi-flexible coaxial cable assemblies
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: L26
Classification of International Standard: 33.120.10
Word Count Estimation: 16,168
Older Standard (superseded by this standard): GB/T 16531-1996
Quoted Standard: GB/T 17738.1-2013; GB/T 19000-2008; IEC 60068-2-6; IEC 60410; IEC 61169-1; IEC 61169-2; IEC 61169-3; IEC 61169-14; IEC 61169-16; IEC 61169-18; IEC 61169-19; IEC 61169-24; IEC 61169-26; IEC 61169-29; IEC 61169-31; IEC 61169-32; IEC 61169-33; IEC 61169-35;
Adopted Standard: IEC 60966-3-2008, IDT
Regulation (derived from): National Standards Bulletin No. 25 of 2013
Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary: This standard specifies the semi-flexible coaxial cable assemblies (hereinafter referred to as cable assemblies) unified requirements for electrical, mechanical and environmental performance test by the semi-flexible coaxial cable and coaxial connectors c

GB/T 17738.3-2013: Radio frequency and coaxial cable assemblies -- Part 3: Sectional specification for semi-flexible coaxial cable assemblies

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Radio frequency and coaxial cable assemblies Part 3. Sectional specification for semi-flexible coaxial cable assemiblies ICS 33.120.10 L26 National Standards of People's Republic of China Replacing GB/T 16531-1996 RF coaxial cable assemblies Part 3. semi-flexible coaxial cable assemblies Part 3. Sectionalspecificationforsemi-flexiblecoaxialcableassemiblies (IEC 60966-3.2008, IDT) Issued on. 2013-12-17 2014-06-15 implementation Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China Standardization Administration of China released

Preface Ⅰ 1 Scope 1 2 Normative references 1 3 Terms and definitions 4 1 Design and construction requirements 5 processing quality, marking and packaging 2 6 Quality Assessment 3 7 General Test Method 3 8 Electrical Test 3 9 Mechanical Strength Test 4 10 Environmental Test 4 11 Specific test methods 6 6 12 test schedule

Foreword

GB/T 17738 "RF coaxial cable assembly" is divided into the following sections. --- Part 1. Generic specification and test methods - General requirements; --- Part 2. Sectional specification for flexible coaxial cable assemblies; --- Part 3. semi-flexible coaxial cable assemblies; --- Part 4. semi-rigid coaxial cable assemblies; This section GB/T 17738 Part 3. This section drafted in accordance with GB/T 1.1-2009 given rules. This Part replaces GB/T 16531-1996 "RF coaxial cable assemblies - Part 3. Sectional specification for semi-flexible coaxial cable assemblies." This portion of the GB/T 16531-1996, compared the main technical changes are as follows. --- Remove the division of the article; --- The "Range" and "purpose" into the "scope" (see Chapter 1, GB/T 16531-1996 in Chapters 1 and 2); --- "Normative references" added the corresponding national standards (see Chapter 2); --- Deleted the definition of a direct reference to the GB/T 17738.1-2013 terminology and definitions (see Chapter 3, GB/T Chapter 316531-1996's); --- Increasing the length of the cable assembly and the definition of the legend (see 4.3); --- Added "processing quality, marking and packaging" and "quality assessment" (see Chapters 5 and 6); --- Remove the phase varies with temperature (see GB/T 16531-1996 in 9.8); --- Remove the test voltage preferred value (see GB/T 16531-1996 in 9.10.1); --- Increased vibration test method (see 10.2.1); --- Deleted Specific test methods for the content, direct reference to GB/T 17738.1-2013 specified (see Chapter 11, GB/T Chapter 1216531-1996's); --- The "bending fatigue" to "bend durability" (see 9.3, GB/T 16531-1996 10.3); --- The "Torque" to "reverse" (see Table 1 and Table 2, GB/T 16531-1996 12.2); --- The "repeated bending" to "multiple bend" (see Table 1 and Table 2, GB/T 16531-1996 12.3); --- Added "Resistance to solvents and contaminating fluids", "dust test" and "flammable" pilot project (see Tables 1 and 2); --- Increasing the ability to choose the identification element (CQCs) guidelines (see 12.3). This section uses the translation method is equivalent to using IEC 60966-3.2008 "RF coaxial cable assemblies - Part 3. semi-flexible coaxial cable assemblies Specification. " This part made the following editorial changes. --- Remove the IEC foreword; --- Delete the reference standard IEC 60096-2 (see IEC 60966-3.2008, Chapter 2 and 4.1); --- The IEC of "greater than or equal to the length of cable 300mm" amended to "greater than or equal to the length of 300mm electric Cable assembly ", the" less than 300mm for the length of the cable "be amended to read" For less than 300mm length cable assembly "(see 4.3); --- The IEC of "flexible cable" is corrected to "semi-flexible cable" (see Chapter 1, Figure 2,12.3.2, Figure 4). --- In the IEC "cable portion of the cable assembly should be subjected to vibration in each direction three vertical" is corrected to "Cable Assemblies Shall be subjected to vibration in each direction three vertical "and corresponding amendments vibration test arrangement (see 10.2.1.1 And Fig. 3). Consistency correspondence between this part of international documents and normative references of our files are as follows. --- GB/T 2423.10-2008 Environmental testing for electric and electronic products Part 2. Test methods Test Fc. Vibration (sinusoidal) (IEC 60068-2-6.1995, IDT) --- GB/T 11313 (all parts) RF connectors [IEC 61169 (alparts)] --- GB/T 17737 (all parts) Coaxial communication cables [IEC 61196 (alparts)] Please note that some of the content of this section may involve patents. This part of the release mechanism does not assume the responsibility to identify these patents. This part is proposed by the Ministry of Industry and Information Technology of the People's Republic of China. This section is under the jurisdiction of the National electronic equipment with a high-frequency cables and connectors Standardization Technical Committee (SAC/TC190). This section is drafted. Tianjin Cable Co., Ltd. Liu ○ Jiu. The main drafters of this section. Zhangguo Ju, Pan Bing, Wu Zhengping. This part of the standard replaces the previous editions as. GB/T 16531-1996. RF coaxial cable assemblies Part 3. semi-flexible coaxial cable assemblies

1 Scope

GB/T 17738 provisions of this part of the semi-flexible coaxial cable assemblies by a semi-flexible coaxial cable and coaxial connector component (hereinafter He said cable assemblies) Uniform Requirements for electrical, mechanical and environmental performance testing. This part semi-flexible coaxial cable assemblies suitable for transmitting transverse electromagnetic (TEM) of. Note 1. For this section, always a cable assembly as a whole unit. All regulations apply only to the finished component does not apply to single and unassembled Complete sets of parts. Note 2. This section is supplemented by detailed specification, detail specification shall specify the additional details required for the application, the application is not necessary for the specific requirements of all Test.

2 Normative references

The following documents for the application of this document is essential. For dated references, only the dated version suitable for use herein Member. For undated references, the latest edition (including any amendments) applies to this document. GB/T 17738.1-2013 RF coaxial cable assemblies - Part 1. Generic specification - General requirements and test methods (IEC 60966-1.1999, IDT) GB/T 19000-2008 Quality Management System - Fundamentals and vocabulary (ISO 9000.2005, IDT) IEC 60068-2-6 Environmental testing - Part 2-6. Tests - Test Fc. Vibration (sinusoidal) (Environmentaltesting- Part 2-6. Tests-TestFc. Vibration (sinusoidal)) IEC 60410 inspection by sampling plans and procedures (Samplingplansandproceduresforinspectionbyattrib- utes) IEC 61169 (alparts) RF connectors (Radio-frequencyconnectors) IEC 61196 (alparts) Coaxial communication cables (Coaxialcommunicationcables) IEC QC001002 (alparts) IEC Quality Assessment System for Electronic Components (IEC Q) - Rules of Procedure (IEC QualityAs- sessmentSystemforElectronicComponents (IEC Q) -Rulesofprocedure)

3 Terms and Definitions

Terms and definitions GB/T 17738.1-2013 defined apply to file.

4 Design and construction requirements

Except for the following provisions, GB/T 17738.1-2013 Chapter 4 apply. Content with. 4.1 cable design and structure Cables should comply with the provisions of IEC 61196. When these standards need to be different cable design, they should comply with detailed specifications ......
