GB/T 17738.2-2013 PDF EnglishUS$150.00 · In stock · Download in 9 seconds
GB/T 17738.2-2013: Radio frequency and coaxial cable assemblies -- Part 2: Sectional specification for flexible coaxial cable assemblies Delivery: 9 seconds. True-PDF full-copy in English & invoice will be downloaded + auto-delivered via email. See step-by-step procedure Status: Valid

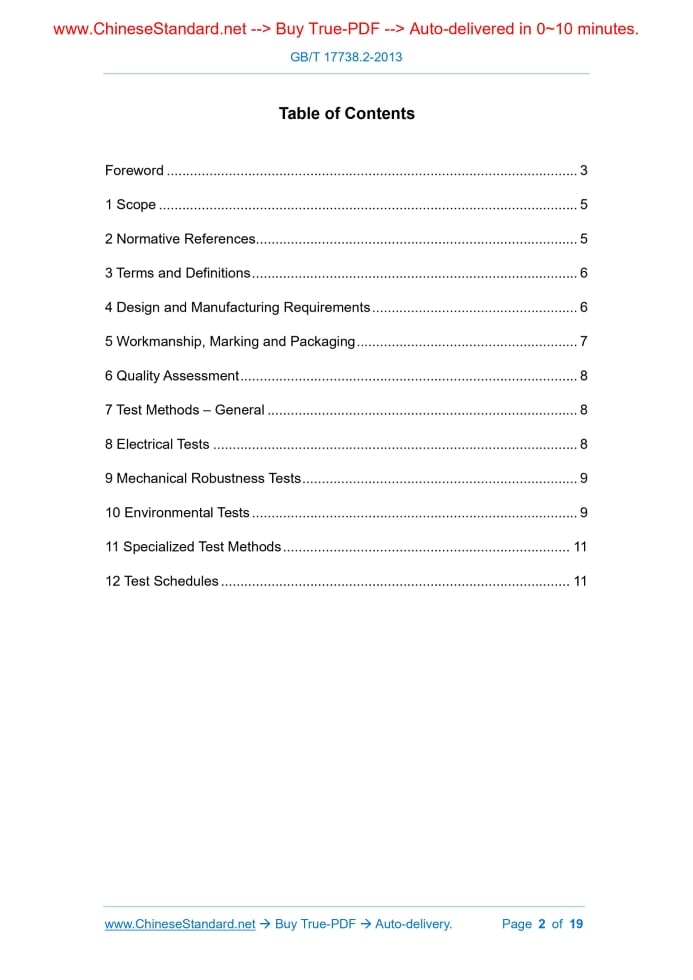

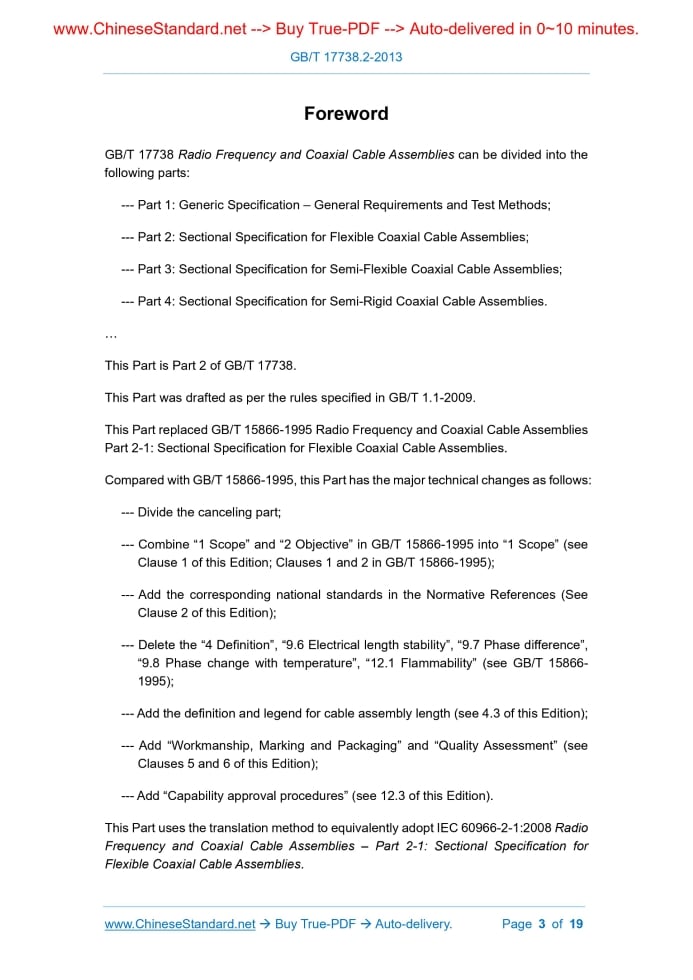

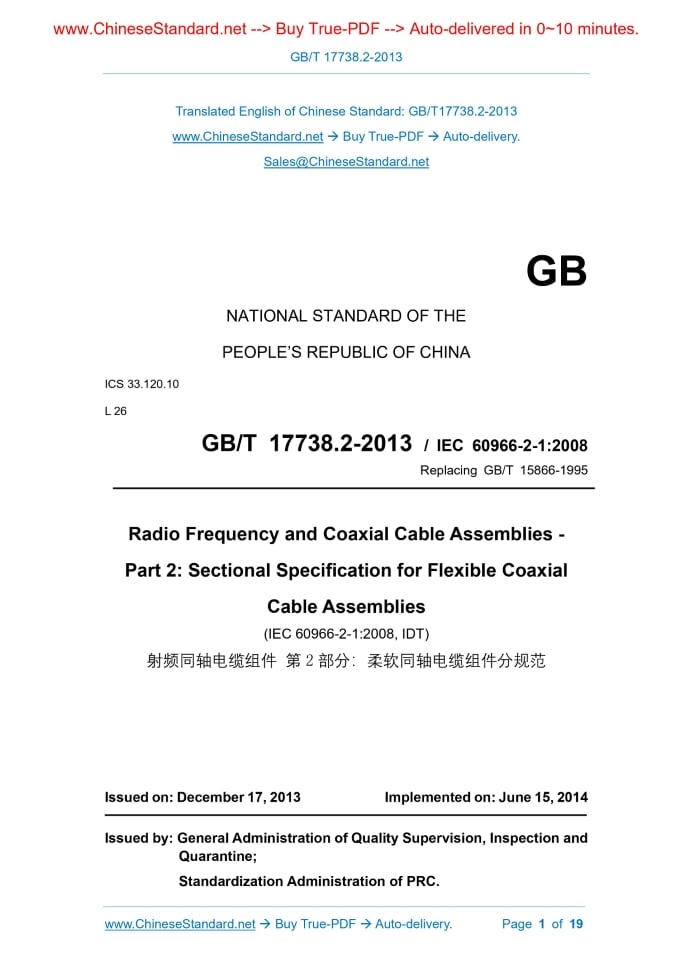

Similar standardsGB/T 17738.2-2013: Radio frequency and coaxial cable assemblies -- Part 2: Sectional specification for flexible coaxial cable assemblies---This is an excerpt. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.), auto-downloaded/delivered in 9 seconds, can be purchased online: https://www.ChineseStandard.net/PDF.aspx/GBT17738.2-2013 Radio frequency and coaxial cable assemblies.Part 2. Sectional specification for flexible coaxial cable assemblies ICS 33.120.10 L26 National Standards of People's Republic of China Replace GB/T 15866-1995 RF coaxial cable assembly Part 2. sectional specification for flexible coaxial cable assemblies Part 2. Sectionalspecificationforflexiblecoaxialcableassemblies (IEC 60966-2-1..2008, IDT) Released on.2013-12-17 2014-06-15 implementation General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China China National Standardization Administration issued Content Foreword I 1 Scope 1 2 Normative references 1 3 Terms and Definitions 1 4 Design and manufacturing requirements 1 5 Processing quality, signs and packaging 2 6 Quality Assessment 3 7 General Test Method 3 8 Electrical test 3 9 Mechanical strength test 4 10 Environmental Test 4 11 Special test methods 5 12 Test List 5 ForewordGB/T 17738 "RF coaxial cable assembly" is divided into the following parts. --- Part 1. General requirements and test methods for general specifications; --- Part 2. Soft coaxial cable assembly sub-specification; --- Part 3. Sub-standard for semi-flexible coaxial cable assemblies; --- Part 4. Sub-standards for semi-rigid coaxial cable assemblies; This part is the second part of GB/T 17738. This part is drafted in accordance with the rules given in GB/T 1.1-2009. This part replaces GB/T 15866-1995 "RF coaxial cable assemblies - Part 2-1. Soft RF coaxial cable assemblies. Fan. The main technical changes in this section compared with GB/T 15866-1995 are as follows. --- The division of the withdrawal article; --- Combine "1 Scope" and "2 purpose" in GB/T 15866-1995 into "1 Scope" (see Chapter 1, GB/T 15866-1995 Chapters 1 and 2); --- The corresponding national standards have been added to the "normative references" (see Chapter 2); --- Removed the "4 definition", "9.6 electrical length stability", "9.7 phase difference", "9.8 phase change with temperature" repeated with the general specification ", 12.1 flammability" (see GB/T 15866-1995); --- Added definition and legend of cable assembly length (see 4.3); --- Added "Processing Quality, Marking and Packaging" and "Quality Assessment" (see Chapters 5 and 6); --- Added "Capability Approval Process" (see 12.3). This section uses the translation method equivalent to IEC 60966-2-1.2008 "RF coaxial cable assemblies - Part 2-1. Soft RF coaxial Cable assembly sub-specification. This section has made the following editorial changes. --- Amend the IEC "for cables longer than or equal to 300mm" to "for electricity with a length greater than or equal to 300mm "Cable assembly"; "For cables less than 300mm" is amended to "For cable assemblies less than 300mm" (see 4.3). The documents of our country that have a consistent correspondence with the international documents referenced in this part are as follows. GB/T 2423.10-2008 Environmental testing for electric and electronic products - Part 2. Test method test Fc. Vibration (sinusoidal) (IEC 60068-2-6.1995, IDT); ---GB/T 11313 (all parts) RF connector [IEC 61169 (alparts)]; ---GB/T 17737 (all parts) RF cable [IEC 61196 (alparts)]; ---GB/T 19000-2008 Quality Management System Foundation and Terminology (ISO 9000.2005, IDT). Please note that some of the content in this section may involve patents. The issuing organization of this section does not assume responsibility for identifying these patents. This part was proposed by the Ministry of Industry and Information Technology of the People's Republic of China. This part is under the jurisdiction of the National High-Tech Cable and Connector Standardization Technical Committee for Electronic Equipment (SAC/TC190). This section drafted by. Xi'an Fujitec Technology Co., Ltd. The main drafters of this section. Zhan Shisheng, Wu Xiangwen, Wu Zhengping. The previous versions of the standards replaced by this section are. GB/T 15866-1995. RF coaxial cable assembly Part 2. sectional specification for flexible coaxial cable assemblies1 ScopeThis part of GB/T 17738 specifies a flexible coaxial cable assembly consisting of a flexible coaxial cable and a coaxial connector (hereinafter referred to as Cable assemblies) Uniform requirements for electrical, mechanical and environmental performance testing. This section applies to flexible coaxial cable assemblies that transmit transverse electromagnetic mode (TEM). Note 1. This part of the cable assembly is always considered as a unit. All regulations apply to finished components and are not suitable for single, unassembled Components. Note 2. This part should be supplemented by detailed specifications, which should specify additional details required for specific applications, and do not require specific requirements for specific applications. Some trials.2 Normative referencesThe following documents are indispensable for the application of this document. For dated references, only dated versions apply to this article. Pieces. For undated references, the latest edition (including all amendments) applies to this document. Radio frequency coaxial cable assemblies - Part 1. General specification and test methods (IEC 60966- 1.1999, IDT) GB/T 19000-2008 Quality Management System - Foundation and Terminology (ISO 9000.2005, IDT) IEC 60068-2-6 Environmental testing - Part 2-6. Test test Fc. Vibration (sinusoidal) (Environmental testing - Part 2-6. Tests- TestFc. Vibration(sinusoidal)) IEC 60410 count check sampling plan and program (Samplingplansandproceduresforinspectionbyattrib- Utes) IEC 61169 (alparts) RF connectors (Radio-frequencyconnectors) IEC 61196 (alparts) RF Cables (Coaxialcommunicationcables) IEC QC001002 (alparts) IEC Electronic Component Quality Assessment System (IEC Q) Rules of Procedure (QualityAssessment SystemforElectronicComponents(IEC Q-Rulesofprocedure)3 Terms and definitionsThe terms and definitions defined in GB/T 17738.1-1999 apply to this document.4 Design and manufacturing requirementsChapter 4 of GB/T 17738.1-2013 is applicable. Replace the content with. 4.1 Cable design and structure The cable should comply with IEC 61196. When cable designs other than these standards are required, they should conform to detailed specifications. Claim. Manufacturers may use additional protective tubes or cables other than IEC 61196 when required to meet detailed specification requirements. The materials used for the cable shall be given as engineering data in the detailed specification. 4.2 Connector design and structure The connector should be in accordance with IEC 61169. When a connector design different from IEC 61169 is required, the interface should conform The corresponding part of IEC 61169 (when applicable) shall meet the requirements of the detailed specification. The materials used in the connectors shall be given as engineering data in the detailed specifications. 4.3 Shape and interface dimensions The shape and interface dimensions shall be in accordance with the detailed specifications of the cable assembly. The length is defined as the distance between the reference plane of the two connectors and the reference plane, unless otherwise specified in the detailed specification. For right angle connectors, length It is the axis to the right angle connector (as shown in Figure 1). If not specified in the detailed specification, the length tolerance is ±1% for cable assemblies with a length greater than or equal to 300 mm; for small For 300mm cable assemblies, the length tolerance is ±3mm. Figure 1 Cable assembly length definition 5 Processing quality, marking and packaging Except as provided below, the provisions of Chapter 5 of GB/T 17738.1-2013 apply. 5.2 Mark supplement. The cable assembly manufactured in accordance with this section consists of a length of cable and two connectors. Cable assemblies are also available when specified in the detailed specification To include the identification of components and interconnects (see Figure 2). Terminal caps and other accessories can also be specified. Note. Sometimes the cable assembly consists of only a length of cable and a connector. a When specified. Figure 2 Cable assembly example6 Quality assessmentChapter 6 of GB/T 17738.1-2013 is applicable.7 general test methodsChapter 7 of GB/T 17738.1-2013 is applicable.8 Electrical testExcept as provided below, Chapter 8 of GB/T 17738.1-2013 is applicable. 8.1.4 What should be specified in the detailed specification supplement. The return loss (Ar) parameter should be preferred. It is also possible to specify a reflection coefficient (r) or a voltage standing wave ratio (VSWR). among them. Ar=-20log10 r VSWR= 1 r 1 r 8.4 Insertion loss stability Replace the content with. 8.4.1 Purpose The change in insertion loss is determined when the cable assemblies are subjected to bending and torsion, respectively. 8.4.2 Procedure 8.4.2.1 Bending The test is carried out in accordance with 8.6.2.1 of GB/T 17738.1-2013 and the insertion loss (not phase) is tested. 8.4.2.2 Reverse The test is carried out in accordance with 8.6.2.2 of GB/T 17738.1-2013 and the insertion loss (not phase) is tested. 8.4.4 What should be specified in the detailed specification Replace the content with. The following information should be given. a) The dynamic bending radius of the cable (radius of the mandrel). b) Perform a bending test according to Method 1 or Method 2. c) Test frequency. d) The maximum change in insertion loss.9 Mechanical strength testChapter 9 of GB/T 17738.1-2013 is applicable. 10 Environmental test Except as provided below, Chapter 10 of GB/T 17738.1-2013 is applicable. 10.2 Vibration, collision, impact Replace the content with. 10.2.1 Vibration 10.2.1.1 Procedure This test shall be carried out in accordance with the IEC 60068-2-6 test Fc. Except as otherwise specified in the detailed specification, the severity of vibration shall be selected from D.2.1 of GB/T 17738.1-2013. The preferred placement in the vibration test is shown in Figure 3. The cable assembly should be subjected to vibration in each of three vertical directions, one of which The vertical direction should be parallel to the common axis of the connector. The continuity of the inner and outer conductors should be monitored during the test. Figure 3 Priority placement in vibration test 10.2.1.2 Requirements Cable assemblies shall be free from obvious cracks, damage and loose parts, and shall not exceed 1 μs electrical discontinuity. After the test, the insertion loss and return loss should not exceed the specified limits. 10.2.1.3 What should be specified in the detailed specification The following information should be given. a) Installation and fixing details for cable assemblies. Note. The cable length between the mounting plate and the mounting plate is an important variable related to the diameter. The fixing plate should be steel. b) The curve and severity of the vibration, including duration, frequency range and acceleration amplitude or displacement amplitude. 10.2.2 Collision This test shall be specified in the detailed specification when required. For the recommended severity level, see D.2.2 in GB/T 17738.1-2013. 10.2.3 Impact This test shall be specified in the detailed specification when required. For the recommended severity level, see D.2.3 in GB/T 17738.1-2013. 10.3.1 Procedure supplement. The severity of the test specified in D.2.4 of GB/T 17738.1-2013 should be preferred. 10.4.1 Procedure supplement. The severity of the test is shown in D.2.5 of GB/T 17738.1-2013. 10.5.1 Procedure supplement. The severity of the test is shown in D.2.6 of GB/T 17738.1-2013. 11 special test methods Chapter 11 of GB/T 17738.1-2013 is applicable. 12 test list Except as provided below, Chapter 12 of GB/T 17738.1-2013 is applicable. Replace the content with. 12.1 Overview In addition to the electrical, mechanical and environmental test requirements, the detailed specification shall also specify the test items to be carried out and the corresponding inspection level and Quality level and cycle. Wherever possible, the complete test group (eg Eb, Ep, Vt) in Table 1 should be specified instead of a single test. Table 1 Standard test grouping Recommended test group Group clause test project Recommended severity Period IL AQL nc Ba 7.2 Visual inspection batch by batch S3 4.0 7.3 Dimensional Inspection Batch by Batch S3 4.0 Eh 8.1 Reflection characteristics batch by batch II 1.0 8.3 Insertion loss by batch II 1.0 8.4 Insertion Loss Stability 3 years S3 4.0 Eb 8.10 Withstand voltage batch by batch II 1.0 8.11 Insulation resistance batch by batch II 1.0 8.12 Inner and outer conductor continuity batch by batch II 1.0 Ez 8.2 Impedance uniformity batch by batch II 1.0 Ep 8.5 Propagation time 100% by batch 2 8.6 Electrical length stability 1 year S3 4.0 8.7 Phase difference batch by batch 100% 2 8.8 Phase change with temperature 3 years a - 3 0 1 Ee 8.9 Shielding efficiency 3 years a - 3 0 Mn 9.1 Tension 3 years a - 3 0 1 9.2 Bending 3 years S3 4.0 9.3 Bending durability 3 years S3 4.0 9.4 Cable Assembly Compression for 3 Years S3 4.0 Vv 10.2 Vibration, collision, impact 3 years a - 3 0 Vc 10.3 Climate sequence 3 years a - 3 0 Vt 10.4 Steady-state damp heat for 3 years a - 10.5 Temperature changes rapidly for 3 years a - 10.6 Solvent resistant and contaminated fluid for 1 year a - 10.8 Salt spray and sulfur dioxide for 1 year a - Vf 10.7 Immersion for 3 years a - 10.9 Dustproof 3 years a - 10.10 Flammability for 3 years a - n---the number of test samples; c---the number of qualified judgments; IL---check level according to IEC 60410; AQL---Qualified quality level according to IEC 60410. Note 1. If the manufacturer wishes to perform separate simulation tests on the connectors and cables instead of these tests, he should prove these tests to the ordering party. The verification enables the requirements of the detailed specification to be met at the final stage of the inspection (12.3.4 of the IEC QC001002 amendment). Note 2. Only one of tests 8.5 or 8.7 is specified. a The periodic test shall be completed on the CQC (Capability Identification Element) jointly determined by the ordering party and the supplier. 12.2 Appraisal Approval Process 12.2.1 List of Recommended Identification Tests A list of recommended qualification tests is given in Table 2. Table 2 Test List Test group clause test project Sample Ba 7.2 7.3 Visual inspection Dimensional inspection × × × × × × Eh 8.1 8.3 8.4 Reflection characteristics Insertion loss Insertion loss stability × × × × × × Eb 8.10 8.11 8.12 Withstand voltage Insulation resistance Inner and outer conductor continuity × × × × × × Ez 8.2 Impedance uniformity × × Ep 8.5 8.6 8.7 8.8 Spread time Electrical length stability Phase difference Phase change with temperature × × Ee 8.9 Shielding efficiency × Mn 9.1 Tension × 9.2 Bending × 9.3 Bending durability × 9.4 Cable assembly compression × Vv 10.2 Vibration, collision, impact × Vc 10.3 Climate Order × × Vt 10.4 10.5 10.6 10.8 Steady state damp heat Rapid temperature change Solvent resistant and contaminated fluid Salt spray and sulfur dioxide × × Vf 10.7 10.9 10.10 Soaking water dust-proof Flammability 12.3 Capacity Approval Process 12.3.1 Preface The following clauses are intended to provide guidance for the selection of probabilistic elements (CQCs). The guide is presented as an example of a flow chart (see Figure 4) (see Table 3 for CQCs for processes and their definitions). The actual CQCs used should be specified in the Capability Manual (CM) (see E.3.2 of GB/T 17738.1-2013). 12.3.2 Example of production flow chart for flexible cable assembly Figure 4 Example of a production flow chart for a flexible cable assembly 12.3.3 CQCs Task Assignment Table 3 CQCs task assignment design The design should be within the defined scope, which should be Defining CQCs for verification Purchasing is verified according to GB/T 19000 Cable manufacturing CQCs, according to the relevant cable specifications Connectors manufacture CQCs, according to the relevant connector specifications test CQCNo.aaa CQCNo.bbb CQCNo.ccc Right angle connector High frequency cable Parts Cable preparation CQCNo.ddd Connector preparation CQCNo.eee Sign preparation CQCNo.fff Assembly Inner conductor Outer conductor Additional armor Process CQCNo.ggg (welding, crimping, clamping) Process CQCNo.hhh (welding, crimping, clamping) Verified by defined CQCs Final test Approved according to GB/T 19000 and is defined Measurement on CQCS for verification Packaging and transportation verified according to GB/T 19000 12.3.4 Purpose of defined CQCs The purpose of the defined CQCs is to give evidence of the scope of the statements listed in Table 1 and the characteristics of any other claims. The choice of CQCs should consider the interdependencies between the characteristics. CQCNo.aaa The purpose of this CQC is to prove that when the manufacturer does not purchase a connector with capability approval or qualification approval, it has Have the ability to complete connector inspection. This CQC consists of the smallest right angle connector for cable assemblies within the capability approval range. CQCNo.aaa recommended test list. Cycle 1 year ---Dimensional inspection ---Surface treatment (plating, thickness) ---Inner conductor retention CQCNo.bbb The purpose of this CQC is to prove that if the manufacturer does not purchase a cable that has the capability approval or qualification approval certificate, Have the ability to complete cable inspection. This CQC consists of the standard length or maximum length of cable allowed by the CM to achieve the highest frequency characteristic measurement. CQCNo.bbb recommended test list. Cycle 1 year --- Characteristic impedance --- Return loss ---attenuation ---Dimensional inspection CQCNo.ccc The purpose of this CQC is to demonstrate that the manufacturer has the ability to perform inspections on components that affect the performance of the finished cable assembly. This CQC should be a consumable part intended for use in cable assemblies. The selection of this CQC and its test schedule shall be determined by the manufacturer and the National Monitoring and Inspection Agency (NSI). CQCNo.ddd The purpose of this CQC is to demonstrate that manufacturers have the ability to cut cables and prepare cable ends. This CQC should be one of the CM statements The toughest cable in the segment (ie the smallest cable with wrap, foam or solid media). Recommended test list for CQCNo.ddd. Cycle 1 year ---Visual inspection ---No scratches or shrinkage ---No grooves ---Dimensional inspection --- Stripping size CQCNo.eee The purpose of this CQC is to prove that the manufacturer has prepared on the components of the connector declared by the CM (for example. bulk connectors) ability. This CQC consists of parts taken from CQCNo.aaa. The selection of this CQC and its test schedule shall be determined by the manufacturer and the National Monitoring and Inspection Agency (NSI). CQCNo.fff The purpose of this CQC is to demonstrate that manufacturers have the ability to obtain clear and durable labels. This CQC consists of all the techniques within the scope of capability approval specified in the CM. Recommended test list for CQCNo.fff. Cycle 1 year ---Dimensional inspection ---Sharpness ---Solvent resistant ---abrasion CQCNo.ggg The purpose of this CQC is to demonstrate that the manufacturer has any method declared in the CM between the inner conductor of the cable and the inner conductor of the connector. Provide the ability to make good contact. This CQC consists of a minimum gauge cable with stranded inner conductors (if any) and uses the soldering or crimping method stated in CM Attached to the relevant internal contact components. In the case of welding, the CM should specify how to train the operator. CQCNo.ggg recommended test list. Cycle 1 year ---tensile strength ---Contact resistance ---Visual inspection CQCNo.hhh The purpose of this CQC is to demonstrate that the manufacturer has any method declared in the CM between the outer conductor of the cable and the outer conductor of the connector. Provide the ability to make good contact. This CQC is attached by a cable of each type of outer conductor declared in the CM and attached using soldering or crimping methods as stated in the CM On the composition of the external contact. In the case of welding, the CM should specify how to train the operator. CQCNo.hhh recommended test list. Cycle 1 year ---tensile strength ---Contact resistance ---Visual inspection ......Source: Above contents are excerpted from the full-copy PDF -- translated/reviewed by: www.ChineseStandard.net / Wayne Zheng et al. Tips & Frequently Asked Questions:Question 1: How long will the true-PDF of English version of GB/T 17738.2-2013 be delivered?Answer: The full copy PDF of English version of GB/T 17738.2-2013 can be downloaded in 9 seconds, and it will also be emailed to you in 9 seconds (double mechanisms to ensure the delivery reliably), with PDF-invoice.Question 2: Can I share the purchased PDF of GB/T 17738.2-2013_English with my colleagues?Answer: Yes. The purchased PDF of GB/T 17738.2-2013_English will be deemed to be sold to your employer/organization who actually paid for it, including your colleagues and your employer's intranet.Question 3: Does the price include tax/VAT?Answer: Yes. Our tax invoice, downloaded/delivered in 9 seconds, includes all tax/VAT and complies with 100+ countries' tax regulations (tax exempted in 100+ countries) -- See Avoidance of Double Taxation Agreements (DTAs): List of DTAs signed between Singapore and 100+ countriesQuestion 4: Do you accept my currency other than USD?Answer: Yes. www.ChineseStandard.us -- GB/T 17738.2-2013 -- Click this link and select your country/currency to pay, the exact amount in your currency will be printed on the invoice. Full PDF will also be downloaded/emailed in 9 seconds.How to buy and download a true PDF of English version of GB/T 17738.2-2013?A step-by-step guide to download PDF of GB/T 17738.2-2013_EnglishStep 1: Visit website https://www.ChineseStandard.net (Pay in USD), or https://www.ChineseStandard.us (Pay in any currencies such as Euro, KRW, JPY, AUD).Step 2: Search keyword "GB/T 17738.2-2013". Step 3: Click "Add to Cart". If multiple PDFs are required, repeat steps 2 and 3 to add up to 12 PDFs to cart. Step 4: Select payment option (Via payment agents Stripe or PayPal). Step 5: Customize Tax Invoice -- Fill up your email etc. Step 6: Click "Checkout". Step 7: Make payment by credit card, PayPal, Google Pay etc. After the payment is completed and in 9 seconds, you will receive 2 emails attached with the purchased PDFs and PDF-invoice, respectively. Step 8: Optional -- Go to download PDF. Step 9: Optional -- Click Open/Download PDF to download PDFs and invoice. See screenshots for above steps: Steps 1~3 Steps 4~6 Step 7 Step 8 Step 9 |
