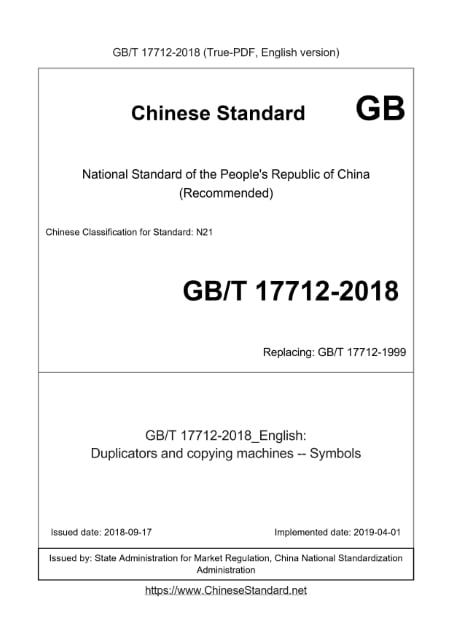

GB/T 17712-2018: Duplicators and copying machines -- Symbols
Status: Valid

GB/T 17712: Historical versions

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 17712-2018	359	Add to Cart	4 days	Duplicators and copying machines -- Symbols	Valid
GB/T 17712-1999	799	Add to Cart	4 days	Duplicator and document copying machines. Symbols	Obsolete

Similar standards

GB/T 15284 NB/T 10641 GB/T 17215.321 GB/T 43343 GB 43067

Basic data

Standard ID: GB/T 17712-2018 (GB/T17712-2018)
Description (Translated English): Duplicators and copying machines -- Symbols
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: N21
Classification of International Standard: 01.080.20
Word Count Estimation: 18,137
Date of Issue: 2018-09-17
Date of Implementation: 2019-04-01
Older Standard (superseded by this standard): GB/T 17712-1999
Issuing agency(ies): State Administration for Market Regulation, China National Standardization Administration

GB/T 17712-2018: Duplicators and copying machines -- Symbols

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Duplicators and copying machines - Symbols ICS 01.080.20 N21 National Standards of People's Republic of China Replace GB/T 17712-1999 Speed printer and copier graphic symbol Published on.2018-09-17 Implementation of.2019-04-01 State market supervision and administration China National Standardization Administration issued

Content

Foreword III 1 Scope 1 2 Normative references 1 3 graphic symbol drawing rule 1 4 Position and direction of graphic symbols 1 4.1 Position of the graphic symbol 1 4.2 Direction of graphic symbols 1 5 Identification of graphic symbol marks 1 6 graphic symbol table 2

Foreword

This standard was drafted in accordance with the rules given in GB/T 1.1-2009. This standard replaces GB/T 17712-1999 "speed printer and document copier graphic symbols", compared with GB/T 17712-1999, The main technical changes are as follows. --- Added a description of the standard applicable machine in the scope (see Chapter 1); ---Modified the title and guidance of the "normative reference file", updated the age number of GB/T 16902.1 and ISO 7000 (see Chapter 2, Chapter 2 of the.1999 edition); --- Removed the normative references such as GB/T 1252-1989, GB 2894-1996, GB/T 2682-1981 (see.1999) Chapter 2 of the edition); --- Added GB/T 16902.4-2017, IEC 60417DB..2016 normative references (see Chapter 2); --- Revised the principle of drawing graphic symbols (see Chapter 3, Chapter 3 of the.1999 edition); --- Removed "Application of GB/T 16273.1 and GB/T 5465.2" "Use of Color" and "Arrow Design" (see.1999 edition) Chapter 4, Chapter 6, Chapter 7); --- Added a textual description of the graphical symbol table description (see 6.1); ---Modified the classification of graphic symbols, from 11 types of 144 symbols to 6 types of 127 symbols, including 45 graphic symbols, delete There are 62 graphic symbols and 6 graphic symbols are modified (see Table 1 to Table 6 in Chapter 6 and Table 1 to Table 10 and Appendix A in.1999). This standard was proposed by the China Machinery Industry Federation. This standard is under the jurisdiction of the National Copy Machinery Standardization Technical Committee (SAC/TC147). This standard was drafted. Tianjin Copier Technology Research Institute, Shanghai Fuji Xerox Co., Ltd., Ideal (China) Science Industry Co., Ltd. Home Office Equipment and Consumables Quality Supervision and Inspection Center, Xiamen Yucheng Information Technology Co., Ltd. The main drafters of this standard. Bai Jinning, Wang Haoyu, Li Zhenmei, Wang Tian, Wang Jiangtao. The previous versions of the standards replaced by this standard are. ---GB/T 17712-1999. Speed printer and copier graphic symbol

1 Scope

This standard specifies the symbols for the operation marks, panel displays, and some other components used in printers and copiers. This standard is applicable to printers with a maximum format of less than A2 (including digital integrated printers) and copiers. The machine can be used as reference.

2 Normative references

The following documents are indispensable for the application of this document. For dated references, only dated versions apply to this article. Pieces. For undated references, the latest edition (including all amendments) applies to this document. GB/T 16902.1-2017 Graphical symbols for use in equipment - Part 1 . Design principles GB/T 16902.4-2017 Graphical symbol representation rules for equipment - Part 4. Graphical symbols used as a redraw guide for icons ISO 7000.2014 Graphical symbol registration symbol for devices (Graphicalsymbolsforuseonequipment- Registeredsymbols) IEC 60417DB..2016 Graphical symbols for equipment (Graphicalsymbolsforuseonequipment)

3 graphic symbol drawing rules

Graphic symbols are drawn in accordance with the requirements of GB/T 16902.1-2017 and GB/T 16902.4-2017. Note. On some devices, especially small devices, the graphic symbols given in this standard cannot be made due to some special manufacturing reasons or lack of space. In the case of use, or in the case where the graphic symbol has a text description, the graphic symbol used is allowed to change, but the changed graphic symbol and the present are required. The distinction between the graphical symbols shown in the standard is as small as possible and concise and practical, and clearly shows its original meaning.

4 Position and direction of graphic symbols

4.1 Position of graphic symbols Various graphic symbols should be placed in. a) on or near the controller to indicate control functions; b) an operator panel or display panel to indicate the operation or status of the machine; c) Some parts of the machine that are required. 4.2 Direction of graphic symbols Various graphic symbols should normally be oriented in the direction given by the graphical symbol table of this standard, if due to machine design reasons The use of different orientations will be based on the principle of not causing confusion.

5 Identification of graphic symbol marks

The graphical symbols specified in this standard can be identified by the serial number given in the first column of the graphical symbol table. E.g. ......
