GB/T 10446-2008 English PDF

US$189.00 · In stock
Delivery: <= 3 days. True-PDF full-copy in English will be manually translated and delivered via email.
GB/T 10446-2008: Plain bearings -- Ring type thrust washers -- Dimensions and tolerances
Status: Valid

GB/T 10446: Historical versions

Standard ID	USD	BUY PDF	Lead-Days	Standard Title (Description)	Status
GB/T 10446-2008	189	Add to Cart	3 days	Plain bearings -- Ring type thrust washers -- Dimensions and tolerances	Valid
GB/T 10446-1989	199	Add to Cart	2 days	Plain bearings--Ring type thrust washers made from strip--Dimensions and tolerances	Obsolete

Similar standards

GB/T 18329.1   GB/T 2889.6   GB/T 35087   GB/T 14910   GB/T 10447

Basic data

Standard ID: GB/T 10446-2008 (GB/T10446-2008)
Description (Translated English): Plain bearings -- Ring type thrust washers -- Dimensions and tolerances
Sector / Industry: National Standard (Recommended)
Classification of Chinese Standard: J12
Classification of International Standard: 21.100.10
Word Count Estimation: 8,883
Date of Issue: 2008-08-25
Date of Implementation: 2009-03-01
Older Standard (superseded by this standard): GB/T 10446-1989
Quoted Standard: GB/T 2889.1; GB/T 12613.1
Adopted Standard: ISO 6525-1983, MOD
Regulation (derived from): National Standard Approval Announcement 2008 No.14 (Total No.127)
Issuing agency(ies): General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China, Standardization Administration of the People's Republic of China
Summary: This standard specifies the sliding bearing thrust washers full circle dimensions and tolerances. This standard applies to manufactured using strip, inner diameter of the full circle thrust washer 6mm ~ 80mm of. This thrust washers usually with GB/T 12613. 1 provisions supporting the use of volume bushes. Note: This standard sizes listed are not considered to be used, but a standard size will reduce manufacturing costs.

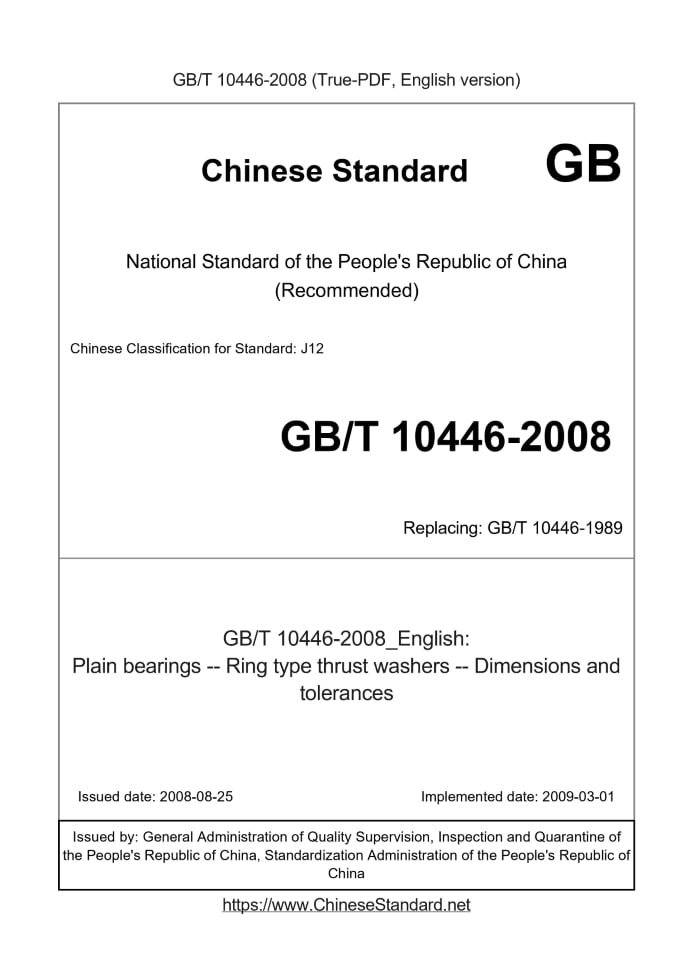

GB/T 10446-2008: Plain bearings -- Ring type thrust washers -- Dimensions and tolerances

---This is a DRAFT version for illustration, not a final translation. Full copy of true-PDF in English version (including equations, symbols, images, flow-chart, tables, and figures etc.) will be manually/carefully translated upon your order.
Plain bearings. Ring type thrust washers. Dimensions and tolerances ICS 21.100.10 J12 National Standards of People's Republic of China Replacing GB/T 10446-1989 Plain bearings - Ring dimensions and tolerances thrust washers (ISO 6525. 1983, Plainbearings-Ringtypethrustwashersmadefrom strip-Dimensionsandtolerances, MOD) Posted 2008-08-25 2009-03-01 implementation Administration of Quality Supervision, Inspection and Quarantine of People's Republic of China Standardization Administration of China released

Foreword

This revised standard adopts ISO 6525. 1983 "endless strip bearing thrust washer dimensions and tolerances", and ISO 6525 Main Differences are as follows. --- Standard different names; --- Increasing the normative references; --- Deleting the definition section, references to the national standards bearing the term; --- Chapter 4, section switch symbol expressed in tabular form; --- Chapter 5 and Chapter 6, Section change. The Revised Standard GB/T 10446-1989 "full circle bearing thrust washers dimensions and tolerances", and GB/T 10446-1989 Compared to major differences are. --- Increasing the normative references; --- Adjust the standard section. From the date of implementation of this standard, instead of the GB/T 10446-1989. The standard proposed by China Machinery Industry Federation. This standard by the National Standardization Technical Committee of the sliding bearings. This standard is drafted by. Productivity Promotion Center in the machine. Participated in the drafting of this standard. Shanghai Mechanical and Power Engineering Jiaotong University, Zhejiang Lin'an Oriental Bearing Co., Ltd. This standard by the National Standardization Technical Committee Secretariat slide bearing responsible for the interpretation. This standard replaces the standards previously issued as follows. --- GB/T 10446-1989. Plain bearings - Ring dimensions and tolerances thrust washers

1 Scope

This standard specifies the whole circle bearing thrust washer dimensions and tolerances. This standard applies to the manufacture of the strip with an inner diameter of the full circle of the thrust washer 6mm ~ 80mm of. This usually thrust washer GB/T 12613.1 specified volume supporting the use of bushes. NOTE. This standard does not think size will be listed in use, but the standard size will reduce the manufacturing cost.

2 Normative references

The following documents contain provisions which, through reference in this standard and become the standard terms. For dated references, subsequent Amendments (not including errata content) or revisions do not apply to this standard, however, encourage the parties to the agreement are based on research Whether the latest versions of these documents. For undated reference documents, the latest versions apply to this standard. GB/T 2889.1 bearing terms, definitions and classification - Part 1. Design, bearing materials and their properties (GB/T 2889.1- 2008, ISO 4378-1.1997, IDT) GB/T 12613.1 sliding bearings - Wrapped bushes - Part 1. Size (GB/T 12613.1-2002, ISO 3547-1, IDT)

3 Terms and Definitions

Terms and definitions GB/T 2889.1 stipulated apply to this standard.

4 Symbol

Symbols Table 1 and Figure 1. Table 1 Symbols and units Symbol Definition Units D thrust washer OD mm C positioning hole center position circle diameter mm F positioning hole diameter mm DR bearing seat recess diameter mm Type 4.1 Full circle thrust washer of the general type shown in Figure 1. ......
